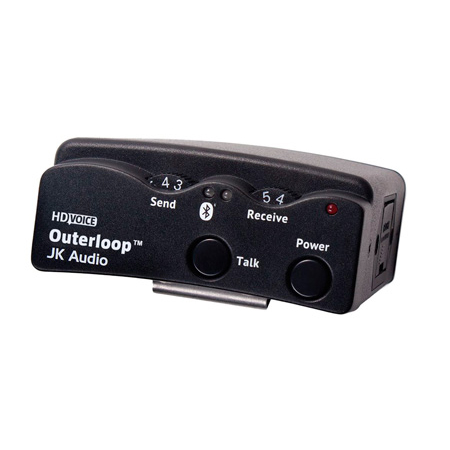

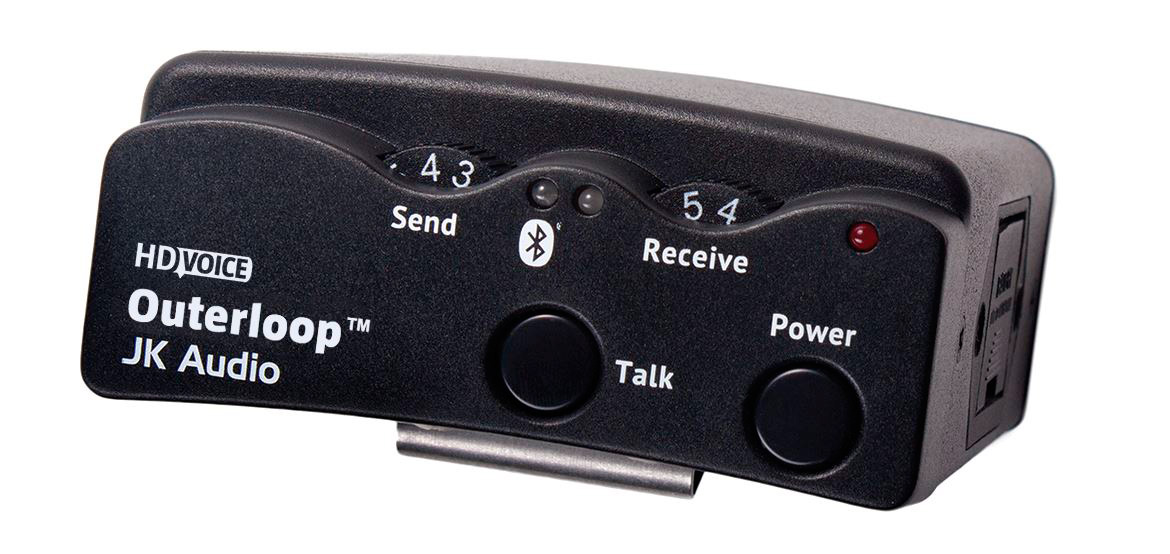

JK Audio OTL-F Wireless Belt Pack - Female XLR Headset Jacks

ITEM #: JK-OTL-F MFG #: OTL-F

  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
free ship

List Price:

$420.00

Our Price:

$399.00

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    OTL-F - Overview

    In the Loop, Out of Bounds.
    Outerloop functions as a wireless link to your intercom system. This universal belt pack provides connections for your existing 4-pin or 5-pin intercom headset, routing audio through your mobile device over a Bluetooth wireless connection. Use your cell phone to call into your intercom phone bridge or station phone coupler for a global wireless link.

    Universality.

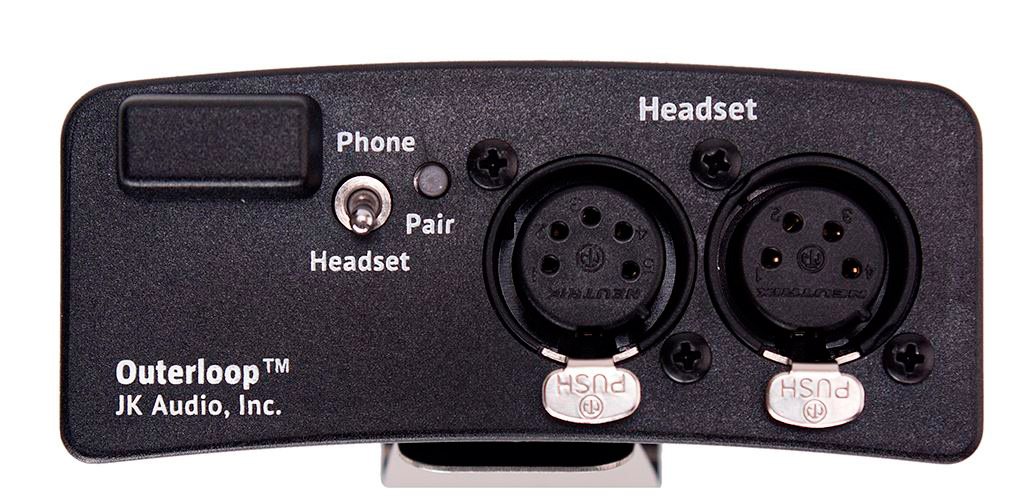

    Adapting to the mixed-up intercom world, model OTL-F features both 4-pin and 5-pin Female XLR headset jacks, while model OTL-M features both 4-pin and 5-pin Male XLR headset jacks. Easy-to-use send and receive level controls, a push-on, push-off Talk button, as well as a recessed sidetone level control. All the comforts of a standard belt pack whether you are around the corner or around the world.

    Outerloop also features a switch that selects between pairing to a phone or to a headset. In Phone mode, Outerloop pairs to your cell phone, notepad, or computer just like any other Bluetooth headset. In Headset mode, you can pair to another Outerloop or to a standard Bluetooth headset, providing a short range secure wireless point-to-point intercom. Outerloop to Outerloop connections default to HD Voice (50 Hz to 7 kHz) bandwidth. Many new Bluetooth wireless cell phones and headsets also provide HD Voice bandwidth.

    • Features:

      • HD Voice (Wide-Band Speech)
      • Bluetooth Wireless Technology
      • Uses Standard Intercom Headsets
      • 4-Pin and 5-Pin Male or Female Headset Jacks
      • Send and Receive Volume Controls
      • PTT Button
      • > 10 hours On One 9 Volt Battery Backup

    • Specifications:

      • Model Outerloop-F
      • Headset: 4-pin Female XLR, 5-pin Female XLR
      • Model Outerloop-M
      • Headset: 4-pin Male XLR, 5-pin Male XLR
      • Headset Microphone
      • Impedance: 50-200 ohms
      • Headset Earpiece
      • Load Impedance: 50-600 ohms
      • Power: >50 mW into 150 ohms
      • Bluetooth Wireless Technology
      • Standard: Bluetooth 3.0
      • Profile: Hands Free (HF)
      • Distance: 40 feet ( 12 meters )
      • Frequency Response:
      • 300 Hz - 3.4 kHz
      • 50 Hz - 7 kHz with HD Voice
      • Power: 9 VDC Battery
      • Size: 4.7” x 3.75” x 1.65” (12 x 9.5 x 4.2 cm))
      • Weight: 10 ounces (275 grams)

    • GTIN:

      0814170010772
