AUD-DTE-BT - Overview

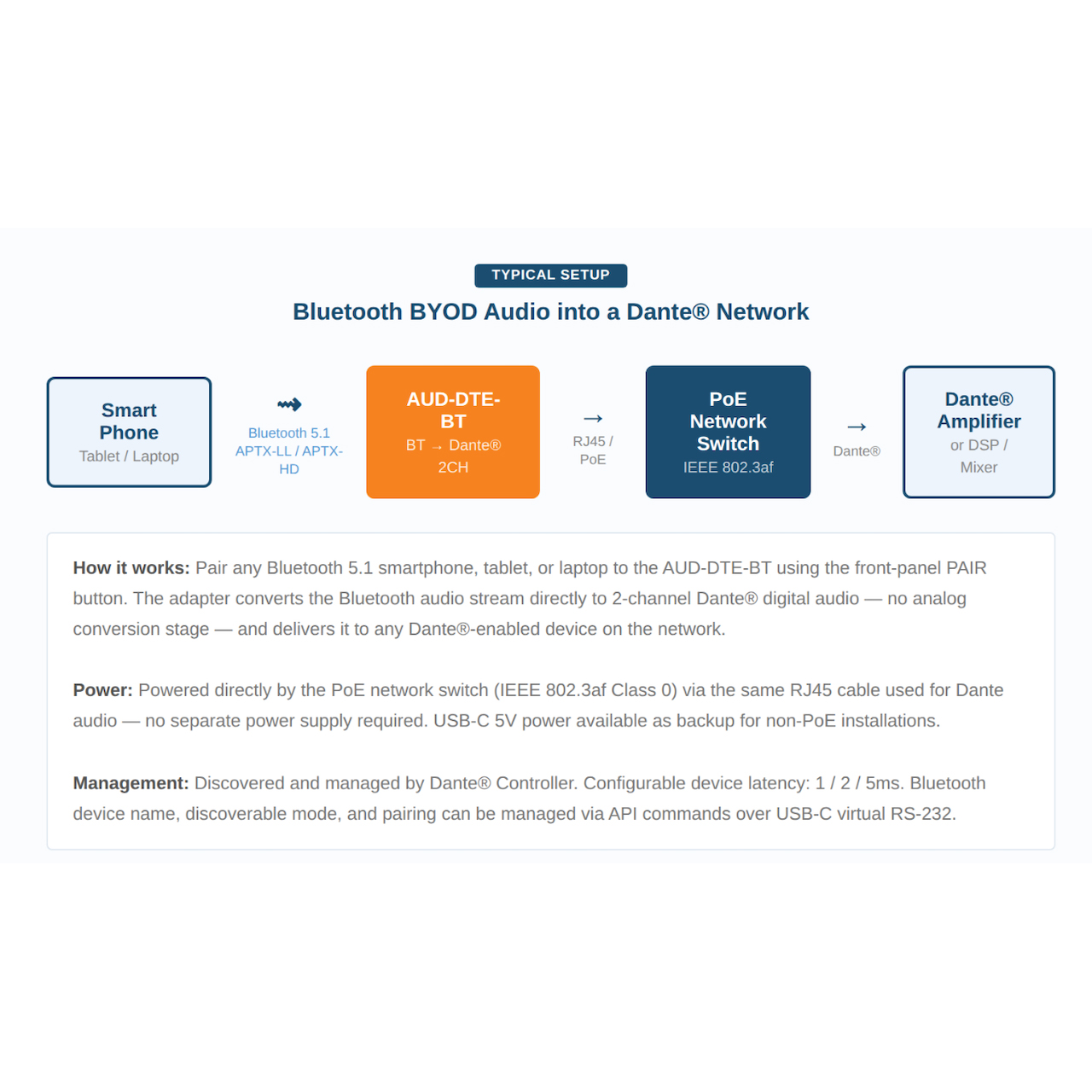

Dante Networks are Wired by Design - but the Presenters, Performers, and Guests in Your Spaces Aren't.

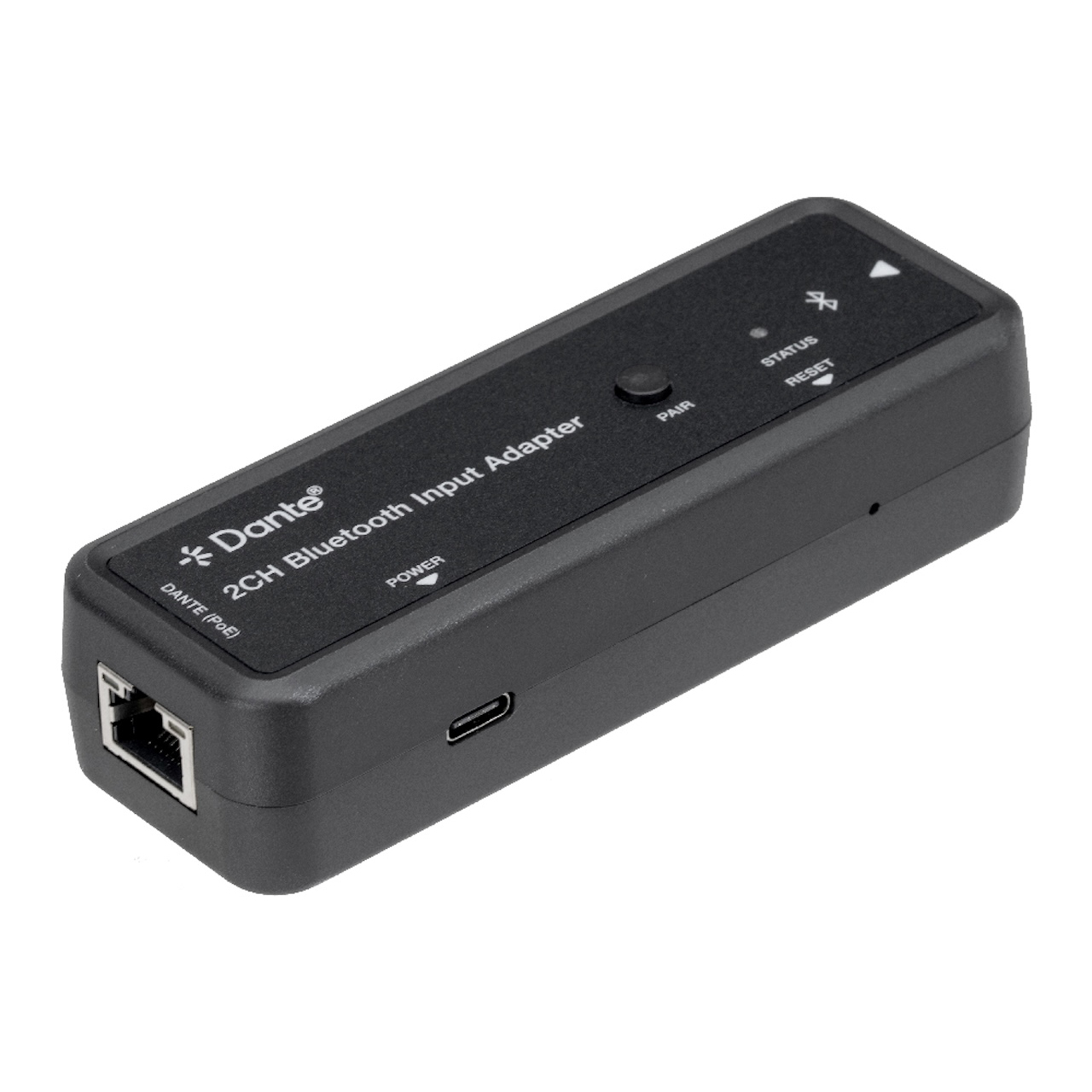

The KanexPro AUD-DTE-BT bridges that gap without compromise. Bluetooth 5.1 audio from any smartphone, tablet, or laptop streams directly onto your Dante network as clean 2-channel PCM digital audio, with no analog conversion stage, no extra adapters, and no signal degradation between source and destination. The AUD-DTE-BT adds APTX-LL for near-zero-latency audio performance and APTX-HD for high-resolution wireless streaming - making it the ideal node for collaboration spaces, houses of worship, hospitality venues, and live event rigs alike.

Built on the Dante Ultimo 2x2 platform, the AUD-DTE-BT is a fully managed Dante device - discoverable and configurable via Dante Controller with selectable latency of 1, 2, or 5ms. A single RJ45 connection handles both Dante audio output and PoE power from any standard 802.3af switch, with USB-C as a backup power option for installations without PoE infrastructure. Bluetooth pairing is handled by a front-panel PAIR button, with a STATUS LED for instant connection feedback. Discoverable mode is configurable via API command to lock the adapter to a single trusted device - eliminating unwanted pairing attempts in multi-room or multi-zone deployments.

  • Features:

    • Converts Bluetooth 5.1 audio directly to Dante 2-channel digital audio - no analog conversion stage, no signal degradation end-to-end
    • Full high-quality codec support: SBC, AAC, APTX, APTX-LL (near-zero latency), and APTX-HD (high-resolution) - broader codec coverage than standard Bluetooth-to-Dante adapters
    • Bluetooth input accepts PCM 2CH audio at 44.1kHz - 192kHz/16-24-bit - Dante output delivers PCM 2CH at 48kHz/24-bit
    • Built on Dante Ultimo 2x2 platform - fully managed via Dante Controller with configurable device latency of 1ms, 2ms, or 5ms
    • PoE IEEE 802.3af Class 0 powered via RJ45 - USB-C 5V/500mA backup power for non-PoE installations

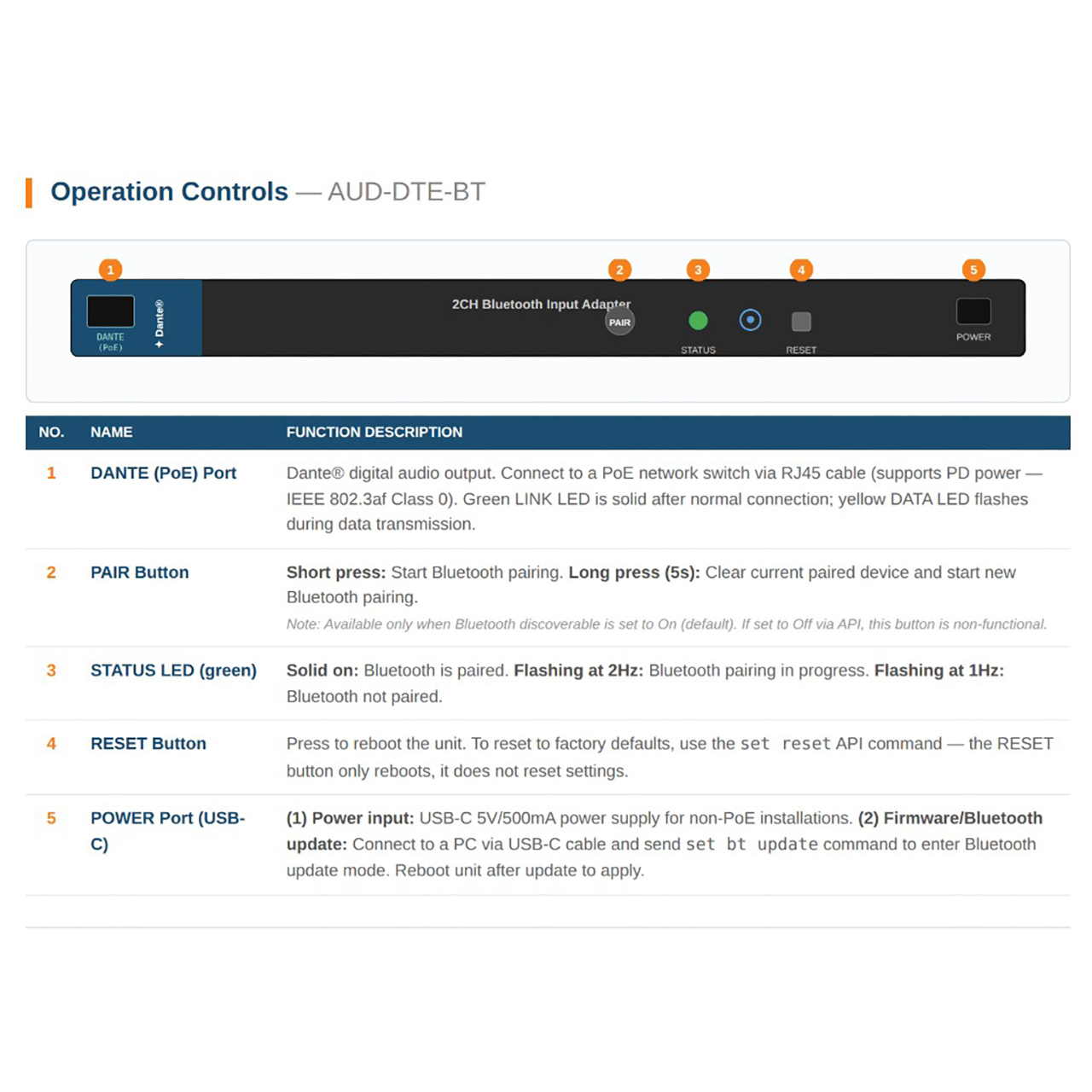

    • Front-panel PAIR button with STATUS LED - short press to pair, long press (5s) to clear and re-pair a new source device
    • Bluetooth discoverable mode configurable via API (USB-C virtual RS-232) - lock adapter to a single trusted device for multi-room deployments
    • Compact plastic enclosure - installs anywhere with included hook & loop mounting

  • Specifications:

      Audio
    • Bluetooth Input: PCM 2CH, 44.1kHz - 192kHz, 16/24-bit
    • Dante Output: PCM 2CH, 48kHz, 16/24-bit
    • Bluetooth Version: V5.1
    • Bluetooth Codecs: SBC/AAC/APTX/APTX-LL/APTX-HD
    • Audio Latency: 1ms/2ms/5ms configurable via Dante Controller
    • Frequency Response: 20Hz - 20kHz (±0dB)
    • Signal-to-Noise Ratio: >100dB @ 2Vrms, 1kHz A-weighted
    • Dynamic Range: >100dB @ 2Vrms, 1kHz A-weighted
    • THD+N: <0.01% @ 0dBV, 1kHz

      Network
    • Control: Dante Controller
    • Network Bandwidth: 100Mbps
    • Transmission Distance: 328ft (100m)(CAT6/6A/7)

      Connection
    • Input:
      - 1x Bluetooth (wireless)
      - 1x USB-C Power (12-pin female)
    • Output: 1x Dante RJ45 (PoE)

      Power
    • Power Supply: USB-C 5V/500mA or PoE IEEE802.3af Class 0
    • Power Consumption: 0.65W (Max)

      Mechanical
    • Housing: Black Plastic Enclosure
    • Dimensions: 4.5" x 1.6" x 1.1" (115mm x 40mm x 28mm)
    • Weight: 0.2lbs (93g)

  • Item Includes:

    • 1x Dante 2CH Bluetooth Input Adapter
    • 2x Hook & Loop
    • 1x User Manual

  • Warranty:

    • 1 Year Limited Warranty
