KanexPro AUD-DTE-DCODE Dante 2-Channel Analog Audio Decoder with 3-Level Output Gain Switch - PoE & DC Powered

ITEM #: KAN-AUD-DTEDCODE MFG #: AUD-DTE-DCODE

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
KanexPro
Free Shipping with $49 Minimum Order

Our Price:

$299.95

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Notify when in stock
Report Lower PriceLarge Quantity Quote

AUD-DTE-DCODE - Overview

Receive high-quality audio over a Dante network and output it as analog audio using a compact, PoE-powered decoder

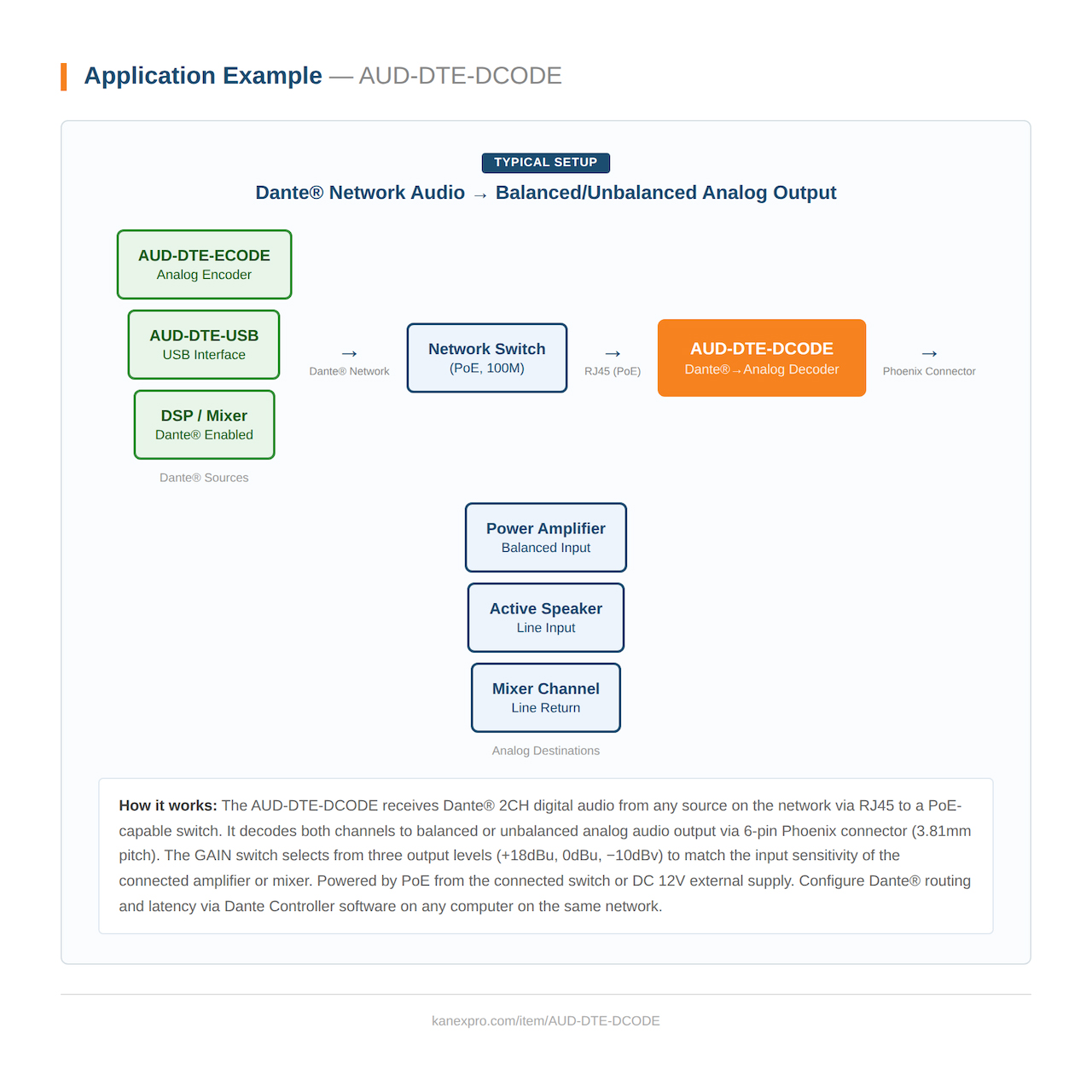

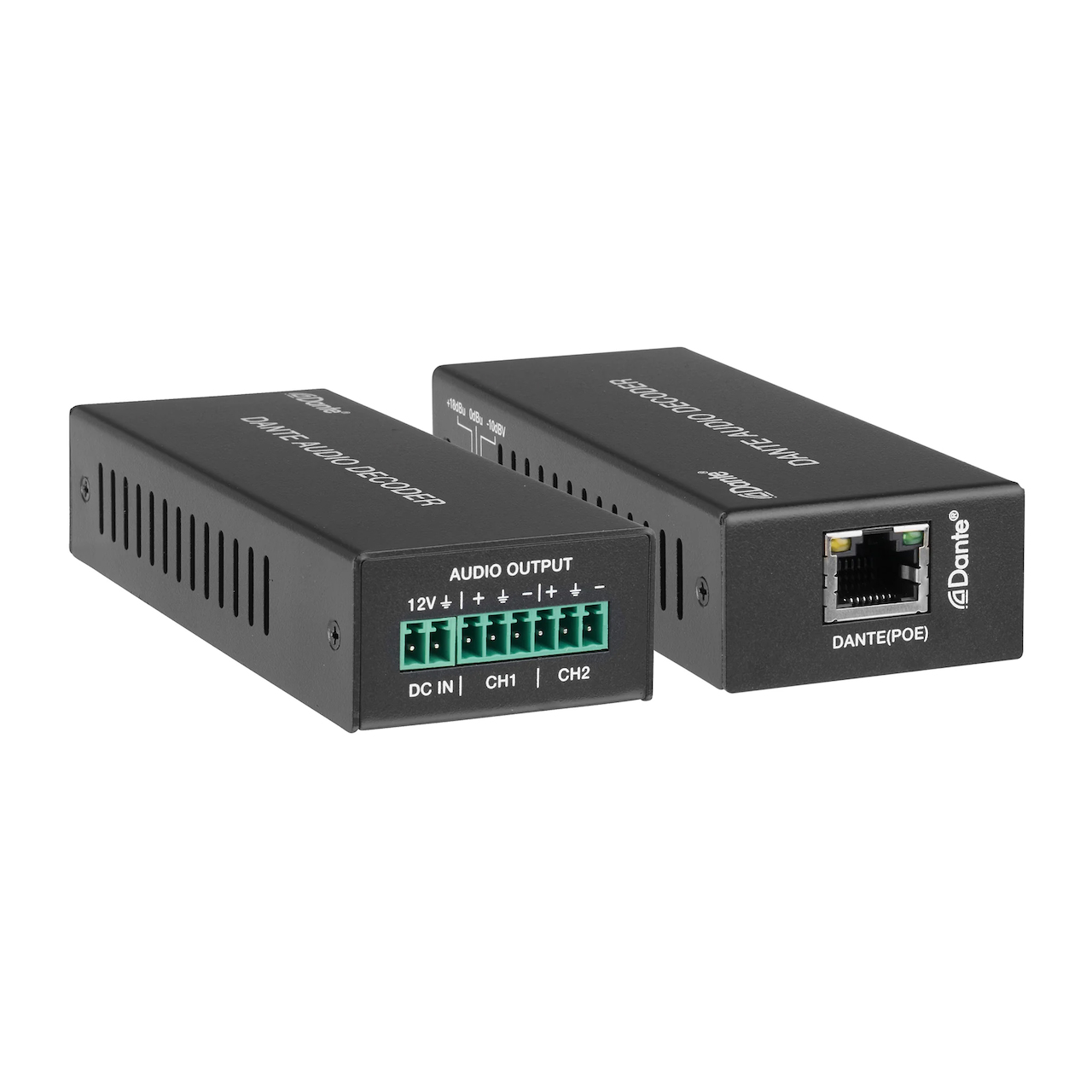

The KanexPro AUD-DTE-DCODE is a Dante®-enabled 2-channel analog audio decoder built on the Dante Ultimo solution. It receives Dante® digital audio from the network and outputs 2-channel balanced or unbalanced analog audio via a 6-pin Phoenix connector, delivering clean line-level signal directly to amplifiers, powered speakers, and mixers in installed AV environments.

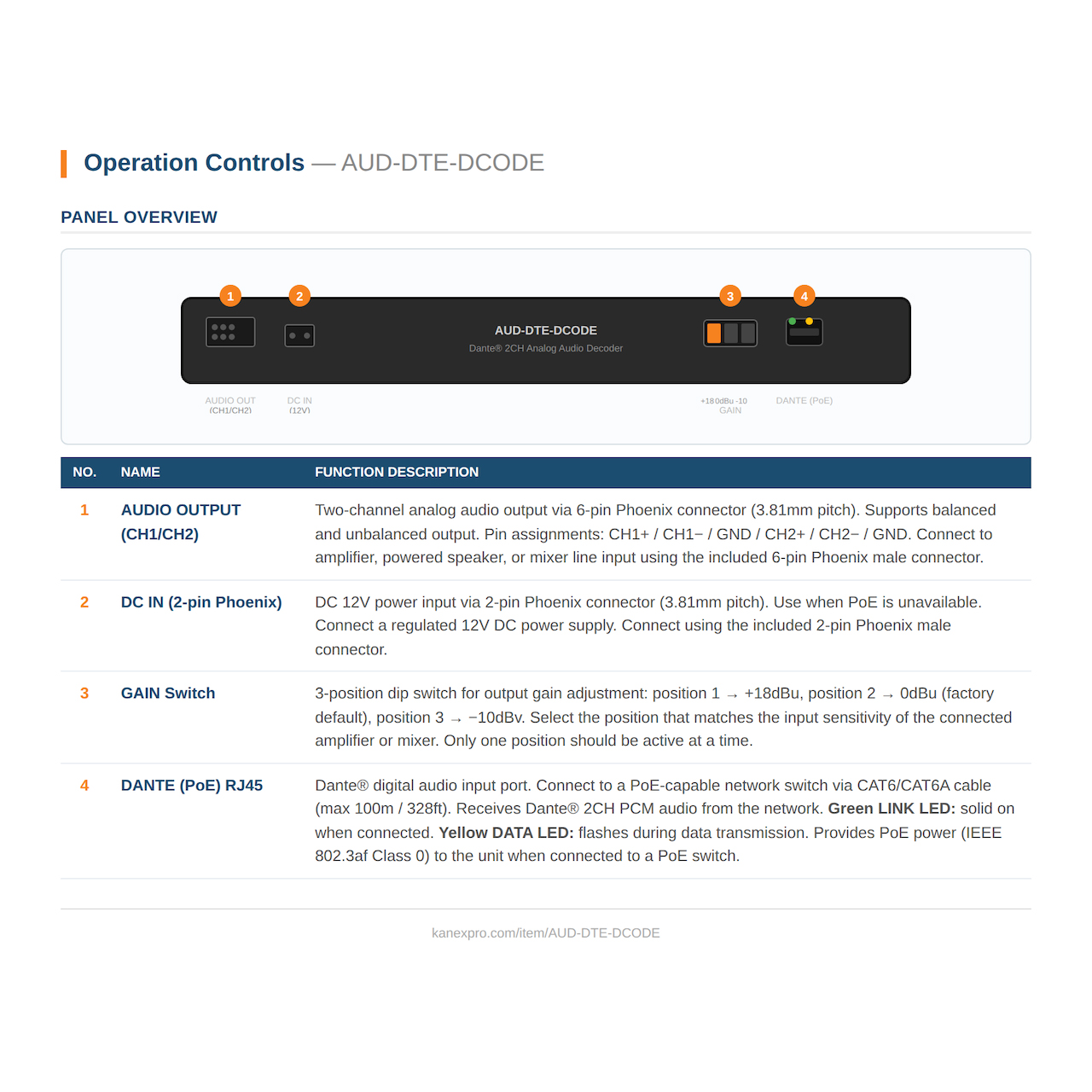

A 3-position GAIN switch (+18dBu, 0dBu default, -10dBv) matches output level to destination equipment. Powered by PoE or DC 12V via Phoenix connector, it installs at any point in the audio signal chain without additional power supplies.

  • Features:

    • Converts Dante® 2-channel digital audio to balanced/unbalanced analog output via 6-pin Phoenix connector
    • 3-Level Output Gain Switch: +18dBu, 0dBu (default), -10dBv
    • Dante® Audio Sampling: 44.1kHz, 48kHz, 96kHz @ 24-bit; AES67 RTP compatible
    • Configurable Dante® device latency via Dante® Controller software
    • Installation-grade Phoenix connector output - screw-terminal field wiring, no pigtails
    • Dual power: PoE IEEE 802.3af Class 0 or DC 12V via 2-pin Phoenix connector
    • Metal enclosure, compact form factor for concealed or rack-room install


  • Specifications:

    • Input: 1x Dante® RJ45 (PoE), PCM 2CH 44.1kHz/48kHz/96kHz @ 24-bit
    • Output: 1x 6-pin Phoenix 3.81mm (CH1+/-/GND, CH2+/-/GND) balanced/unbalanced
    • Output Gain:
      - +18dBu/0dBu (default)
      - -10dBv (3-position GAIN switch)
    • Power Input: 1x 2-pin Phoenix 3.81mm (DC 12V)
    • Network: 100Mbps/Up to 328ft (100m)(CAT6/CAT6A)
    • Control: Dante® Controller/AES67 RTP compatible
    • Power:
      - PoE IEEE 802.3af Class 0
      - DC 12V (2-pin Phoenix)/1.32W max
    • Dimensions: 4.72" x 1.85" x 1.02" (120mm x 47mm x 26mm)/Metal, Black
    • Weight: 0.41lbs
    • Temperature:
      - Operating: 32°F - 104°F (0°C - 40°C)
      - Storage: -4°F - 140°F (-20°C - 60°C)


  • Item Includes:

    • 1x Dante 2CH Analog Audio Decoder
    • 1x 6-pin Phoenix Male Connector (3.81mm pitch)
    • 1x 2-pin Phoenix Male Connector (3.81mm pitch)
    • 1x User Manual


  • Warranty:

    • 2 Year Warranty
