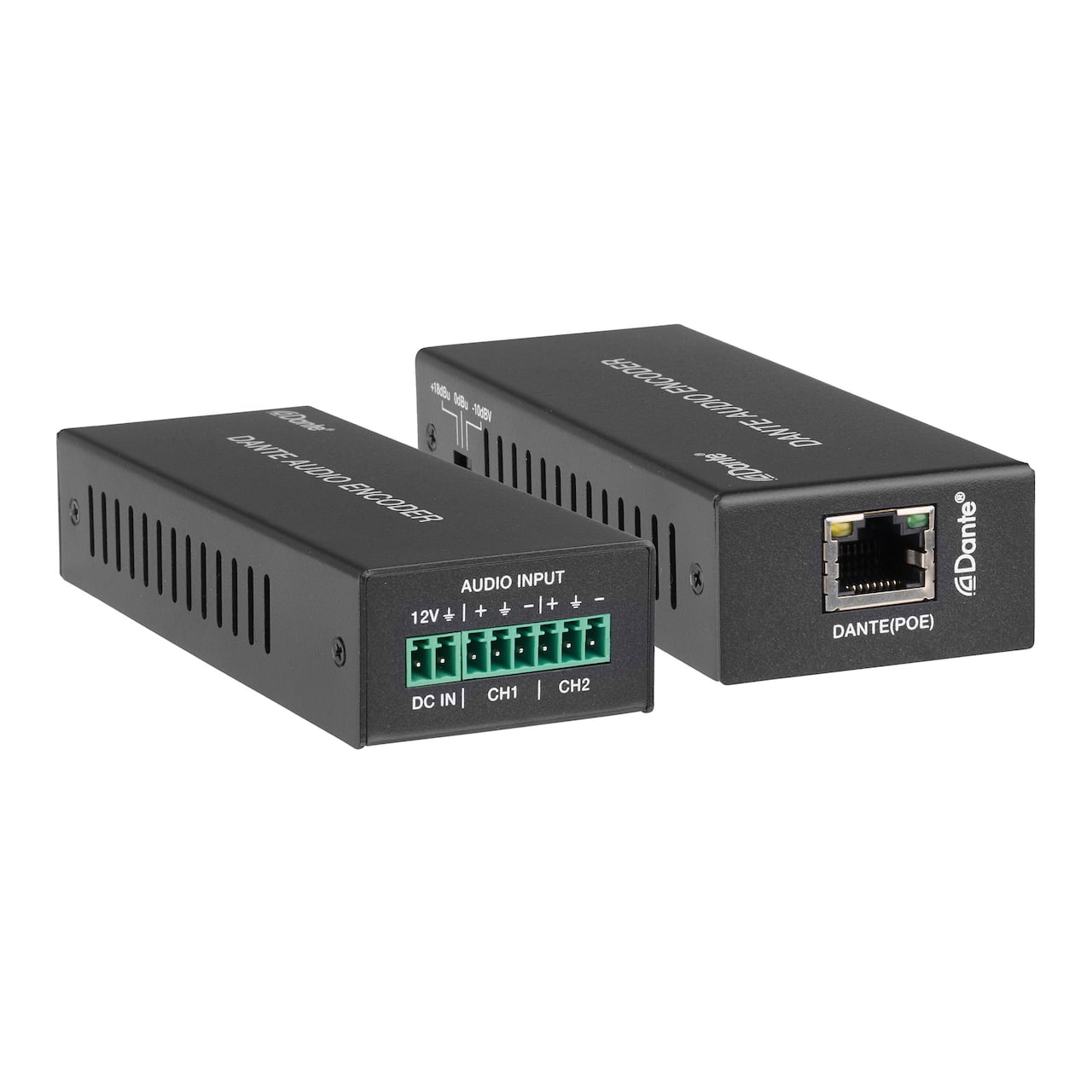

KanexPro AUD-DTE-ECODE Dante Powered 2-Channel Line In Audio Input Encoder with 3-Level Gain Switch - PoE

ITEM #: KAN-AUD-DTEECODE MFG #: AUD-DTEECODE

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
KanexPro
Free Shipping with $49 Minimum Order

Our Price:

$299.95

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Notify when in stock
Report Lower PriceLarge Quantity Quote

AUD-DTEECODE - Overview

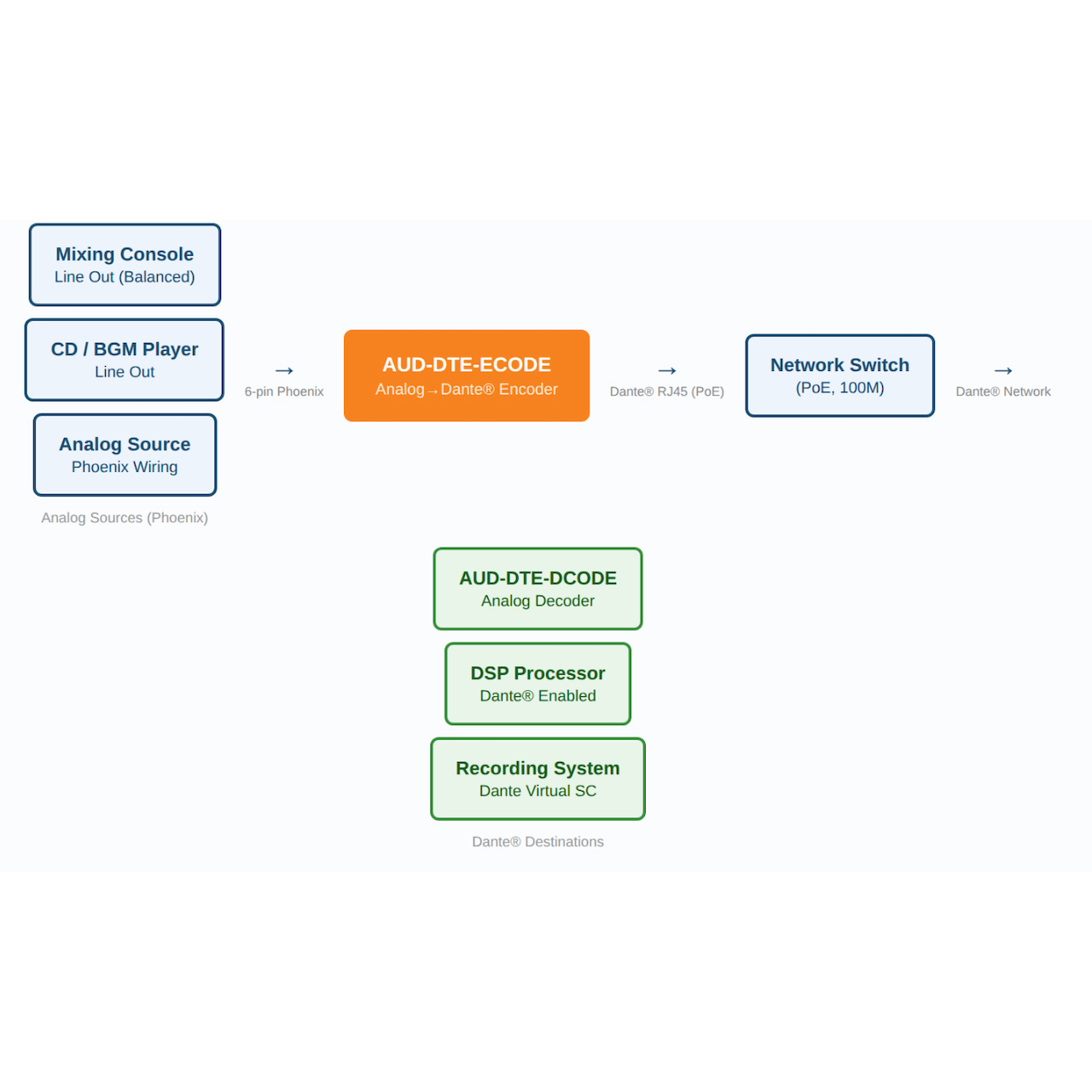

The KanexPro AUD-DTE-ECODE is a Dante-enabled 2-channel analog audio encoder built on the Dante Ultimo solution. It accepts balanced or unbalanced analog audio via a 6-pin Phoenix connector and encodes it as Dante 2CH digital audio for transmission over a standard Ethernet network.

A 3-level GAIN switch (+18dBu, 0dBu default, -10dBv) matches input sensitivity to the connected source. Powered by PoE or DC 12V, it is designed for permanent installation in commercial AV environments where screw-terminal Phoenix wiring is standard practice.

Applications:
• Corporate AV/Conference
• House of Worship
• Installed Sound/Venues
• Broadcast/Production
• Education/Lecture Hall
• Hospitality/Zoned Audio

  • Features:

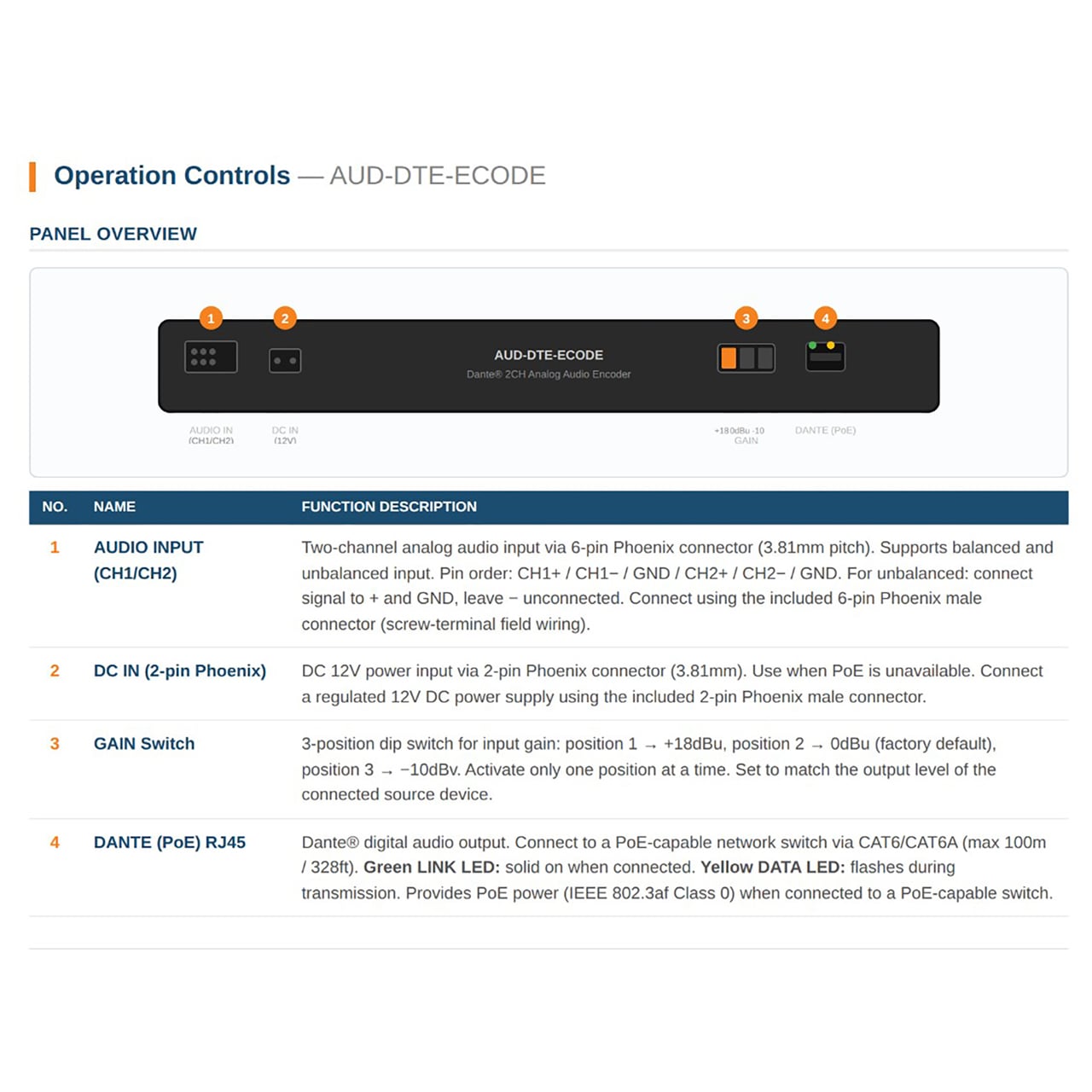

    • Converts 2-channel balanced/unbalanced analog audio to Dante 2CH digital audio via 6-pin Phoenix connector
    • 3-level input gain adjustment: +18dBu, 0dBu (default), -10dBv via GAIN dip switch
    • Dante audio sampling: 44.1kHz, 48kHz, 96kHz @ 24-bit; AES67 RTP compatible
    • Configurable Dante device latency via Dante Controller software
    • Installation-grade Phoenix connector input - screw-terminal field wiring, no pigtails
    • Dual power: PoE IEEE 802.3af Class 0 or DC 12V via 2-pin Phoenix connector
    • Compact Metal Enclosure - Companion form factor to AUD-DTE-DCODE


  • Specifications:

    • Output: 1x Dante RJ45 (PoE), PCM 2CH 44.1kHz/48kHz/96kHz @ 24-bit
    • Input Gain: +18dBu/0dBu (default)/-10dBv (3-position GAIN switch)
    • Power Input: 1x 2-pin Phoenix 3.81mm (DC 12V)
    • Network: 100Mbps | Up to 100m (CAT6/CAT6A)
    • Control: Dante Controller | AES67 RTP compatible
    • Power: PoE IEEE 802.3af Class 0 | DC 12V (2-pin Phoenix) | 1.2W max
    • Dimensions: 4.72" x 1.85" x 1.02" (120mm x 47mm x 26mm) | Metal, Black
    • Weight: 0.41lbs
    • Temperature:
      - Operating: 32°F - 104°F (0°C - 40°C)
      - Storage: -4°F - 140°F (-20°C - 60°C)


  • Item Includes:

    • 1x Dante 2CH Analog Audio Encoder
    • 1x 6-pin Phoenix Male Connector (3.81mm pitch)
    • 1x 2-pin Phoenix Male Connector (3.81mm pitch)
    • 1x User Manual
