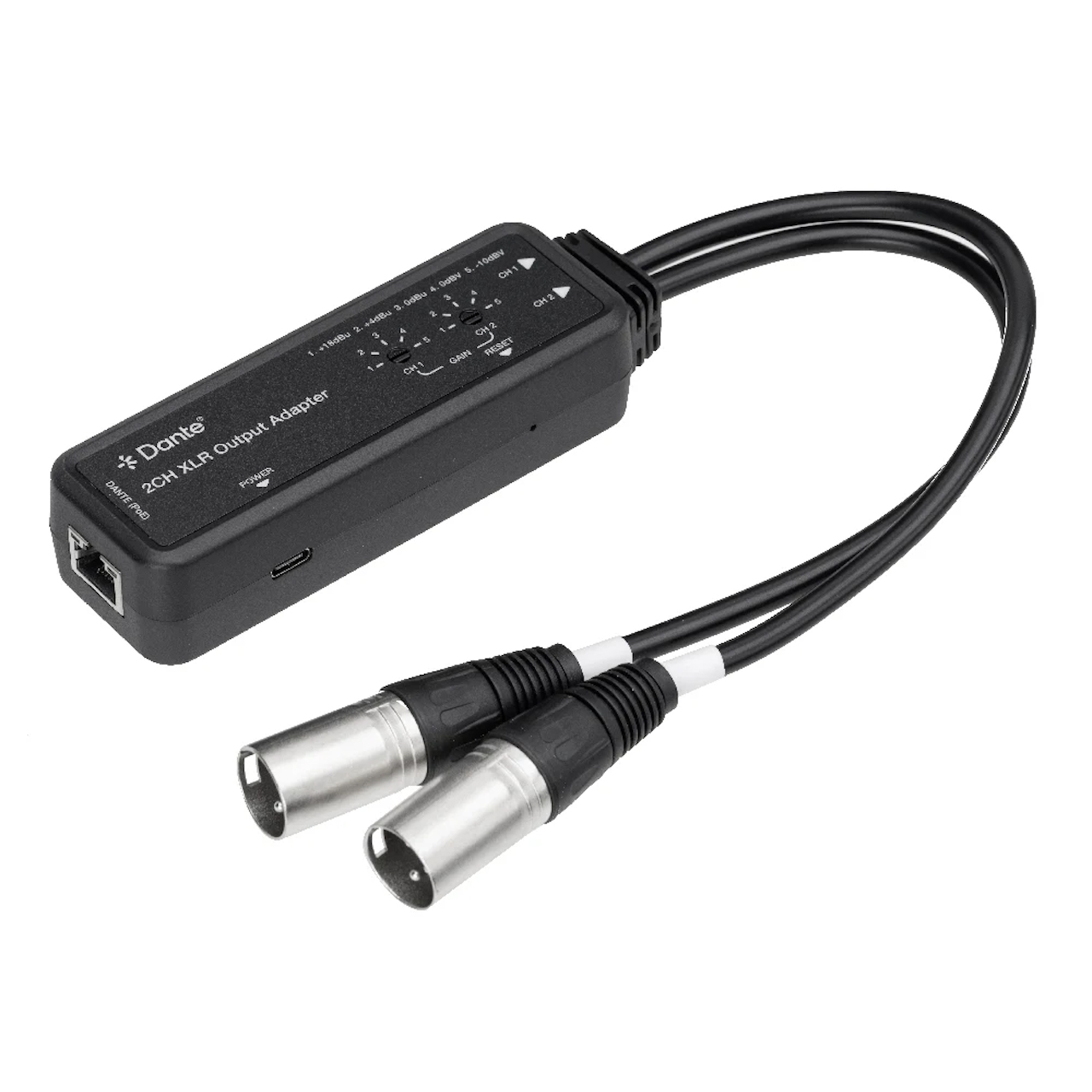

KanexPro AUD-DTE-XLROUT Dante 2-Channel XLR Output Adapter - PoE & USB-C Powered

AUD-DTE-XLROUT - Overview

Convert Professional Dante® Digital Audio to XLR Analog Audio

• Features:

  • Converts Dante® 2-channel digital audio to 2-channel balanced/unbalanced XLR analog output
  • Five Output Gain Levels: +18dBu, +4dBu, 0dBu, 0dBv, -10dBv - per-channel adjustment
  • Dante® audio sampling up to 96kHz at 24-bit; AES67 compatible
  • Configurable Dante® Device Latency: 1ms, 2ms, or 5ms via Dante® Controller
  • Integrated 11.8" (30cm) XLR male pigtail leads (CH1 + CH2) - direct connection to amp/console
  • Dual Power: PoE IEEE 802.3af Class 0 or USB-C 5V/500mA
  • High-Performance Audio: SNR >100dB, THD+N <0.01%, 20Hz - 20kHz ±0.5dB


• Specifications:

  • Inputs:
    - 1x Dante® RJ45 (PoE)
    - 1x USB-C (power only)
  • Output: 2x XLR OUT (balanced/unbalanced, 11.8" (30cm) male pigtail); max +18dBu balanced
  • Output Gain: +18dBu/+4dBu/0dBu/0dBv/-10dBv (5-level, per channel)
  • Output Impedance: 600Ω balanced/300Ω unbalanced
  • Latency: 1ms/2ms/5ms configurable
  • SNR/THD+N: >100dB/<0.01% @ +4dBu, 1kHz
  • Frequency Response: 20Hz - 20kHz ±0.5dB
  • Transmission: Up to 328ft (100m) (CAT6/6A/7)
  • Power: USB-C 5V/500mA or PoE IEEE 802.3af Class 0/1.25W max
  • Dimensions: 1.10" x 4.53" x 1.57" (115mm x 40mm x 28mm)
  • Weight: 0.38lbs (173g)
  • Temperature:
    - Operating: 32°F - 104°F (0°C - 40°C)
    - Storage: -4°F - 140°F (-20°C - 60°C)


• Item Includes:

  • 1x Dante 2CH XLR Output Adapter
  • 2x Hook & Loop Fasteners
  • 1x User Manual


• Warranty:

  • 2 Year Warranty
