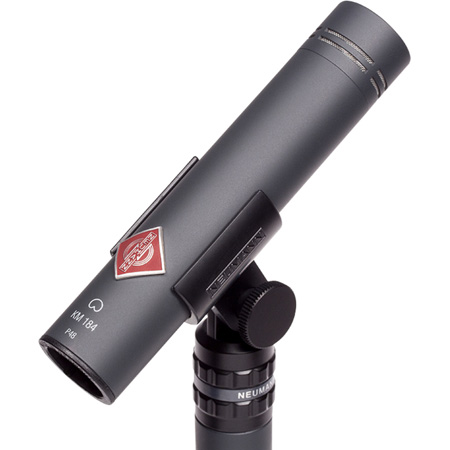

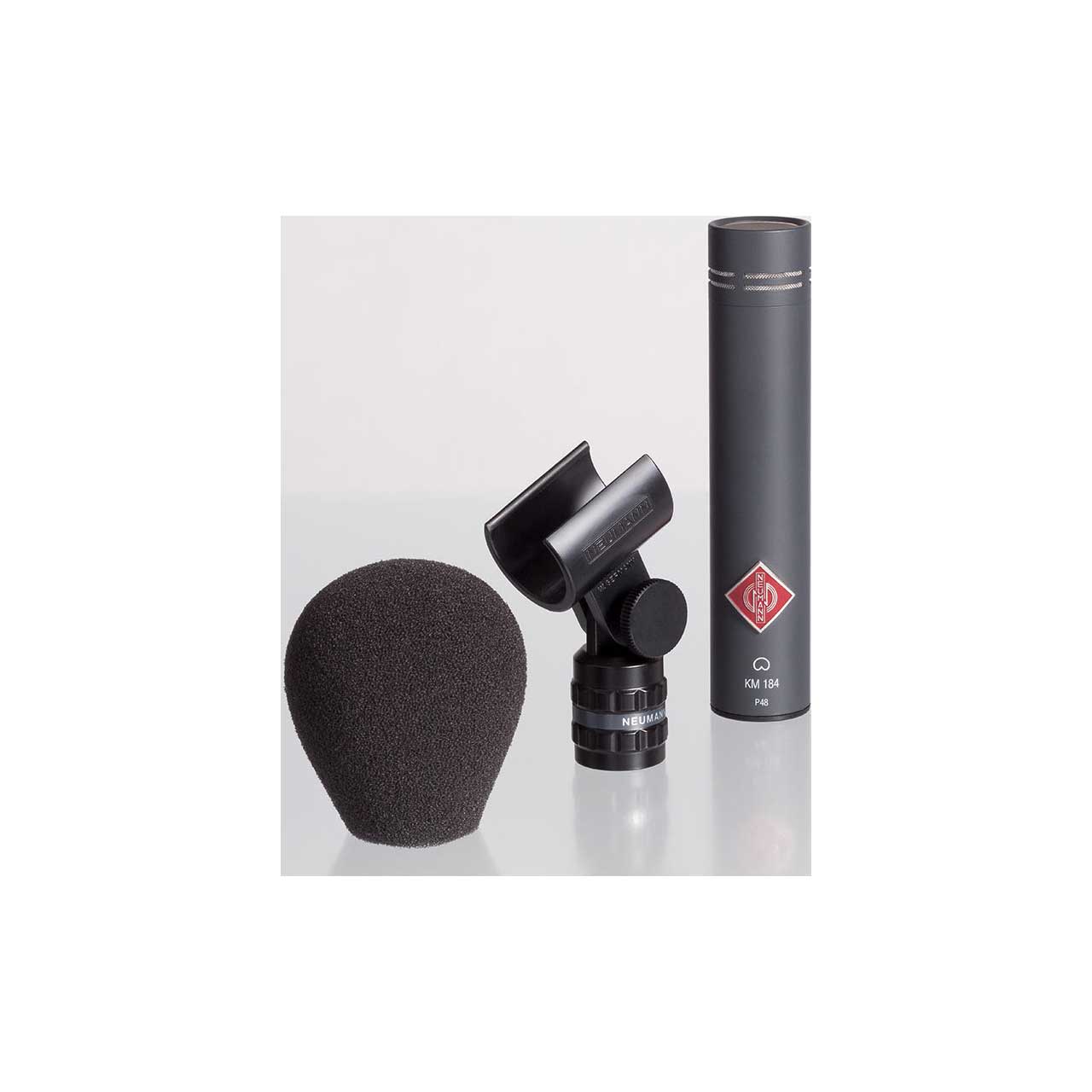

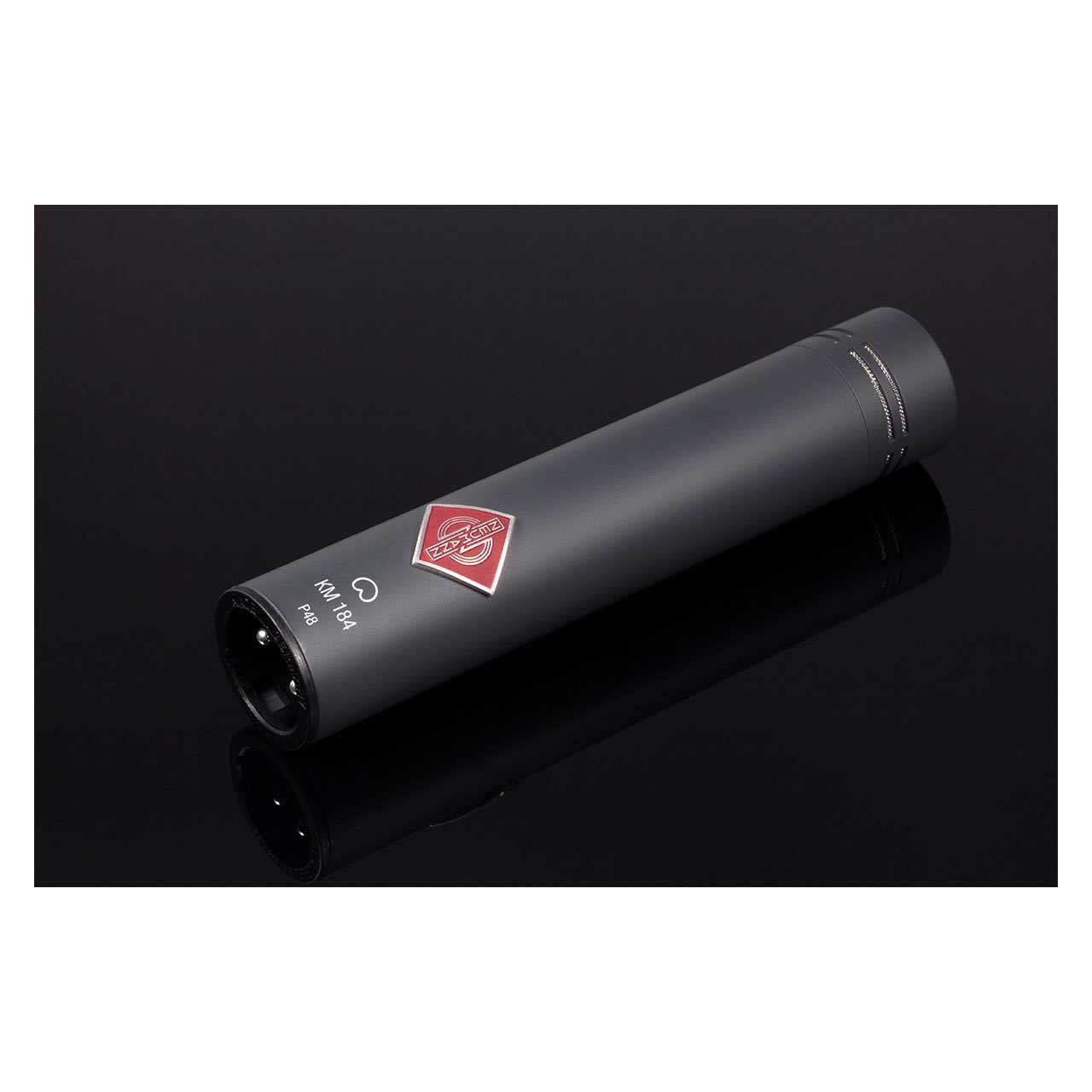

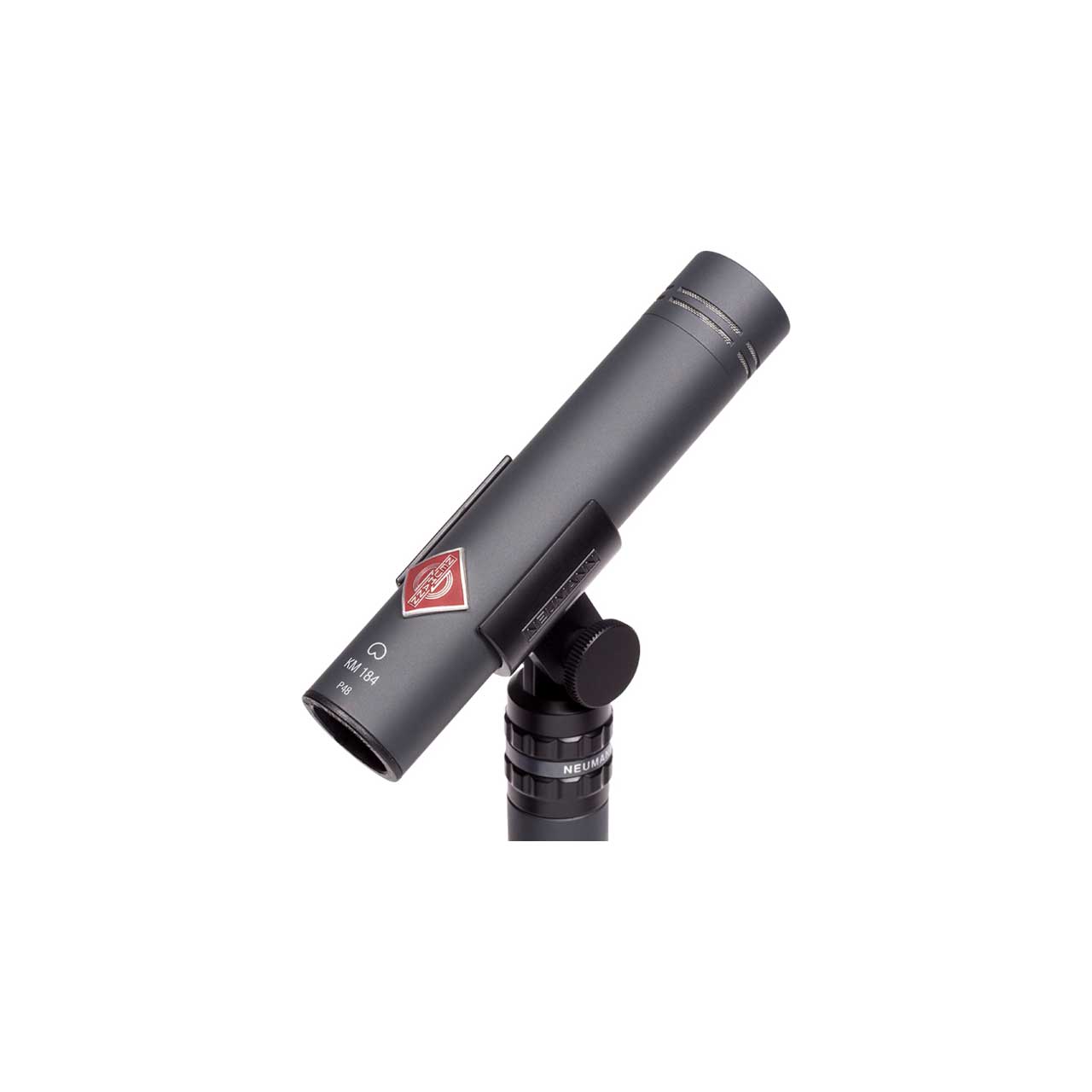

Neumann KM-184MT Cardioid Mic with K 40 Capsule - Matte Black

KM-184MT - Overview

• Features:

  • Versatile small membrane microphone primarily for instrumental recordings
  • Slight treble lift for fresh and vivid sound
  • Precise cardioid directionality with excellent rejection of rearward sound
  • Uncolored reproduction of neighboring sound sources
  • Tight production tolerances - perfect for stereo recordings


• Specifications:

  • Acoustical operating principle: Pressure gradient transducer
  • Directional pattern: Cardioid
  • Frequency range: 20 Hz - 20 kHz
  • Sensitivity at 1 kHz into 1 kohm: 15 mV/Pa
  • Rated impedance: 50 ohms
  • Rated load impedance: 1 kohms
  • Equivalent noise level, CCIR1): 22 dB
  • Equivalent noise level, A-weighted1): 13 dB-A
  • Signal-to-noise ratio, CCIR1) (rel. 94 dB SPL): 72 dB
  • Signal-to-noise ratio, A-weighted1) (rel. 94 dB SPL): 81 dB
  • Maximum SPL for THD 0.5%2): 138 dB
  • Maximum output voltage: 10 dBu
  • Supply voltage (P48, IEC 61938): 48 V ± 4 V
  • Current consumption (P48, IEC 61938): 3.2 mA
  • Matching connectors: XLR 3F
  • Weight approx.: 80 g
  • Diameter: 22 mm
  • Length: 107 mm


• Item Includes:

  • 1x Neumann KM-184MT Cardioid Mic with K 40 Capsule - Matte Black


• GTIN:

  0615104083899
