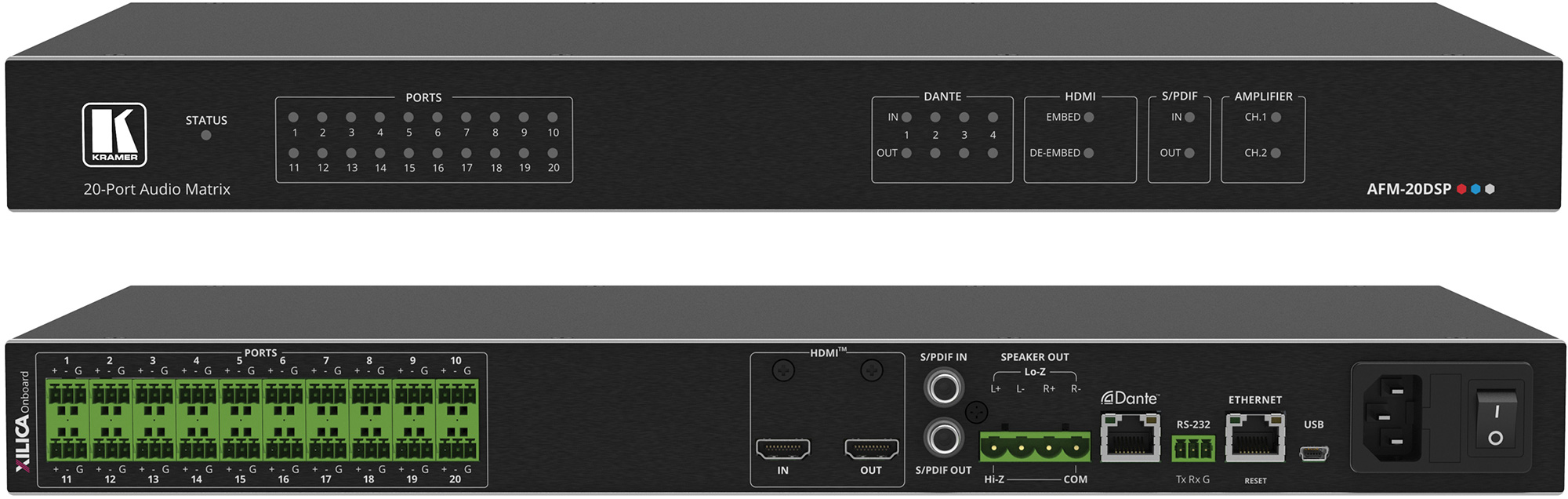

Kramer AFM-20DSP 20-Port Audio Matrix with DSP and Interchangeable Inputs & Outputs

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    Kramer AFM-20DSP 20-Port Audio Matrix with DSP and Interchangeable Inputs & Outputs

    Manufacturer: Kramer

    Item #: KR-AFM-20DSP   •   MFG #: AFM-20DSP



    List Price:$2,895.00
    Our Price:$2,316.00

    free ship


    Availability: Preorder
    i
    Item is not yet shipping from the manufacturer. We enjoy great relationships with our suppliers/manufacturers and take pride in our quick turnaround. Place your order today to ensure you will be one of the first to receive this item once it begins shipping from the manufacturer.




      Share!

      California Residents:
      8pt-triangleWARNING:
      Cancer and Reproductive Harm - www.P65Warnings.ca.gov





      Kramer AFM-20DSP is an advanced, professional audio matrix switcher with 20 analog ports that can be configured as inputs or outputs according to preset I/O configurations. AFM-20DSP includes multi-channel DSP, built-in 2x60W @8Ω and 1x120W @70V/100V power amplifier, 4x4 Dante interface, HDMI embedding and de-embedding, and S/PDIF. The comprehensive and user-friendly graphic interface makes configuring every detail of your audio system intuitive and easy.


      • Features

        • Multi-Channel DSP
        • Intuitive and Comprehensive Configuration and Control
        • Built-in Power Amp - 2x60W @ 8Ω and 1x120W @ 70V / 100V
        • HDMI audio embedding and de-embedding
        • 4x4 Dante interface

      • Specifications

        • I/O: 20 balanced Mono Audio: On 3-pin terminal blocks
        • Inputs:
          1 HDMI: On a female HDMI connector
          1 S/PDIF: On an RCA connector
        • Outputs:
          1 HDMI: On a female HDMI connector
          1 S/PDIF: On an RCA connector
          120W Amplifier: On a 4-pin large terminal block
        • Ports:
          1 Dante: On an RJ-45 female connector
          1 mini USB: On a female mini USB-A connector
          1 RS-232: On a 3-pin terminal block
          1 Ethernet: On an RJ-45 female connector
        • Amplifier:
          Input Sensitivity: Attains full power @0.3V (-10dBV)
          Output Power: 2 x 60W @4Ω or 8Ω, 1 x 120W @70V or 100V
          Amplifier Type: Class D
          Maximum Voltage Gain: 26dB SE/32dB BTL
          Dynamic Range: 119dB
          Frequency Response: 20Hz to 20kHz @±1dB
          S/N Ratio: 80dB - 10dBV, 20Hz - 20kHz
          Audio THD + Noise: THD+N ([email protected] 1W) 0.003%
          Audio 2nd Harmonic: 0.08% @75W RMS @4Ω 6.67kHz
        • Video:
          Max Bandwidth: 10.2Gbps (3.4Gbps per graphic channel)
          Max Resolution: 4K UHD @60Hz (4:2:0) 24bpp resolution
          Compliance: HDMI and HDCP 1.4
        • User Interface: Front Panel LEDs: 1 status, 20 analog audio ports, 4 Dante I/O, HDMI embed, HDMI de-embed, 2 S/PDIF I/O, and 2 amplifier channel
        • Control RS-232: Baud Rate: 115200
        • Supported Web Browsers: Windows: Chrome
        • Power:
          Consumption: 104VA max
          Source: 100-240V AC 50/60Hz
        • Environmental Conditions:
          Operating Temperature: 32° to 104°F (0° to +40°C)
          Storage Temperature: -40° to 158°F (-40° to +70°C)
          Humidity: 10 to 90%, RHL (non-condensing)
        • Regulatory Compliance (Standards Compliance):
          Safety: CE
          Environmental: RoHs, WEEE
        • Enclosure:
          Size: 19" 1U
          Type: Aluminum
          Cooling: Fans

      • Item Includes

        • 1x Power cord

      • GTIN:

        7291063089788
