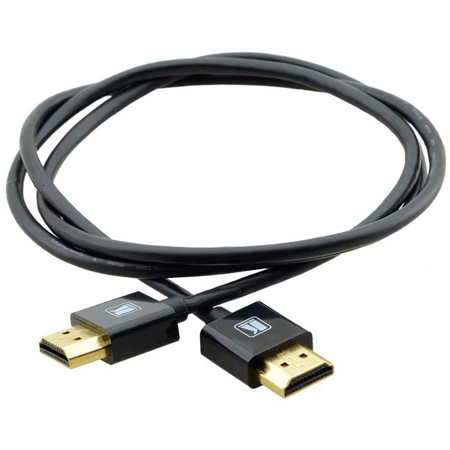

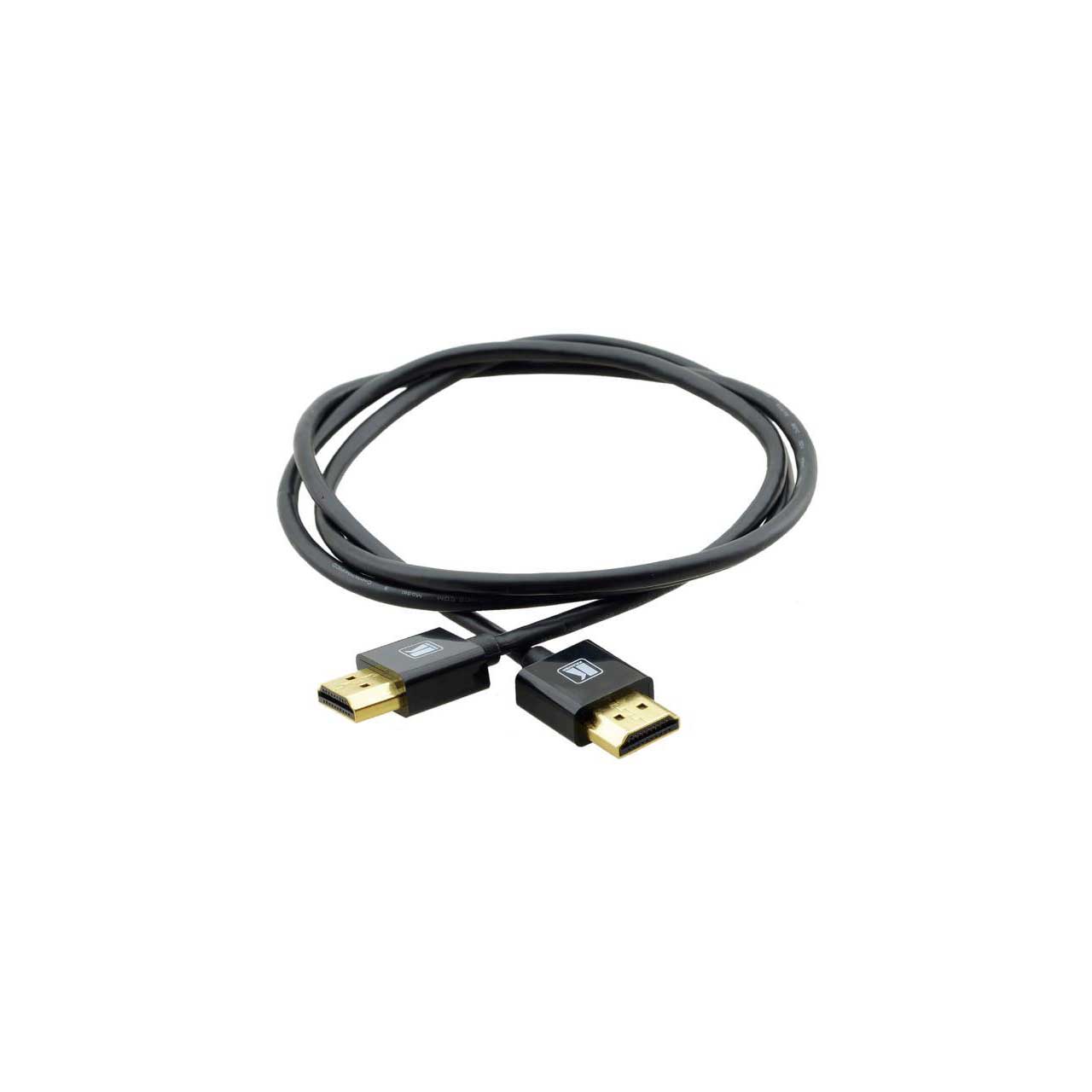

Kramer C-HM/HM/PICO/BK-3 Slim High Speed HDMI Cable w/Ethernet - 3 Feet

C-HM/HM/PICO/BK-3 - Overview

Ultra-Slim Flexible High-Speed HDMI Cable with Ethernet

• Features:

  • Max Resolution - 4K@60Hz (4:4:4).
  • Quality Performance - Kramer's new HDMI cables provide an uncompressed digital link between consumer electronics equipment such as DVD players, set-top boxes and audio/video monitors such as plasma display screens for high-definition TVs.
  • High-Quality Connectors - Slim HDMI connector heads 16.0 mm wide and 8.0mm thick (5/8" wide and 5/16" thick).
  • Space Saving - A tighter bend radius combined with the low-profile connector can save up to 1" of depth behind the equipment.
  • HDMI Support - Signals up to ultra-HD 4K, HDMI Ethernet Channel, 3D, x.v.ColorT, Deep Color, Lip Sync, 7.1 PCM, Dolby TrueHD, DTS-HD, CEC.
  • Available Colors - Black, blue, green, yellow, orange, red, pink and white.
  • Varied Selection of Lengths - Available in versions of 0.3 to 3.0m (1, 2, 3, 6 and 10ft).


• Specifications:

  • VIDEO: Max Resolution for 3-6ft (0.9-1.8m) lengths: 4K60Hz (4:4:4)
  • Max Resolution for 10ft (3m) length: 4K60Hz (4:2:0)
  • Max Data Rate for 3-6ft (0.9-1.8m) lengths: 18Gbps (6 Gbps per channel)
  • Max Data Rate for 10ft (3m) length: 10.2Gbps (3.4 Gbps per channel)
  • HDMI Support: HDCP 2.2, EDID, CEC, HDR-10, HLG, Dolby Vision
  • AUDIO: Supported Audio Formats: Dolby Digital Plus, Dolby TrueHD, DTS-HD Master AudioT, DVD Audio, SA-CD
  • PHYSICAL: Connectors: 2 Male HDMI Type A, 24K gold-plated connector, Bending radius: 36mm
  • CONDUCTORS: Diameter: 34AWG(7/0.06), Material: Tinned Copper
  • SCREENING: Type: Triple shielding
  • JACKET: Material: PVC, Available Colors: Black, blue, green, yellow, orange, red, pink and white, Diameter: 3.6± 0.15mm
  • ELECTRICAL: Temperature Rating: 80°C, Voltage Rating: 30V
  • Conductor Resistance: 34AWG-1.08K ohm/KM MAX. at 20 degree celcius.
  • REGULATORY: Rating (NEC/UL/CSA): VW-1.
