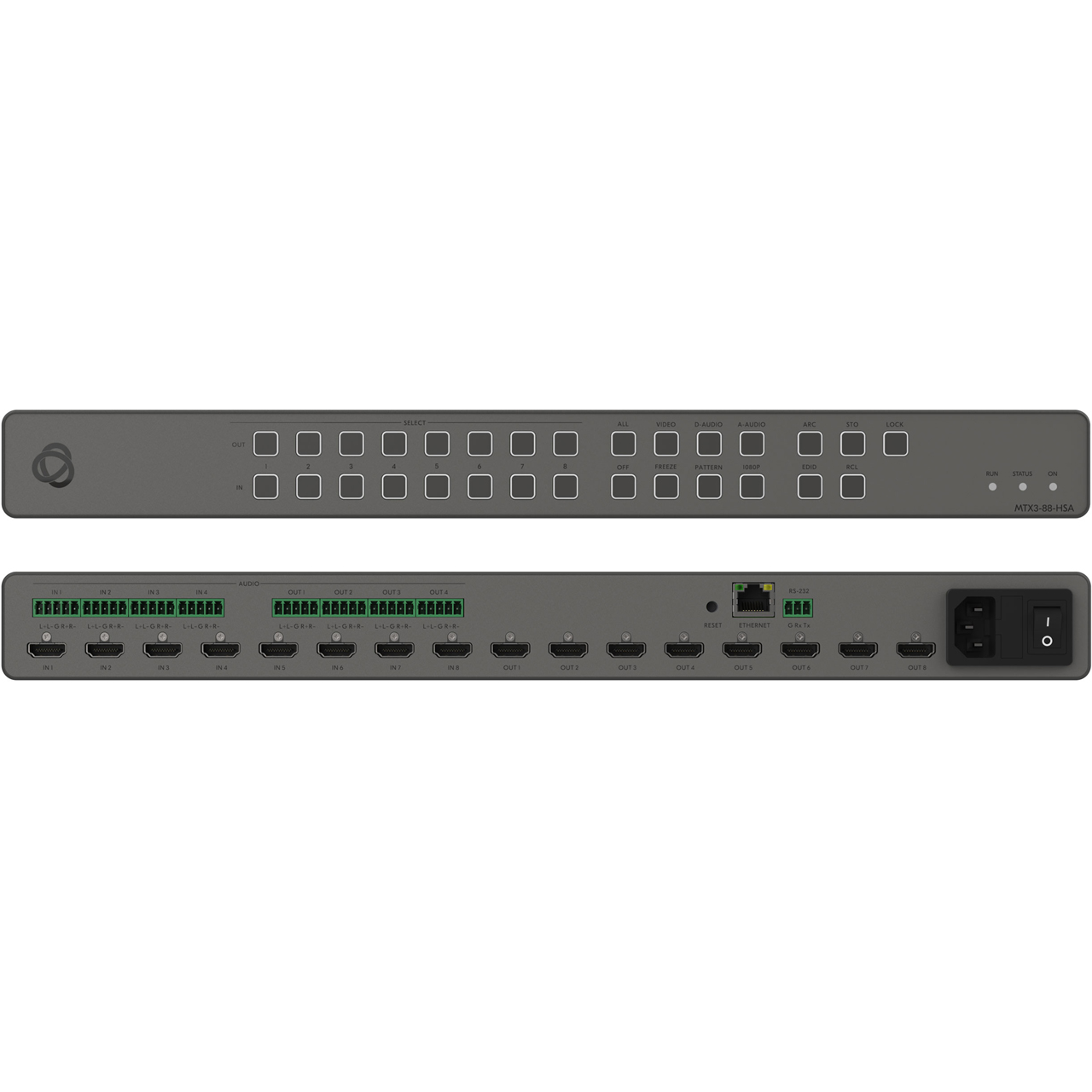

The Kramer MTX3-88-HSA is a high-quality scaler-based matrix with eight HDMI inputs independently routable to eight HDMI outputs. The video scaling processor provides a fast and clean (<1sec) switching time. Each HDMI output supports down or up scaling to account for any sink/source capability difference. The integrated audio matrix, with four analog audio input and four analog audio output ports support routing of any digital or analog audio source to sink including ARC (Audio Return Channel) sources.
Independent Audio Breakaway and Routing

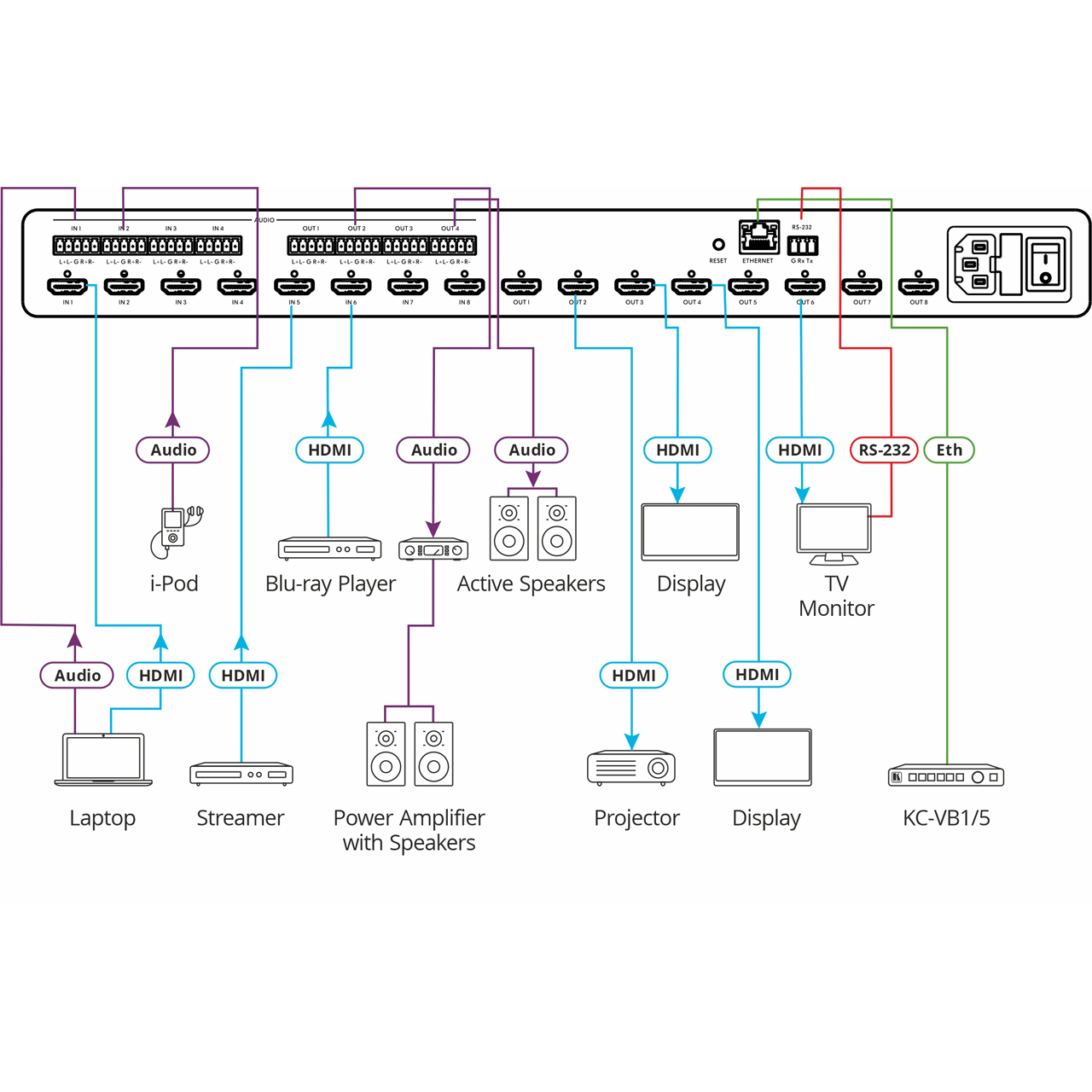

The digital audio signals passing through to the selectable outputs, and ARC (Audio Return Channel) signals from the output-connected displays, are extracted, converted to analog audio signals, and input to the built-in audio matrix. Flexible matrix routing enables insertion of any audio input signal, either the breakaway input signals or from the matrix input ports, to any AV matrix output port or audio matrix analog balanced ports. This allows playing the audio on a locally connected professional audio system (such as DSP) and speakers, in parallel to playing it on the speakers connected to the AV acceptor devices (such as TVs with speakers).
Applications:
• Small to medium sized conference/lecture or training spaces
• Hotel lobbies
• Museums and experience centers
