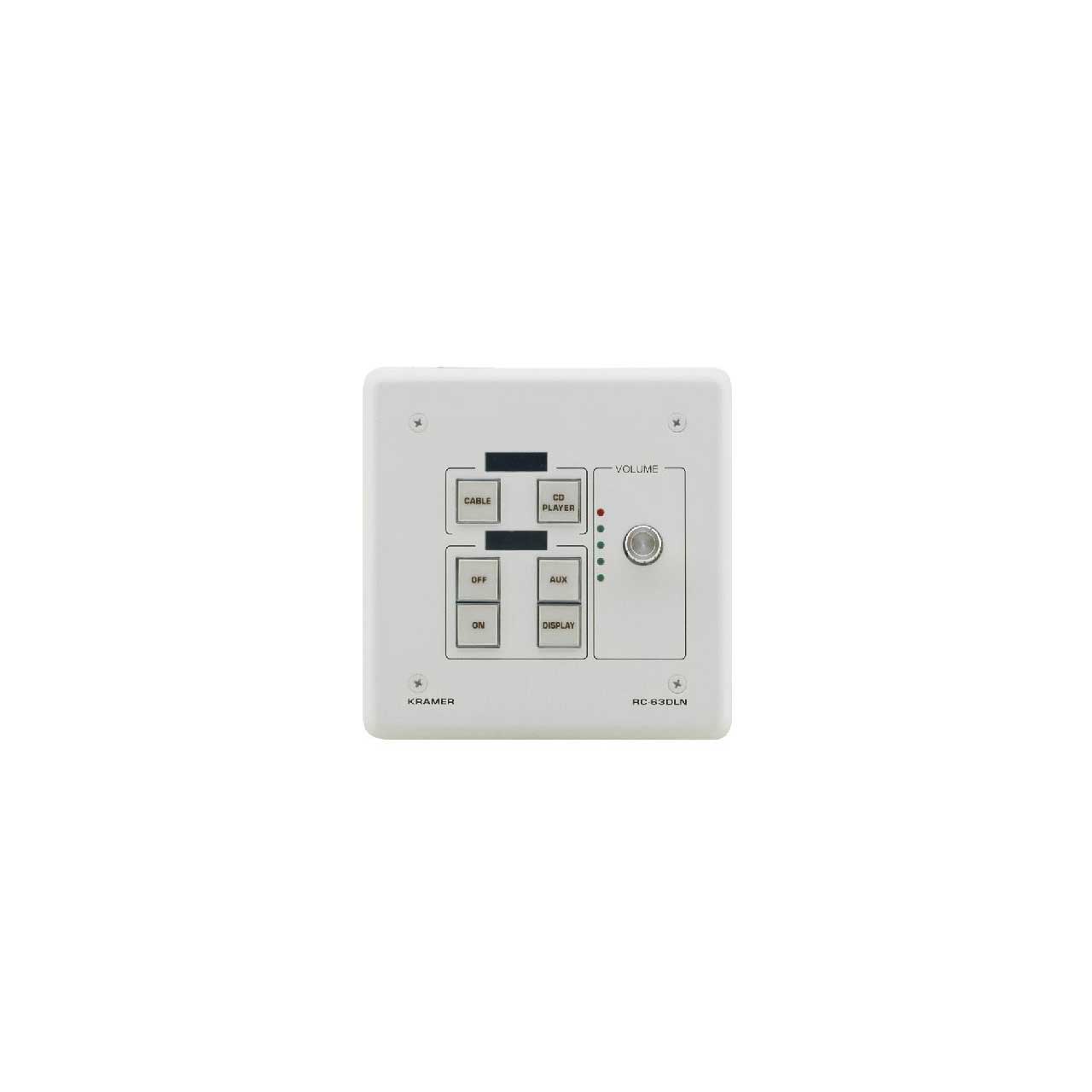

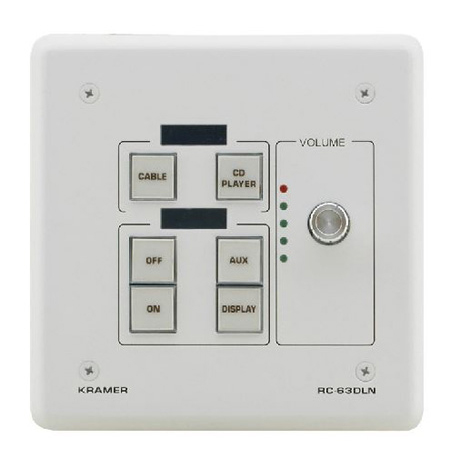

Kramer RC-63DLN 6-Button KNET Control Keypad with Knob with Displays - White

ITEM #: KR-RC-63DLN-WE MFG #: RC-63DLN(W)

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$605.00

Our Price:

$484.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    RC-63DLN(W) - Overview

    6 RGB-colored backlit buttons

    The Kramer RC-63DLN is a 6-button control keypad with knob and LCD displays. Connected over KNET™ to master room controller and auxiliary keypads for remote keypad control, it can serve either as a standalone room controller or part of a multi-unit KNET™ system.

    Perfect for:
    Classrooms and Lecture Halls
    Multimedia control in presentation and conference room systems, board rooms and auditoriums
    Room facilities control for items like screens and shades

    • Features:

      • Back Lit & Label Capable Buttons - 6 RGB-color, tactile feedback, backlit buttons. Buttons are grouped in 2 groups, 4 buttons in `SOURCES' group, and 2 buttons in `DISPLAY' group.
      • Custom Labeled, Removable Button Caps.
      • Volume Control Knob with LEDs - Bi-directional rotary dialed digital knob for volume control, with 5 LED bar for visual volume level feedback.
      • 2 K-NET™Connectors - Connects to master room controller, and auxiliary keypads for remote keypad control.
      • K-NET™ Single Link Connection - Provides a single keypad link cable-connectivity, carrying both power and keypad control communication information.
      • RS-232 Control Port - Controls a device via serial control protocols.
      • IR Emitter Control Port - Controls a device via IR control protocols.
      • Relay Control Port - Controls a device via relay contact closure.
      • IR Sensor Port - Learns commands from IR remotes.
      • Program Control - Program configuration with Kramer K-Config software.
      • Keypad Lock-Out - Option for tampering prevention by locking and unlocking of the keypad buttons.
      • Mini USB Port - To upload configuration files, set the K-NET™ID number, and power the device during configuration.
      • Mounting - In-wall, in standard 2 gang EU, UK, and US wall junction boxes.
      • Easy Installation - Fits to standard in-wall boxes for simple and cost-reducing installation.

    • Specifications:

      • PORTS
      • 1 RS-232 on terminal block connectors, 2 K-NET on terminal block connectors, 1 mini USB for programming

      • OUTPUT
      • 2 Relays on terminal block connectors (36V AC or DC, 2A, 60V AC maximum on non-inductive load), 1 IR emitter on terminal block connectors

      • POWER CONSUMPTION
      • 12V DC, 100mA

      • FUSE
      • 500mA, FSMD 2920

      • ADAPTER
      • 12V, 500mA

      • OPERATING TEMPERATURE
      • 0° to +40°C (32° to 104°F)

      • STORAGE TEMPERATURE
      • -40° to +70°C (-40° to 158°F)

      • HUMIDITY
      • 10% to 90%, RHL non-condensing

    • Item Includes:

      • RC-63DLN Room Controller
      • Label Sheet Set (1)
      • 12v DC Power Supply (1)
      • 2-Gang Mud Ring (1)
      • Screwdriver (1)

    • Warranty:

      • Limited 7 Year Warranty

    • GTIN:

      7291063065683
