Kramer TBUS-202XL(BC) Dual Pop-Up Table Mount Multi-Connection Solution - Silver Sand Blasted Anodized Aluminum Top

ITEM #: KR-TBUS-202XLBC MFG #: TBUS-202XL(BC)

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Kramer
Free Shipping with $49 Minimum Order
Availability: Sold Out
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    TBUS-202XL(BC) - Overview

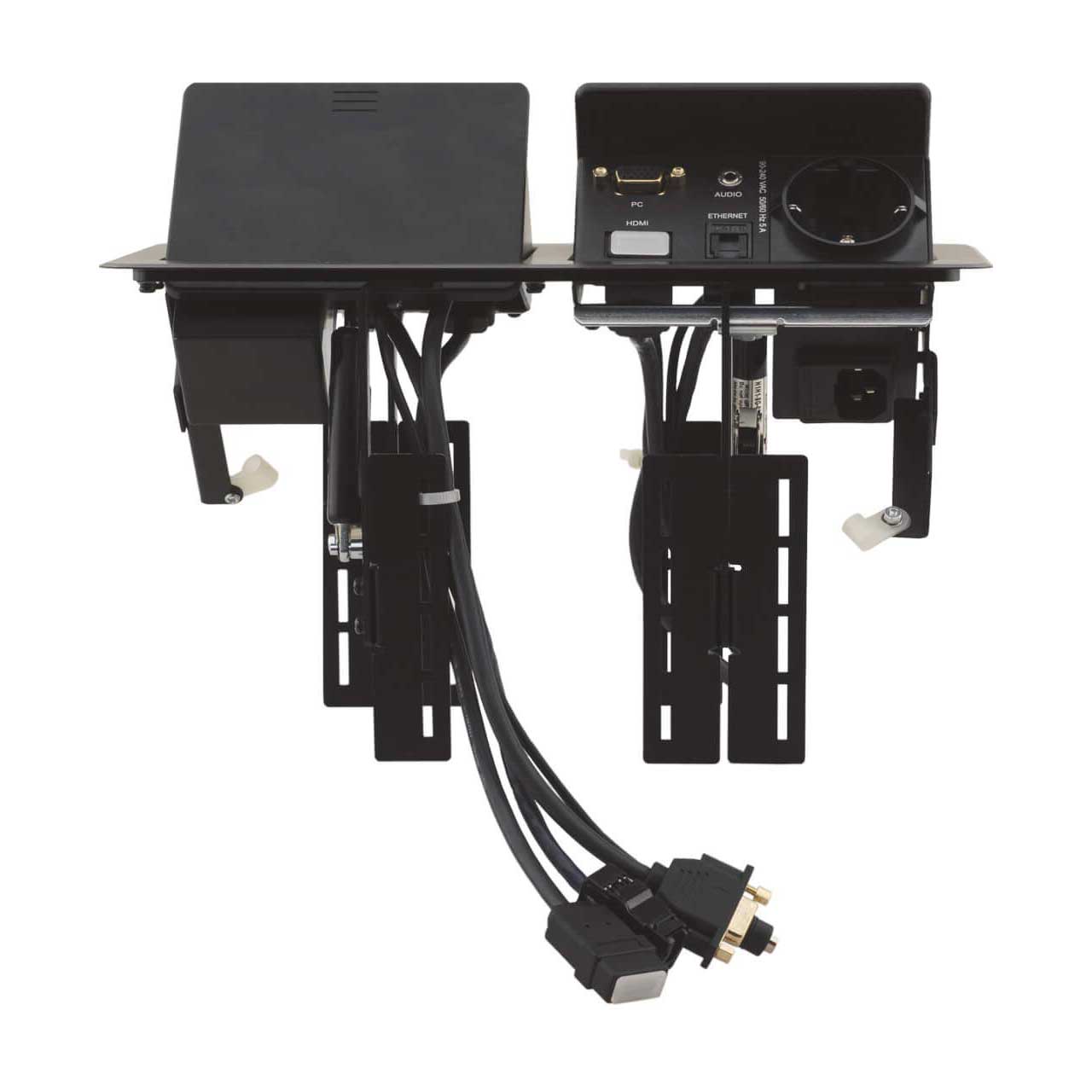

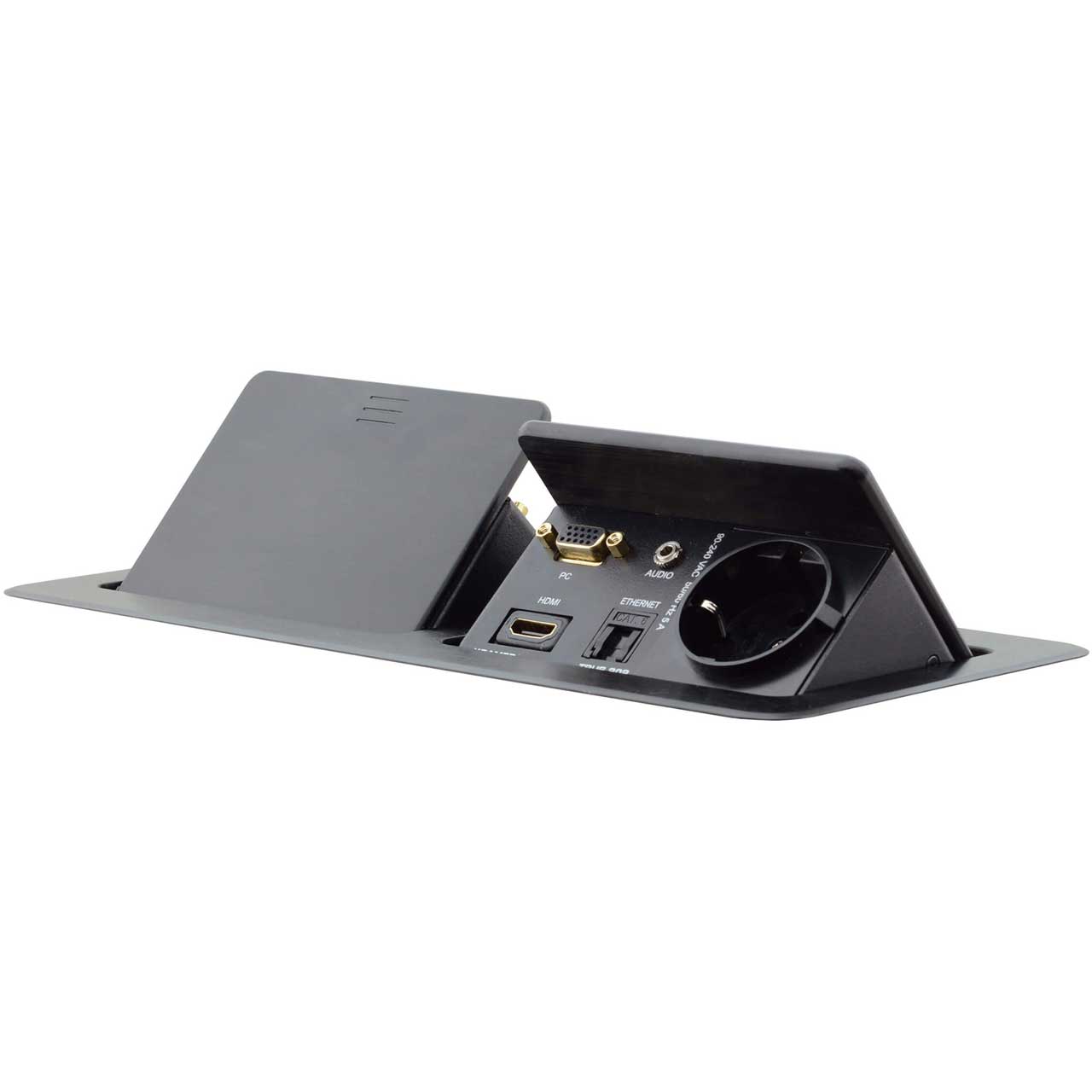

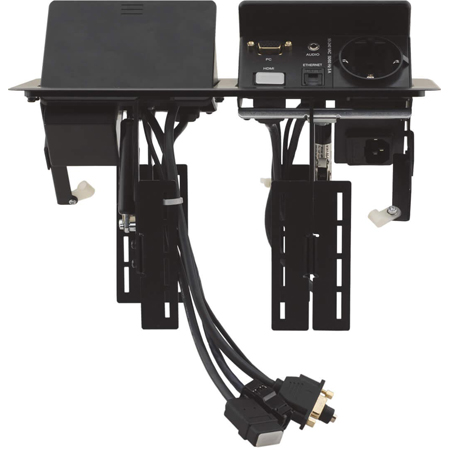

    Kramer's TBUS-202xl(BC) is black sand blasted anodized aluminum top enclosure that provides an extremely simple, affordable and elegant single-push dual pop-up multi-connection boardroom solution. By pressing down gently on the lid, the unit opens and closes pneumatically. TBUS-202xl is fast and easy to install and flexible to configure. It opens facing both sides of the table making it ideal for any meeting room.

    Applications
    Boardrooms
    Conference rooms
    Classrooms
    Training facilities

    • Features:

      • Pneumatic Lift - Easy opening & closing by pressing down gently on the covers. When not in use, they lower flush with the table.
      • Power Input - Universal, USA, European and many other worldwide power sockets available. Power socket modules are purchased separately.
      • 4 Fixed Inputs per Connecting Surface - 15-pin HD, HDMI, 3.5mm & Ethernet.
      • Elegant and Rugged Rectangular Design - The sturdy and attractive anodized aluminum enclosure provides maximum connectivity in the smallest possible footprint, and at the same time is cost effective and easy to install.
      • Installation Requirements - Requires tools and expertise to cut a 267mm x 122mm (10.5" x 4.8") rectangular hole in the surface of the furniture. Maximum table thickness is 76mm (3").


    • Specifications:

      • Ports
      • 2 connecting surfaces, each with 1 HDMI connector, 1 Ethernet RJ-45 connector, 1 15-pin HD connector, 1 3.5mm mini jack

        Power Socket Assemblies
      • USA Universal 100-240V AC, 50/60Hz, 5A per outlet; 100-220V AC, 50/60Hz, 5A per outlet
      • Germany and EU 100-240V AC, 50/60Hz, 5A per outlet
      • Belgium and France 100-240V AC, 50/60Hz, 5A per outlet
      • Italy 100-240V AC, 50/60Hz, 5A per outlet
      • Australia 100-240V AC, 50/60Hz, 5A per outlet
      • Israel 220V AC, 50/60Hz, 5A per outlet
      • South Africa 220V AC, 50/60Hz, 5A per outlet
      • Switzerland 220V AC, 50/60Hz, 5A per outlet
      • UK 220V AC, 50/60Hz, 5A per outlet
      • Brazil 220V AC, 50/60Hz, 5A per outlet

        Fuse Rating
      • T 6.3A 250V

        Options
      • Power socket kits, power cord

        Temperature Range
      • Operating: +5° to +45°C (41° to 113°F)
      • Operating Humidity Range: 10 to 90% RHL, non-condensing
      • Storage: -20° to +70°C (-4° to 158°F)
      • Storage Humidity Range: 5 to 95% RHL, non-condensing

        Physical
      • Color: Black and silver sandblasted finish
      • Product:
        Dimensions (WxDxH): 11.22 x 5.51 x 6.30" (28.50 x 14 x 16cm)
        Weight: 3.91Lbs (1.8kg)
      • Shipping:
      • Dimensions (WxDxH): 12.99 x 8.27 x 7.68" (33 x 21 x 19.50cm)
        Weight: 5.51Lbs (2.5kg)


    • Item Includes:

      • 1x Cut out metal template
