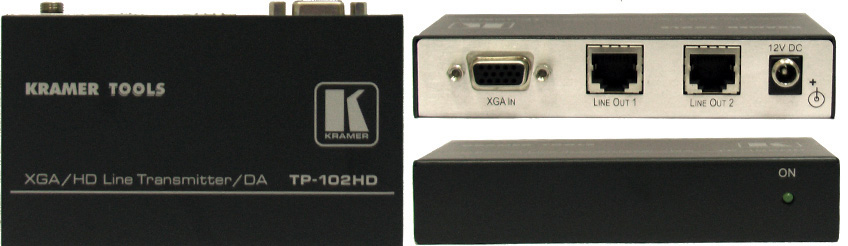

Kramer TP-102HD Computer Graphics Video & HDTV over Twisted Pair Transmitter

ITEM #: KR-TP-102HD MFG #: TP-102HD

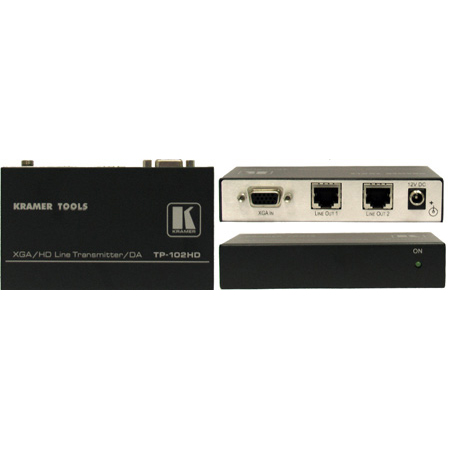

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the KR-TP-102HD

TP-102HD - Overview

The TP-102HD is a twisted pair transmitter for computer graphics video and HDTV signals. It converts a computer graphics video or HDTV signal on a 15-Pin HD connector to two identical twisted pair signals.

  • Features:

    • Resolution up to UXGA and 1080P (HDTV).
    • HDTV Compatible.
    • Power Connect System™ - Only one unit in a system, either the transmitter or the receiver needs to be connected to a power source. All the system units must have the Power Connect system to use this feature.
    • Long System Range - Up to 100 meters (300'). Greater distances possible depending on signal resolution and cable.
    • Cable Type - Uses UTP (unshielded twisted pair) cable such as CAT5.
    • Horizontal and Vertical Sync Polarity Selection.
    • Compact Size - Part of the Kramer TOOLS family of compact, high quality and cost effective solutions.


  • Specifications:

    • INPUT: 1 XGA/HD on a 15-pin HD (F) connector.
    • OUTPUTS: 2 twisted pair on RJ-45 connectors.
    • MAX. OUTPUT LEVEL: 1.7Vpp.
    • MAX. RESOLUTION: WUXGA & 1080p.
    • DIFF. GAIN: 0.75%.
    • DIFF. PHASE: 0.05Deg.
    • K-FACTOR: 0.1%.
    • S/N RATIO: 73dB.
    • CONTROLS: 2 switches for sync inversion.
    • COUPLING: AC.
    • POWER CONSUMPTION: 12V DC, 450mA.
    • DIMENSIONS: 12cm x 7.15cm x 2.76cm (4.7" x 2.8" x 1.08") W, D, H.
    • WEIGHT: 0.3kg (0.67lbs) approx.
    • ACCESSORIES: Power supply.
    • OPTIONS: RK-3T 19" rack adapter.


  • GTIN:

    7291063028817
