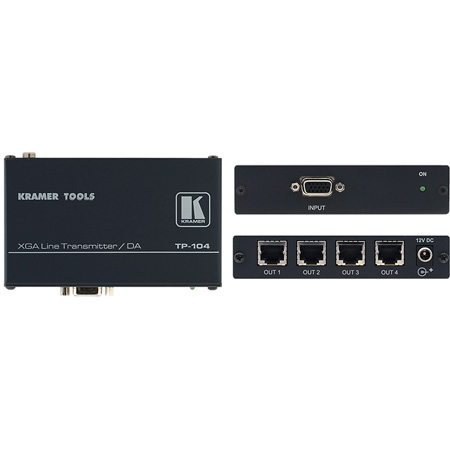

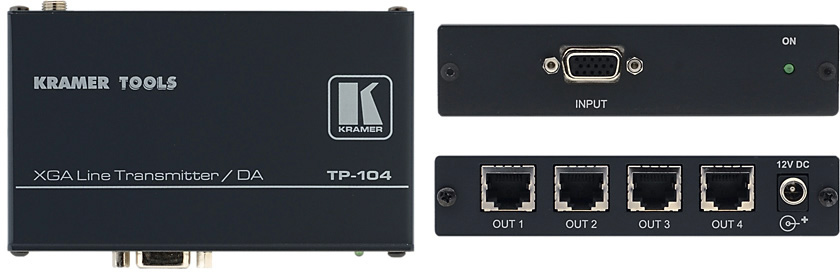

Kramer TP-104HD 1:4 HDTV & Computer Graphics Video over Twisted Pair Transmitter & Distribution Amplifier

ITEM #: KR-TP104-HD MFG #: TP-104HD

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the KR-TP104-HD

TP-104HD - Overview

HDTV Compatible

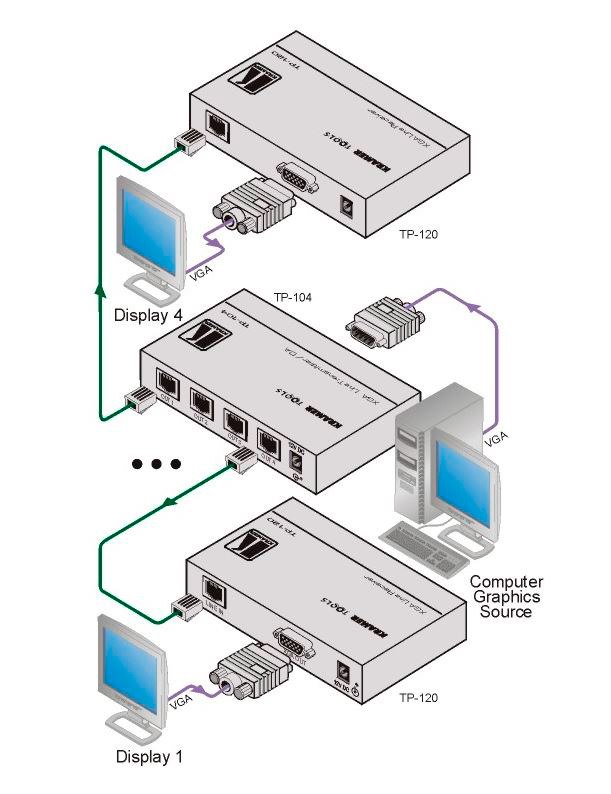

The Kramer TP-104HD is a twisted pair transmitter for computer graphics video and HDTV signals. It converts a computer graphics video or HDTV signal on a 15-pin HD connector to four identical twisted pair signals.

Perfect for:
Long range graphics distribution for schools, hospitals, security, and stores.
Presentation and multimedia applications.

  • Features:

    • HDTV Compatible.
    • Max. Resolution - WUXGA & 1080p.
    • Power Connect™ System - A single connection to the transmitter or the receiver powers both units when the devices are within 150ft (50m) of each other.
    • Cable - UTP (unshielded twisted pair) or STP (shielded twisted pair) such as CAT 5.
    • System Range - Up to 100m (320ft).
    • Compact Kramer TOOLS™ - 3 units can be rack mounted side-by-side in a 1U rack space with the recommended rack adapter.


  • Specifications:

    • INPUT
    • 1 UXGA on a 15-pin HD connector

    • OUTPUTS
    • 4 twisted pair on RJ-45 connectors

    • MAX. OUTPUT LEVEL
    • 1.4Vpp

    • MAX. RESOLUTION
    • WUXGA & 1080p

    • DIFF. GAIN
    • 3.2%

    • DIFF. PHASE
    • 0.5Deg

    • K-FACTOR
    • <0.05%

    • S/N RATIO
    • 80dB

    • COUPLING
    • AC

    • POWER CONSUMPTION
    • 12V DC, 180mA


  • Item Includes:

    • KR-TP104-HD
    • Power Supply


  • Warranty:

    • Limited 7 Year Warranty


  • GTIN:

    7291063032159
