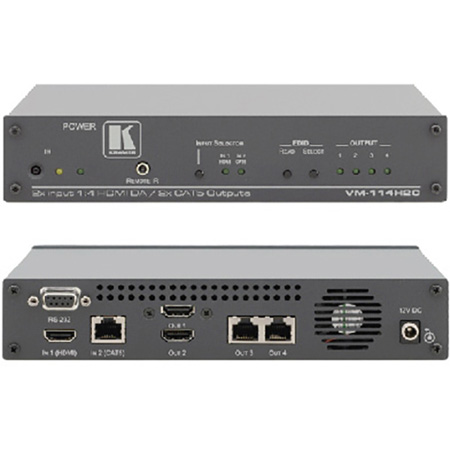

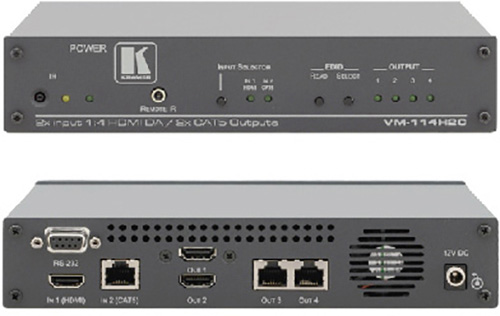

Kramer VM-114H2C 1 HDMI & 1 RJ45 DGKat Twisted Pair to 2 HDMI & 2 DGKat Switchable Distribution Amp

ITEM #: KR-VM-114H2C MFG #: VM-114H2C

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the KR-VM-114H2C

VM-114H2C - Overview

HDTV Compatible & HDCP Compliant

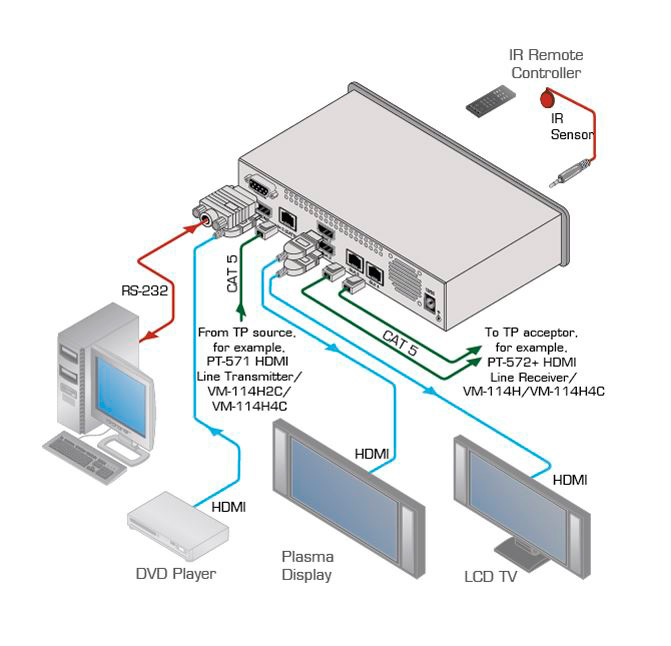

The Kramer VM-114H2C is a high-performance switcher and distribution amplifier for HDMI and DGKat™ twisted pair signals. It reclocks and equalizes one of two selectable input signals (HDMI or DGKat twisted pair) and distributes it to two DGKat twisted pair and two HDMI outputs.

Perfect for:
Home theater, presentation and multimedia applications.
Rental and staging.

  • Features:

    • Max. Data Rate - 6.75Gbps (2.25Gbps per graphic channel) (HDMI), 4.95Gbps (1.65Gbps per graphic channel) (DGKat).
    • HDTV Compatible.
    • HDCP Compliant.
    • DGKat™ Signal Integration - Kramer's unique technology for converting TMDS as well as control and communication to signals that run over twisted pair cables.
    • EDID Pass-through - Pass-through algorithm ensures Plug and Play operation for HDMI source and display systems.
    • HDMI Support - x.v.Color™, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS-HD (only on the TP inputs and outputs).
    • 3D Pass-Through.
    • Kramer Equalization & re-Klocking™Technology - Rebuilds the digital signal to travel longer distances.
    • System Range - Up to 90m (295ft) at 1080i @60hz or up to 70m (230ft) at 1080p @ 60hz when using Kramer DGKat cables. Note: Transmission range depends on the signal resolution, graphics card and display used. If using third-party shielded CAT cables, both ends of the shield must be soldered to the connectors for the products to function properly.
    • Active Input & Output LED Indicators.
    • Compatible Transmitters/Receivers - Transmitters: PT-571, TP-573, TP-577; Receivers: PT-572, TP-575, TP-576, TP-577.
    • Power Connect™System - A single connection to the transmitter or the receiver powers both units when the devices are within 90m (270ft) of each other.
    • Flexible Control Options - Front panel buttons, RS-232, infrared control sensor, remote included.
    • Desktop Size - Compact size. 2 units can be rack mounted side-by-side in a 1U rack space with the recommended rack adapter.
  • Specifications:

    • INPUTS
    • 1 HDMI connector, 1 DGKat twisted pair on an RJ-45 connector

    • 2 HDMI connectors, 2 DGKat twisted pairs on RJ-45 connectors

    • 6.75Gbps (2.25Gbps per graphic channel) (HDMI), 4.95Gbps (1.65Gbps per graphic channel) (DGKat)

    • Supports HDMI and HDCP

    • Input select button, EDID select button, panel lock button, RS-232, local and remote IR controls

    • IR communication, power, IN 1( HDMI), IN 2 (CAT 5), OUTPUT 1, 2, 3 and 4

    • 12V DC, 910mA
  • Item Includes:

    • VM-114H2C DA
    • Power supply
    • Bracket installation kit
    • RC-IR3 infrared remote control transmitter
  • Warranty:

    • Limited 7 Year Warranty
