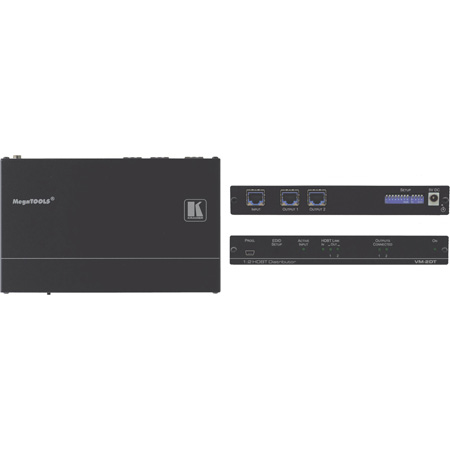

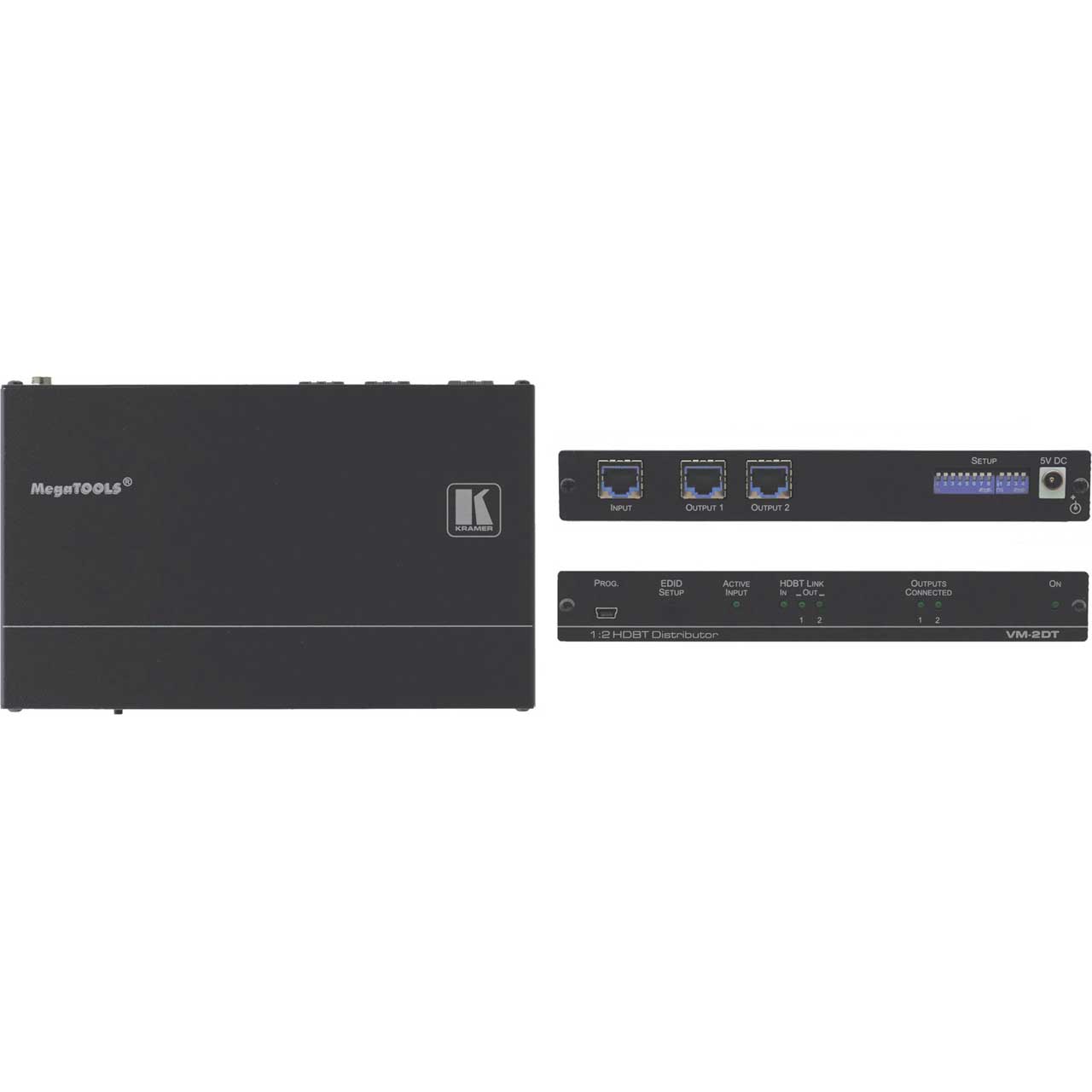

Kramer VM-2DT 1:2 4K60 4:2:0 Long-Reach HDBaseT Distribution Amplifier

VM-2DT - Overview

• Features:

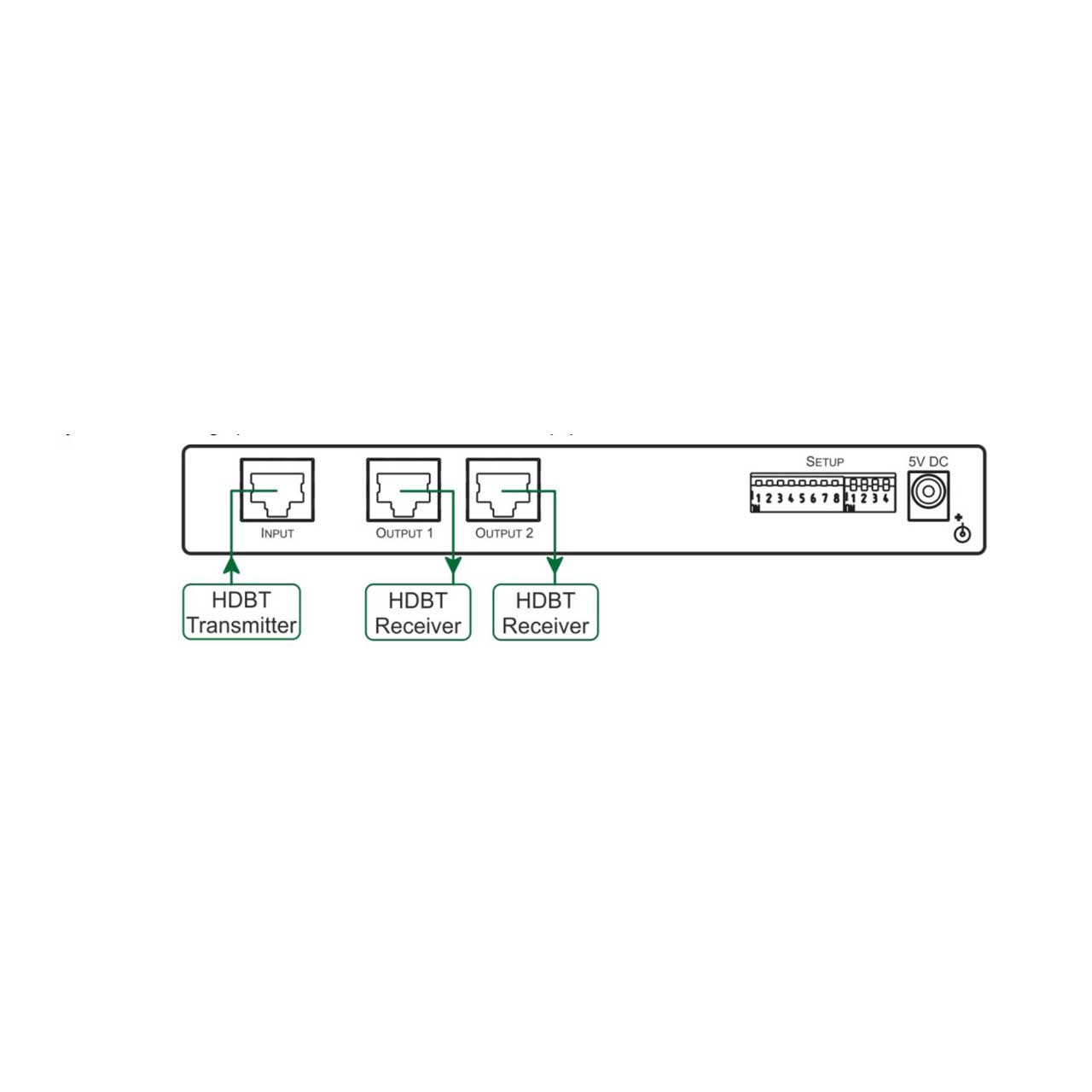

  • High Performance Distribution - Distributes one native, long-reach HDBaseT signal to two outputs with up to 4K video resolution, along with their re-extension over HDBaseT.
  • Dual-side Extension - Extends a 4K@60Hz (4:2:0) 24bpp (maximum) video signal to a distance of up to 40m (130ft) long-reach, and even further for lower video resolutions, when deployed mid-way between an AV source and multiple remote acceptors using CAT copper cable.
  • Standard Compatibility - Connects to any HDBaseT compliant extension product on the market.
  • HDMI Signal Transmission - HDCP 1.4 compliant signal, supporting deep color, x.v.Color™, lip sync, 7.1 PCM, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0. EDID and CEC (OUT 1 only) signals are passed through from the source to the display.
  • I-EDIDPro™ Kramer Intelligent EDID Processing™ - An intelligent EDID handling, processing and pass-through algorithm that ensures Plug and Play operation for HDMI source and display systems.
  • LED Indicators - Status indicators for HDBaseT input/output connected signals and power for ease of maintenance and troubleshooting.
  • Easy Installation - Twisted-pair cables for HDBaseT signals wiring. Compact Mega TOOLS™ fan-less enclosure for over-ceiling mounting, or side-by-side rack mounting.
  • Zoom Rooms Compatible.


• Specifications:

  • INPUT
  • 1 HDBT on an RJ-45 female connector


  • OUTPUTS
  • 2 HDBT on RJ-45 female connectors


  • PORTS
  • 1 RS-232 on Mini-USB female connector for firmware upgrade


  • RANGE EXTENSION (INPUT OR OUTPUT EACH SIDE)
  • Up to 40m (130ft) at 4K@60Hz (4:2:0)
  • Up to 70m (230ft) at full HD (1080p @60Hz 36bpp)
  • HDBaseT 1.0 signal compliance
  • Note: When using Kramer HDBaseT cables


  • VIDEO
  • Up to 10.2Gbps bandwidth (3.4Gbps per graphic channel)
  • Up to 4K UHD @60Hz (4:2:0) 24bpp resolution
  • HDCP 1.4 signal compliance
  • Supports deep color, x.v.Color™, lip sync, 7.1 PCM, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0


  • CONTROLS
  • EDID setup button


  • INDICATION LEDS
  • HDBT input and outputs 1 to 2 links, CONNECTED outputs 1 to 2, ACTIVE input and power ON LEDs


  • POWER SOURCE
  • 5V DC, 4A


  • POWER CONSUMPTION
  • 5V DC, 2.5A


  • ENCLOSURE
  • MegaTool size, Aluminum type


  • COOLING
  • Fan ventilation


  • OPERATING TEMPERATURE
  • 0° to +40°C (32° to 104°F)


  • STORAGE TEMPERATURE
  • -40° to +70°C (-40° to 158°F)


  • HUMIDITY
  • 10% to 90%, RHL non-condensing


• Item Includes:

  • VM-2DT Distribution Amplifier
  • Power supply with cord (5V DC)
  • Rubber feet (4)
  • Quick start guide
  • TOOL Mounting bracket kit


• Warranty:

  • Limited 7 Year Warranty


• GTIN:

  7291063080921
