Kramer VM-2UX 1:2 4K 12G SDI Video Distribution Amplifier

ITEM #: KR-VM-2UX MFG #: VM-2UX

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$560.00

Our Price:

$448.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    VM-2UX - Overview

    The Kramer VM2UX is a compact and high-performance 1:2 4K distributor for standard broadcastgrade SDI signals up to 12G transmitted data rate. It autoadapts to data rate of one SDI input signal, equalizes and reclocks the signal to improve transmitted signal reach, and distributes the signal to two identical SDI outputs
    .

    Perfect for:
    SDI video production studios
    Broadcast studio and field SDI video production events
    Staging and rental deployments
    Medical facilities with highly reliable video deployments

    • Features:

      • Reliable Wire Connectivity - Coaxial broadcast-grade cables are reliably connected via lockable BNC connectors, preventing unintentional wire disconnections, to gain fast and highly professional uncompressed SDI signals distribution deployments.
      • Extended-reach Input Extension - Input signal equalization and output signal reclocking to gain extended-reach signal extension. Using Kramer high-quality coaxial SDI cables, supports extension of up to 80m (260ft) for 12G 4K signals.
      • Note: Reach depends on signal resolution, and quality of copper cable used. Reach extension performance may vary while using non-Kramer coaxial cables.
      • Transmitted Data Rate - From 270Mbps to 12Gbps data rates.
      • Max. Resolution - 4K@60Hz (4:2:2) 30bpp.
      • SDI Signal Transmission - Auto-adapts to SDI, HD-SDI, 3G HD-SDI, 6G and 12G SDI compliant signals, supporting pass-through of standard embedded audio channels with ancillary ID and metadata information.

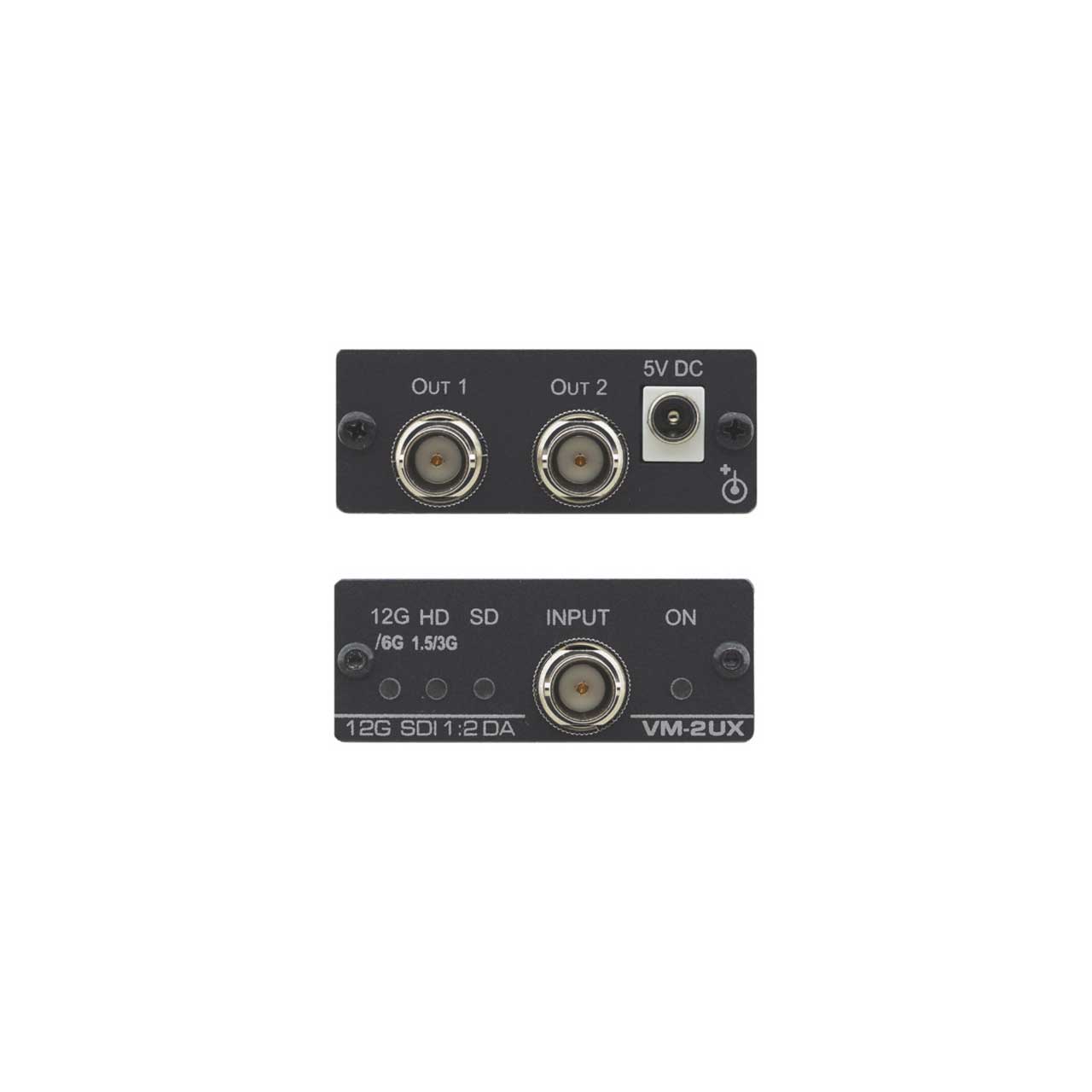

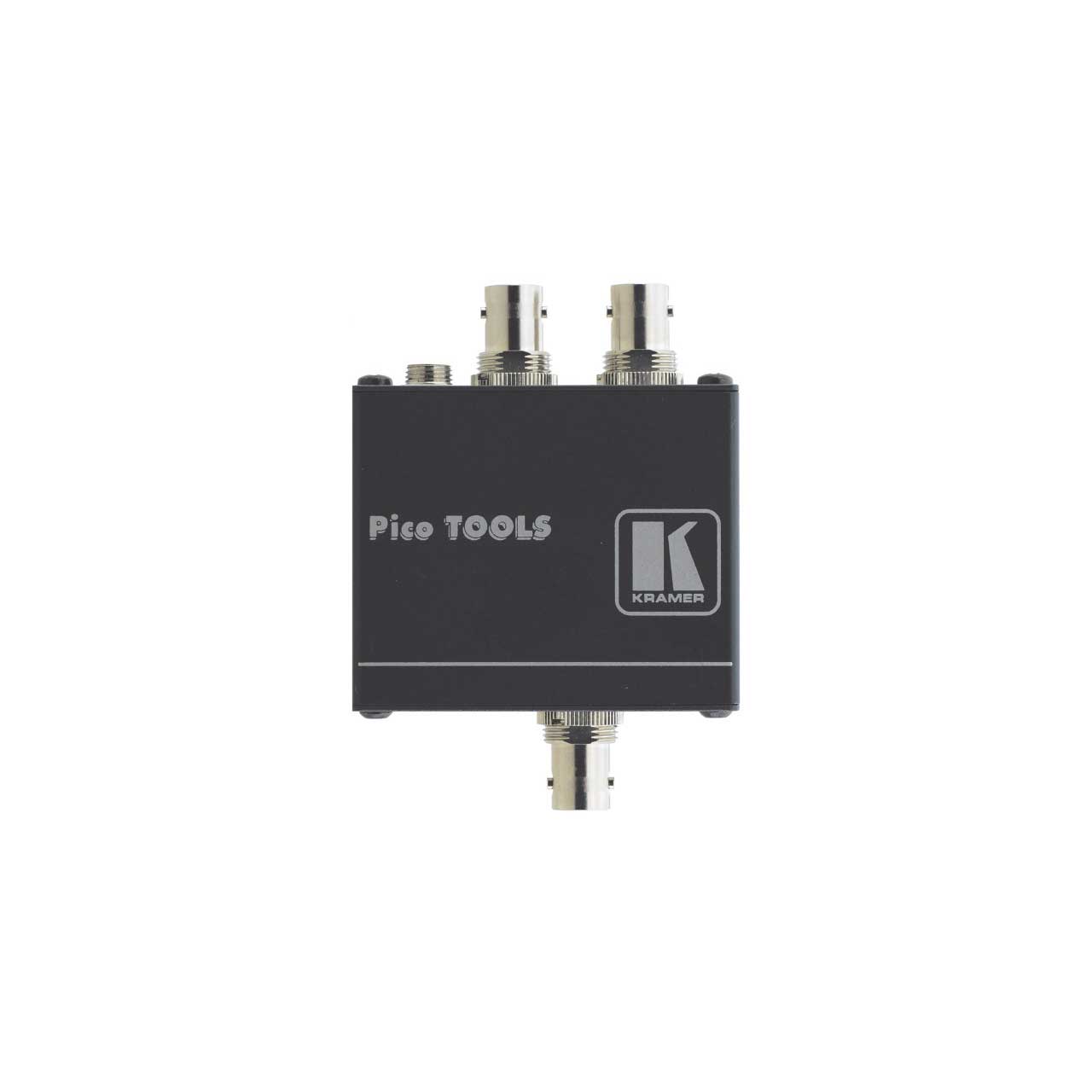

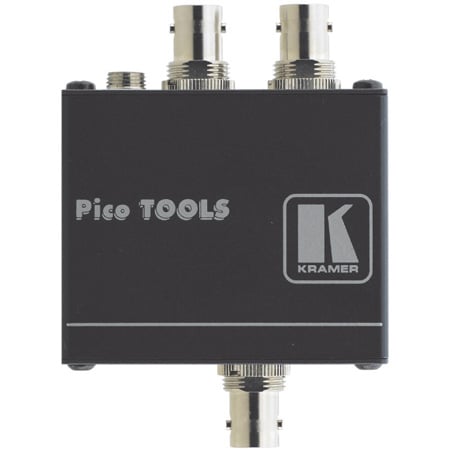

      • Easy Installation & Maintenance - Compact Pico TOOLS™ fan-less enclosure for small footprint spaces and over-ceiling mounting, or side-by-side rack mounting. Status indicators for transmitted SDI data rate of input and output connected signals, and power indicator, for ease of maintenance and troubleshooting.

    • Specifications:

      • INPUT
      • 1 SMPTE 259M (SD-SDI), 292M (HD-SDI), 344M (ED-SDI), 424M (3G HD-SDI), ST-2081 (6G-SDI) and ST-2082 (12G-SDI) compliant serial video input on a 75Ω BNC connector

        OUTPUTS
      • 2 equalized and reclocked SMPTE 259M (SD-SDI), 292M (HD-SDI), 344M (ED-SDI), 424M (3G HD-SDI), ST-2081 (6G-SDI) and ST-2082 (12G-SDI) outputs on 75Ω BNC connectors

        CABLE EQUALIZATION REACH
      • 12Gbps: Up to 80m (260ft) using Kramer cables, 3Gbps and 6Gbps: Up to 100m (330ft)
      • 1.5Gbps: Up to 200m (660ft), SD: Up to 300m (980ft)

        VIDEO
      • Up to 4K@60Hz (4:2:2) 30bpp resolution, 270Mbps up to12Gbps data rate

        MAXIMUM OUTPUT LEVEL
      • 800mVpp/75Ω

        COUPLING
      • AC

        STANDARDS COMPLIANCE
      • SMPTE 259M (SD-SDI), 292M (HD-SDI), 344M (ED-SDI), 424M (3G HD-SDI), ST-2081 (6G-SDI), ST-2082 (12G-SDI)

        POWER CONSUMPTION
      • 5V DC, 250mA

        POWER SOURCE
      • 5.2V/4A

        OPERATING TEMPERATURE
      • 0° to +40°C (32° to 104°F)

        STORAGE TEMPERATURE
      • -40° to +70°C (-40° to 158°F)

        HUMIDITY
      • 10% to 90%, RHL non-condensing

    • Item Includes:

      • VM-2UX Amplifier
      • Power Supply
      • Mounting Bracket

    • Warranty:

      • 7 Year Limited Warranty

    • GTIN:

      7291063080372
