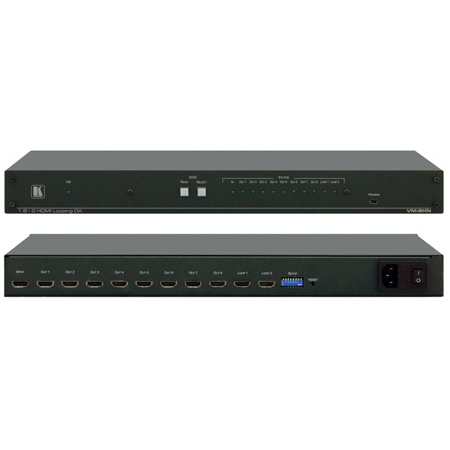

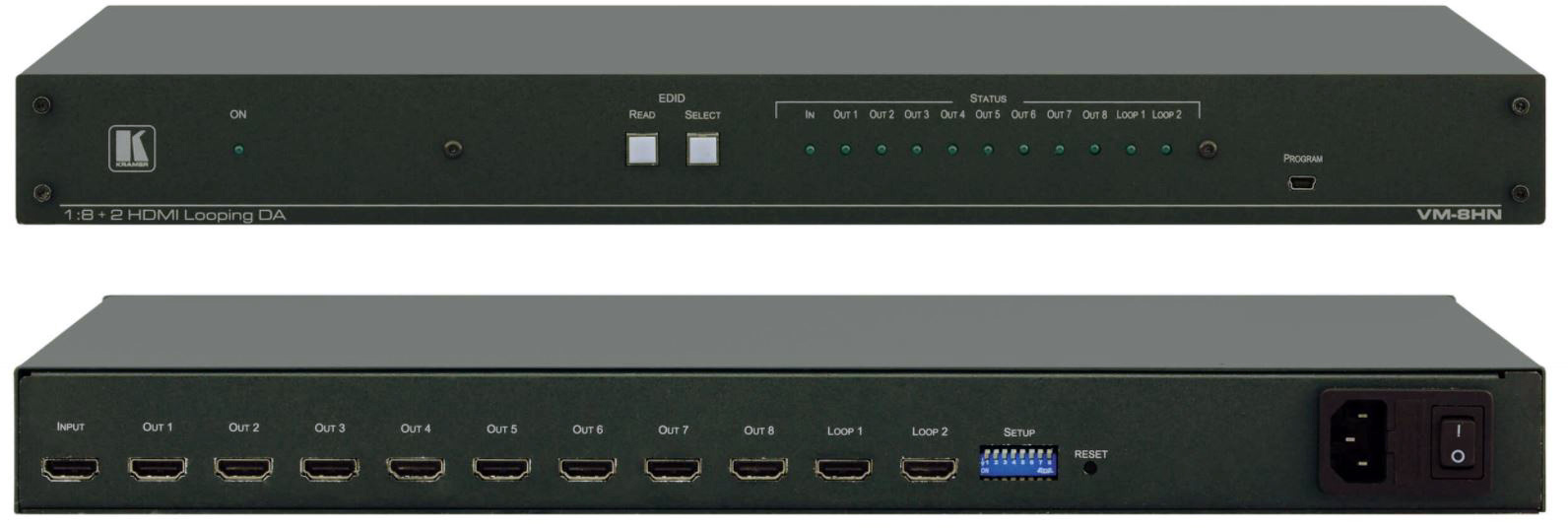

Kramer VM-8HN 1:8 Plus 2 HDMI 4K Ultra-HD Distribution Amplifier - (UK Power Supply)

VM-8HN-UK - Overview

• Features:

  • Max. Data Rate - 8.91Gbps (2.97Gbps per data channel).
  • HDTV Compatible.
  • HDCP Compliant.
  • HDMI Support - Deep Color, x.v.Color, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS-HD.
  • 3D Pass-Through.
  • Kramer Equalization & re-Klocking Technology - Rebuilds the digital signal to travel longer distances.
  • Default EDID - For fast and efficient connection of the unit.
  • Video Wall Support - With selectable output delay.
  • Automatic 5V Turn Off - For remotely powering off attached devices.
  • Active Output LED Indicators.

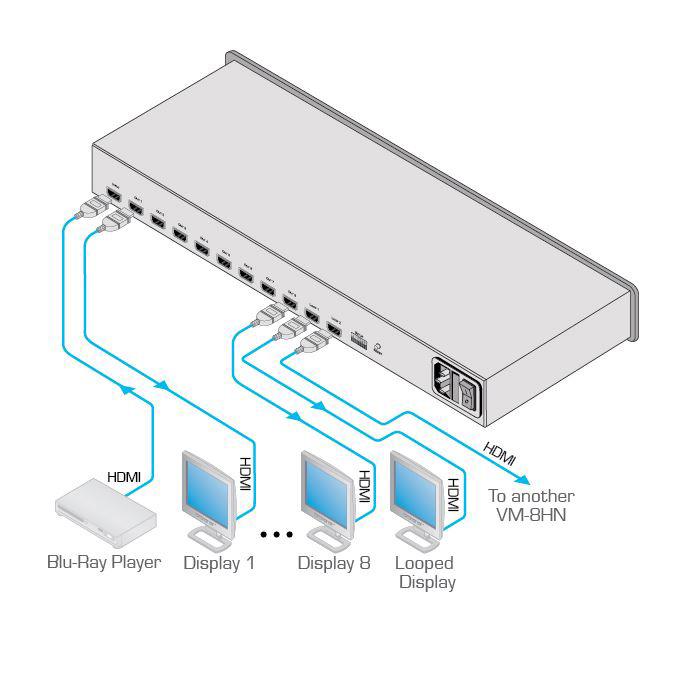

  • 2 Looping Outputs - Allow monitoring and cascading to additional DAs.
  • Worldwide Power Supply - 100-240V AC.
  • Size - Standard 19" (1U). Rack "ears" included.


• Specifications:

  • INPUT: 1 HDMI connector.
  • OUTPUTS: 10 HDMI connectors (8 output, 2 loop).
  • MAX. DATA RATE: 8.91Gbps (2.97Gbps per data channel).
  • COMPLIANCE WITH HDMI STANDARD: Supports HDMI and HDCP.
  • CONTROLS: EDID SELECT and READ buttons for selecting and storing EDID information.
  • INDICATOR LEDs: OUTPUTS 1 to 8, LOOP 1 and 2 and ACTIVE input LED.
  • OPERATING TEMPERATURE: 0° to +40°C (32° to 104°F).
  • STORAGE TEMPERATURE: -40° to +70°C (-40° to 158°F).
  • HUMIDITY: 10% to 90%, RHL non-condensing.
  • POWER CONSUMPTION: 100-240V AC, 50/60Hz 28VA.
  • DIMENSIONS: 19" x 7" x 1U W, D, H, rack mountable.
  • WEIGHT: 3.5kg (7.7lbs) approx.
  • INCLUDED ACCESSORIES: Power cord.


• GTIN:

  7291063070991
