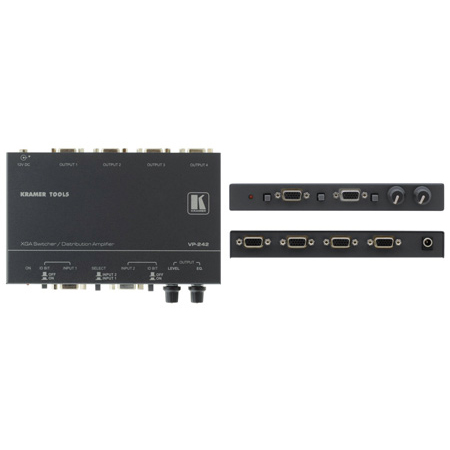

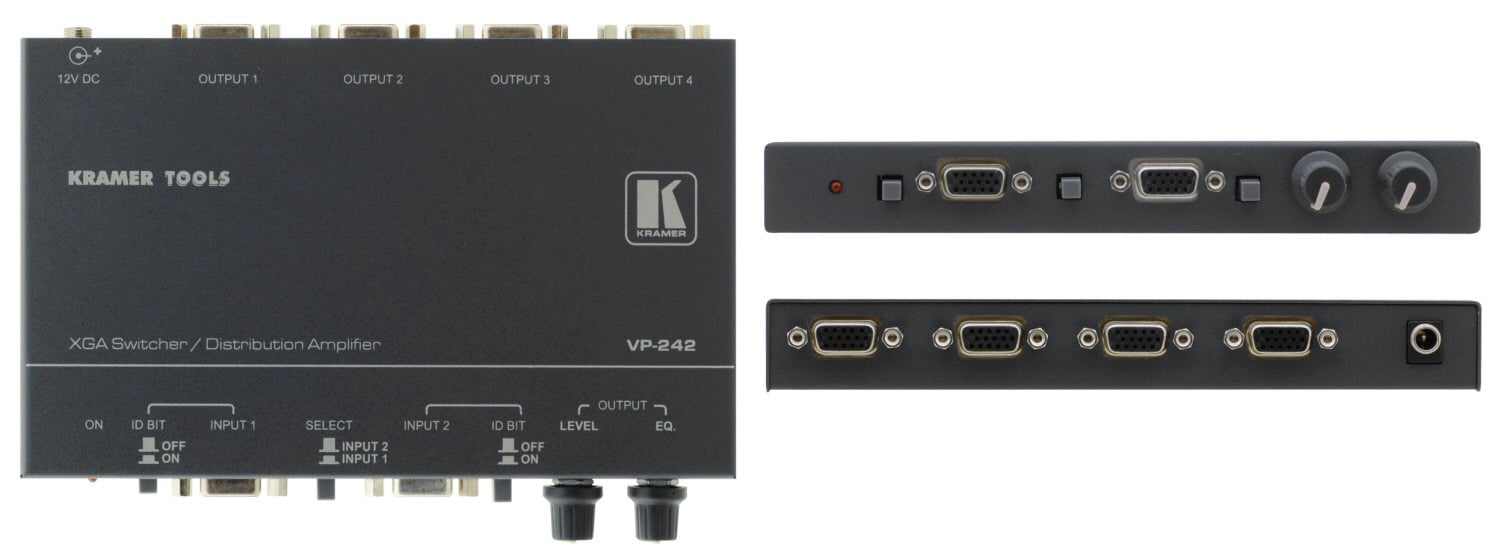

Kramer Tools VP-242 XGA/VGA 2X1 Switch & 1X4 DA

ITEM #: KR-VP242 MFG #: VP-242

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the KR-VP242

VP-242 - Overview

The Kramer VP-242 is a high-performance switcher for computer graphics video signals with resolutions up to and exceeding UXGA. It switches one of two inputs simultaneously to four identical outputs.

  • Features:

    • High Bandwidth - 420MHz (-3dB)
    • 2x1 Switcher & 1:4 DA
    • HDTV Compatible
    • ID Bit Control
    • Level (Gain) and EQ (Peaking) Controls
    • Compact MegaTOOLS® - 2 units can be rack mounted side-by-side in a 1U rack space with the optional RK-T2B rack adapter


  • Specifications:

    • INPUTS: 2 VGA/UXGA on 15-pin HD (F) connectors.
    • OUTPUTS: 4 VGA/UXGA on 15-pin HD (F) connectors.
    • MAX. OUTPUT LEVEL: 2.5Vpp/75Ω.
    • BANDWIDTH (-3dB): 420MHz.
    • DIFF. GAIN: 0.05%.
    • DIFF. PHASE: 0.03Deg.
    • K-FACTOR: 0.05%.
    • S/N RATIO: 73dB.
    • CROSSTALK: -61.5dB @5MHz.
    • CONTROL: Level: -1 to +6dB; EQ.: 0 to +8dB @5MHz.
    • COUPLING: DC.
    • POWER CONSUMPTION: 12V DC, 100mA.
    • DIMENSIONS: 19cm x 13.5cm x 2.5cm (7.5” x 5.3” x 0.98”) W, D, H.
    • WEIGHT: 0.6kg (1.32lbs) approx.
    • ACCESSORIES: Power supply.
    • OPTIONS: RK-T2B 19" rack adapter.


  • Applications

    :

    • Any professional display system requiring a 2x1 switcher and a high quality 1:4 DA.
    • Multimedia and presentation sources and acceptors selection and signal distribution.
    • Schools, businesses and points of sale.


  • GTIN:

    7291063027162
