Kiloview CUBE R1 9-Channel NDI Touchscreen Recorder System with Dual Hot-swappable SSD Slots & USB Type-C

ITEM #: KV-CUBE-R1 MFG #: CUBE R1

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$2,499.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    CUBE R1 - Overview

    Why Do You Need a CUBE R1 Recorder System?
    The Kiloview CUBE R1 is an embedded device for multi-channel of NDI video recording. The device is the hardware version of Kiloview NDI Recorder which can record up to 9CH of NDI sources simultaneously with 1/4/9 grids preview video in synchronization.

    Equipped with dual hot-swappable SSD slots, CUBE R1 supports non-stop recording. Both SFP and Ethernet connections allow for different network environments.

    -Up to 9CH NDI Sources Recording, Any Resolution, Any format.
    -Up to 9CH video preview and recording in synchronized status with 1/4/9 grids for preview.
    -Auto-discovery of NDI sources in the same network, or any NDI sources in other networks by NDI Discovery Server.
    -Recording file in the format of .mov, with fixed-size or fixed length, locally by SSD.

    Plug-and-Play, Non-stop Recording

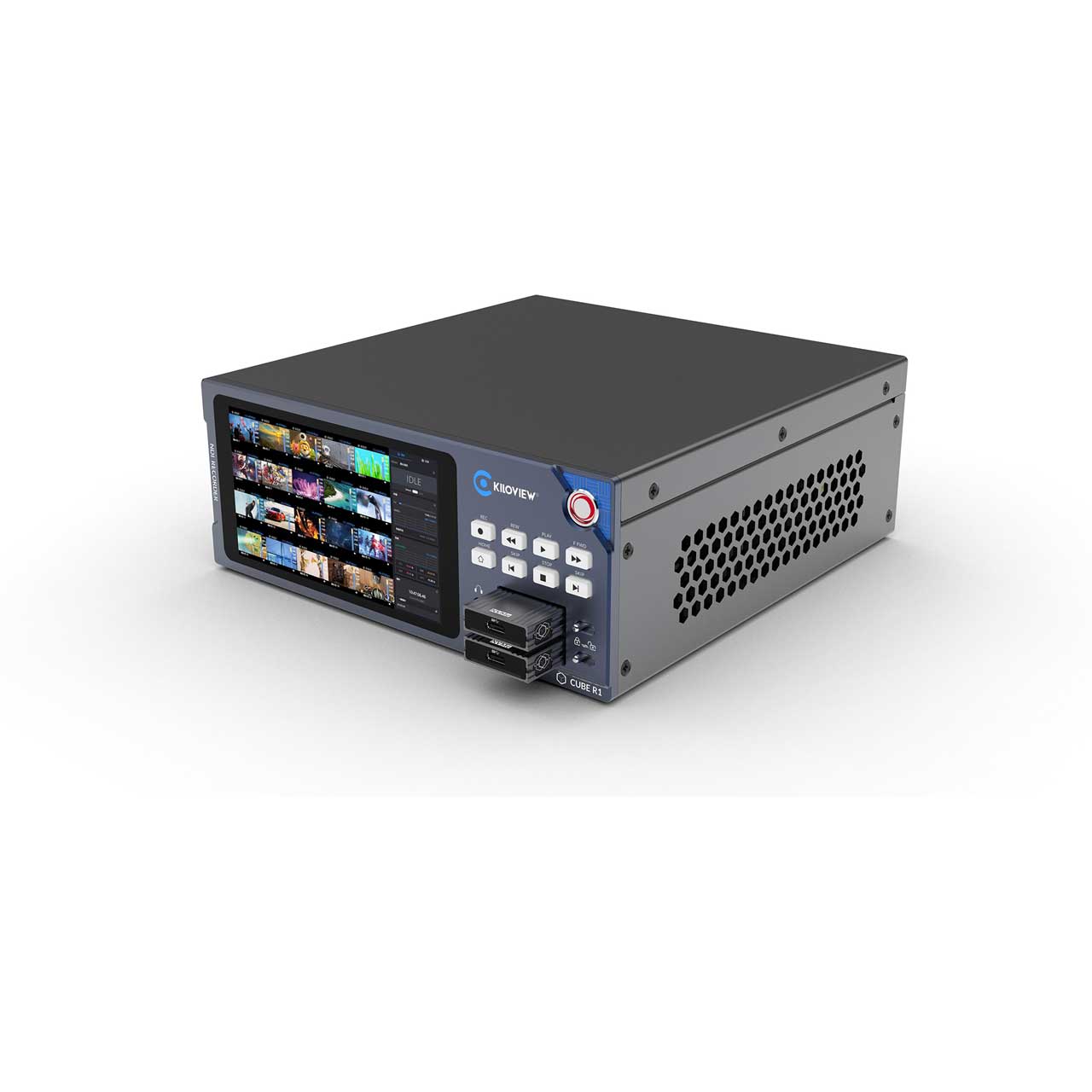

    CUBE R1 is a turnkey solution offering plug-and-play operation, it supports non-stop recording by being equipped with dual hot-swappable SSD slots, and the design of the NVMe module on CUBE R1 can adapt to all the SSD types on the market. The safety lock switch ensures the whole process is safe and stable. And the USB Type-C interfaces can easily extend the recorded storage space.

    Record in Synchronization Status
    CUBE R1 supports a self-defined NTP Server to make sure all the NDI sources are recorded in synchronized status.

    One-click Recording is supported, with one single press, easy the way of recording.

    Various Multiview Layouts for Monitoring
    1/4/9 multiview layouts are available for your choice. You can display/hide preview images/VU meters.

    Customizable overlays for each window: Audio levels, Tally status, Current Bitrate, Synchronization Status, Source Names.

    Safety Guaranteed
    -CUBE R1 is an independent recorder, we guarantee your videos are recorded continuously, correctly, completely, and independently.
    -Recording Quality Safety: Once a file gets full, the recorder will record the next file automatically right away. No worries about losing frames.
    -Operation Safety: In order to avoid misoperation and missing valuable recording sources, the system will be LOCKED during recording. Once locked, the system needs DOUBLE confirmation to unlock and pause.

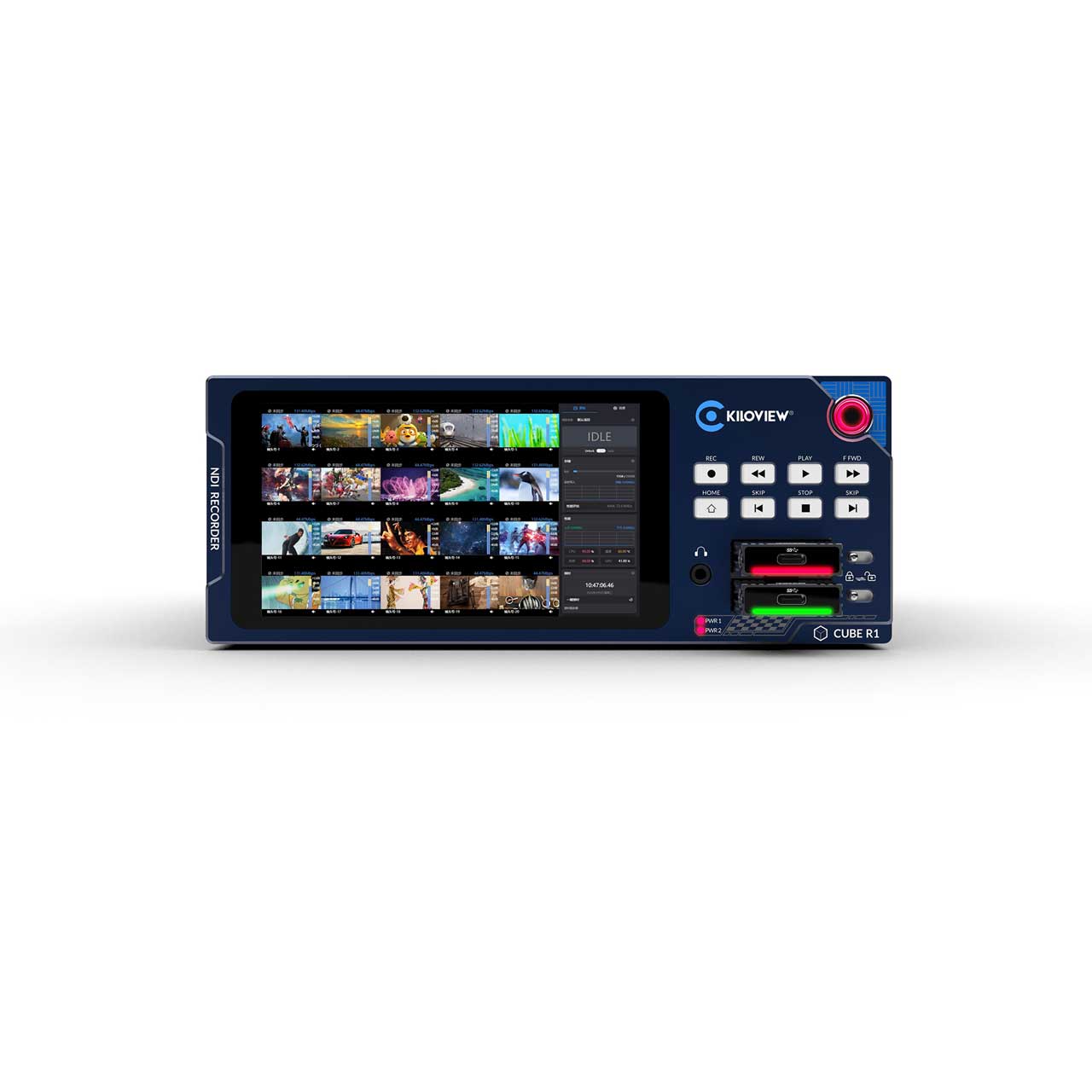

    Built-in LCD Touch-screen for Realtime Monitoring
    A built-in LCD touch-screen allows users to check the status of Disk Storage, CPU, Temperature, Bandwidth & other crucial parameters that might affect the recording quality and process.

    Record in the Fixed Length / Size
    You can choose to save the recording files in a fixed time length or a fixed file size.

    Once a file gets full, the recorder will immediately record it to the next file automatically. No worries about losing frames.

    Label Your Sources
    Freely label your video / audio sources to identify each of them.

    Stable and Reliable Hardware Server
    -Ethernet and SFP modules are more flexible.
    -Half of the 2U rackmount design is more professional.
    -Reinforcement design, better stability.
    -HDMI and USB port, convenient for operation.

    Applications
    CUBE R1 is perfect for scenarios such as broadcast, medical demonstration, video conference, large screen display (command center, theater, stadium, education, etc.)

    • Features:

      • Up to 9CH video preview and recording in synchronized status with 1/4/9 grids for preview
      • Auto-discovery of NDI sources in the same network, or any NDI sources in other networks by NDI Discovery Server
      • Recording file in the format of .mov, with fixed-size or fixed length, locally by SSD
      • Ethernet and SFP modules are more flexible
      • Half of the 2U rackmount design is more professional
      • Reinforcement design, better stability.
      • HDMI and USB port, convenient for operation.
      • Dual Power Backup
      • Cooling Fans
      • Two built-in 10GbE 10 gigabit network ports

    • Specifications:

      • USB Port: 1x Type-c Port for USB Expansion
      • Stream Type (preview): Sub Stream
      • Recording File Format: .mov
      • Recording & Storage: 2x NVMe SSD
      • RAM: 12GB
      • Power Supply: Dual Power Supply: 220V AC
      • Physical Buttons: Yes
      • Output: 1x HDMI
      • Operating Systems: Linux
      • One-Click NTP Synchronization: Support

    • Item Includes:

      • 1x Kiloview CUBE R1 9-Channel NDI Touchscreen Recorder System with Dual Hot-swappable SSD Slots & USB Type-C

    • GTIN:

      0710917166378
