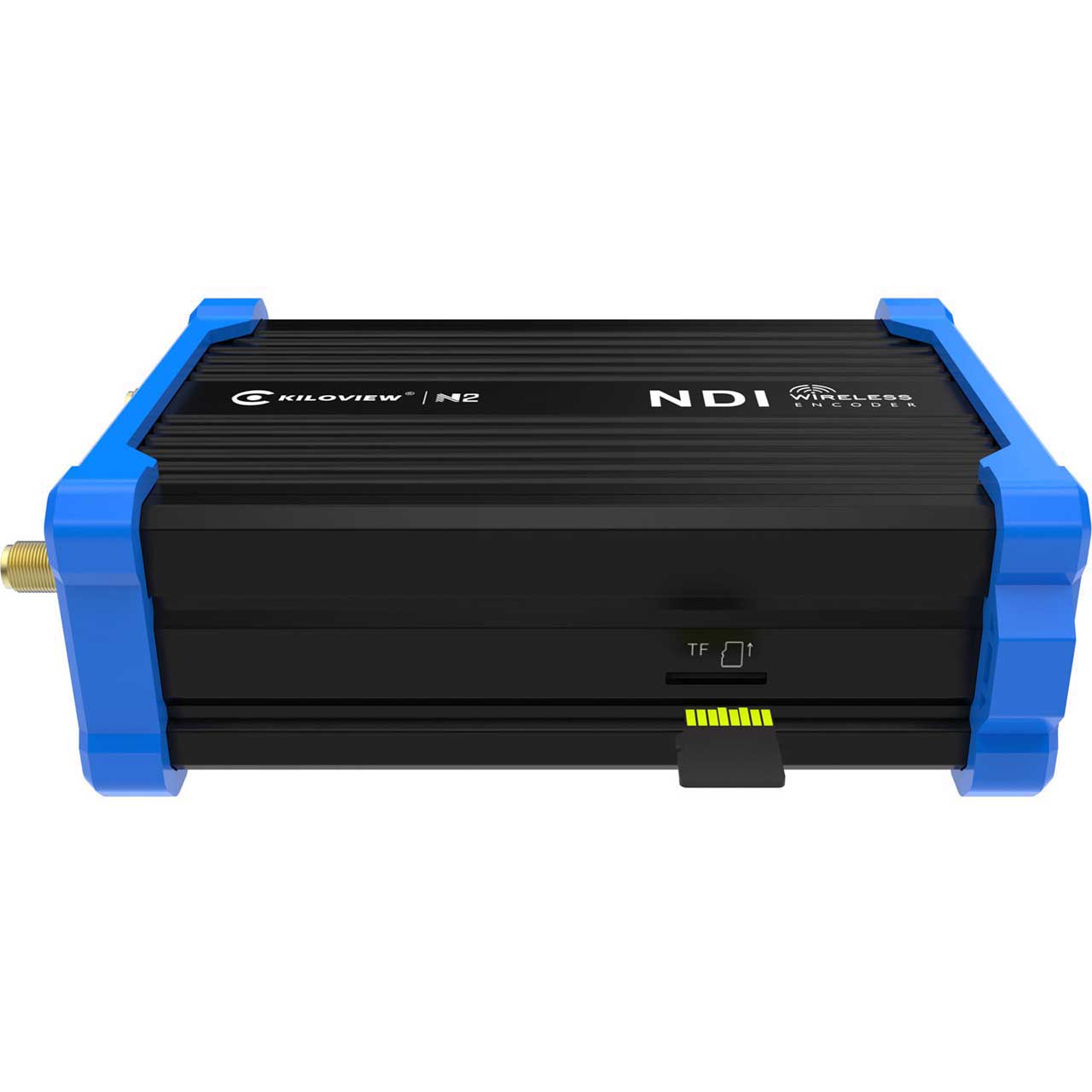

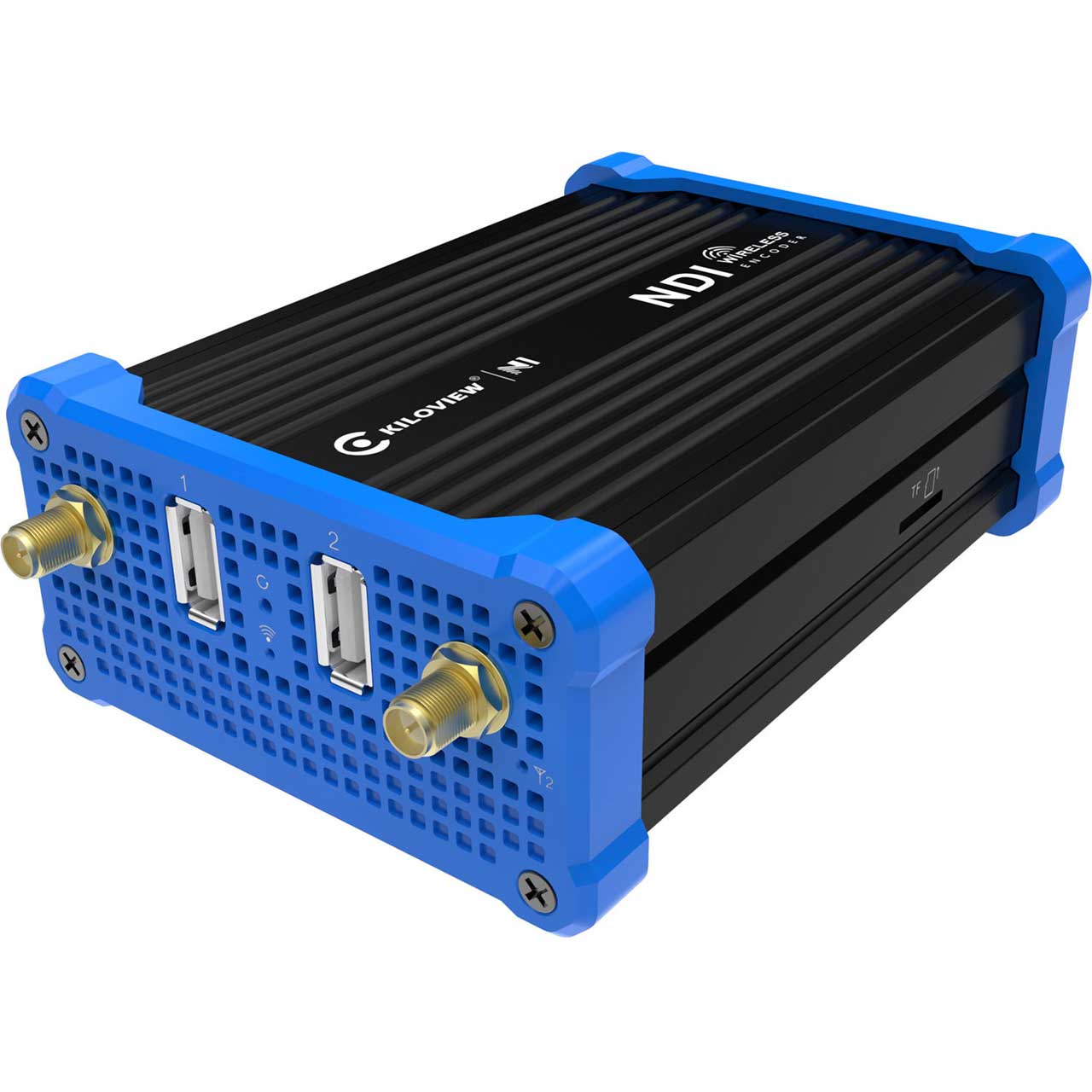

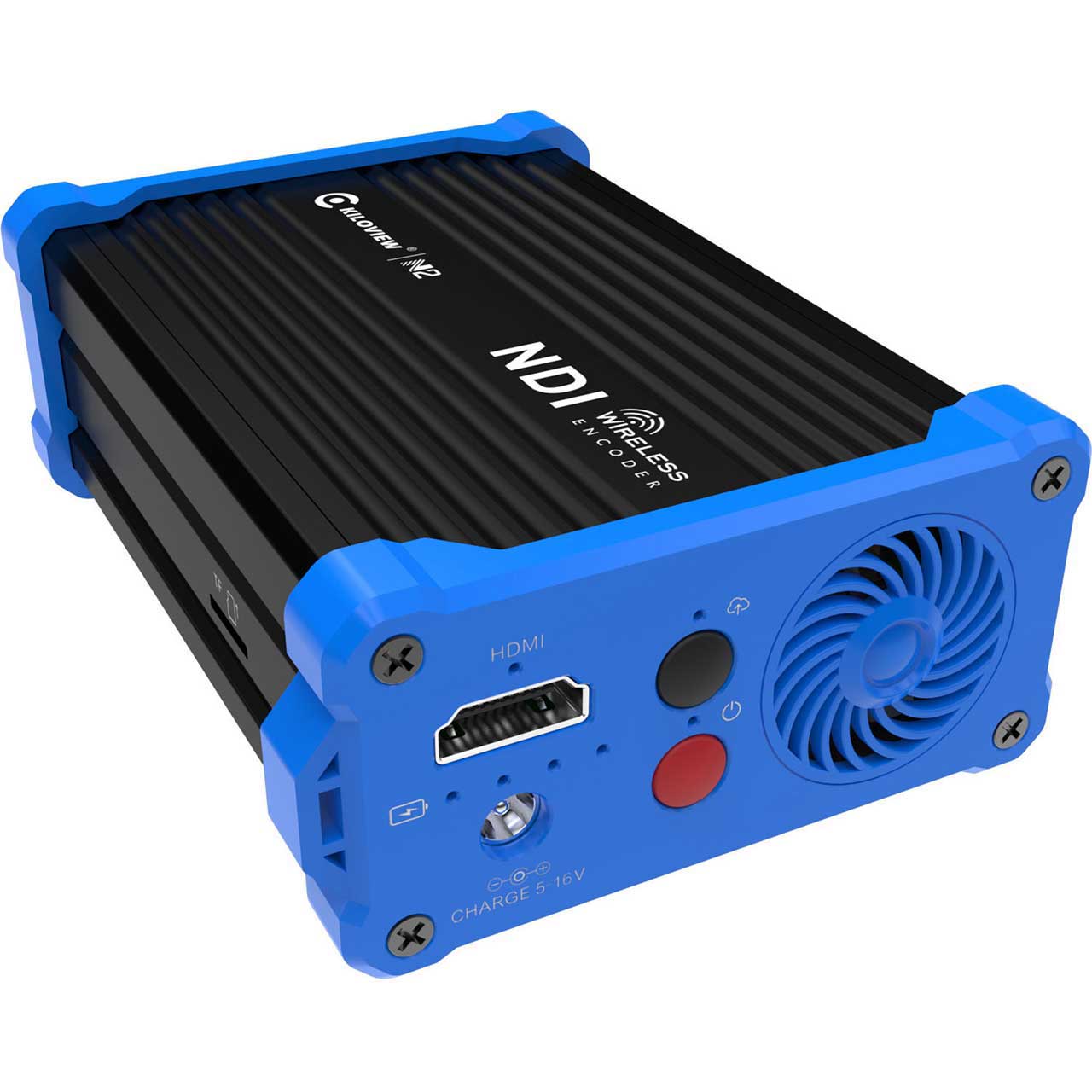

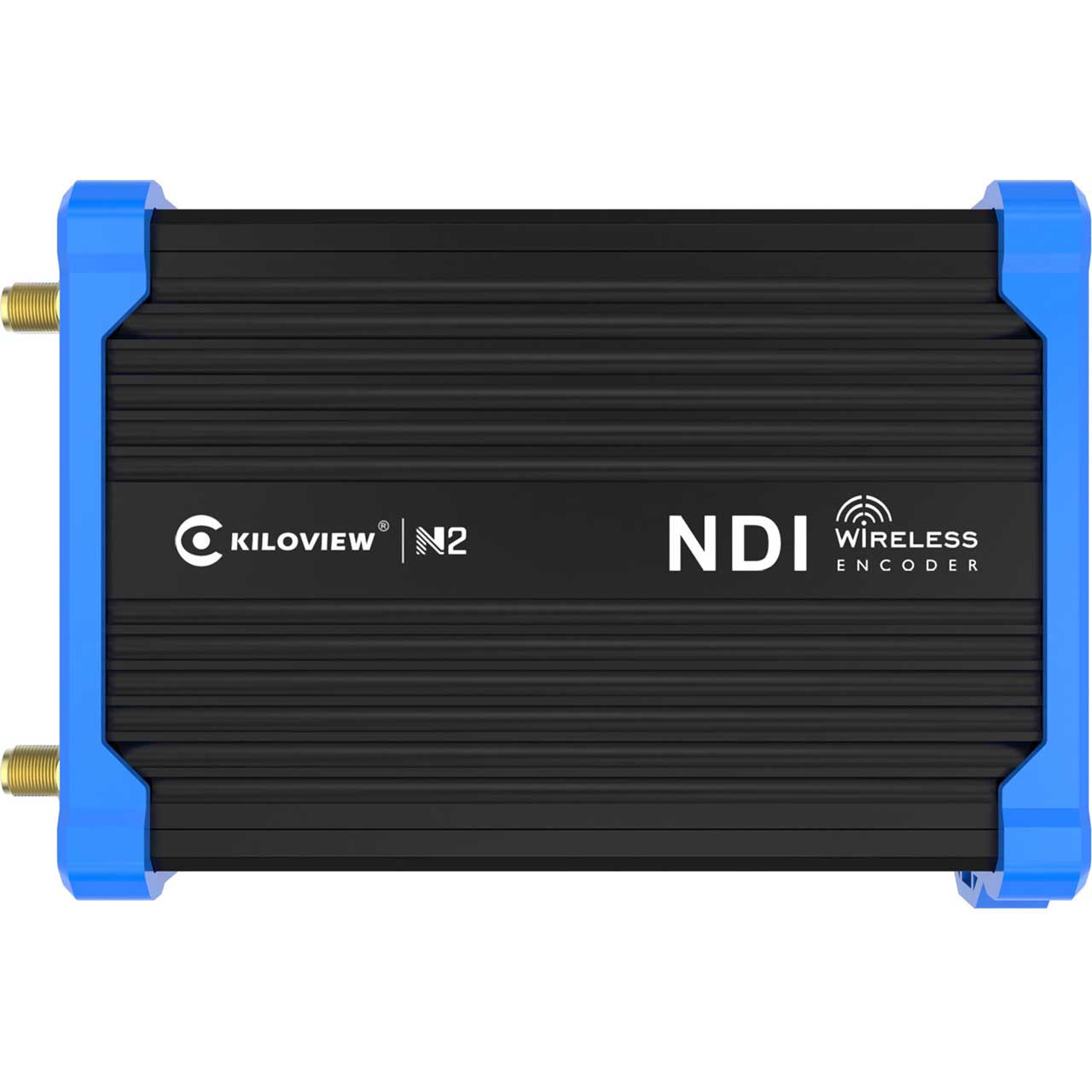

Kiloview N2 Wireless Camera Mount HDMI to NDI Video Encoder - Battery Powered

ITEM #: KV-N2 MFG #: KV-N2

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the KV-N2

KV-N2 - Overview

Kiloview KV-N2 New Tek NDI® is an open network device interface protocol with ultra-low latency, accurate frame video, data stream mutual recognition and communication, makes video real-time production possible. N2 HDMI to NDI video encoder is a professional video encoding device for NDI video production. It can encode HDMI video source into NDI protocol stream, and transmit video over wired network or wireless WIFI network which is available for any NDI compatible systems, devices or software.

NDI has become a more convenient and reliable video transmission technology which is widely applied in the video production process. Kiloview NDI video encoder can directly convert the SDI or HDMI signals to NDI, and realize ultra-low-latency transmission through WIFI (or Ethernet) to various other NDI devices or software in the network for interconnecting, to reduce cables cost and deployment time, greatly satisfying the needs of studio and on-site multi- camera video production.

Applications:
TV programming
Lecture capture
Online courses
Distance learning
Course recording
Broadcast meetings
Web training
Remote pathology
Telemedicine
Medical training
Conferences
Concerts
Sports
Remote supervision

  • Features:

    • NDI Protocol
    • Equipped with hot shoe
    • Voice intercom supported
    • Portable with wifi
    • No messy & expensive cables
    • Up to 1080P60Hz
    • Built-in battery
    • Lossless image quality
    • Provide SDK for second development
    • Available as sources for other NDI compatible systems and software, no cables everywhere anymore.
    • Ultra low-latency, mutual identification and communication of multiple data streams.
    • Smart connection, discovered and connected by other NDI devices automatically.
    • SRT supported to ensure secure and reliable transmission
    • Built-in 5.0GHz WIFI realizes stable NDI Wireless transmission, or USB-extend Ethernet transmission.
    • 115*75*35mm, 380g only, hot shoe mountable makes it easy to install on the camera for portable application.
    • Built-in large-capacity lithium battery, supports 5-16v external mobile power supply, which can last about 5hours.
    • Internal cooling fan makes it adapts to high temperature conditions, stable and reliable operation.
    • Easy to operate, it supports wireless remote management using mobile phone/PAD terminal APP.
    • Wide adjustable code rate (64kbit/s to 40Mbit/s).
    • Dual stream output, the main code rate supports video encoding up to 1080p60Hz, and the sub-stream supports 720p 60Hz video encoding.


  • Specifications:

    • Input: 1 x HDMI
    • Network Support: Enhanced WIFI(Enhance 5G Hz frequency+PA),USB-extend Ethernet
    • Media Protocol: NDI-HX/RTMP/SRT/TS over UDP/HLS/SIP

    • Video Resolutions Up to 1080P60Hz
      1080p23.98/24/25/29.97/30
      1080p50/59.94/60
      1080i50/59.94/60
      720p23.98/24/25/29.97/30
      720p50/59.94/60

    • Encoding: Video encoding: H264/AVC, Motion-JPEG, NDI HX; Audio encoding: AAC/G.711
    • Recording: SD/TF card slot, local recording, NAS network storage
    • Latency: End-to-end by cable is about 150 ms
    • Image and Text Overlay: Custom text, image overlay function, can be superimposed to any position on the screen
    • Voice Intercom: Supported (required a voice intercom software)
    • Management: Web/APP
    • Hot Shoe: Removable

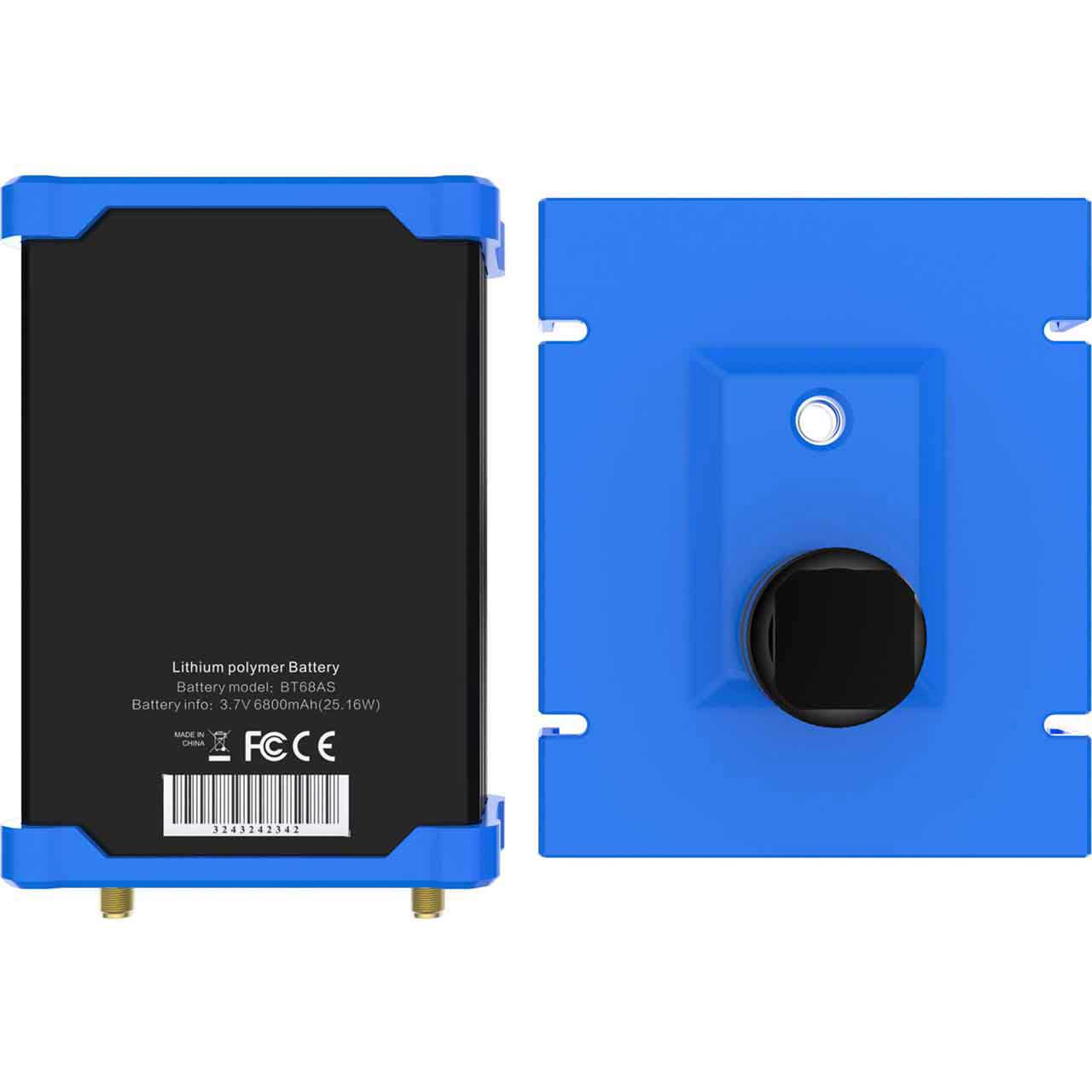

    • Battery Capacity: 3.7V 6800mAh(29.6Wh), last 5hours to work
    • Power Supply: DC 12V 1A
    • Power Consumption: 6.5w
    • Working Temperature: -20°C~45°C
    • Physical: Size: 115*75*35mm(4.53*2.95*1.38in); Weight: 380g(13.4oz)


  • Item Includes:

    • 1x Kiloview KV-N2 Portable Wireless HDMI to NDI Video Encoder - Camera Mounted - Battery Powered


  • GTIN:

    0653559999228
