Canare L-8CUHD 75 Ohm Ultra Low Loss Coaxial Cable for 12G-SDI - Black - 984 Foot (300m)

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    Canare L-8CUHD 75 Ohm Ultra Low Loss Coaxial Cable for 12G-SDI - Black - 984 Foot (300m)

    Item #: L-8CUHD-300BK   •   MFG #: L-8CUHD 300METER BLACK



    List Price:$1,547.00
    Our Price:$1,450.00

    no free ship


    Availability: In Stock
    i
    Item is Available for immediate shipping from our warehouse.


    • Shipped truck freight.


    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov

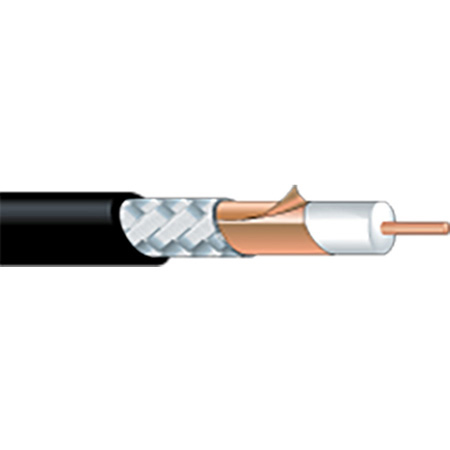

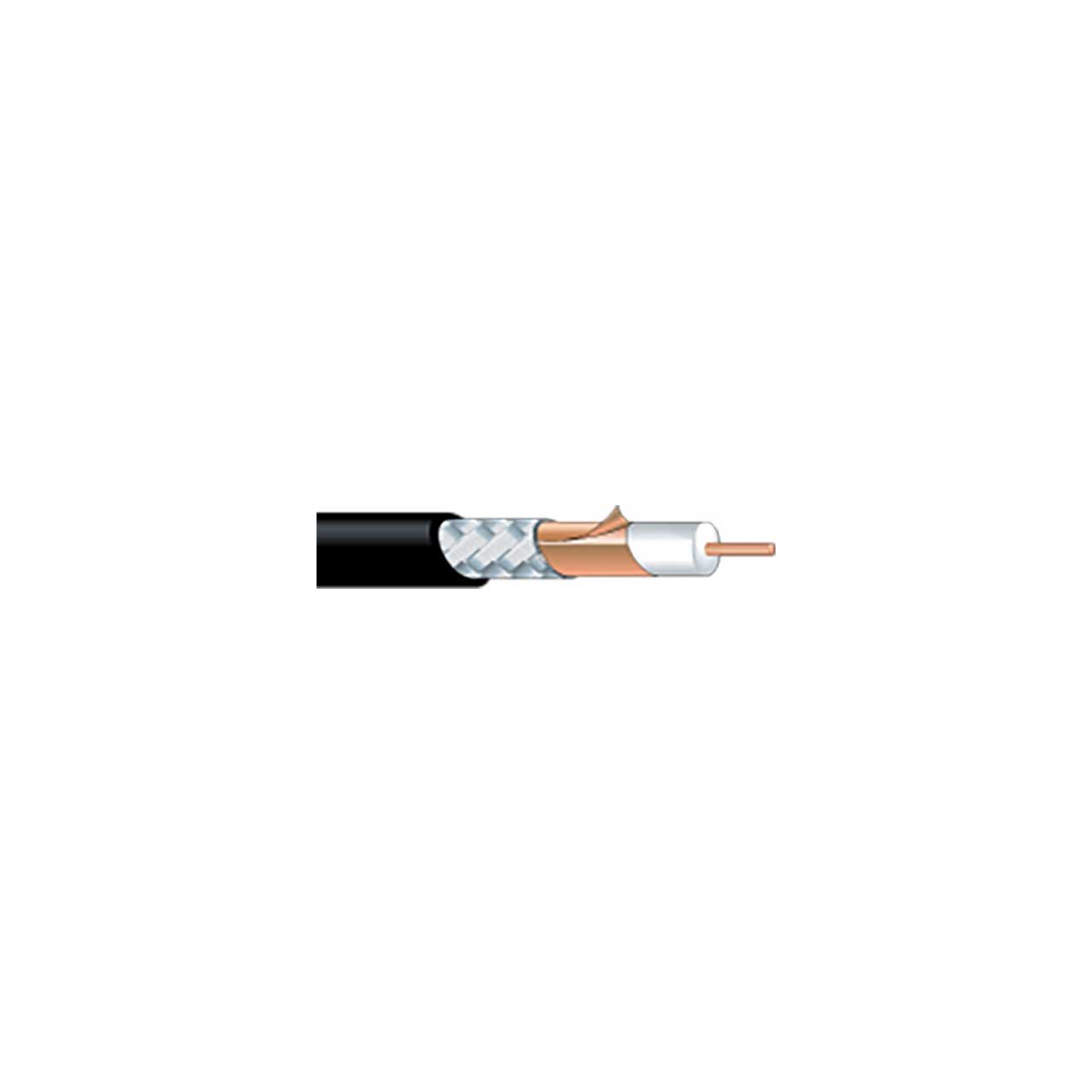

    Canare cable cements its leadership position in the industry move to 8K and 4K infrastructures with the L-CUHD Series of 12G-SDI coax cables. The Canare L-8CUHD is 75 ohm 12G-SDI video coaxial cable featuring highly-foamed PE insulation to bring unprecedented improvement in attenuation characteristics. L-8CUHD features a 13 AWG center conductor with a 0.437" O.D. and stands as the industry distance leader in 12G-SDI signal transmission supporting runs up to 469 feet.

    Multi-layer insulation, with each layer given a different foaming ratio, increases cable strength for the most demanding installations. Canare L-8CUHD delivers excellent results in most demanding tests including flame resistance UL 1666 Riser rating.

    Canare 12G-SDI 75 ohm precision digital video cable offers the professional Broadcaster a high performance, 100% Sweep Tested, low cost, low loss coax that meets the demands of today's facility migration to the highest Serial Digital Video and HDTV bandwidth requirements.

    Please Note: Use Crimp Tool TC-2 and Die Set TCD-8HD for use with L-8CUHD coaxial cable.


    • Features

      • Specially designed for 12G-SDI - SMPTE 2082-1
      • Max. transmission distance of UHD over single link able to reach 148m*
      • Excellent results in demanding tests
      • Copper foil and high-density tinned copper braided shielding
      • Highly-foamed multi-layer PE insulation
      • Flame resistance UL 1666 Riser
      • * Depending on equipment.

    • Specifications

      • Length: 984 Feet (300m)
      • Nominal O.D: 0.437 inch (11.1mm)
      • Inner conductor comp (AWG): 1/2.00A (13)
      • Inner cond O.D.: 0.079 inch (2.00mm)
      • Insulation O.D. : 0.325 inch (8.26mm)
      • Weight: 95lbs (31.74 lb/100m)
      • Outer Conudctors Shield Coverage & Comp: Copper Laminated Tape + 0.16TA/8/24 (92% or more)
      • Inner Cond. Resistance ohm/100m: 0.6
      • Outer Cond. Resistance ohm/100m: .6
      • Static Capacity (pF/m): 52
      • Characteristic Impendence ohm: 75
      • Attenuation dB/100m(328ft) @6GHz: 27.9

        Frequency  Attenuation
      • 10MHz    1.2dB/100m
      • 30MHz    2.0dB/100m
      • 72MHz    2.9dB/100m
      • 88MHz    3.2dB/100m
      • 135MHz   3.8dB/100m
      • 180MHz   4.4dB/100m
      • 270MHz   5.4dB/100m
      • 750MHz   9.1dB/100m
      • 1.3GHz    12.2dB/100m
      • 1.5GHz    13.2dB/100m
      • 2.0GHz    15.3dB/100m
      • 2.5GHz    17.9dB/100m
      • 3.0GHz    19.1dB/100m
      • 6.0GHz    27.9dB/100m
