FAD1202 - Overview

The Lab Gruppen FAD1202 2 x 120W dual-channel amplifier provides the perfect solution for commercial and industrial applications requiring great sounding distributed audio coupled with power conservation and reduced operating expense. Capable of delivering high-quality sound over both Low-Z (4Ω/8Ω) and High-Z (70V/100V) loudspeaker configurations offering extreme flexibility on every channel. FAD1202 is easy to install and operate - even for non-technical personnel. Simply put, the FAD1202 is ideal-suited for bars & restaurants, retail destinations, hotels, corporate, education or other venues needing background music and/or a public address system. Dante replaces point-to-point analog and digital connections with a standard IP network that delivers completely lossless audio, massive channel counts and near infinite signal routing flexibility, all while being incredibly easy to deploy and use. Dante Domain Manager is network management software that enables user authentication, role-based security and audit capabilities for Dante networks, while allowing seamless expansion of Dante systems over any network infrastructure. The FAD1202 is DDM ready.

Not only does FAD1202's direct drive constant power technology provide superior audio performance and reliability, it also consumes less mains power than competing models, which has earned it Energy Star * certification.

This amazing technology makes it possible to design and build powerful amplifier systems that not only save money on the electrical bill, but also reduce the requirements and cost at the installation for the mains supply. In fact, it is likely that installation can be done utilizing the in-place mains infrastructure. This adds up to significant installation and operational savings and protects the environment.

  • Specifications:

      Maximum Output Power
    • 4Ω or 8Ω per Channel: 120W

      Number of Output Channels
    • Number: 2

      Minimun Load Impedance
    • 4Ω Mode: 4Ω
    • 8Ω Mode: 8Ω
    • 70V Output Mode: 41Ω
    • 100V Output Mode: 82Ω

      Controls
    • Front: N/A

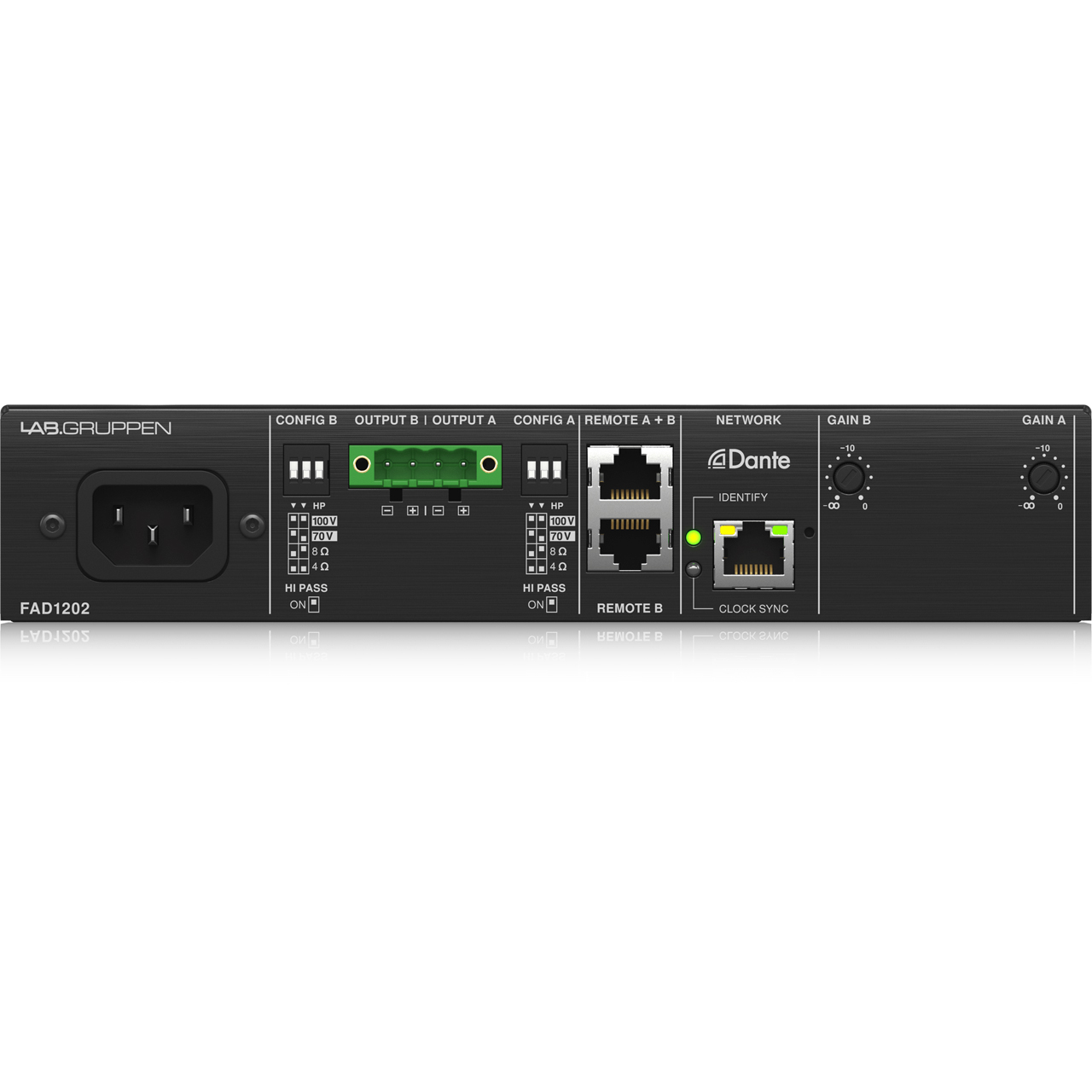

    • Rear: Gain control, load config (4Ω/8Ω/70V/100V), high-pass filter switch, reset button)

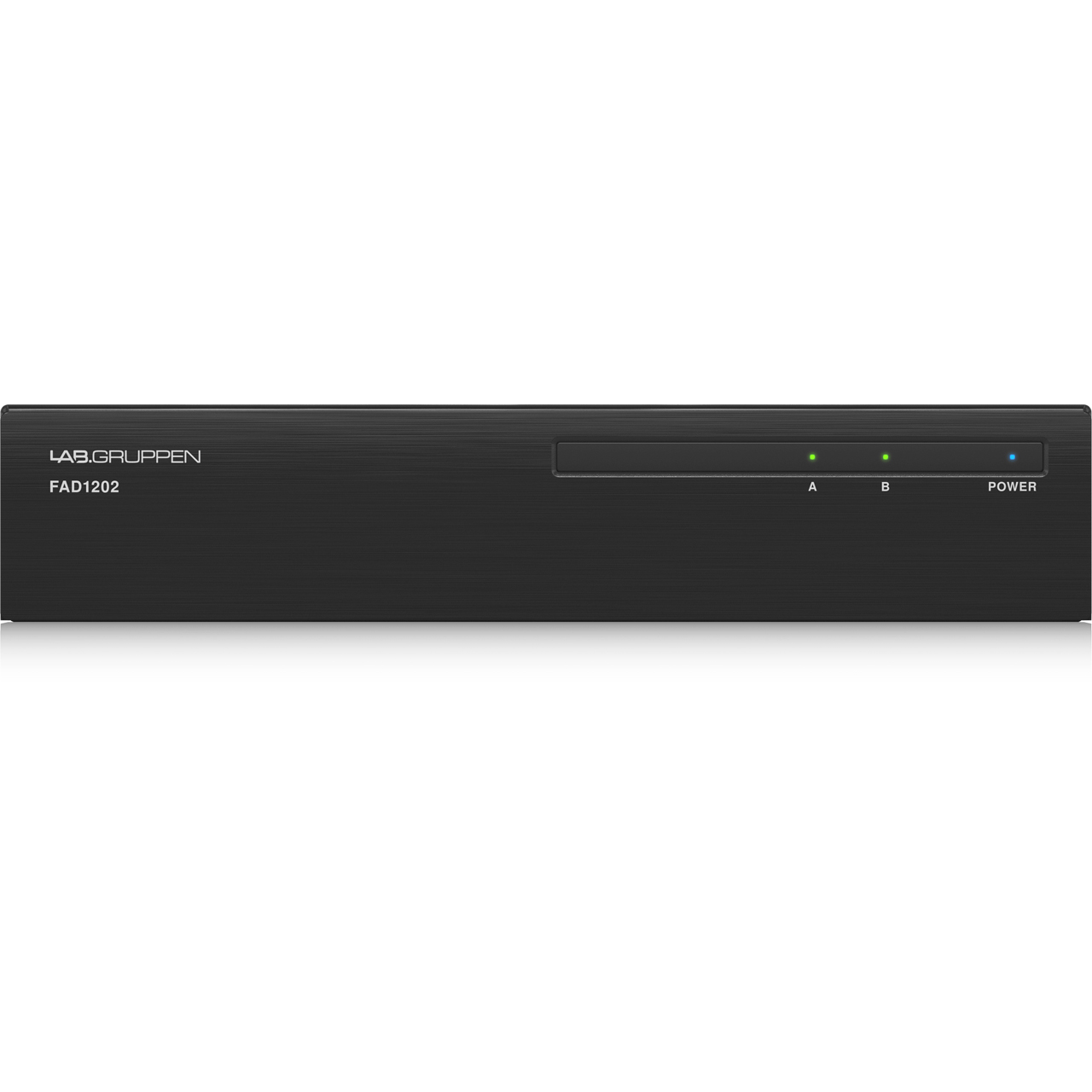

      Indicators
    • Power: On (Blue), Standby (Yellow)
    • Limit (Red LED), per channel: -1.5dBFS (digital)
    • Signal (Green LED), per channel: > -63dBFS (digital)
    • Fault (Red LED): Overheat, DC fault, over current etc
    • Dante: Indentify (Yellow), clock sync (White)

      System
    • Input Transmission Type: Dante, 2 channels Rx
    • Input Connectivity: 1x RJ45 Ethernet connector, 1-port 100Mbps to Dante interface
    • Input Sensitivty: -2dBFS (digital)
    • Maximum Input Level: 0dBFS (digital)
    • Outputs Connectivity: 1x 4-pin 5.08 mm Euroblock connector
    • Output Circuit Type: Class D
    • Remote Connector: 2x RJ45 Ethernet connector

      Performance
    • Distortion,1/8 Rated Power: <0.1%
    • Frequency Response: 20Hz - 20kHz, +0dB/-1.5dB
    • Crosstalk: >72dB
    • Signal-to-Noise: >101dBA
    • High-Pass Filter: 80Hz HPF

      Circuit Protection
    • Cooling: Convection-cooled, fanless
    • Amplifier Protection: Thermal protection, over current protection, DC protection, high frequency protection
    • Load Protection: Controlled start and shutdown behaviour, DC-fault protection

      Power Supply, Voltage (Fuse)
    • Main Voltage: 100V - 240V~, 50/60Hz with active power factor correction
    • Power Consumption 1/8th rated power @ 4Ω: 70W
    • Mains Connector: Standard IEC connector

      Dimensions/Weight
    • Dimensions (HxWxD): 1.7" x 8.6" x 11" (44mm x 218mm x 280mm)
    • Weight: 5.7lbs (2.6kg)
    • Finish: Brushed black anodized aluminum chassis with black painted steel bottom
    • Approvals: CE, WEEE, cTUVus, PSE, RCM, RoHS, FCC part 15 Class B, Energy Star 3.0
