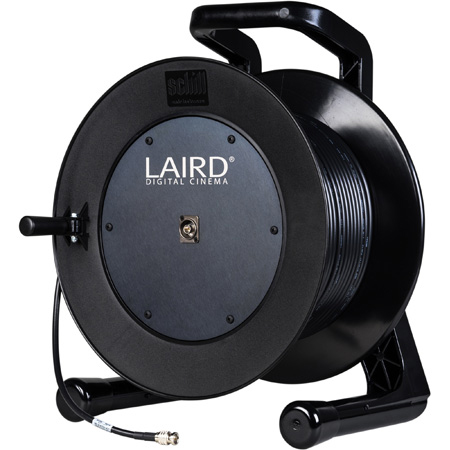

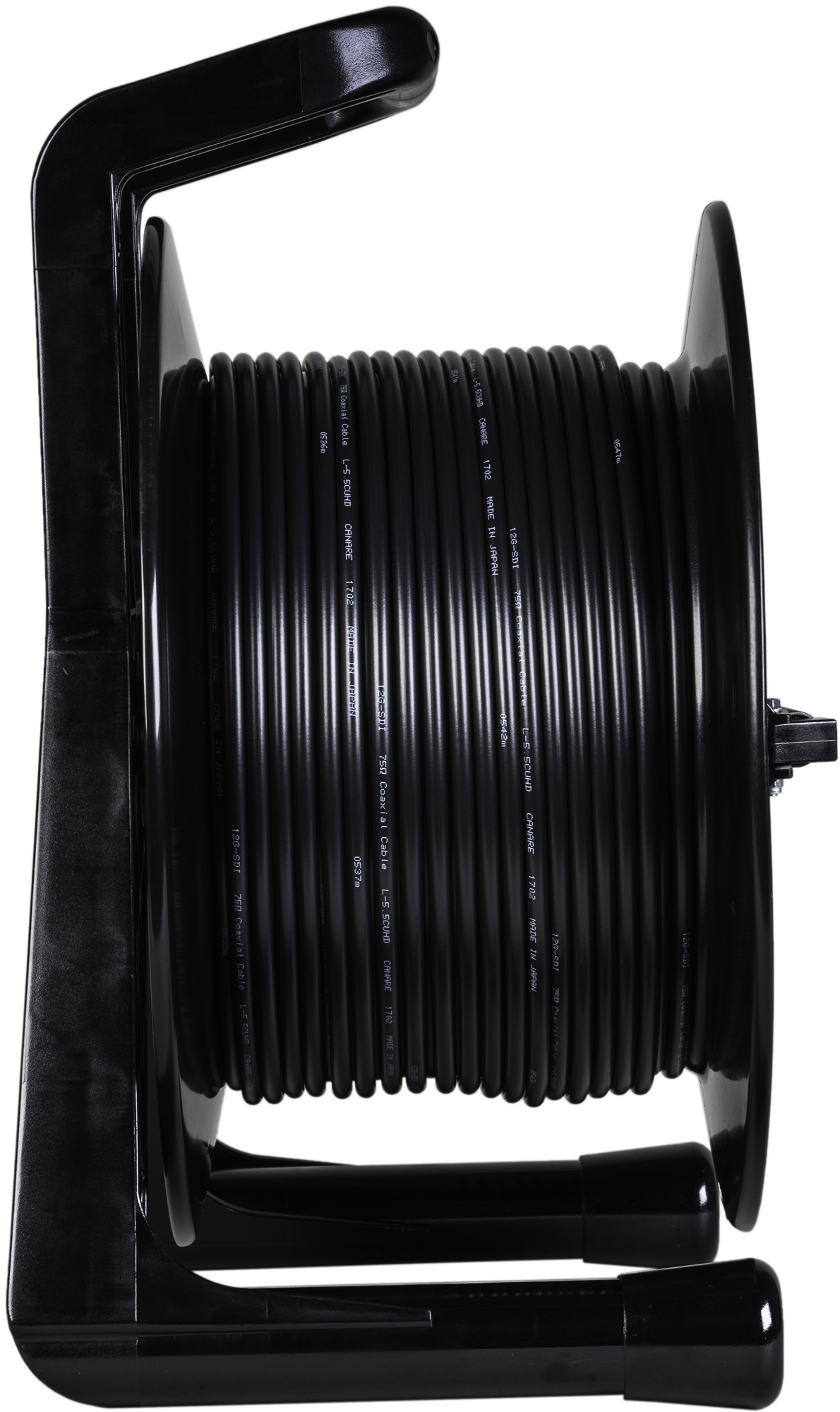

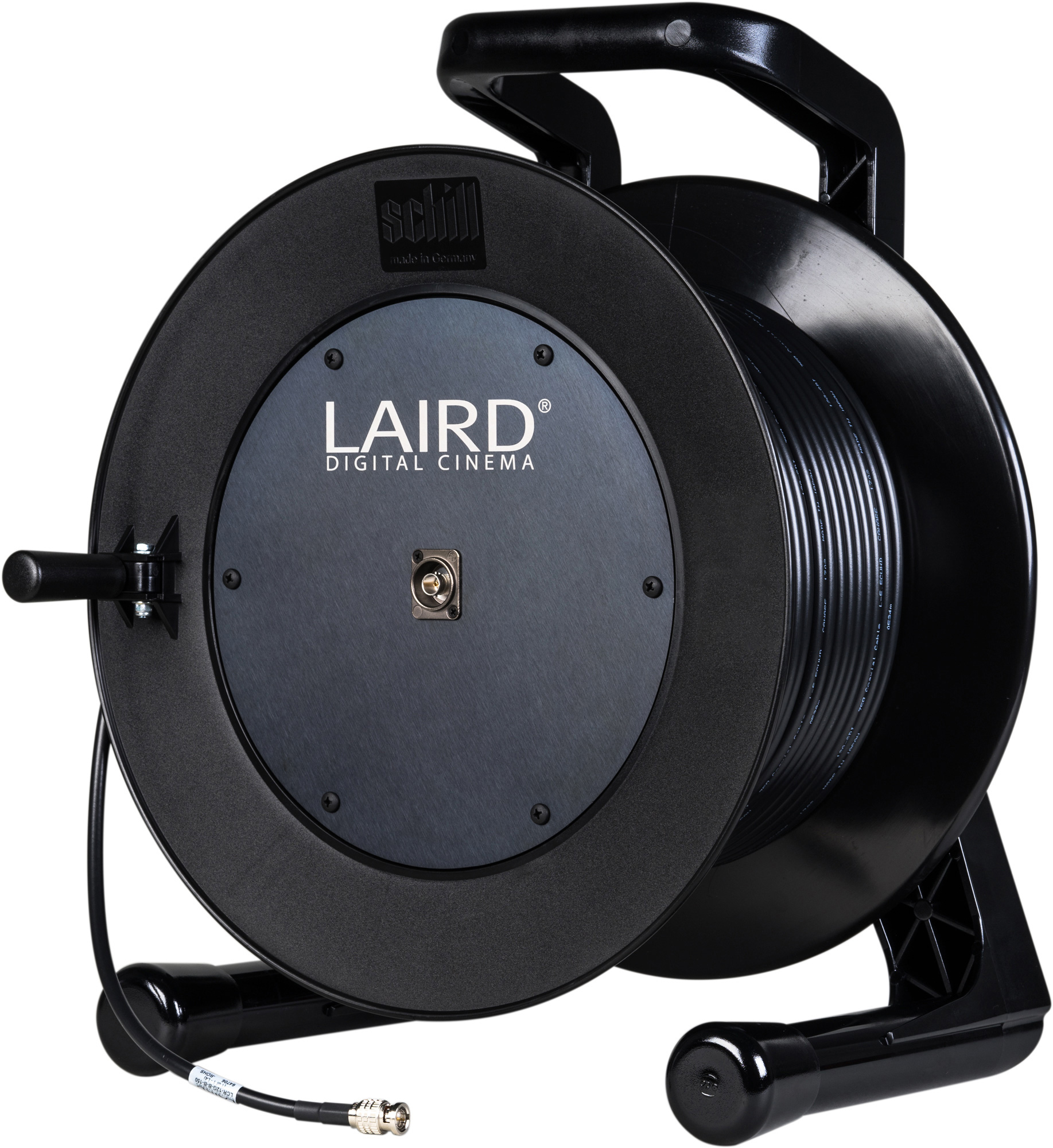

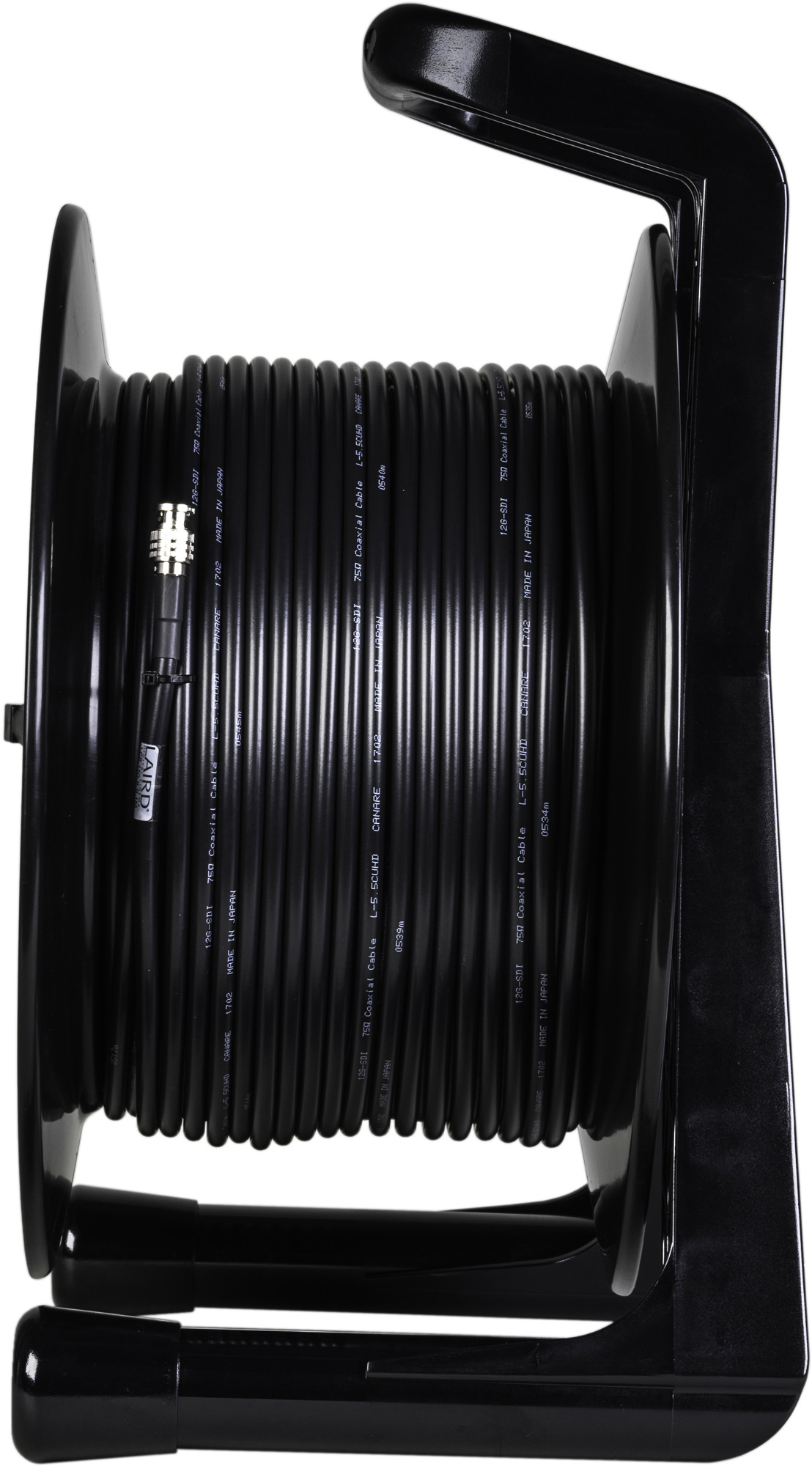

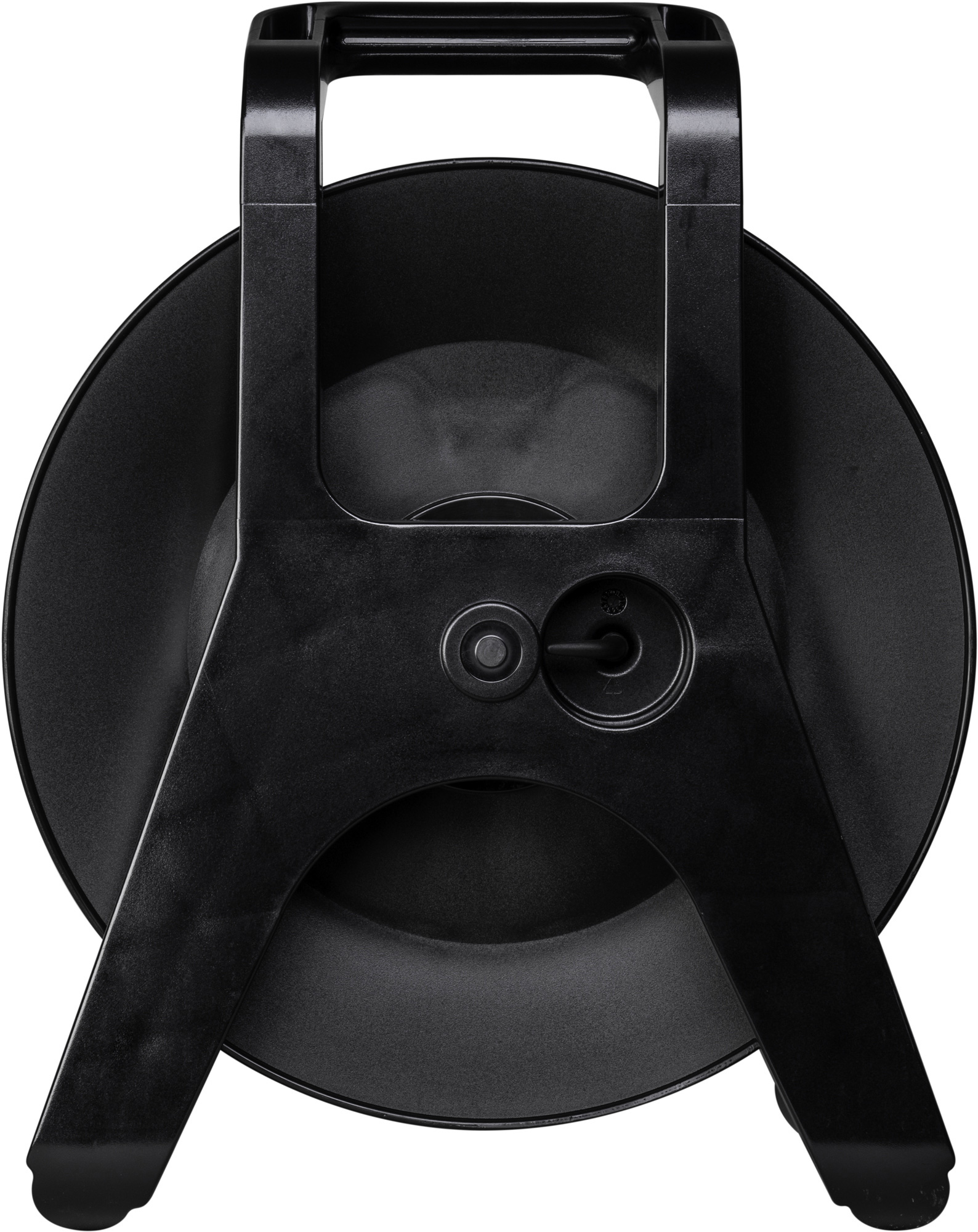

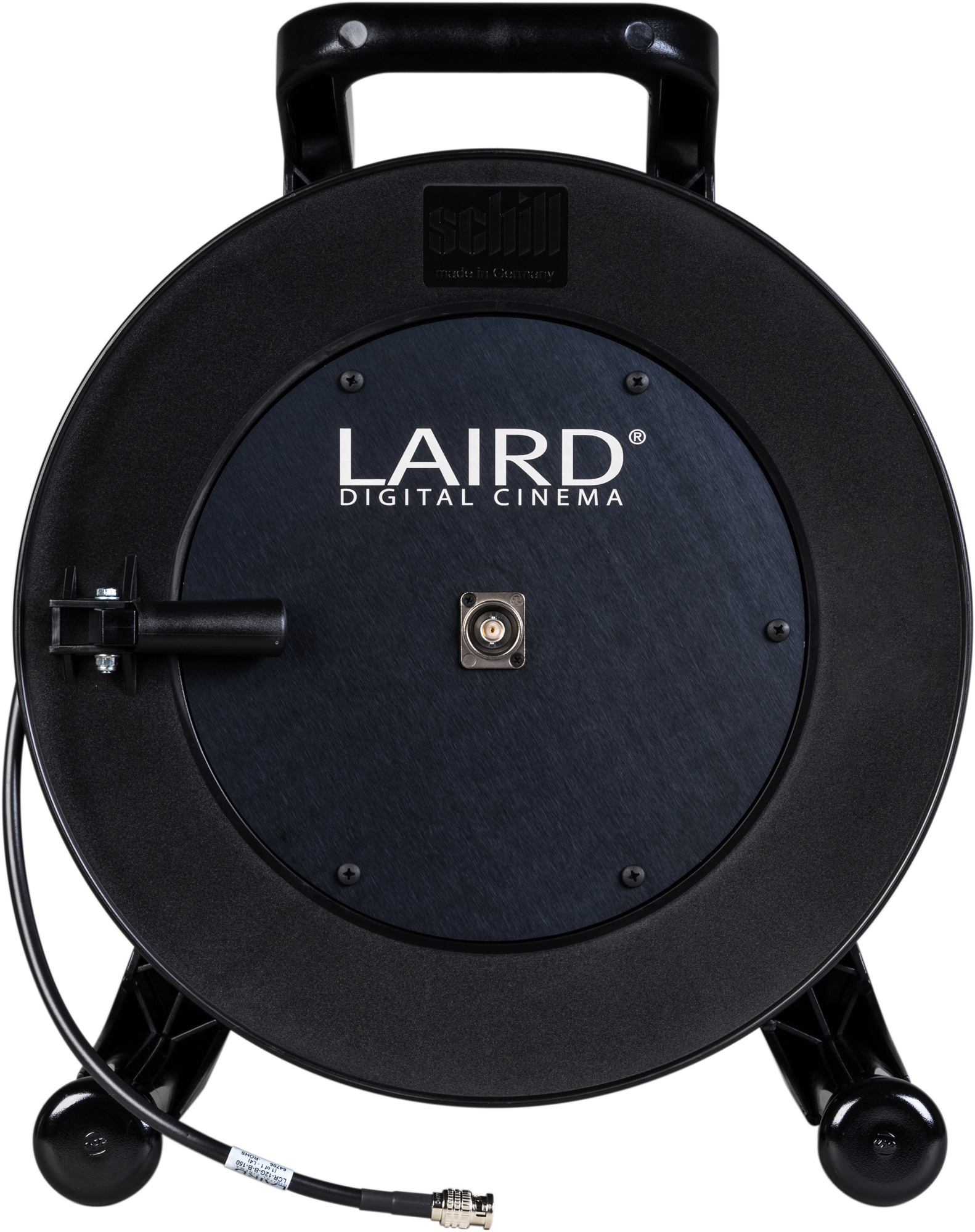

Laird LCR-12G-B-B-150 12G-SDI/4KUHD Single Link BNC to BNC Camera Cable on Reel - 150 Foot - Bstock (Used/Demo)

ITEM #: LCR-12G-BB150-BS MFG #: LCR-12G-B-B-150

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the LCR-12G-BB150-BS

LCR-12G-B-B-150 - Overview

As 12G / 4K UHD continues to shape the landscape of broadcast TV, sports, live events and commercial production workflows, Laird delivers the most advanced BNC Cable Reels on the market for effectively transmitting 12G-SDI signals up to 325 feet. Utilizing Canare L-5.5CUHD coaxial, these BNC cables are the right choice to future-proof new facility installs in studios and broadcast towers as well as outside broadcast interface applications. This coax cable has enhanced attenuation characteristics that allow transport of 12G signals at much greater distances than comparable-sized coax. Cables are fully SMPTE ST-2082-1 compliant and hand crafted with Canare L-5.5CUHD miniature coaxial and BCP-D55UHD connectors. A superb return loss at 12 GHz of 15 dB, 20 dB @ 6 GHz & 26 dB @ 3 GHz makes these cables perfect for 12G, 6G and 3G systems. Please Note: This is a Bstock item. This cable was used for a show demo.

  • Features:

    • SMPTE ST-2082-1 Compliant for 12GSDI transmission SDI Formats 1.5G, 3G, 6G, 12G Maximize Broadcast Signal Integrity Transmission Distance: up to 328 Ft 12G Flame Resistance UL 1666 Riser Military Grade Heavy Duty Reel Features Spool Brake and Neutrik Grounded 4K/8K UHD D-Style Chassis Mount BNC Connector Please Note: This is a Bstock item. This cable was used for a show demo.


  • Specifications:

    • Canare 12G-SDI/4K UHD Single Channel BNC Cable Inner Conductor: Annealed Copper Outer Conductor 1: Copper Laminated Tape Outer Conductor 2: Tinned Annealed Copper Braid > =91% Insulation: Foamed Polyethylene Canare BNC 75 Ohm Crimp Connectors Return loss: 15dB@12GHz, 20 dB @ 6 GHz & 26 dB @ 3 GHz Gold Plated "Snap Lock" Center Pin and Beryllium Copper Outer Contact Elongated Body Design for Better Grip Position Mark on the Body Makes it Easier to Check if Connector is Locked


  • Warranty:

    • 1 Year
