Laird Bates Style Male Stage Pin to 15 Amp NEMA Female Power Adapter Cable - 2 Foot

Name: Laird Bates Style Male Stage Pin to 15 Amp NEMA Female Power Adapter Cable - 2 Foot
Brand: Laird Digital Cinema
SKU: LDC-BSPM-15NF
Price: 38.95 USD
Availability: PreSale

ITEM #: LDC-BSPM-15NF MFG #: LDC-BSPM-15NF

Laird Digital Cinema

List Price:

$42.95

Our Price:

$38.95

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

LDC-BSPM-15NF - Overview

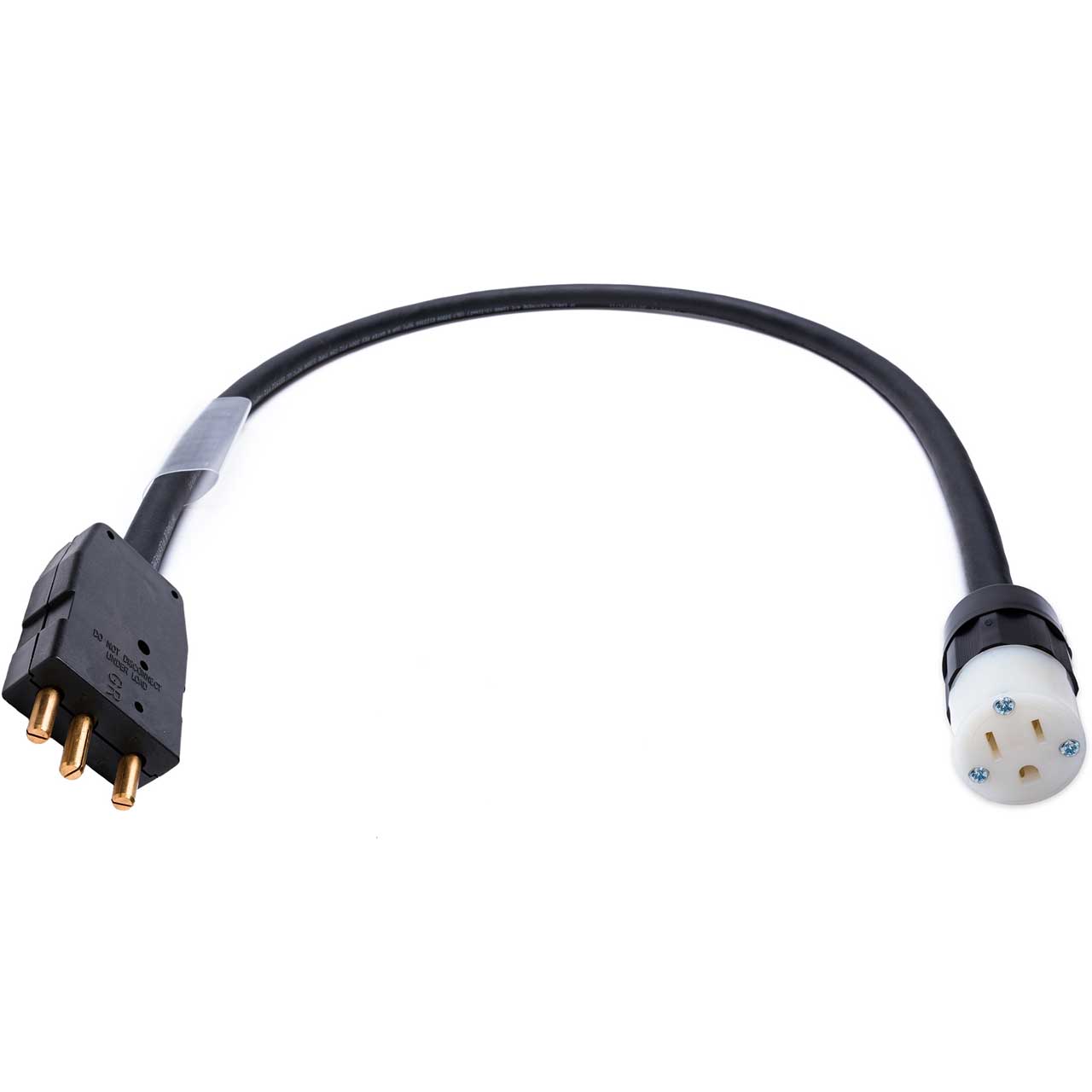

The LDC-BSPM-15NF is a handy power cable by Laird for adapting a stage pin lighting system to standard 15 Amp AC Power. These cables are built with SJOOW heavy duty 12/3 wire that’s perfect for location shoots, studio sets and theatrical stages to power lighting, audio and video gear. This power adapter cable has a male stage pin connector to a 15A NEMA receptacle.

Features:
- Laird's heavy-duty flexible SJOOW PWR-12/3-TP power cable
- Rugged 15-amp and 20-amp connectors
- UL-recognized components
Specifications:
- Cable Type: SJOOW
- Number of Conductors x AWG: 3x12
- Conductor Insulation: Rubber (EPR)
- Outer Jacket Material: Rubber (CPE)
- Current Carrying Capacity: 25 Amps
- Outer Diameter: 0.425in - 0.476in
- Nom. Voltage: AC U 300V
- Temperature:
  • Flexing: -4°F to 194°F (-20°C to +90°C)
  • Static: -40°F to 194°F (-40°C to +90°C)
- Min Bend Radius:
  • Flexing: 4.76in
  • Static: 2.85in
- Weight: 0.14lbs/ft

  Leviton Connector:
- Amperage: 15 Amps
- Voltage: 125 VAC
- Blade/Contact Material: Solid Brass
- Body Material: Impact Modified Nylon

  Bates Connector:
- Max. Amperage: 20 Amps
- Max. Voltage: 125 Volts
- Housing Material: Thermoplastic
- Contact Material: Brass
Warranty:
- 1 Year
