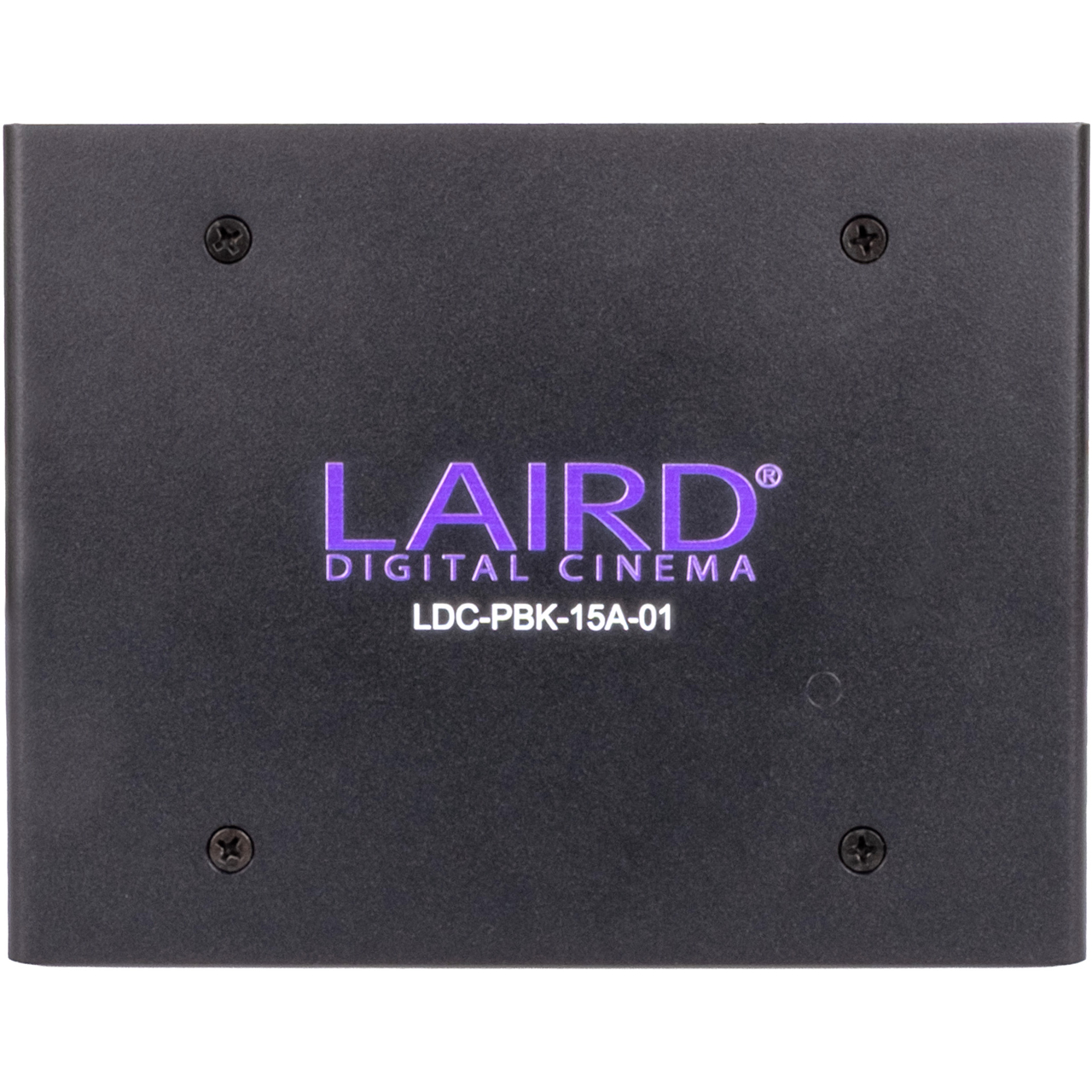

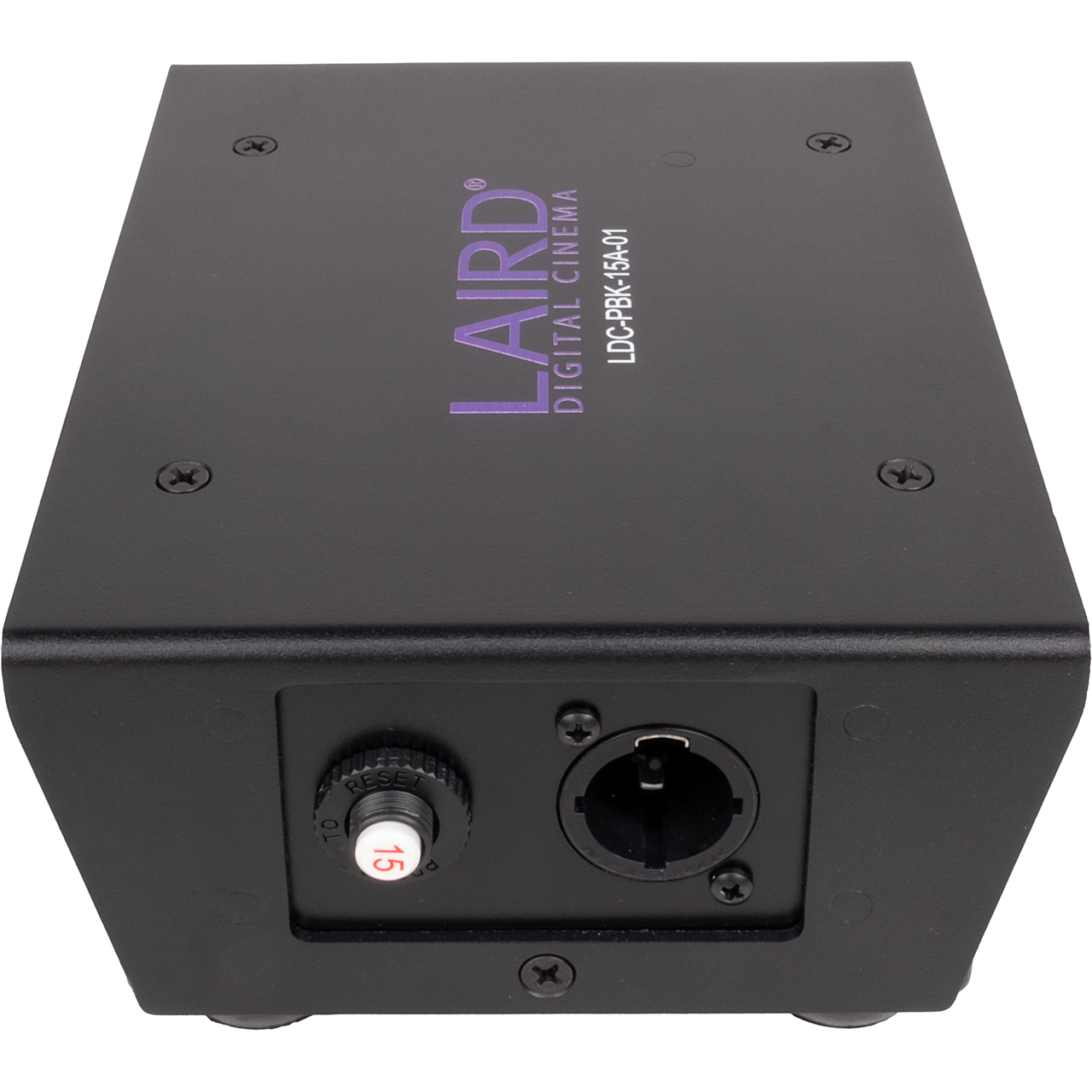

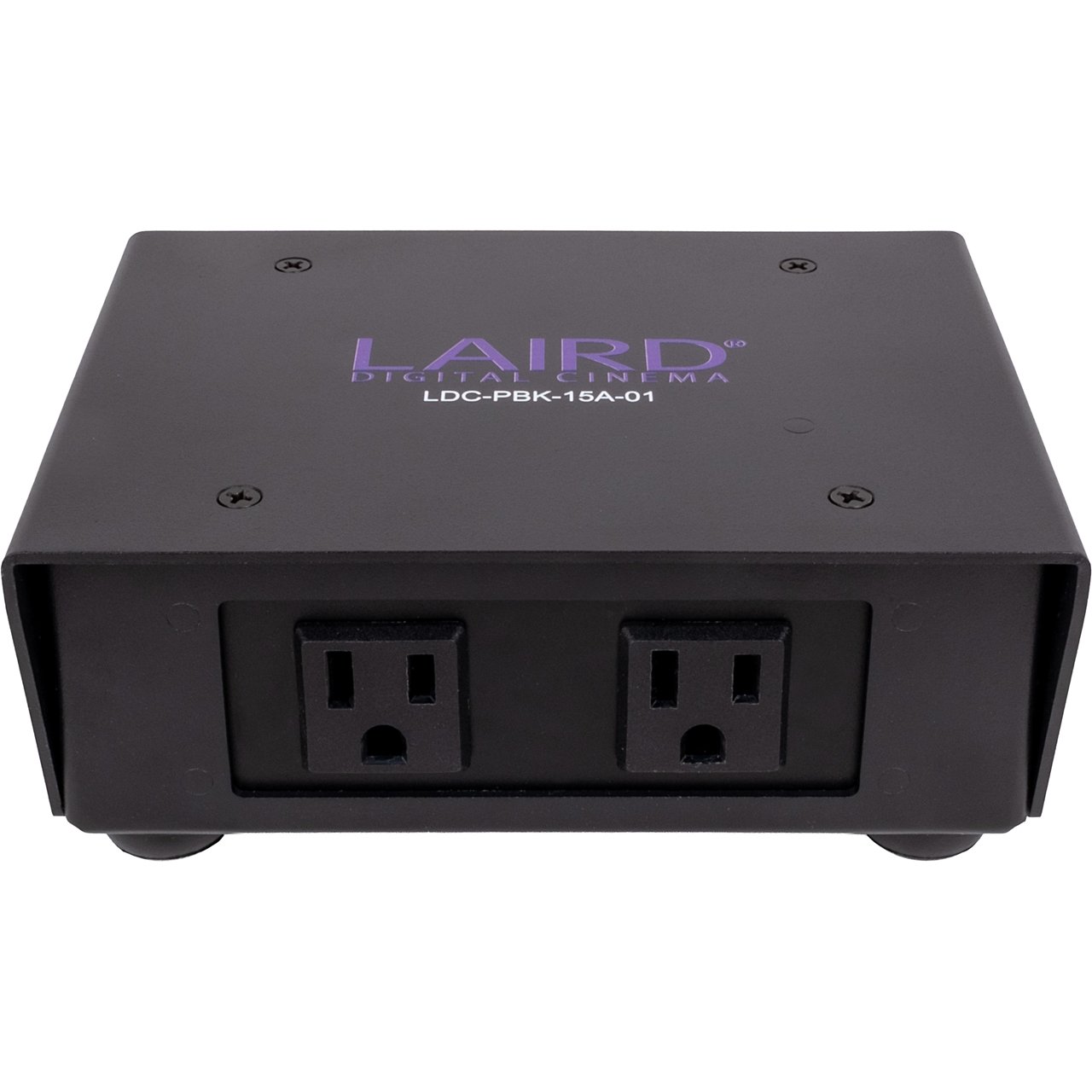

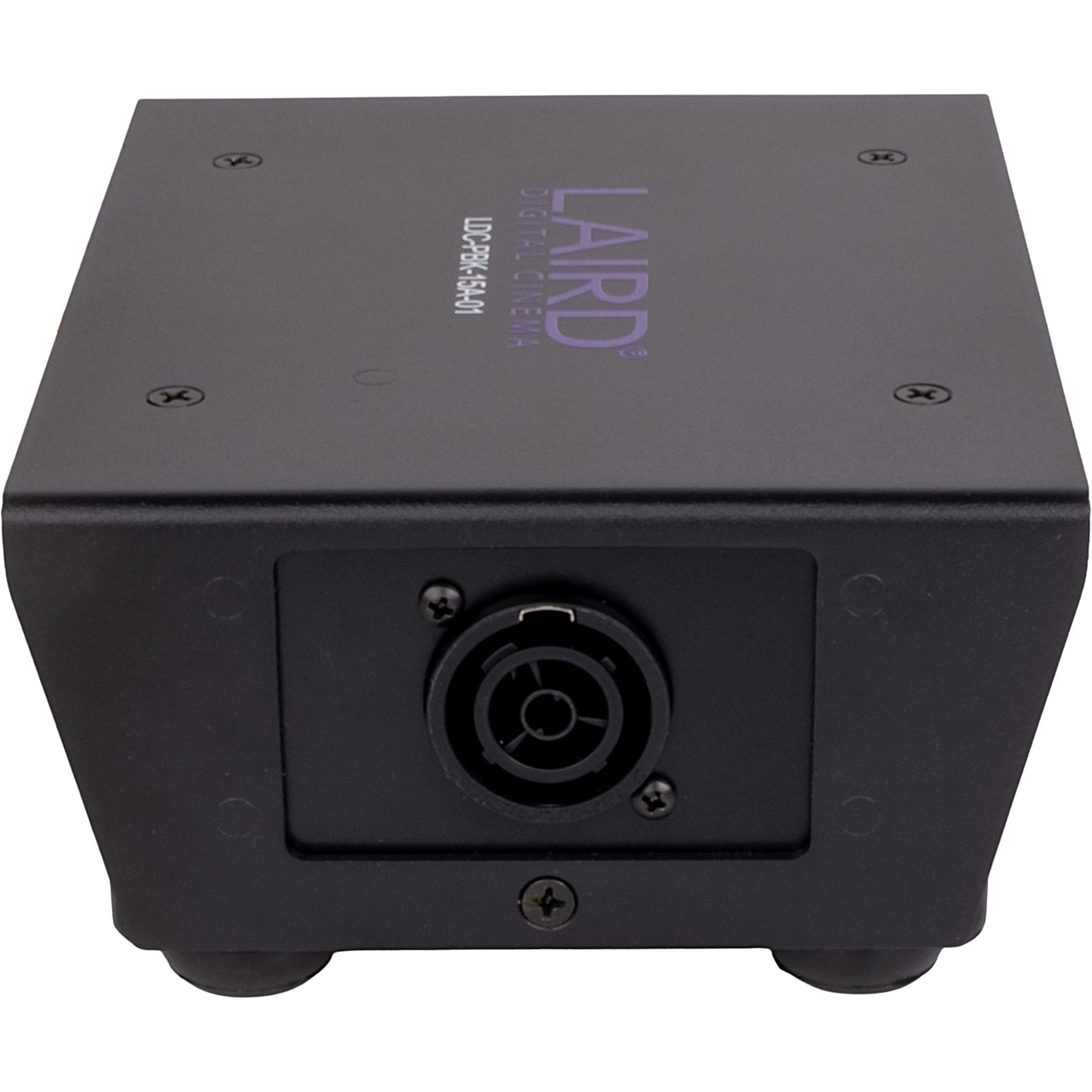

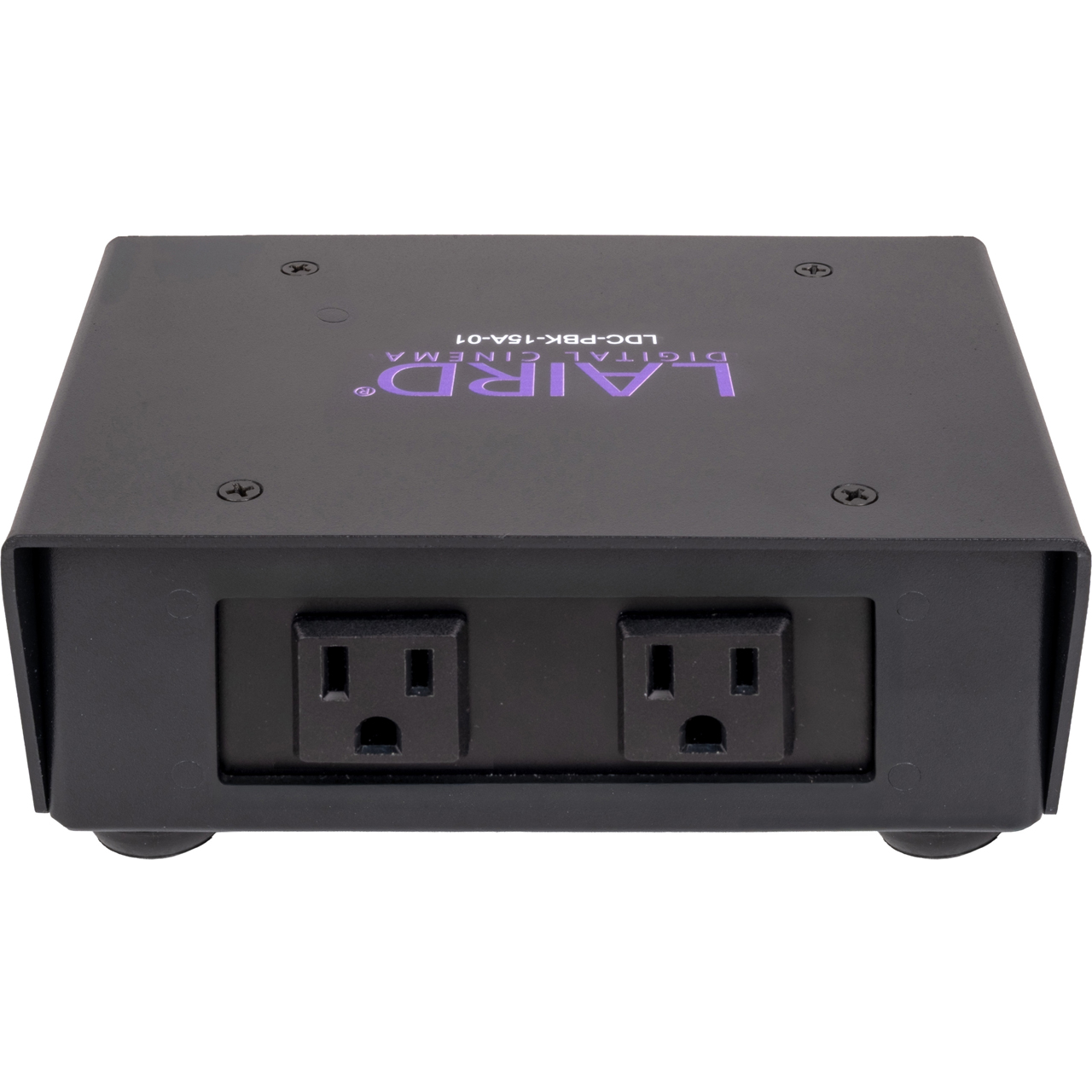

Laird PBK-15A-01 Neutrik powerCON TRUE1 15-Amp Power Distribution Box to Four (4) Edison Outputs

ITEM #: LDC-PBK-15A-01 MFG #: LDC-PBK-15A-01

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$349.49

Our Price:

$305.49

Availability: In Stock
iAvailability Description Popup


LDC-PBK-15A-01 - Overview

The Laird LDC-PBK-15A is a series of 15-amp power distribution splitters that provide power to your choice of NEMA 5-15, Neutrik powerCON TRUE1 TOP, and powerCON Type B connectors. Feed-thru connectors allow for daisy-chaining of multiple boxes, ensuring uninterrupted power delivery across various setups. This series features an M10 threaded insert that enables versatile and easy integration with other equipment or truss systems. The LDC-PBK-15A is ideal for professional audio and lighting rigging and live events.

  • Features:

    • High-Quality Neutrik powerCON connectors
    • Rugged Aluminum Enclosure
    • Multiple connector options are available
    • M10 Truss mounting insert that enables easy mounting

  • Specifications:

      Box Specifitaions:
    • Dimensions: 6.5" x 4.875" x 2.625"
    • Rated Amperage: 15 Amps
    • Input:
      • x1 powerCON TRUE1
    • Output:
      • x1 powerCON TRUE1
      • x4 NEMA 5-15 Edison Receptacles

      Neutrik powerCON Connectors:
    • Contact Resistance: ≤ 2 mΩ
    • Dielectric Strength: 4 kVdc / 2.8 kVac
    • Insulation Resistance: > 1 GΩ
    • Rated Voltage: 250 V AC

      Edison Receptacles:
    • Voltage Rating: 125 V AC
    • NEMA Rating: 5-15

  • Warranty:

    • 1 Year
