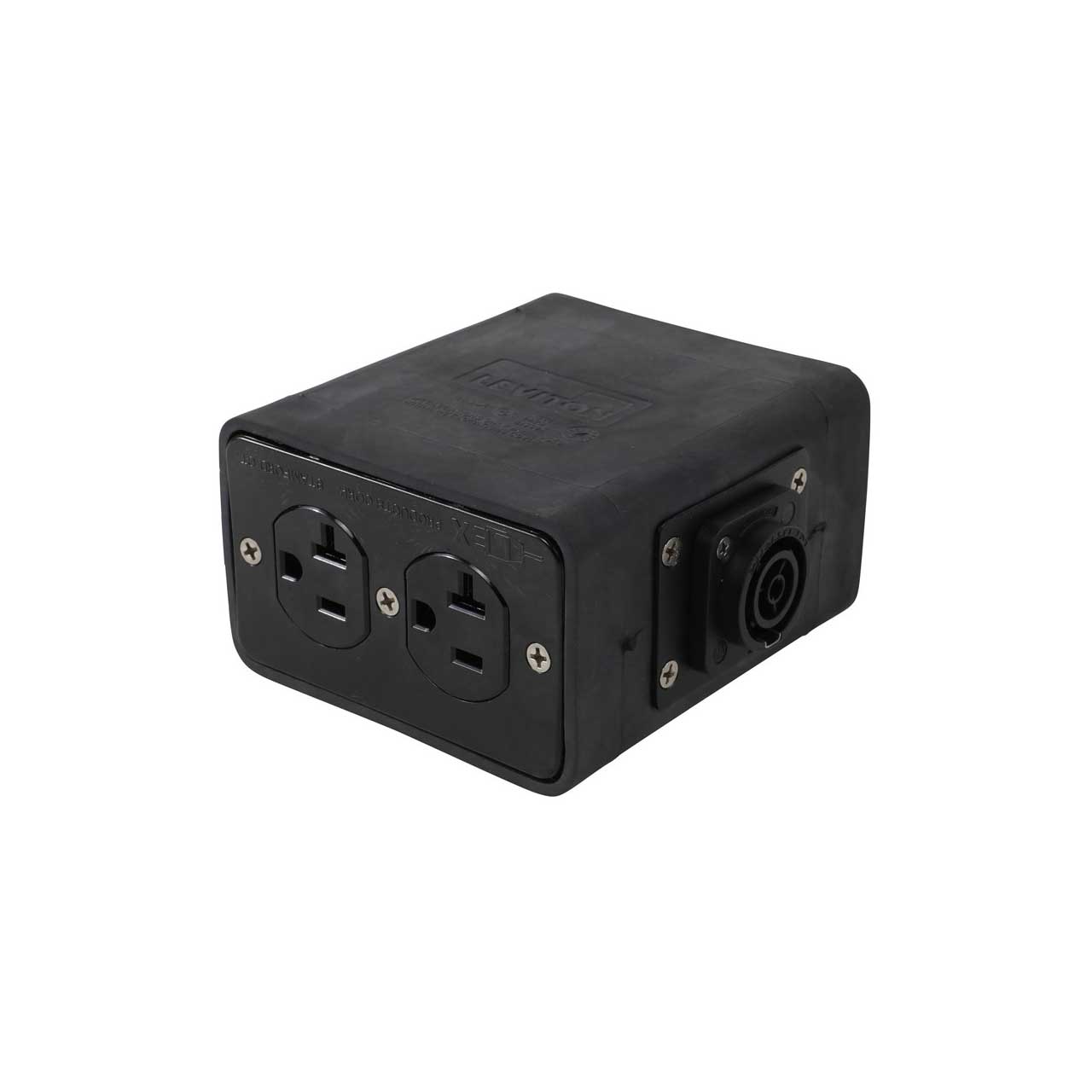

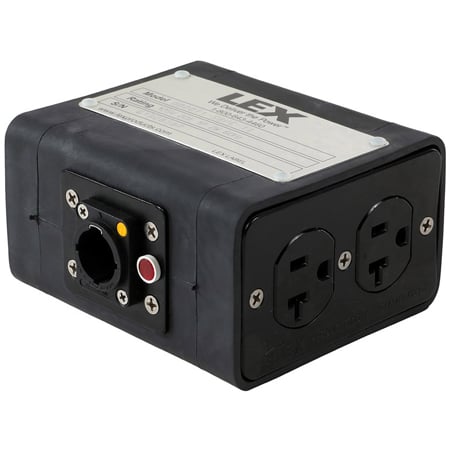

Lex Products DB20T1-SBPC-TI PowerHOUSE 20 Amp Quad Box powerCON TRUE1 to Duplex Receptacles w/ Threaded Inserts

DB20T1-SBPC-TI - Overview

PowerHOUSE™ Portable Power Distribution w/ threaded inserts

• Features:

  • This exceptionally versatile quad box is used for placing convenient duplex receptacles exactly where they are needed
  • The quad box enables the user to create receptacle stringers using powerCON extensions of various lengths
  • Heavy-duty molded rubber enclosure is fully insulated and resistant to shock, impact, corrosion
  • Compact and convenient way to place 20 Amp duplex receptacles where they are needed
  • Feed thru option allows multiple boxes to be placed along the same feed


• Specifications:

  • Rating: 20 Amp, Single-phase (H,N,G), 2-pole, 3-wire, 125 VAC, 60 Hz
  • Environmental Rating: NEMA Type 1 (Indoor Use)
  • Input: (1) powerCON® NAC3MPA-1 (Blue), 20 Amp, 2-pole, 3-wire, 250 VAC, locking inlet, panel mount
  • Feed Thru: Yes
  • Main Breaker: None
  • Output: (2) NEMA 5-20 (Edison), 20 Amp, 2-pole, 3-wire, 125 VAC, straight blade duplex receptacles, panel mount
  • Overcurrent Protection: None
  • Enclosure Type: Quad Box
  • Dimensions: 4.70"L x 2.50"W x 4.20"H
  • Weight: 1.5 lbs


• Warranty:

  • 1 Year Limited Warranty
