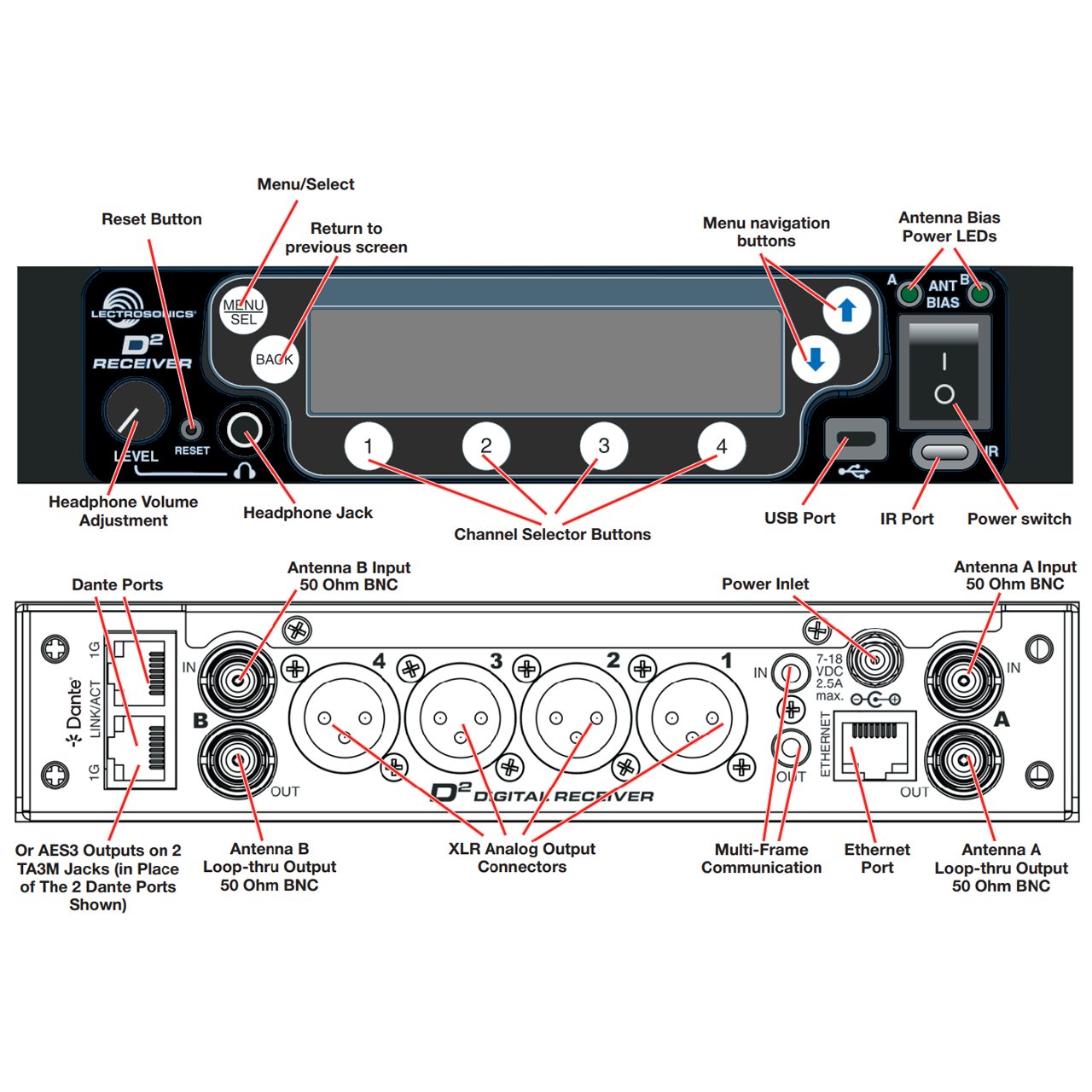

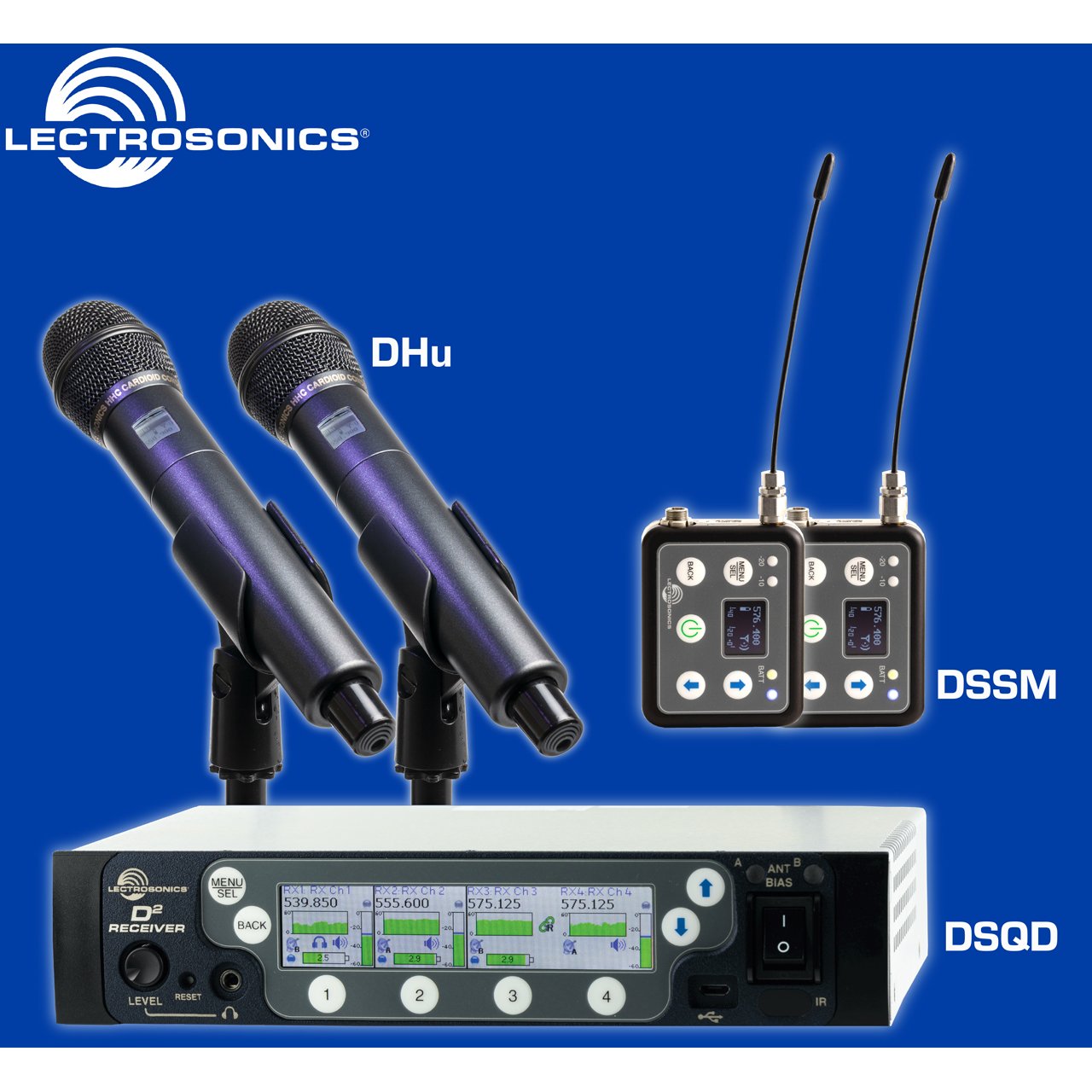

The Lectrosonics DSQD is a half rack receiver with analog and digital Dante® network audio outputs that utilize Lectrosonics signature digital architecture with remarkable audio quality and ultra-low latency. The receiver includes an extended operating range rivaling the best analog and Digital Hybrid Wireless ® systems with continuously tunable tracking filters covering 470.100 - 614.375 MHz. Antenna ports on the rear panel accept input from remote antennas, with a "loop-thru" output to another mainframe using the internal multi coupler.

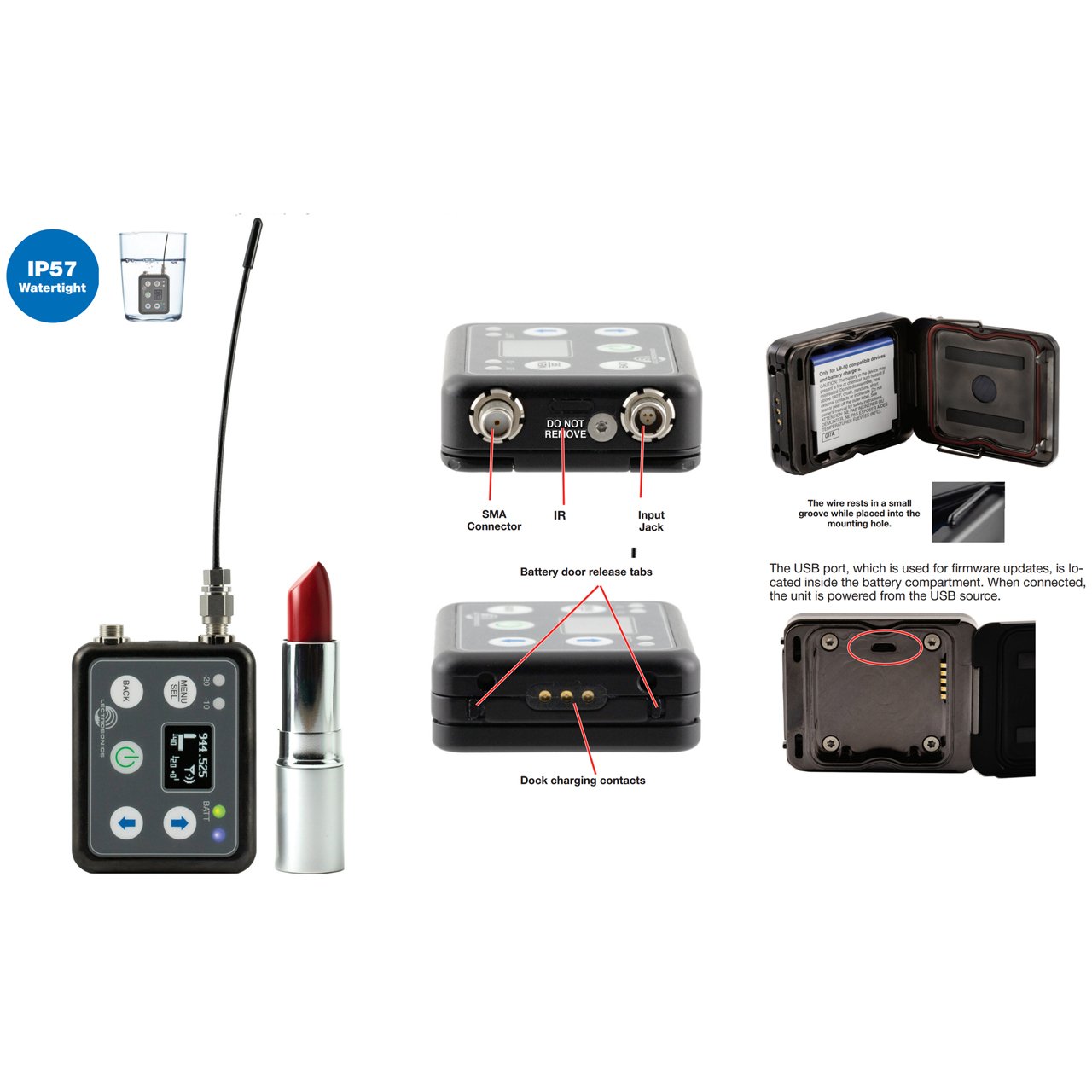

The Lectrosonics DSSM is the enhanced, fully digital successor to the SSM, while being IP57 rated for watertightness and offering dock charging capability.
The IP57 rating indicates that the unit is protected against dust ingress while also withstanding water immersion up to 1 meter for 30+ minutes - perfect for the most demanding work environments. All while allowing for quick battery swap-outs.
The DSSM is ideal for theater, TV, film and broadcast environments where concealment and water-resistance is required. The DSSM offers an extensive feature set and performance packed into an exceptionally compact housing, compatible with all current Lectrosonics digital receivers, including the DSQD, DCR822, DSR, DSR4, M2Ra, and DCHR.
The DSSM includes specially developed, high efficiency circuitry for extended operating time on the rechargeable LB-50 battery. RF power selections are offered at 10 and 35 mW (D2 compat mode) and a special high density (HDM) mode at 2 mW.

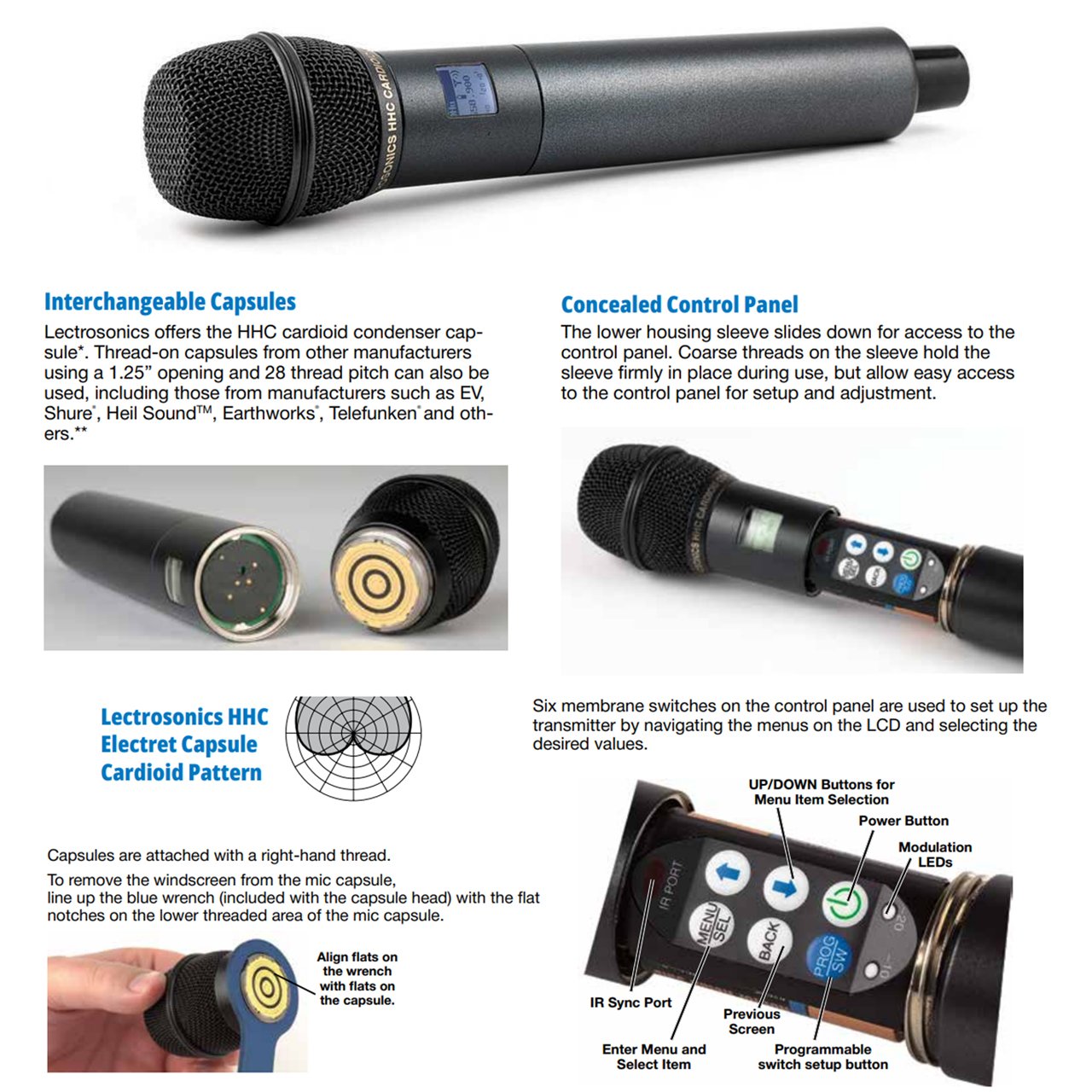

The Lectrosonics DHu Digital Encrypted handheld transmitter represents a versatile solution for a variety of wireless microphone applications including live performance, broadcast, AV rental and houses of worship. The design incorporates advanced features to provide high-quality speech and vocal reinforcement.
Interchangeable Capsules
Lectrosonics offers the HHC cardioid condenser capsule (included). Thread-on capsules from other manufacturers using a 1.25" opening and 28 thread pitch can also be used, including those from manufacturers such as EV, Shure, Heil Sound, Earthworksr, Telefunken and others.

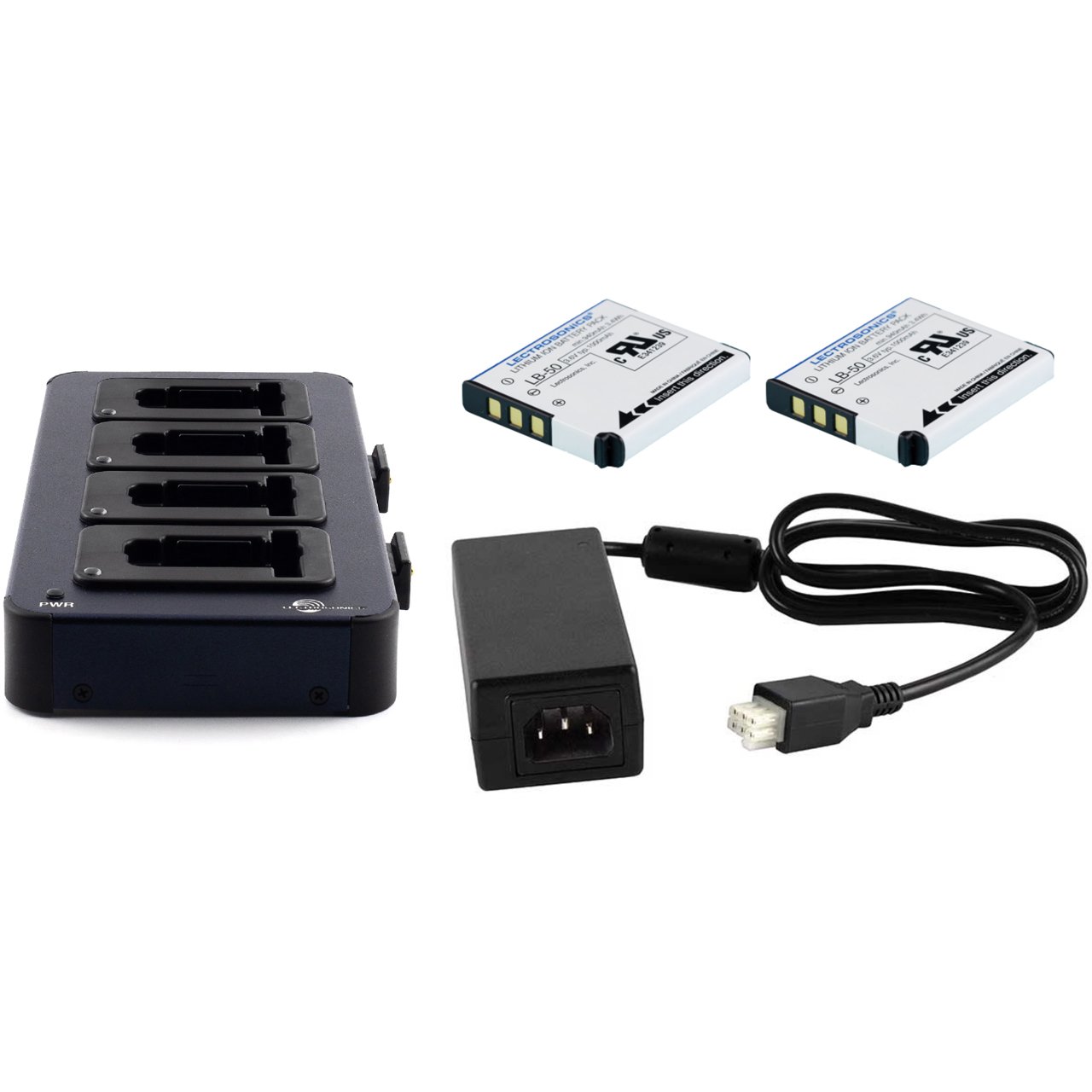

The Lectrosonics CHSDSSM battery charging station provides a convenient and organized means of recharging 4 LB-50 batteries or DSSM transmitters in larger systems with numerous batteries in regular use.
Each charging module may be daisy-chained to 3 additional modules using a single AC-DC power supply (DCR5/9AU - not included) for a total of 16 units charging at once (LB50's and/or DSSMs).
Requires two lav or headset microphones (not included)
