Lectrosonics HHa Handheld Transmitter - A1 470.100 - 537.575 MHz No Capsule.

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

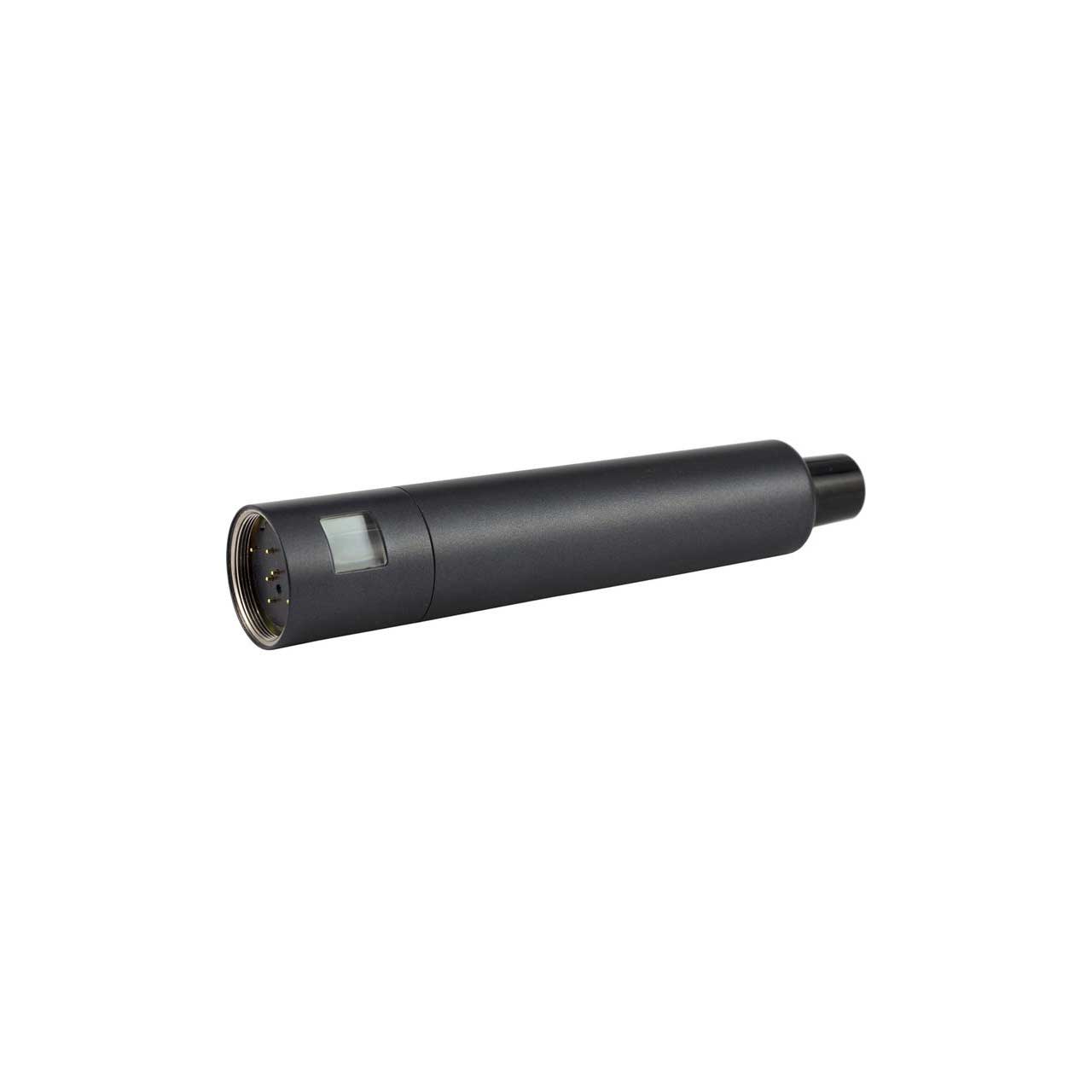

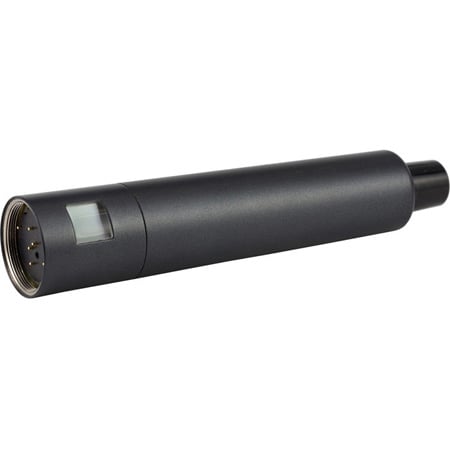

    Lectrosonics HHa Handheld Transmitter - A1 470.100 - 537.575 MHz No Capsule.

    Manufacturer: Lectrosonics

    Item #: LEC-HHA-A1   •   MFG #: HHA-A1



    List Price:$1,853.00
    Our Price:$1,320.00

    free ship


    Availability: Direct Ship From Manufacturer
    i
    Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.


    • Special Order Item: non-cancelable, non-returnable, non-refundable.


    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    Required Accessories

    The HHa Digital Hybrid Wireless handheld transmitter represents an elegant solution for a variety of wireless microphone applications including live performance, broadcast, AV rental and houses of worship. The HHa incorporates many advanced features to provide highquality speech and vocal reinforcement. Along with providing peerless audio quality with wide frequency response and dynamic range in native 400 Series mode, the technology used in the HHa includes compatibility modes for Lectrosonics 200 Series, 100 Series and IFB receivers, and some systems from other top manufacturers.

    Interchangeable Capsules.
    Lectrosonics offers the HHC cardioid condenser capsule. Thread-on capsules from other manufacturers using a 1.25" opening and 28 thread pitch can also be used, including those from manufacturers such as EV, Shure, Heil Sound, Earthworks,Telefunken and others.

    Highlighted Features:

    25 or 100 kHz tuning steps for up to 3072 selectable frequencies across a 76 MHz tuning range
    Digital Hybrid Wirelessr Technology
    Standard thread-on capsules
    Membrane switch and LCD interface
    AA battery power
    Selectable RF power at 50 and 100 mW
    Talkback feature
    IR (Infrared) Port for fast setup

    Please note! Transmitter body only! Capsules sold separately.


    • Specifications

      • Operating Frequencies:
      • Band A1: 470.100 - 537.575
      • Band B1: 537.600 - 614.375
      • Frequency selection steps: Selectable; 100 kHz or 25 kHz.
      • RF Power output: Selectable at 50 or 100 mW.
      • Pilot tone: 25 to 32 kHz frequency (400 Series only); 5 kHz deviation.
      • Frequency stability: ± 0.002%.
      • Deviation: ± 75 kHz (max).
      • Spurious radiation: 90 dB below carrier.
      • Operating temperature range: -20° C to +50° C.
      • Input compressor: Dual envelope compressor, >30 dB range.
      • Gain control range: 45 dB; semi-log menu-driven control; 1 dB steps.
      • Modulation indicators: Dual bicolor LEDs indicate modulation of -20, -10, 0 and +10 dB referenced to full modulation, LCD bar-graph indicator.
      • Frequency response 40 Hz to 20 kHz (+/- 1dB).
      • Low frequency roll-off: -3 dB @35, 50 and 70 Hz; selectable; 36 dB/octave.
      • Controls:
      • External: Programmable mute/talkback button.
      • Battery compartment: Power, mute disable, menu/select, back and up/down arrow buttons for menu selection and settings.
      • Battery: 2x AA with polarity protection and battery ejector
      • Battery life: At 100mW: 5.5 hours (Duracell Quantum alkaline)
      • (The HH transmits battery status to Lectrosonics
      • Digital Hybrid Wirelessr receivers.).
      • Capsule Interface: 1.25" opening and 28 thread pitch,Power available: 5V, 25 mA max, Input impedance: 1000 Ohms.
      • Weight: 12.1 oz. with batteries and HHC capsule.
      • Dimensions: 9.5" long x 1.97" diameter at largest point.

    • Compatible Capsules

      • Lectrosonics
      • HHC cardioid condenser element
      • HHVMC cardioid condenser element with VariMic tone controls
        Shure
      • RPW110 capsule head with PG58 silver dynamic element
      • RPW112 capsule head with SM58 silver dynamic element
      • RPW114 capsule head with SM86 silver condenser element
      • RPW116 capsule head with SM87A black condenser element
      • RPW118 capsule head with Beta 58A dynamic element
      • RPW120 capsule head with Beta 87A silver condenser element
      • RPW122 capsule head with Beta 87C silver condenser element
      • RPW124 capsule head with VP68 black omni condenser element
      • RPW170 capsule head with KSM8 silver Dualdyne cardioid dynamic
      • RPW174 capsule head with KSM8 black Dualdyne cardioid dynamic
      • RPW180 capsule head with KSM9 champagne switchable cardioid/supercardioid condenser
      • RPW184 capsule head with KSM9 black switchable cardioid/supercardioid condenser
      • RPW182 capsule head with KSM9HS champagne switchable wide cardioid/
      • hypercardioid condenser
      • RPW186 capsule head with KSM9HS black switchable wide cardioid/hypercardioid condenser
        EV
      • RC2-767 - Supercardioid dynamic N/D767a
      • RC2-967 - Supercardioid dynamic N/D967
      • RC2-PL80a - Supercardioid dynamic PL80a
      • RC2-410 - Cardioid condenser RE410
        Sennheiser
      • (all Sennheiser capsules require an adapter - see below)
        MD5235 dynamic cardioid element (requires Ambient HHA adapter)
      • ME5002 omni condenser element (requires Ambient HHA adapter set at 7V)
      • ME5004 cardioid condenser element (requires Ambient HHA adapter set at 7V)
      • E5005 supercardioid condenser element (requires Ambient HHA adapter set at 7V)
      • ME5005-E supercardioid condenser element optimized for live sound applications
      • (requires Ambient HHA adapter set at 7V)
      • ME5009 wide cardioid condenser element (requires Ambient HHA adapter set at 7V)
      • MMD835-1 cardioid dynamic element (requires Lectrosonics HH2SEN adapter)
      • MMD845-1 supercardioid dynamic element (requires Lectrosonics HH2SEN adapter)
      • MME865-1 supercardioid condenser element (requires Lectrosonics HH2SEN
      • adapter)
      • MMD935-1 cardioid dynamic element (requires Lectrosonics HH2SEN adapter)
      • MMD945-1 supercardioid dynamic element (requires Lectrosonics HH2SEN adapter)
      • MME965-1 dual pattern condenser element (requires Lectrosonics HH2SEN adapter)
