Lectrosonics R400A Digital Hybrid Wireless Diversity Receiver - Block 19- 486.400 - 511.900

Manufacturer: Lectrosonics

Item #: LEC-R400A-19   •   MFG #: R400A-19


List Price:$1,357.00
Our Price:$959.00

free ship
Availability: Direct Ship From Manufacturer
Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.


    California Residents:
    Cancer and Reproductive Harm -


    The R400a is a high performance, triple-conversion, frequency synthesized, UHF receiver fully compatible with all Lectrosonics 400 series transmitters, and a number of analog models. The proprietary audio processing includes a DSP (digital signal processor) for very low distortion and a superior signal to noise ratio. The DSP eliminates a compandor and its artifacts to provide exceptional audio quality when operating in its native hybrid mode. Special DSP algorithms also provide compatibility modes for use with Lectrosonics 100 and 200 Series analog transmitters.

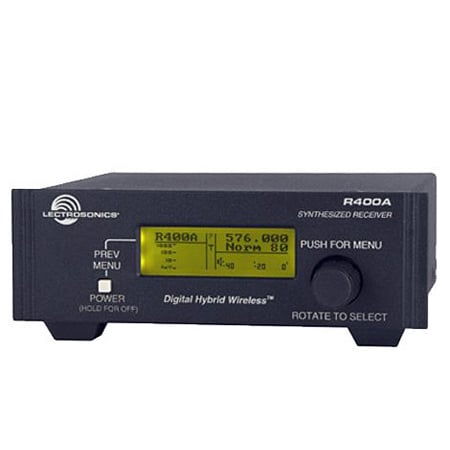

    The R400a features a powerful menu-driven LCD graphic display operated with a push-button switch and a dual function rotary encoder control as a convenient means of viewing and altering settings. The LCD main window displays the pilot tone indicator, diversity antenna activity, RF and audio levels, operating frequency, transmitter frequency switch settings and transmitter battery status. Settings can be changed using the MENU functions. A built-in RF spectrum analyzer is included to conduct site surveys to find interference-free operating frequencies. The analyzer quickly tunes the receiver across its 256 frequencies and records a marker on the LCD indicating the strength of any RF signals picked up. Within less than a minute, a complete display is generated showing the RF activity across the entire tuning range of the receiver. An area with little or no RF activity is then easy to locate and select.

    • Features

      • Digital Hybrid Wireless (U.S. Patent #7,225,135)
      • SmartSquelch
      • SmartDiversity
      • SmartTune for auto frequency selection
      • 256 selectable UHF frequencies
      • RF-controlled digital noise filters
      • Low noise, Robust RF Front End
      • DSP-based pilot tone
      • Graphics type backlit LCD display
      • Independent balanced XLR and unbalanced 1/4-inch audio outputs
      • Compatiblity modes for use with analog transmitters
    • Specifications

      • Frequency Adjustment Range: 25.5 MHz in 100 kHz steps
      • Channel Separation: 100 kHz
      • Receiver Type: Triple conversion, superheterodyne, 244 MHz, 10.7 MHz and 300 kHz
      • Frequency Stability: ±0.001 %
      • Front end bandwidth: ±30 MHz @ -3 dB
      • Sensitivity
      • 20 dB Sinad: 1 uV (-107 dBm), A weighted
      • 60 dB Quieting: 1.5 uV (-104 dBm), A weighted
      • Squelch quieting: Greater than 100 dB
      • AM rejection: Greater than 60 dB, 2 uV to 1 Volt (Undetectable after processing)
      • Modulation acceptance: 85 kHz
      • Image and spurious rejection: 85 dB
      • Third order intercept: 0 dBm
      • Diversity method: Phased antenna combining - SmartDiversity
      • FM Detector: Digital Pulse Counting Detector operating at 300 kHz
      • Antenna inputs: Dual BNC female, 50 Ohm impedance

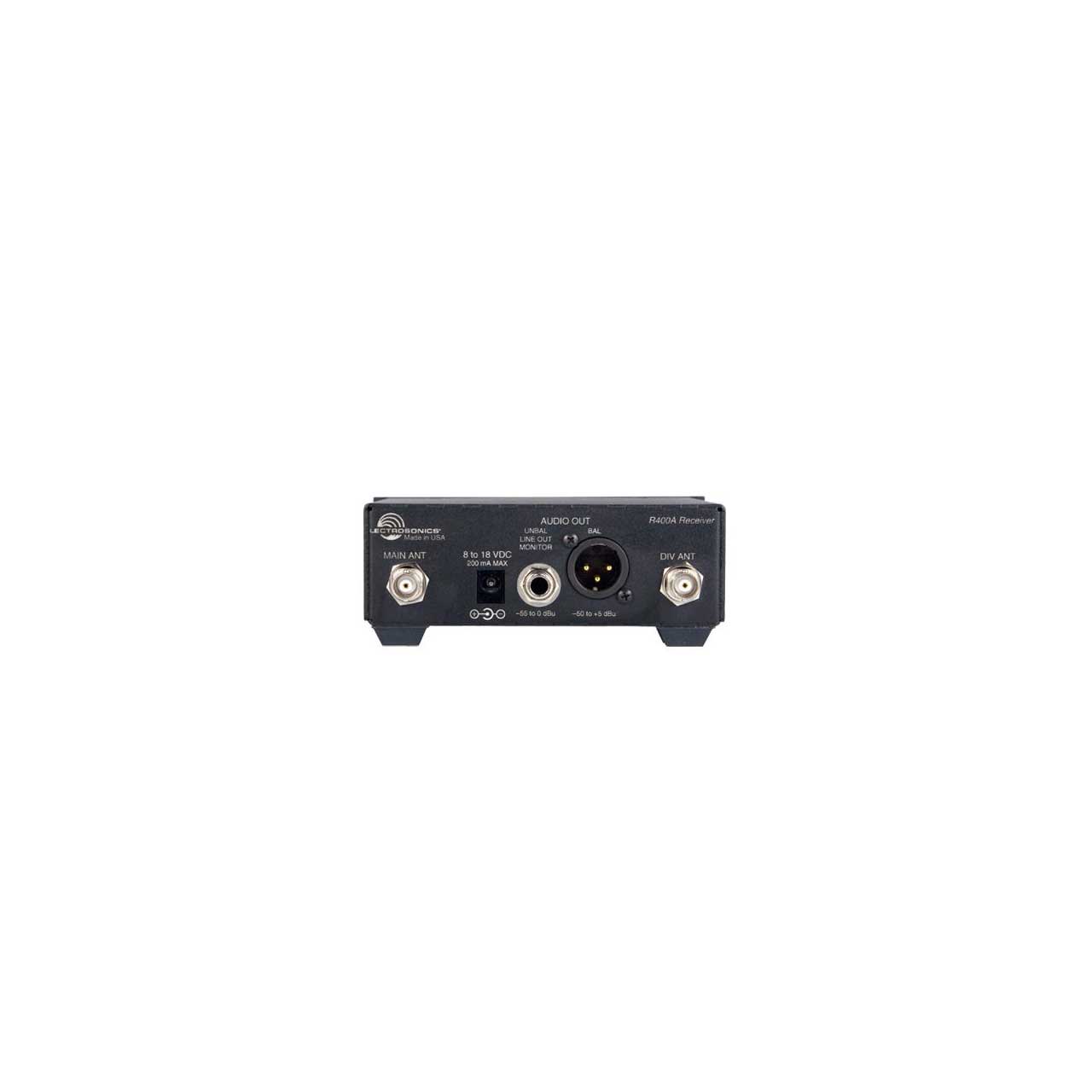

      • Audio outputs Rear Panel XLR adjustable from -50 dBu to +5 dBu in 1 dB steps. Calibrated into a typical 10 k Ohm balanced load. Can drive 600 Ohm load.
      • Rear Panel 1/4 inch jack adjustable from -55 dBu to +0 dBu in 1 dB steps.
