Link LEI-590 HCC-62 SD/HD-SDI Open Caption Generator and Closed Caption Decoder w/ HDMI Cross Converter to 3GA/HD/SD-SDI

ITEM #: LEI-590-HCC-62 MFG #: LEI-590-HCC-62

  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.


Items similar to the LEI-590-HCC-62

LEI-590-HCC-62 - Overview

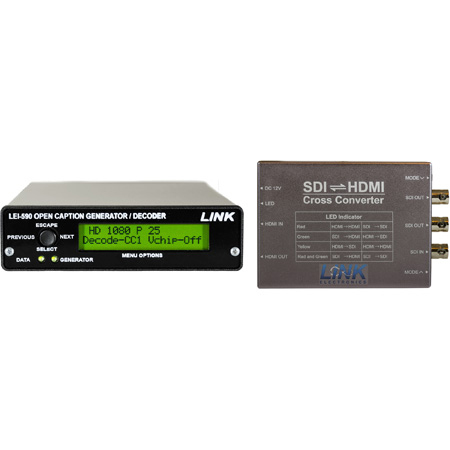

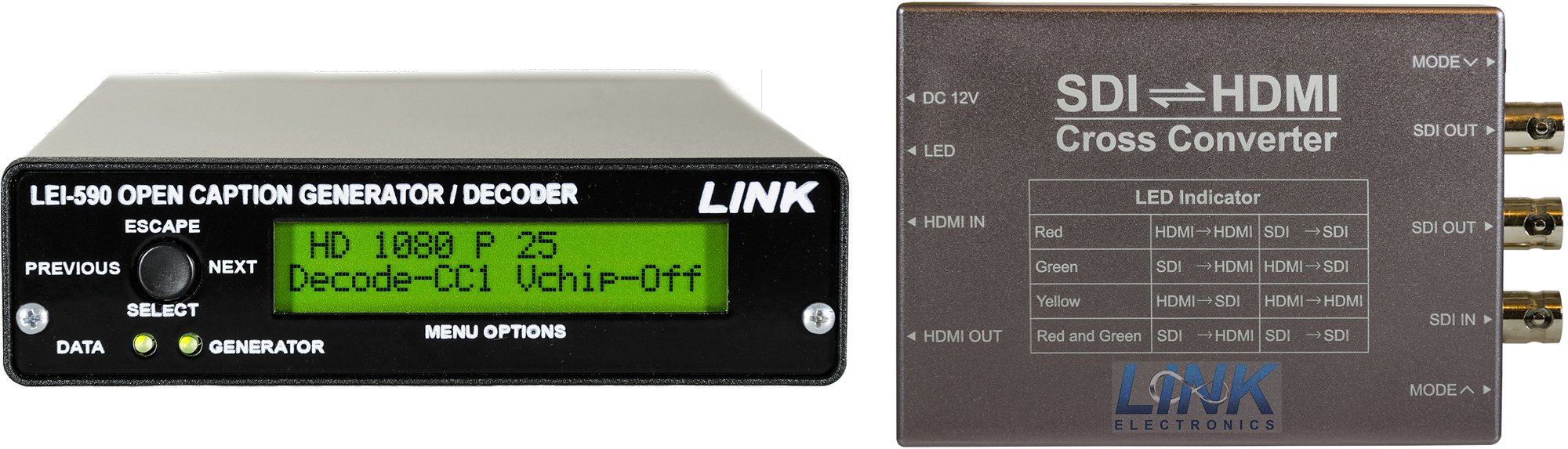

The LEI-590-HCC-62 is a kit containing the LEI-590 SD/HD-SDI open caption generator and closed caption decoder, along with the HDMI cross converter to 3GA/HD/SD-SDI. The combination of the LEI-590 and HCC-62 allows for open captions to be generated on HDMI video. This is a great cost effective solution for stadiums, live events, or any set-up using HDMI video that needs open captions to be generated and displayed!

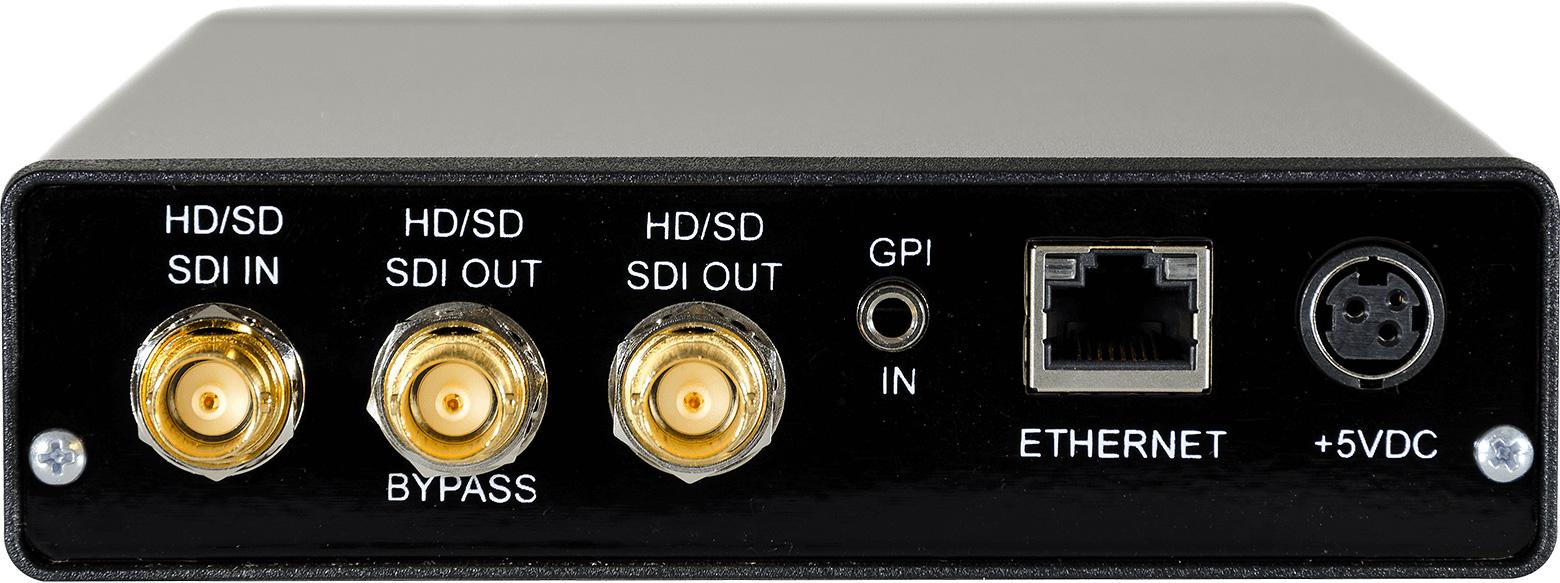

The LEI-590 accepts standard 608 caption data or text data via an IP interface. It then embeds the caption data onto a SD/HD SDI video stream and outputs the video with open captions. The LEI-590 would be useful for live events such as sporting events or live video conferencing. The LEI-590 is a more cost effective solution than a closed caption encoder/decoder when only open captions are needed.

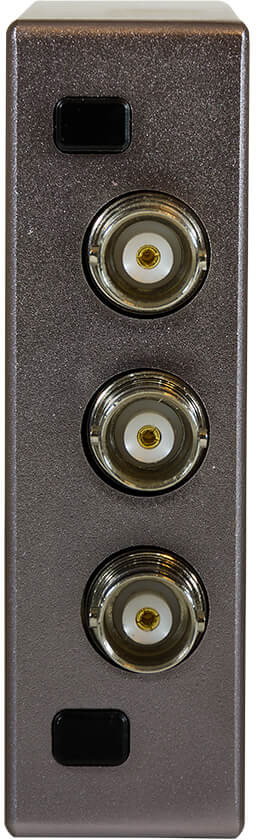

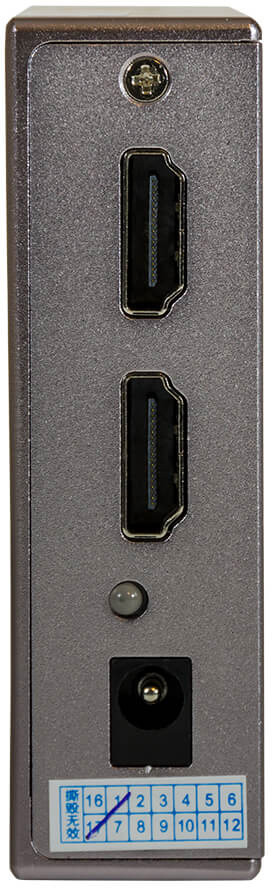

The HCC-62 is a stand-alone unit that will convert Serial Digital Interface (SDI) to High Definition Multimedia Interface (HDMI). It will also simultaneously convert HDMI to SDI. This is the primary purpose of the device however there are three other modes of operation. The LED near the power plug will indicate the operating mode and indicate that the unit has power. The unit has buttons for changing the mode of operation up or down. The first two channels of audio are passed through.

  • Features:

    • LEI-590
    • Generates Open Captions via an IP Interface
    • Decodes CC1-4 or S1-6
    • Caption Data Recovery via an IP Interface
    • 4 Data recovery Modes
    • GPI remote Decoder on/off
    • Changeable Open Caption Attributes
    • Relocates Open Caption on Screen
    • 4 Generator Modes
    • Caption Deletion
    • V-Chip Icon Insertion
    • IP Address Display
    • Field Upgrade-able
    • Power off Bypass
    • VBI or VANC for SD

    • HDMI to 3GA/HD/SD-SDI
    • 3GA/HD/SD-SDI to HDMI Conversion
    • 2VDC PowerSupply Included
    • 5 VDC to 24 VDC Operation
    • 4 Modes of Operation
    • Mode Selection Buttons
    • Rugged Housing Design
    • Compatible with NTSC/PAL
    • Automatic Format Detection
    • Portable or Mountable
  • Specifications:

    • LEI-590
    • Number of Inputs: 1
    • Connector: BNC per IEC 61169-8 Annex A
    • Impedance: 75 ohms - terminating
    • Standard Format: 480i, 576i, 720p, 1080i, 1080p
    • Quantization: 10-bits
    • Specified Requirements: VBI (Line21/22) CC1-4, VANC (334 CDP) CC1-4 & S1-6
    • HD/SD SDI Outputs with open captions: 2
    • Output Standard: Follows Input
    • Quantization: Follows Input
    • Connectors: BNC per IEC 61169-8 Annex A
    • Impedance: 75 ohms
    • Signal Level: 800mV p-p nominal
    • DC Offset: 0V
    • Rise/Fall Time: 200ps nominal
    • Overshoot: < 10% of amplitude
    • Return Loss: > 15dB up to 1.5Gb/s
    • Wideband Jitter: < 0.2UI
    • General Purpose Interface (GPI) Input: Mini 3.5 mm Female Connector
    • Ethernet: Open Caption Generator, Caption Data Recovery & Field Upgrading
    • External Power Supply: +5 VDC
    • Ambient: 0°C to 40°C
    • Relative Humidity: <95% non-condensing
    • Form-Factor: 1RU, 1/3 rack wide, Chassis
    • Dimensions (H x W x D): 1.00" x 5.5" x 9.25"
    • Weight: 2.25 Lbs

    • Inputs: SDI - One 75Ω BNC; HDMI - One Type-A Female
    • Outputs: SDI - Two 75Ω BNCs; HDMI - One Type A Receptacle Female
    • Front Panel Controls: Two Buttons
    • Operating Temperature: -20°C to 60°C
    • Humidity: 10% to 90% non-condensing
    • Power Consumption: 4.2 W
    • Voltage: 5 V to 24 V DC

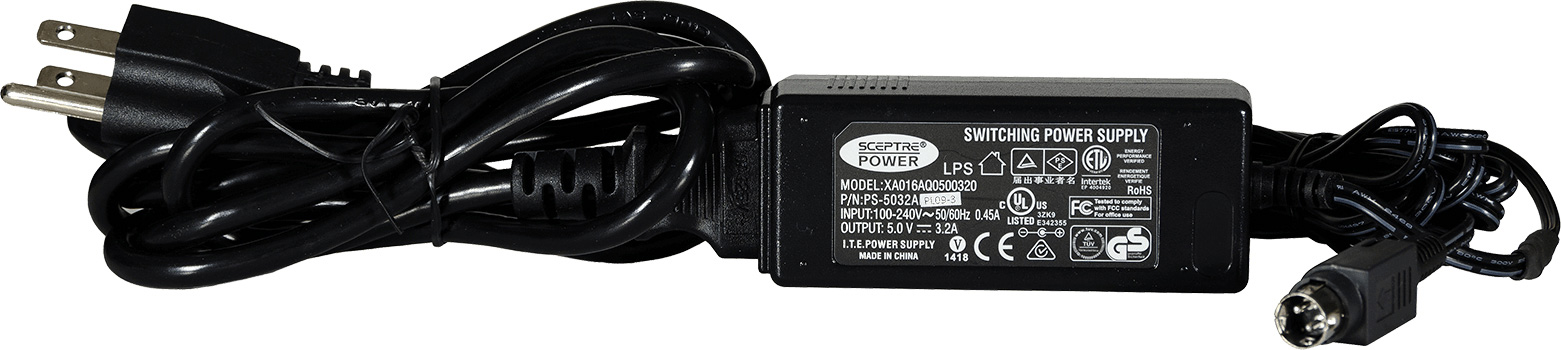

    • Switching Adaptor (included): Input - 100/240 V AC 60/50 Hz; Output - 12 V DC 1 Ampere
    • Dimensions (H x W x L): 0.85" x 3.0" x 4.70"
    • Weight: 0.5 lbs
