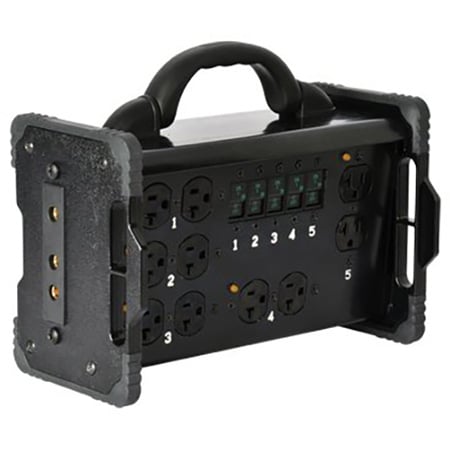

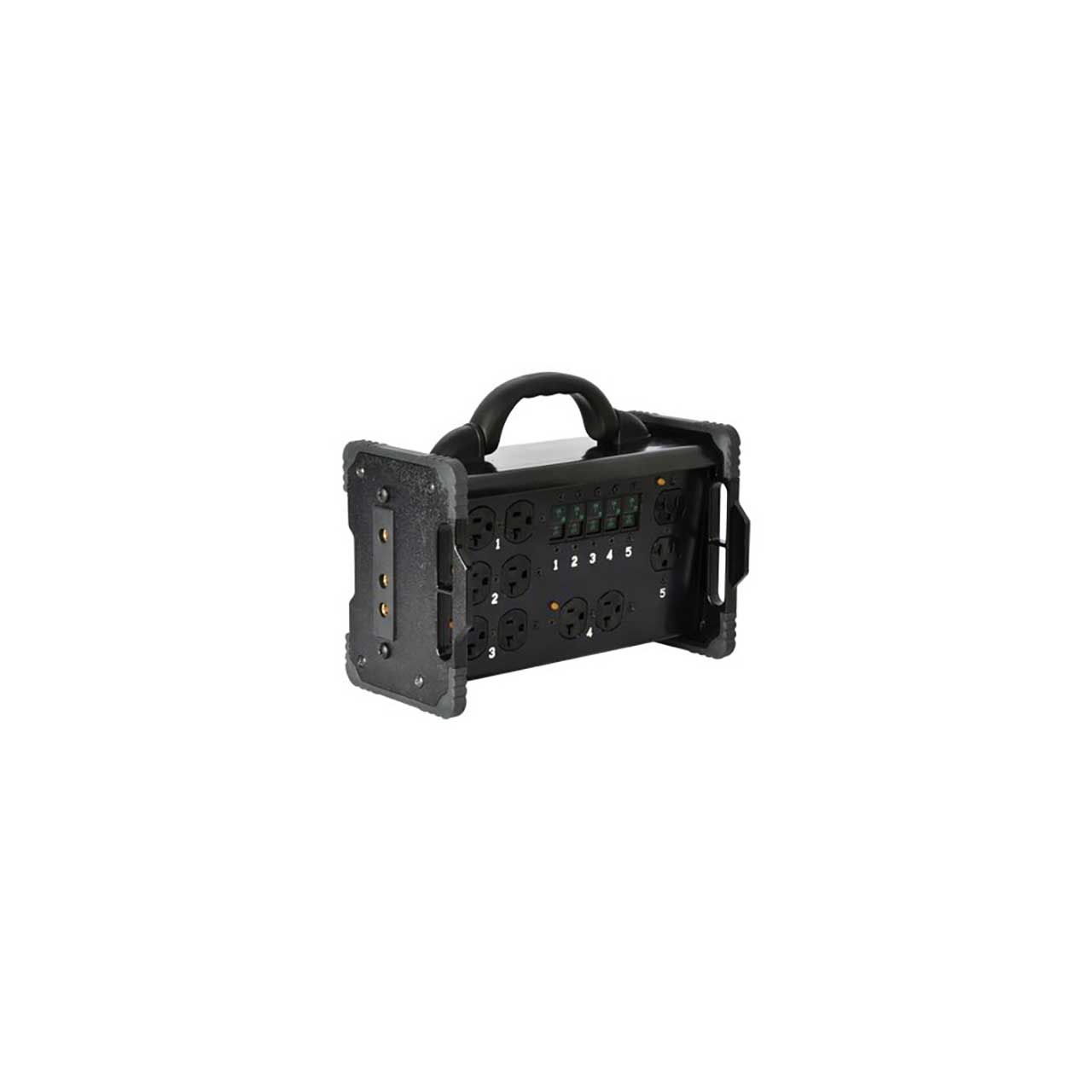

Lex BNE2-5A Bento Enclosure - 60A 120 VAC Panel Mount Stage Pin Inlet with Feed Thru & (5) 5-20 Duplex Receptacles Type1

BNE2-5A - Overview

• Features:

  • Fed from larger power sources, this compact distribution unit provides 20 Amp duplex receptacles for smaller lights and related equipment
  • The feed thru feature allows multiple boxes to be placed along the same feed
  • Hydraulic magnetic circuit breakers help prevent nuisance tripping at higher temperatures
  • Optional bracket and threaded insert available that enables easy mounting vertically or horizontally with C-clamp
  • Fit six in a standard six-gallon milk crate for ease of transport
  • Stackable and compact for easy storage and convenient portability
  • Heavy-duty extruded engineered thermoplastic enclosure is electrically insulated and resistant to shock, impact and corrosion
  • Circuit breakers are mounted flush for easy access and numbered for easy circuit identification
  • Collapsible handle and end plate grips for easy handling in tight spaces


• Specifications:

  • Rating: 60 Amp, Singlephase (H,N,G), 2pole, 3wire, 125 VAC, 60 Hz
  • Environmental Rating: NEMA Type 1 (Indoor Use)
  • Input: (1) Stage Pin (Bates), 60 Amp, 2pole, 3wire, 125 VAC inlet, panel mount
  • Output: (5) NEMA 520 (Edison), 20 Amp, 2pole, 3wire, 125 VAC, straight blade duplex receptacles, panel mount
  • Feed Thru: Yes
  • Main Breaker: None
  • Overcurrent Protection: (5) 20 Amp, 125 VAC, singlepole, hydraulic magnetic, branchrated circuit breakers
  • Enclosure Type: Bento
  • Dimensions: 11.50"L x 5.90"W x 7.60"H
  • Weight: 7.5 lbs
  • Agency Approval: cULus Listed
