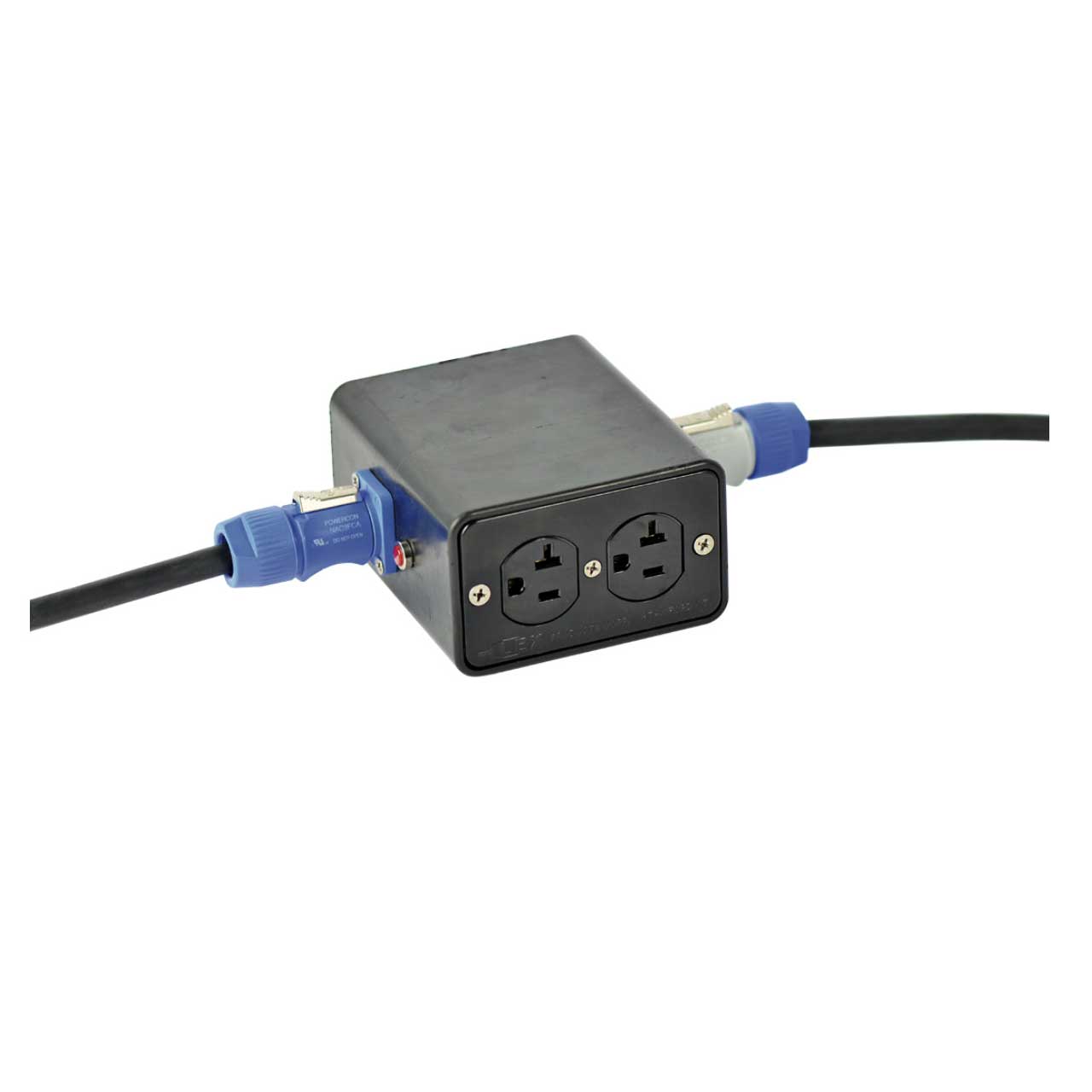

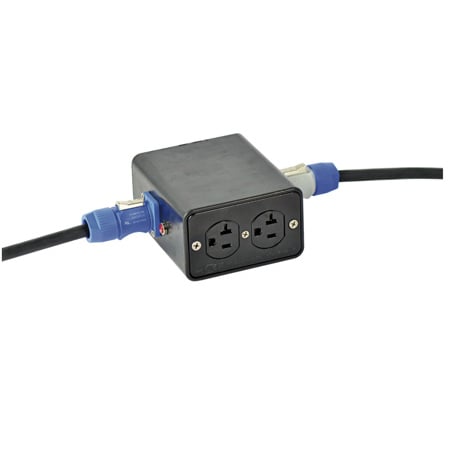

Lex DB20PC-SBPC PowerCON 20 Amp Power Distribution Quad Box with Dual NEMA 5-20 Outlets & powerCON Feed Thru

ITEM #: LEX-DB20PC-SBPC MFG #: DB20PC-SBPC

free ship

List Price:

$282.30

Our Price:

$229.00

Availability: Ships Factory Direct, Typically in 3-10 Days
iAvailability Description Popup


    DB20PC-SBPC - Overview

    When you need the confidence of locking Neutrik powerCON, add a a Lex DB20PC-SBPC Quad Box. Distributes power to dual NEMA 5-20, 20 Amp duplex receptacles to give you portable power wherever you need. Great for touring and on location gigs. It not only has a powerCON AC input, but also houses a power CON feed-thru so you can create receptacle stringers using powerCON extensions of just about any length.

    • Features:

      • Heavy-duty molded rubber enclosure is fully insulated and resistant to shock, impact and corrosion
      • Compact and convenient way to place 20 Amp duplex receptacles where they are needed
      • Feed thru option allows multiple boxes to be placed along the same feed

    • Specifications:

      • Rating: 20 Amp, Single Phase (H,N,G), 2 Pole, 3 Wire, 120 VAC
      • Environmental Rating: NEMA 1 Indoor
      • Input: (1) 20 Amp, 2 Pole, 3 Wire, 120 VAC, powerCON inlet
      • Output: (2) NEMA 5-20, 20 Amp, 2 Pole, 3 Wire, 120 VAC duplex receptacles
      • Feed Thru: (1) 20 Amp, 2 Pole, 3 Wire, 120 VAC, powerCON outlet
      • Dimensions: 4.7" L x 2.5" W x 4.2" H
      • Approximate Weight: 1.5 lbs
