    Lightronics AS-42D Portable Dimming System

    Manufacturer: Lightronics

    Item #: LGT-AS42D   •   MFG #: AS-42D


    List Price:$600.00
    Our Price:$450.00

    free ship
    Availability: Direct Ship From Manufacturer
    Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.
    • 2 - 7 Day Normal Delivery Time - Faster Shipping Options at Checkout or Call Us.

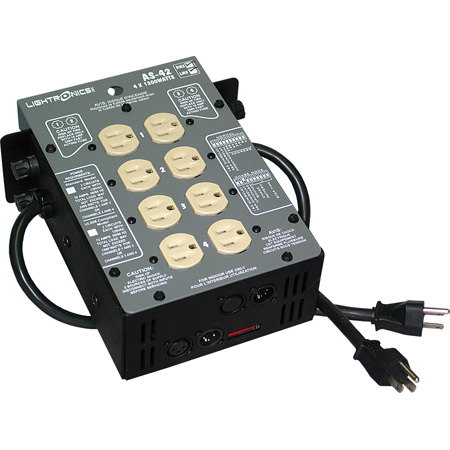

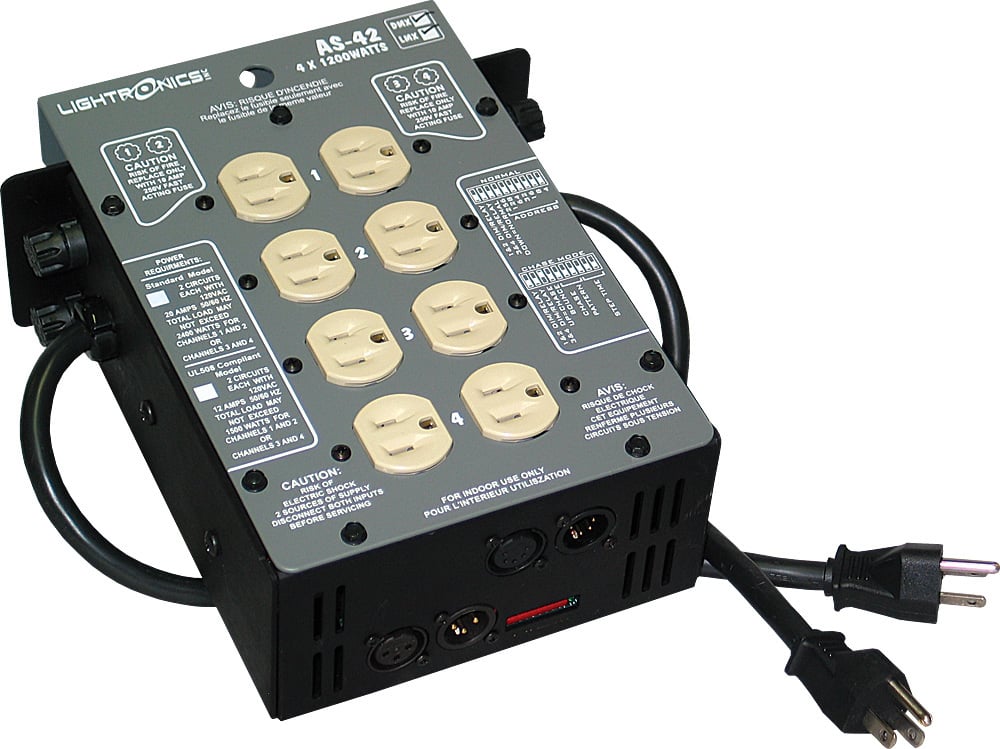

    The AS42D is a compact portable 4 channel light dimmer. It has a maximum capacity of 1200 Watts per channel and maximum total load capacity of 4800 Watts. It is supplied with 2 input power cord stubs which may be connected to 2 different 120 VAC power phases. The unit operates using the USITT DMX-512 protocol or an industry standard three wire multiplex protocol. The AS42D may be operated in a relay (non-dim) mode. The unit will also function as a chaser and has several preset chase patterns which may be used.

    • Features

      • 4 Channels
      • 1200W per Channel
      • 8 Built in Chases
      • DMX-512 & LMX-128
      • Relay Mode Switchable
      • Fuses
      • Edison Outputs
      • 120V
    • Specifications

      • Channels: 4
      • Channel Capacity: 1200 Watts per Channel
      • Total Power: 4800 Watts
      • Control Protocol: DMX-512 and 3 Wire LMX-128
      • Control Connections: Dual 5 Pin XLR, DMX Dual 3 Pin XLR, LMX
      • Power Requirements: 120VAC, Two 20 Amp Circuits
      • Power Input: Two Edison Plugs
      • Frequency: 50 or 60Hz
      • Fusing: 10 Amp each Channel
      • Preheat Voltage: Soft Start Control
      • Response Curve: Modified Square Law
      • Filter Rise Time: 350 Microseconds
      • Filter Max. Rate of Rise: 105 Milliamps / Microsecond
      • Response Time: 8.3 Milliseconds
      • Full Load Voltage Drop: 3 Volts
      • Conduction Angle Range: 180 Degrees
      • Efficiency: 97%
      • Size: 9.5"L x 8"W x 3 3/8"D
      • Weight: 6.7 Pounds
