Lightronics SR617W Unity Architectural Control - 2 Gang Wall Mount - 16 Scene Playback

SR617W - Overview

• Features:

  • DMX512 Pile-On Operation
  • 16 Scenes w/ Fade Times to 99 Minutes
  • Multiple Remote Station Control
  • Show Mode Station Lockout via DMX
  • SCENE GROUPING - mutually exclusive
  • Last Scene Recall
  • 3 Configurable Contact Closures
  • Fixed DMX Channels (Parking)
  • Button Scenes Off with DMX Override
  • Wallmount controller
  • Compatible with both Lightronics Pushbutton Stations and Fader Stations


• Specifications:

  • Protocol: USITT DMX-512
  • Dimmer Channels: 512
  • Total Number of Scenes: 16 (2 banks of 8 scenes each)
  • Scene Fade Times: Up to 99 min. User settable per scene
  • Controls and Indicators: 8 Scene Select, Bank Select, Blackout, Record, Recall. LED indicator for all functions and DMX status.
  • Recording: "Snapshot" from live console input
  • Record Lockout: Global Recording Lockout
  • Memory: Non volatile with a minimum 10 year data retention.
  • Memory Type: Flash
  • Power: 12V - 16VDC

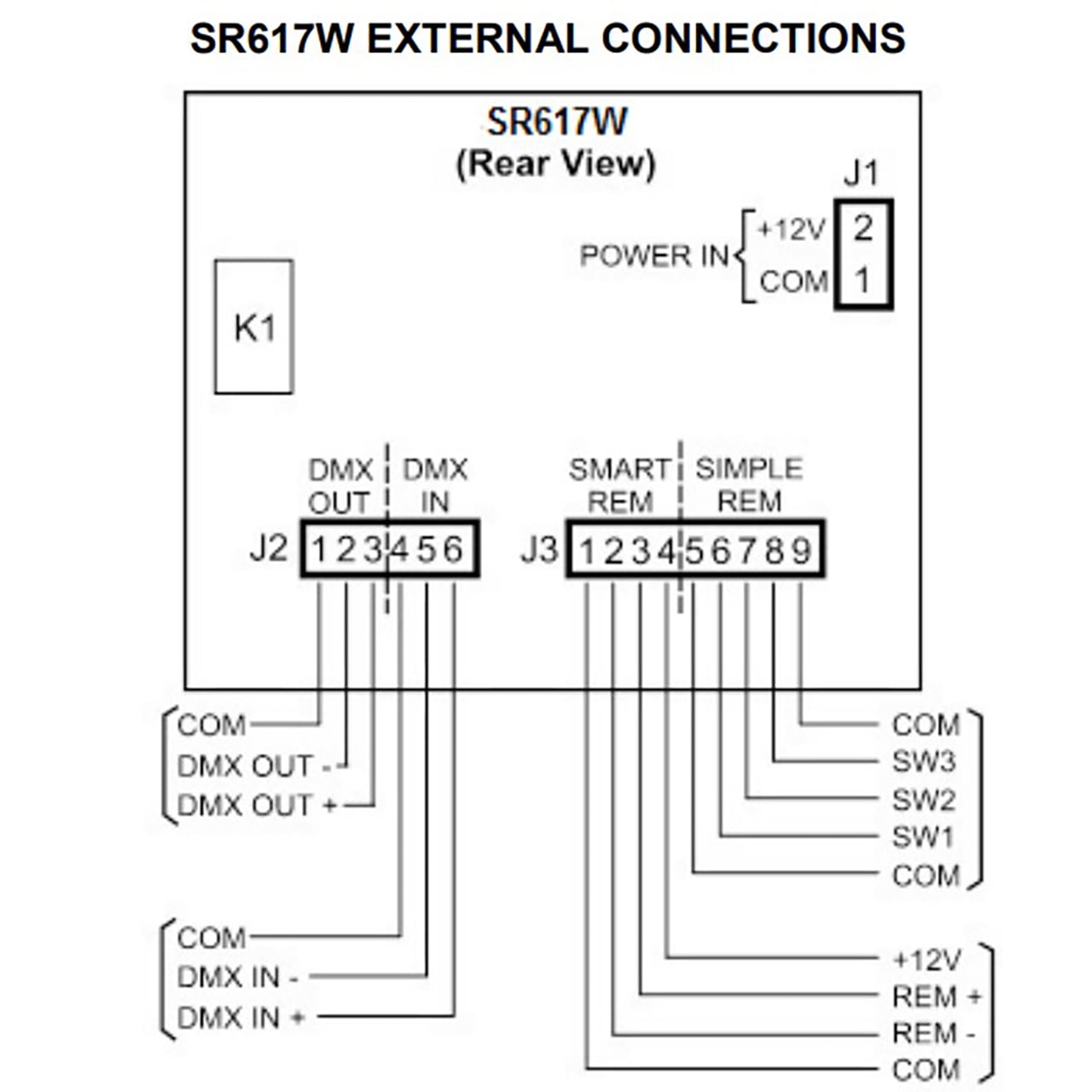

  • Connectors:
    - DMX: 5-pin XLR
    - Remotes: DB9 (Female)
  • Remotes Cable Type: 2 pair, low capacitance, shielded data cable (RS-485).
  • Remotes Communication: RS-485, 62.5 Kbaud, bidirectional, 8 bit, micro controller network.
  • Power Supply: 12VDC supplied by wall adapter
  • Dimensions (WxLxH): 7" x 5" x 2.25"
  • Weight: 1.75lbs


• Item Includes:

  • 1x SR617W


• Warranty:

  • 2 Year Limited Warranty
