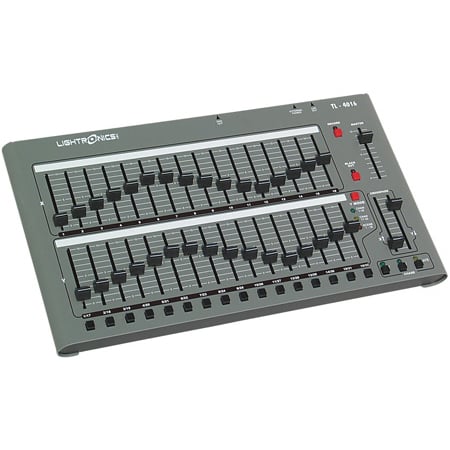

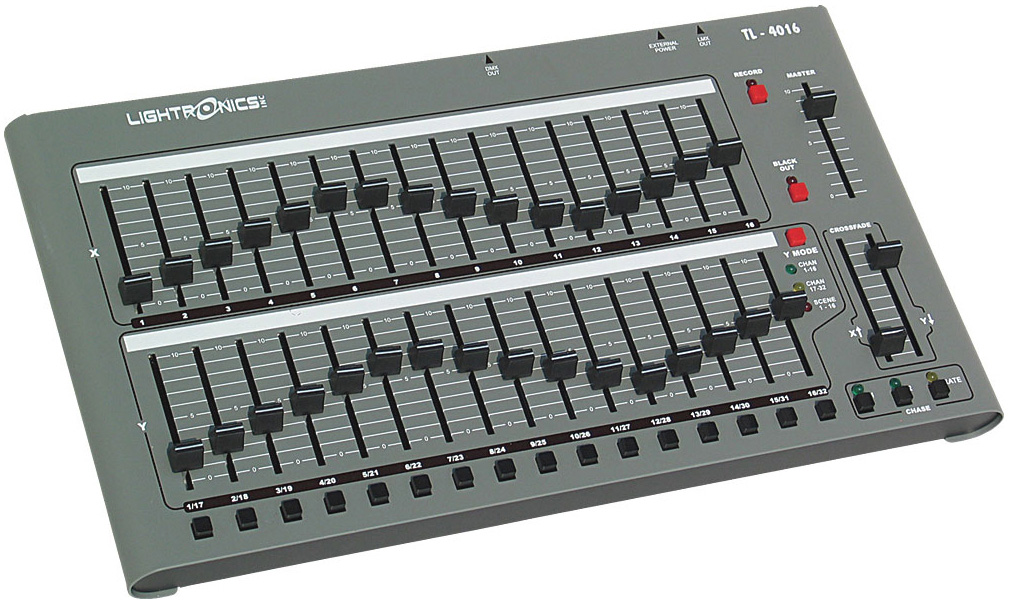

Lightronics TL-4016-DMX01 32-Channel Lighting Control Console with DMX 120 volt Option installed

ITEM #: LGT-TL4016-DMX01 MFG #: TL4016-DMX01

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:


Our Price:


Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup

    TL4016-DMX01 - Overview

    The TL4016 lighting control console is suitable for church, stage, theater, disco, night club, live performances and other event and artistic applications.

    Features of the TL4016 include: grand master fader, split dipless crossfader, momentary "bump" buttons, and blackout control. Two 23 step chases may be run simultaneously for complex patterns. Chase rate is set by tapping the rate button at the desired rate. Scenes and chases stored in the unit are not lost when the unit is turned off.

    • Features:

      • LED Compatible
      • 32 Channels
      • 16 Scenes
      • 2 Programmable Chases
      • LMX-128 Protocol
      • DMX-512 120 volt version option included
    • Specifications:

      • Channels: 32 or 16
      • Chase: 2 Programmable, 23 Steps each, Steps will Store Scenes
      • Operating Modes:
      • 16 Channels x 2 Scenes
        32 Channels x 1 Scene
        16 Channels + 16 Preset Scenes
      • Memory: Non Volatile - Scenes and Chases; Retained when Unit Powered Off
      • Scenes:
        16 Scenes
        32 Channels each
      • Control Protocol:
        LMX-128 (3 pin multiplex)
        DMX-512 Optional
      • Power Requirements:
        Phantom Power: 18VAC or +15VDC, 400ma
        External Power: 13 - 25VAC or VDC, 400ma
      • Dimensions (WxDxH): 16.125 x 9.125 x 2.5"
      • Weight: 6.7Lbs
