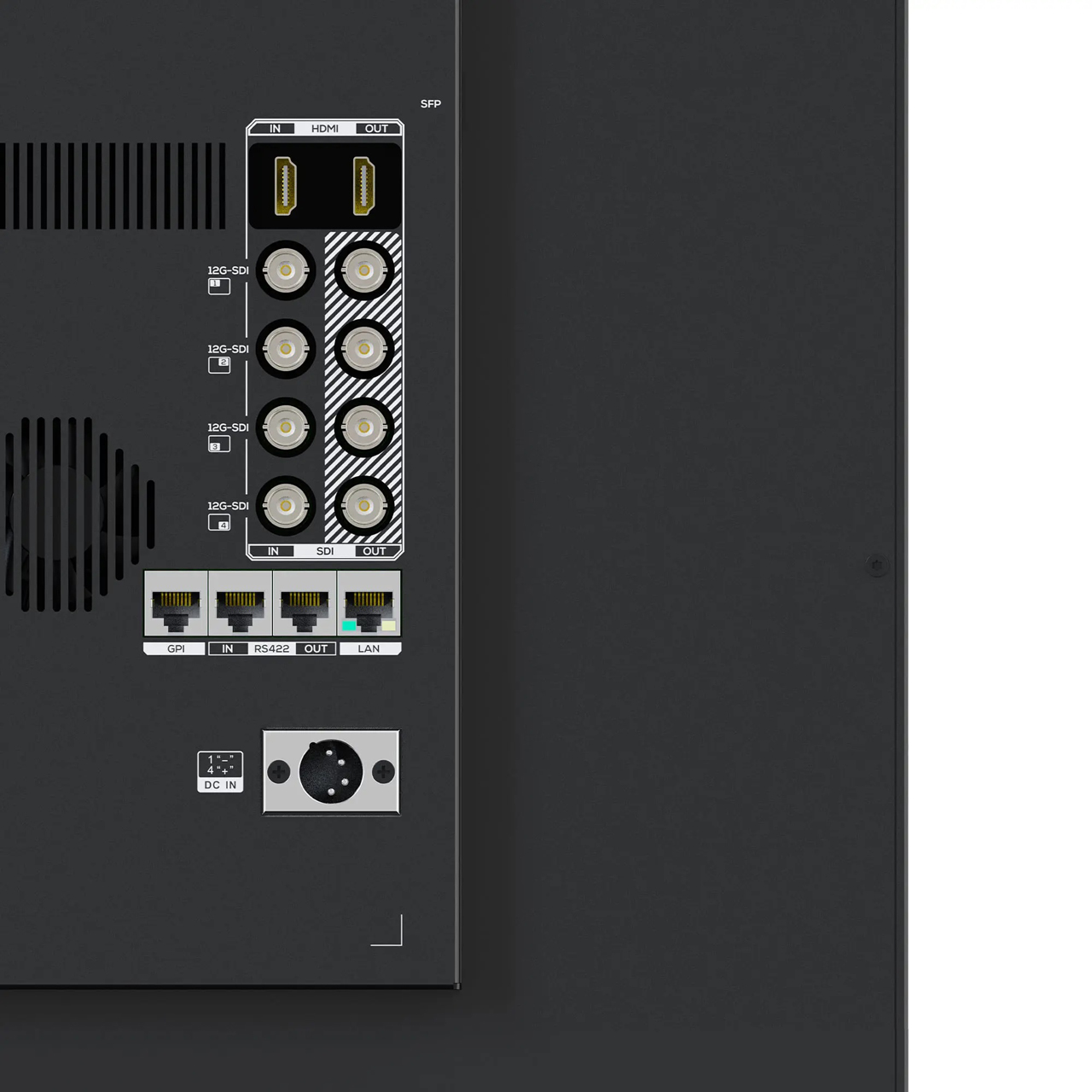

The Lilliput Q43-8K is a 43 inch full-featured studio production monitor. It can support up to UHD 8K60 and automatically scales all incoming video signals to properly display these on its UHD screen. The Q43-8K features an HDMI 2.0 input, four 12G-SDI inputs, and an optional SFP+ input that can be used with an optional fiber module. The monitor is also packed with features including false color, waveform and quad-split.
Support Up to 8K 60Hz Video
In addition to the different 4K 60Hz video signals provided by four single-link 12G-SDI, the monitor with four 12G-SDI interfaces is also compliant with the ST2082-12 video protocol standard and can generate video signals up to 8K 60Hz.

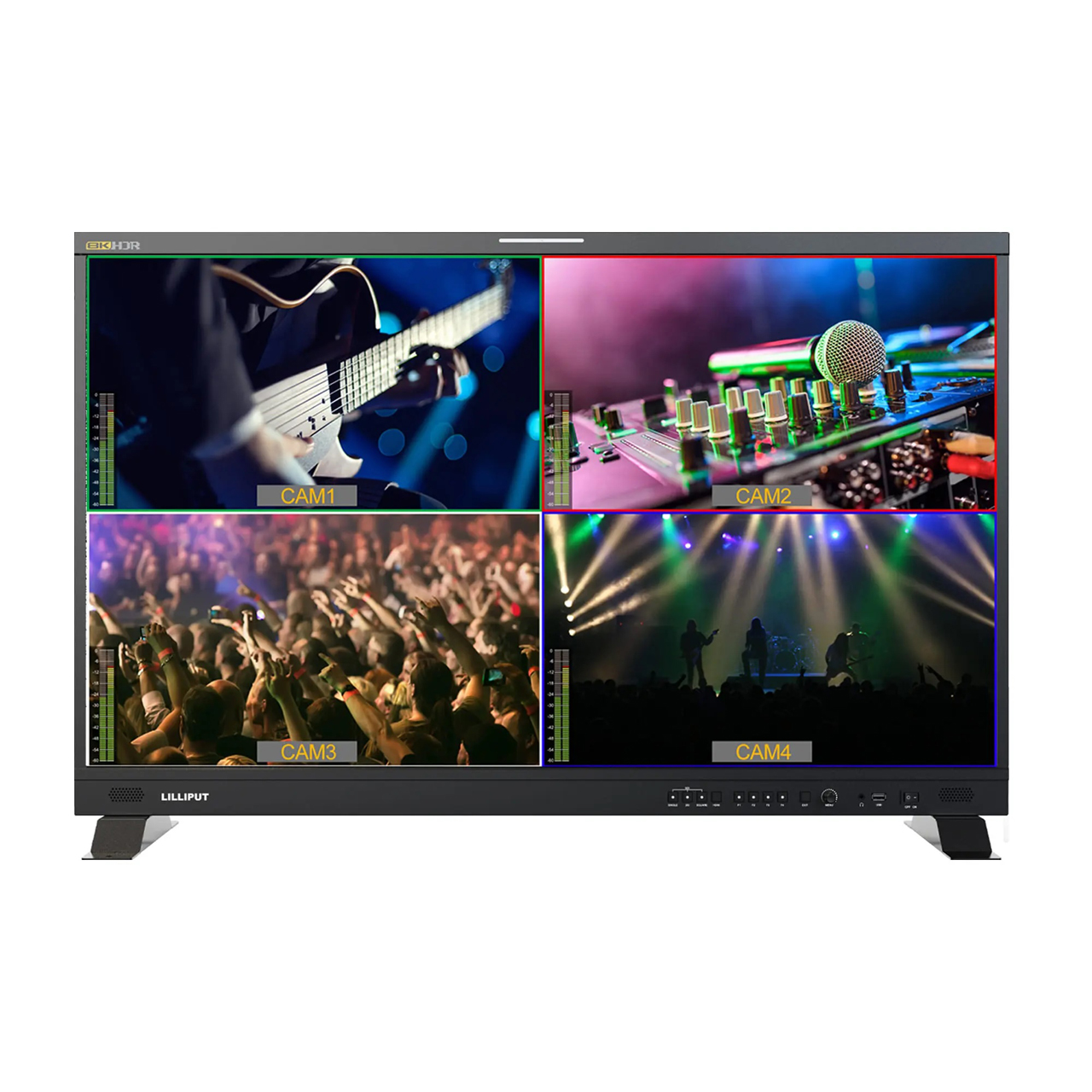

Quad Split Multiview
In Quad-Split Multiview mode, any input signals can be selected and changed among 12G-SDI, HDMI2.0 and 12G-SFP+. Moreover, images can be differentiated with colorful borders to enhance the senses of monitoring. When the quad split multiview function is turned on, there are four buttons that will turn into signal switching function, and each button corresponds to one image respectively.The photographer can quickly switch between different input signals through these four buttons.
Easy-to-Use
F1-F4 user-definable buttons to custom auxiliary functions as shortcut, such as peaking, underscan and checkfield. Use the Dial to select and adjust the value among of sharpness, saturation, tint and volume, etc.
Wall Mount
Compatible with most 400x400mm wall-mounted brackets on the market. (Screw: M6/30mm)

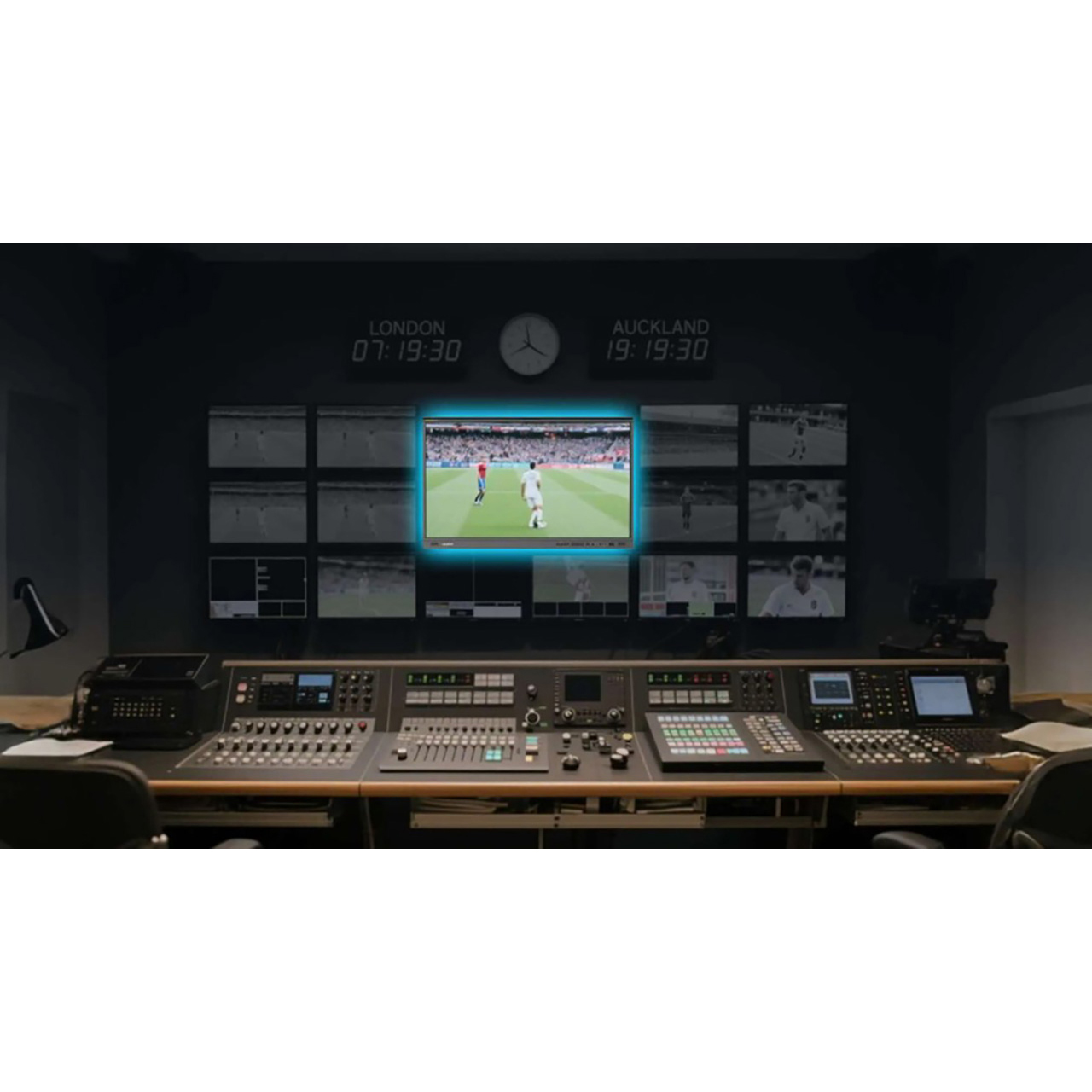

Studio Monitoring
Monitor can be used for 4K video monitoring in the studio, and can also be combined with other video monitor to create a video wall.
