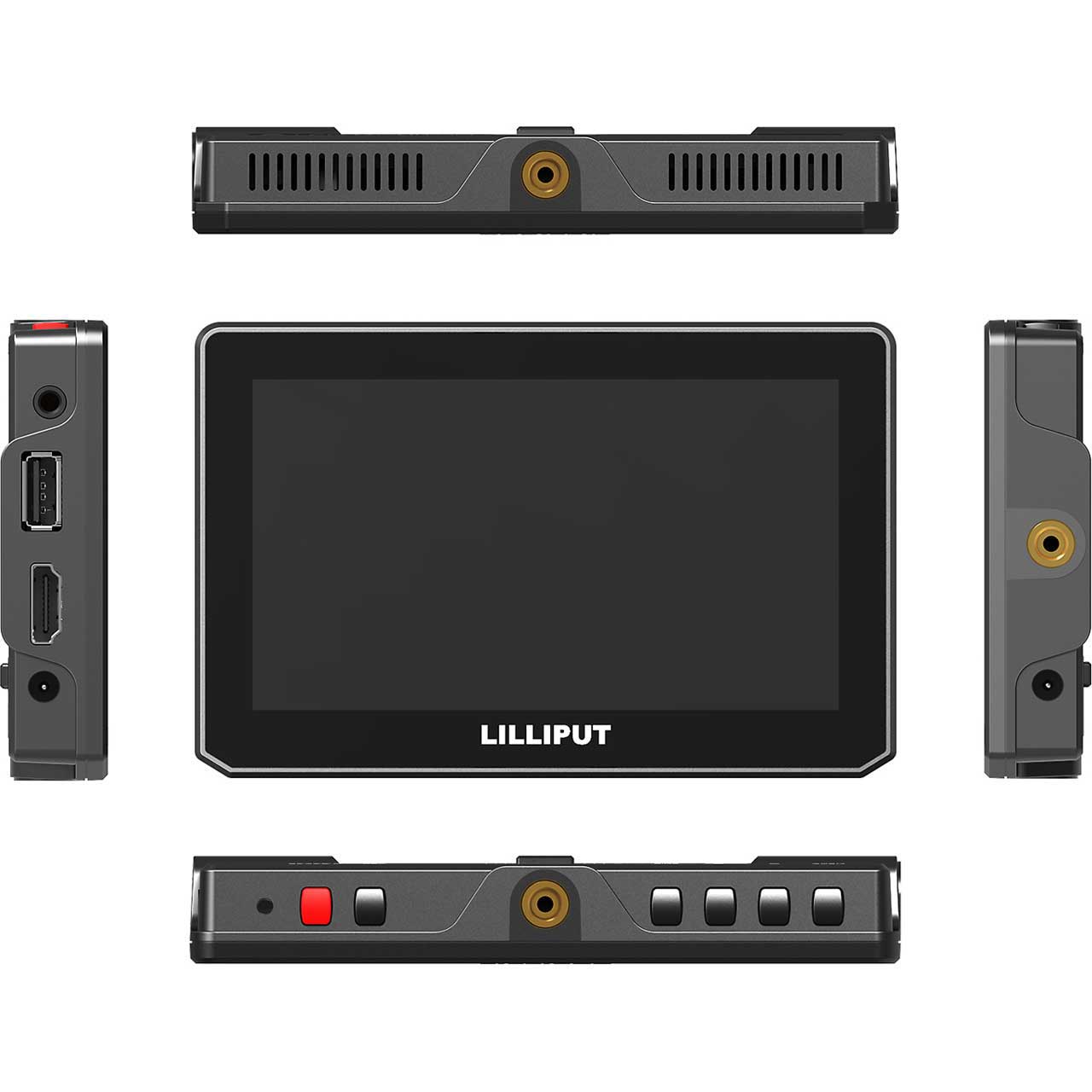

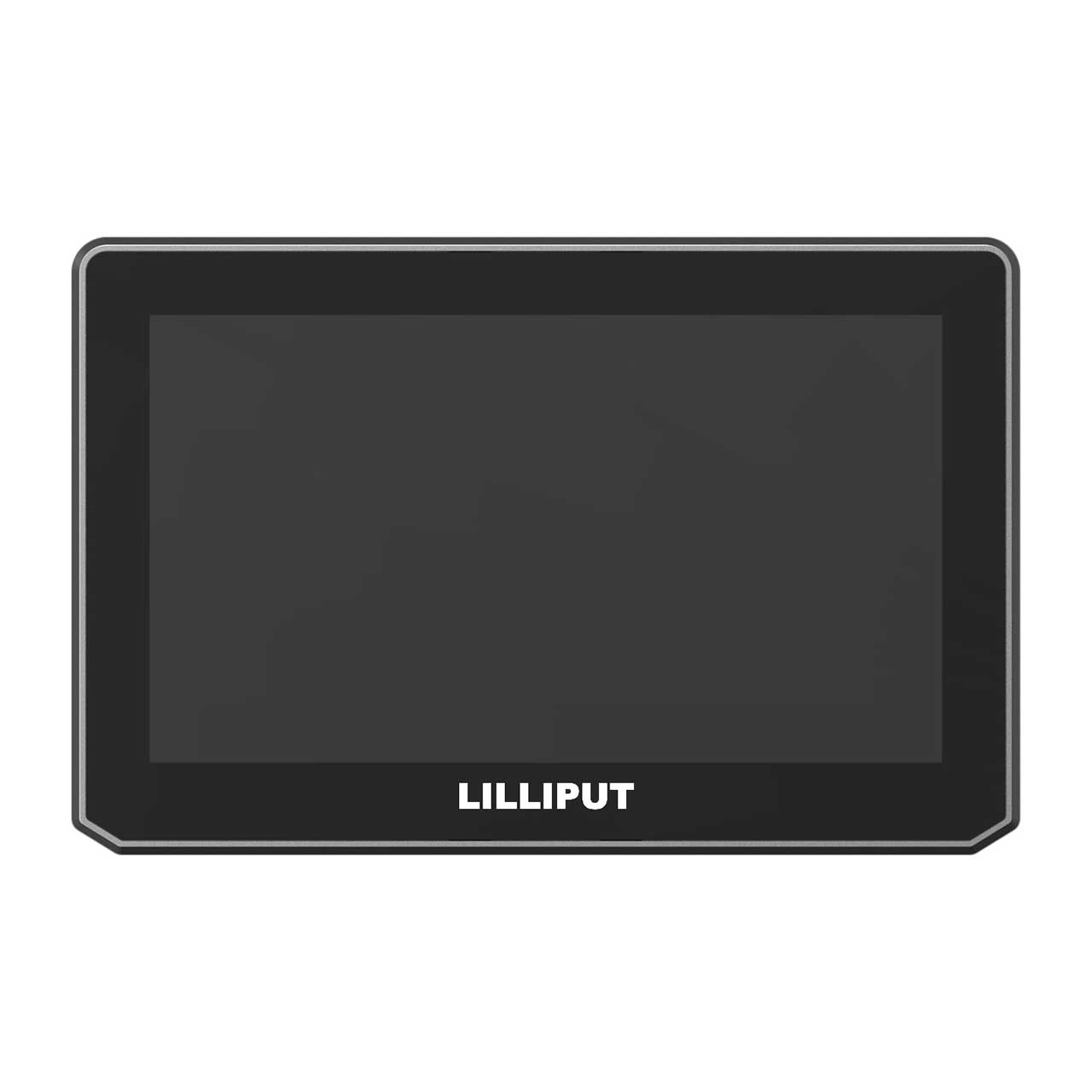

Lilliput T5 5 Inch HDMI Capacitive 1920x1080 Full HD On-Camera Touchscreen Monitor

ITEM #: LIL-T5 MFG #: T5

  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
free ship

List Price:

$209.00

Our Price:

$179.00

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    T5 - Overview

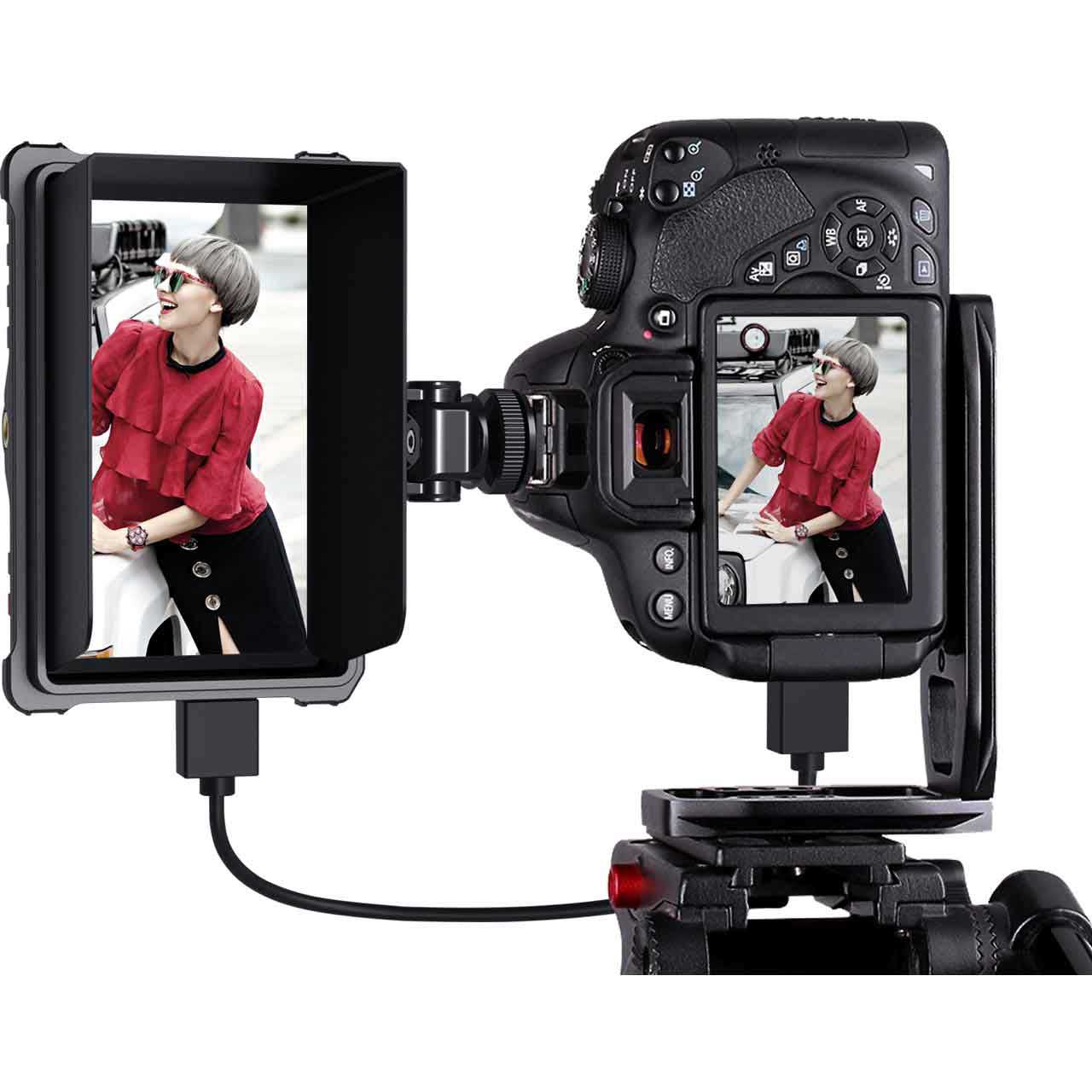

    The Lilliput T5 is a 5 inch 16:9 LCD capacitive touchscreen monitor - the first touch camera monitor from Lilliput that can be used to control photo shooting directly from the screen. It is also the first 5" or less camera monitor on the market to sport an HDMI 2.0 input port and 8V DC output. Compatible with Canon LP-E6 & Sony F-series batteries.

    The inclusion of HDMI 2.0 allows for you to input a much wider range of video frequencies, particularly 4K @ 60HZ - a first for a Lilliput Monitor model. We list the supported resolutions at the above, the big difference being that these models support 50p and 60p at both 3840 x 2160 and 4096 x 2160 resolutions.

    The Lilliput T5 features an external 8V power feed - ideal for you to attach to a powered gimbal system for longer battery life, or to charge the batteries of an externally connectable device such as your camera, or other capture system.

    3D LUT is a system built into the Lilliput T5. It is a Look Up Table function which works as a reference for looking up the specific color characteristics of your image. These are stored in a .cube file and can be shared between devices. They are useful as they allow for the same levels of color calibration between a string of devices in a workflow, making the end result look a lot more like what was originally seen through the lens.

    The Apple-created DCI-P3 color and the industry standard REC.709 color space are fully and faithfully represented using the Lilliput T5, with almost total coverage of the DCI-P3 space, and more than full coverage of the REC.709 space being achieved. This allows for a more versatile set of input feed characteristics to be used and represented with total clarity.

    • Features:

      • Support HDMI 2.0 4K 60 HZ input

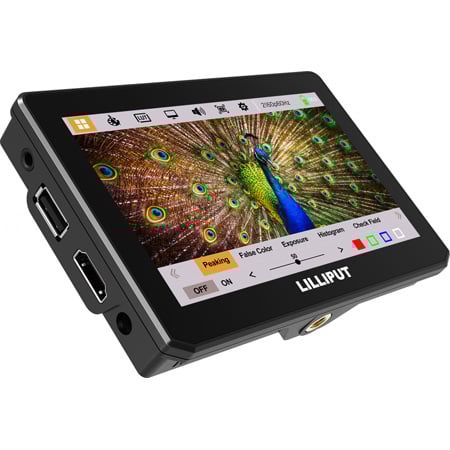

      • Support Touch Function
      • Peaking (Red/Green/Blue/White)
      • False Color (Off/Default/Spectrum/ARRI/RED)
      • Check Field (Off/Red/Green/Blue/Mono)
      • LUT : Camera LUT/ Def LUT/ User LUT
      • Scan: Aspect/Zoom/Pixel to Pixel
      • Aspect (16:9/1.85:1/2.35:1/4:3/3:2/1.33X/1.5X/2X/2XMAG)
      • H/V Delay Support (Off/H/V/ H/V)
      • Image Flip Support (Off/H/V/ H/V)
      • HDR Support (Off/ST2084 300/ST 2084 1000/ST 2084 10000/HLG)
      • Audio Out Support (CH1&CH2/CH3&CH4/CH5&CH6/CH7&CH8)
      • Aspect Mark (Off/16:9/1.85:1/2.35:1/4:3/3:2/Grid)
      • Safety Mark (Off/95%/93%/90%/88%/85%/80%)
      • Mark Color: Black/Red/Green/Blue/White
      • Marker Mat. (0ff/1/2/3/4/5/6/7)
      • HDMI EDID:4K/2K
      • Color Bar support range: Off/100%/75%
      • User-definable button FN function can be set, default :Peaking
      • Color Temperature: 6500K, 7500K, 9300K, User

    • Specifications:

      • Display
      • Panel: 5" IPS
      • Touch Screen: Capacitive
      • Physical Resolution: 1920x1080
      • Aspect Ratio: 16:9
      • Brightness: 400cd/m2
      • Contrast: 1000:1
      • Viewing Angle: 170° / 170° (H/V)
      • HDR: ST2084 300/1000/10000 / HLG
      • Supported Log Formats: Sony Slog / Slog2 / Slog3 or User...
      • LUT support: 3D LUT (.cube format)

        Video Input
      • HDMI: 1xHDMI2 0

        Supported Formats
      • HDMI: 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080150/60, 720p 50/60...

        Audio In / Out
      • HDMI: 8ch 24-bit (48kHz PGM Audio):
      • Ear Jack: 3 5mm - 2ch 48kHz 24-bit

        Power
      • Input Voltage: DC 7-24V
      • Power Consumption: <6W / <17W (DC 8V power output in operation)

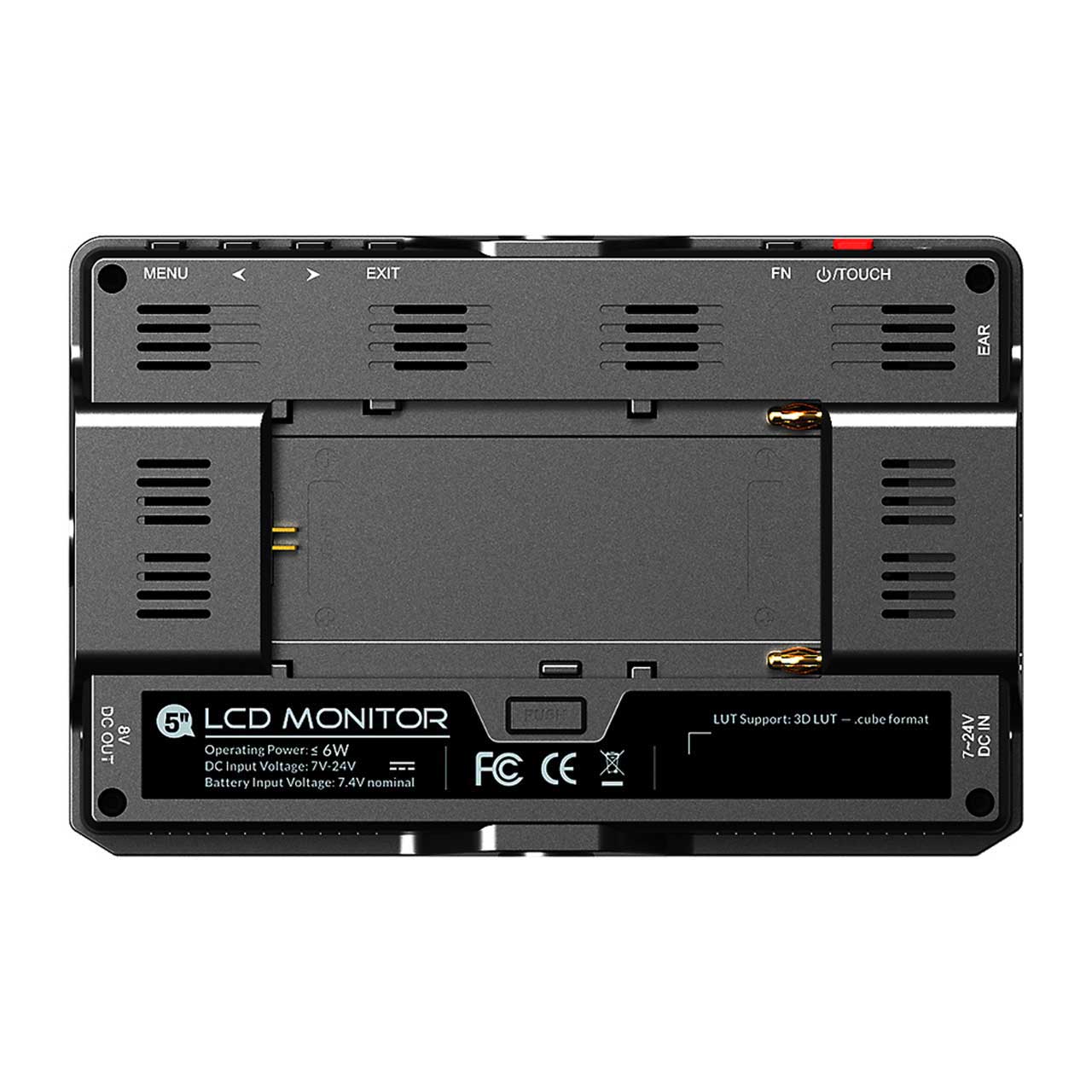

      • Compatible Batteries: Canon LP-E6 & Sony F-series
      • Power Output: DC 8V

        Environment
      • Operating Temperature: 0°C-50°C
      • Storage Temperature: -10°C-60°C

        Other
      • Dimension(LWD): 132x86x18.5mm
      • Weight: 200g

    • Item Includes:

      • 1x Lilliput LIL-T5 5 Inch HDMI Capacitive Touchscreen On-Camera Monitor
      • 1x HDMI A/C Cable
      • 1x Mini hot shoe
      • 1x Frame for sunshade
      • 1x Sunshade
      • 1x User guide

    • GTIN:

      6950821601808
