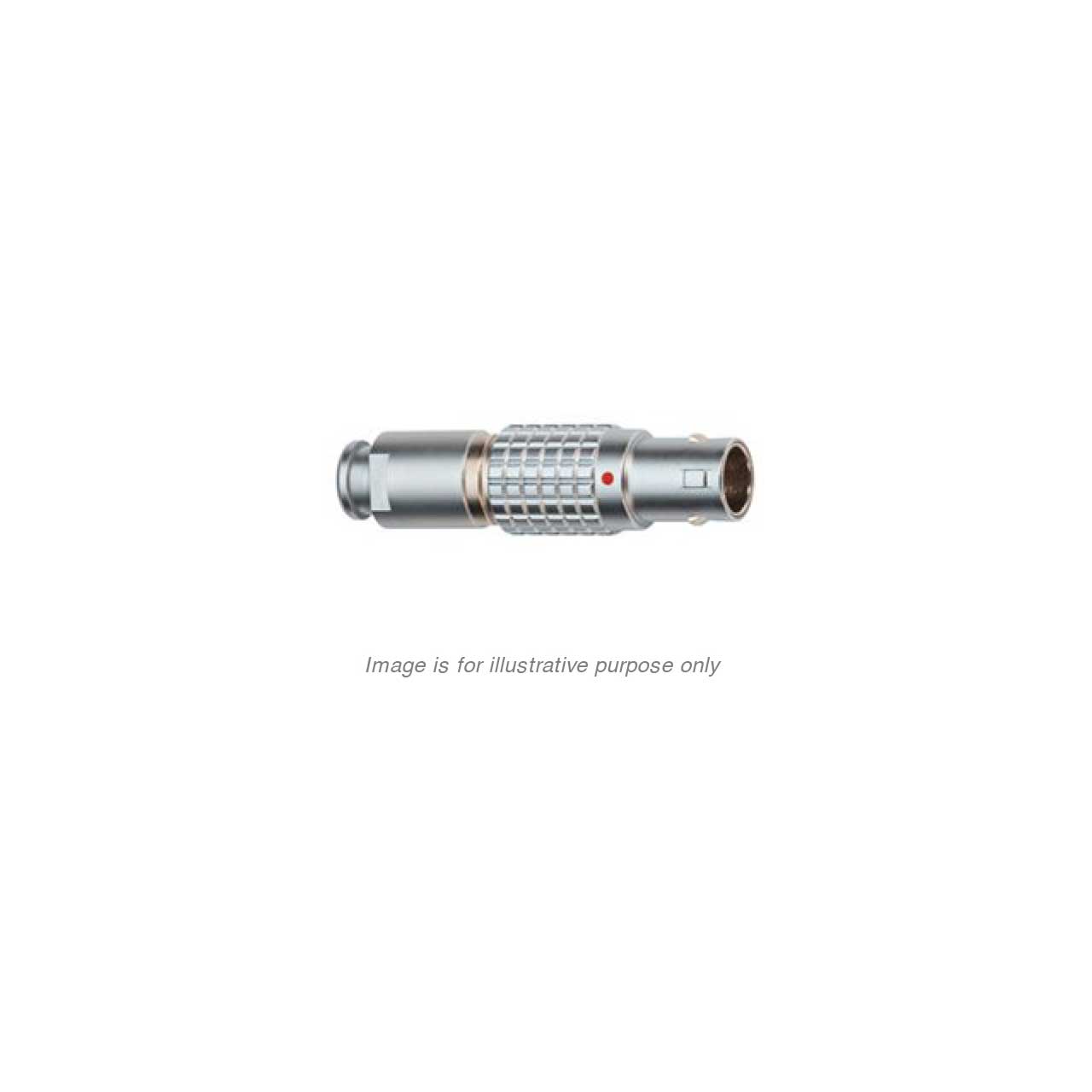

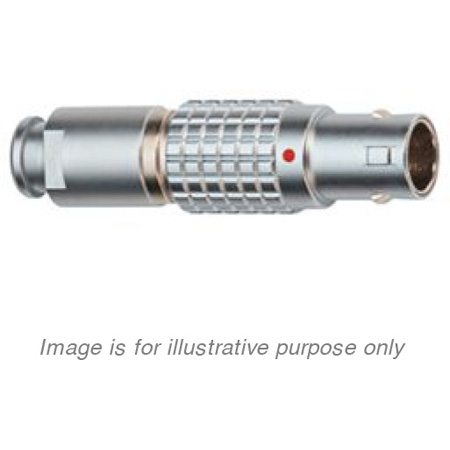

Lemo FFG.0B.305.CLAD42Z Straight Plug Connector with Cable Collet and Nut

FFG.0B.305.CLAD42Z - Overview

• Features:

  • Straight Plug (Non-Latching)
  • Male Solder Termination
  • Wire Size Awg: 30 - 22
  • Brass Shell


• Specifications:

  • Shell Style/Model: FG*: Straight plug, cable collet and nut for fitting a bend relief
  • Keying: 1 key (alpha=0, plug: male contacts, receptacle: female contacts)
  • Housing Material: Brass (chrome plated [SAE AMS 2460]) shell and collet nut, nickel plated [SAE AMS QQ N 290] brass latch sleeve and mid pieces
  • Variant: Z: Nut for fitting a bend relief
  • Weight: 8.65 g
  • Configuration: 0B.305 : 5 Low Voltage
  • Insulator: L: PEEK (UL 94 / V-0/1.5)
  • Rated Current: 6.5 Amps
  • Contact Type: Solder
  • Contact Dia.: 0.7 mm (0.028in)
  • Bucket Dia.: 0.8 mm (0.031in)
  • Max. Stranded Conductor: 0.34 mm^2 (AWG 22)
  • Max. Conductor: 0.34 mm^2 (AWG 22)
  • R (max): 6.1 mOhm
  • Vtest (contact-shell): 700 V (AC), 1000 V (DC) Vtest (contact-contact): 1000 V (AC), 1400 V (DC)
  • Endurance (Shell): 5000
  • Temp (min / max): -67° to 250°F ( -55°C / +250°C )
  • Humidity (max): <=95% [at 140°F] (60°C) ]
  • Vibration: 15 g [10 Hz - 2000 Hz]
  • Shock Resistance: 100 g [ 6 ms]
  • Climatical Category: 50/175/21
  • Shielding (min): 75 dB (10 MHz)
  • Shielding (min): 40 dB (1 GHz)
  • Salt Spray Corrosion: >1000 hr


• Item Includes:

  • 1x Circular Push Pull Connectors
  • 1x Cable
  • 1x Collet
  • 1x Nut
