Lumantek ez-Pro VS10 10-Channel 3G-SDI & HDMI Video Mixer / 10x1 1080P60 Full HD Video Production Switcher

ITEM #: LMTK-EZ-PRO-VS10 MFG #: EZ-PRO-VS10

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:

$3,600.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    EZ-PRO-VS10 - Overview

    The Perfect Customizable Video Switcher for Live Events!

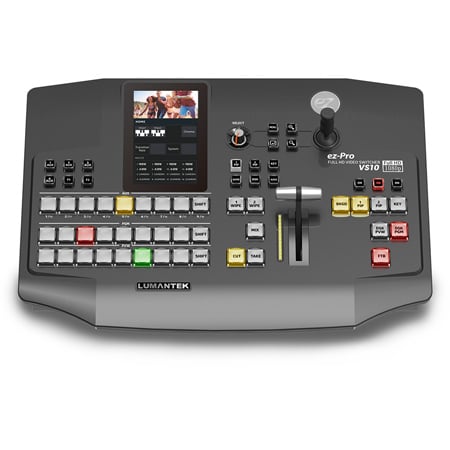

    The Lumantek ez-Pro VS10 10x1 Video Mixer and Production Switcher is the main product in the ez-Liveshow series. It is a stand-alone video switcher with scaler installed giving the ability to set the outgoing resolution up to 1080p60. VS10 allows live monitoring of 10 input video streams, media, test patterns (color bar, color background), PGM, PVW through multiview screen. Internal scalers allows VS10 to synchronize frames, and these can be controlled with console buttons, jog or joystick. Through touch-screen LCD, you can check the PGM and multiview. VS10 can receive 10 audio sources from the video inputs and 1 extra source from external audio (XLR) input. You can change the volume, mute and change to AFV (audio follow video) modes.

    The Lumantek ez-Pro VS10 is fully customizable allowing you to choose from many layouts to utilize its multiview screen. You can configure your own layout through our utility (Win OS or Mac OS), save it on a USB disk, and plug it into VS10 to load your layout. In addition, all of the ez-Pro VS10 SDI inputs can take in Fill & Key signals. Connect LUMANTEK's "ez-CGER mini" (sold separately) and broadcast your video with Live Titling and Graphics!

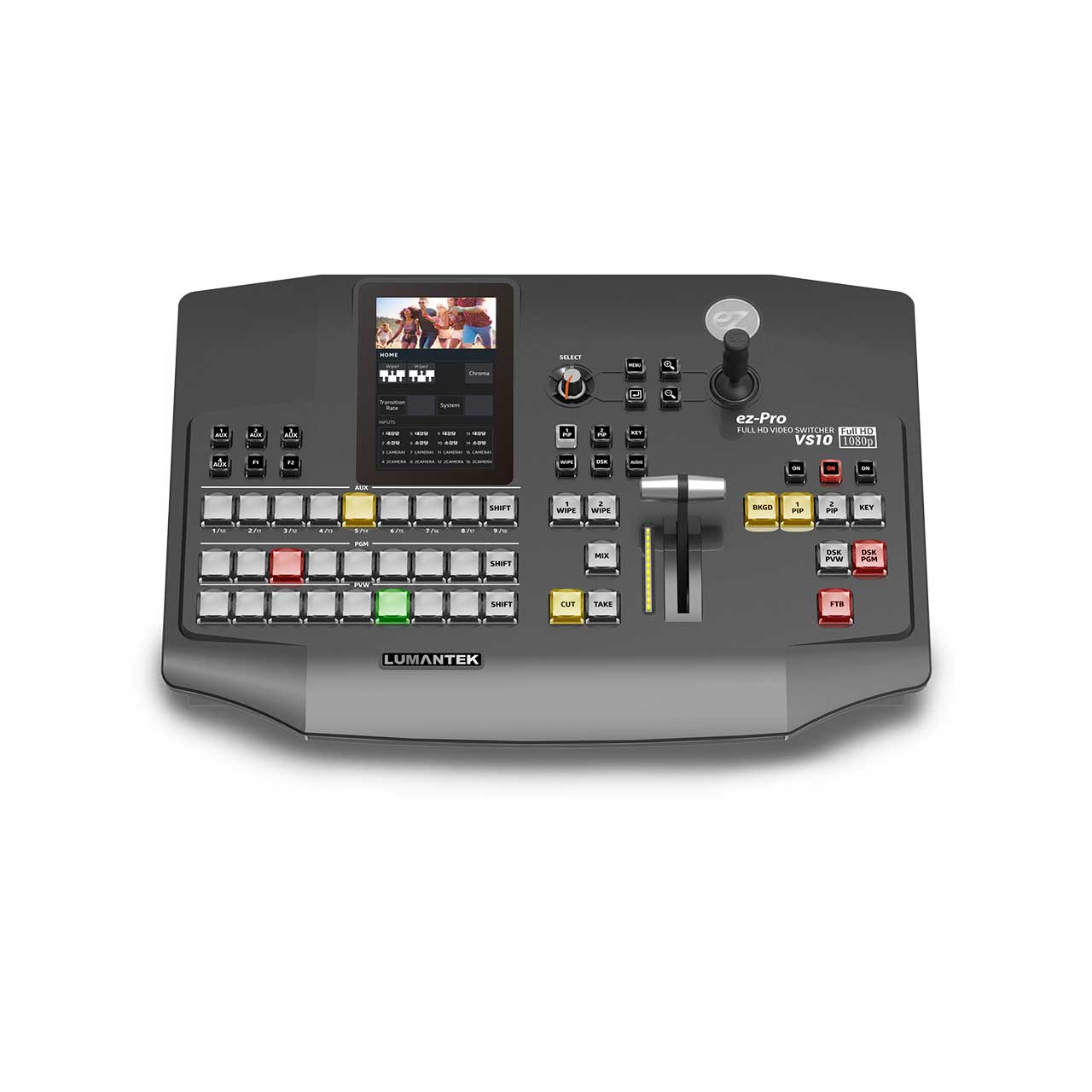

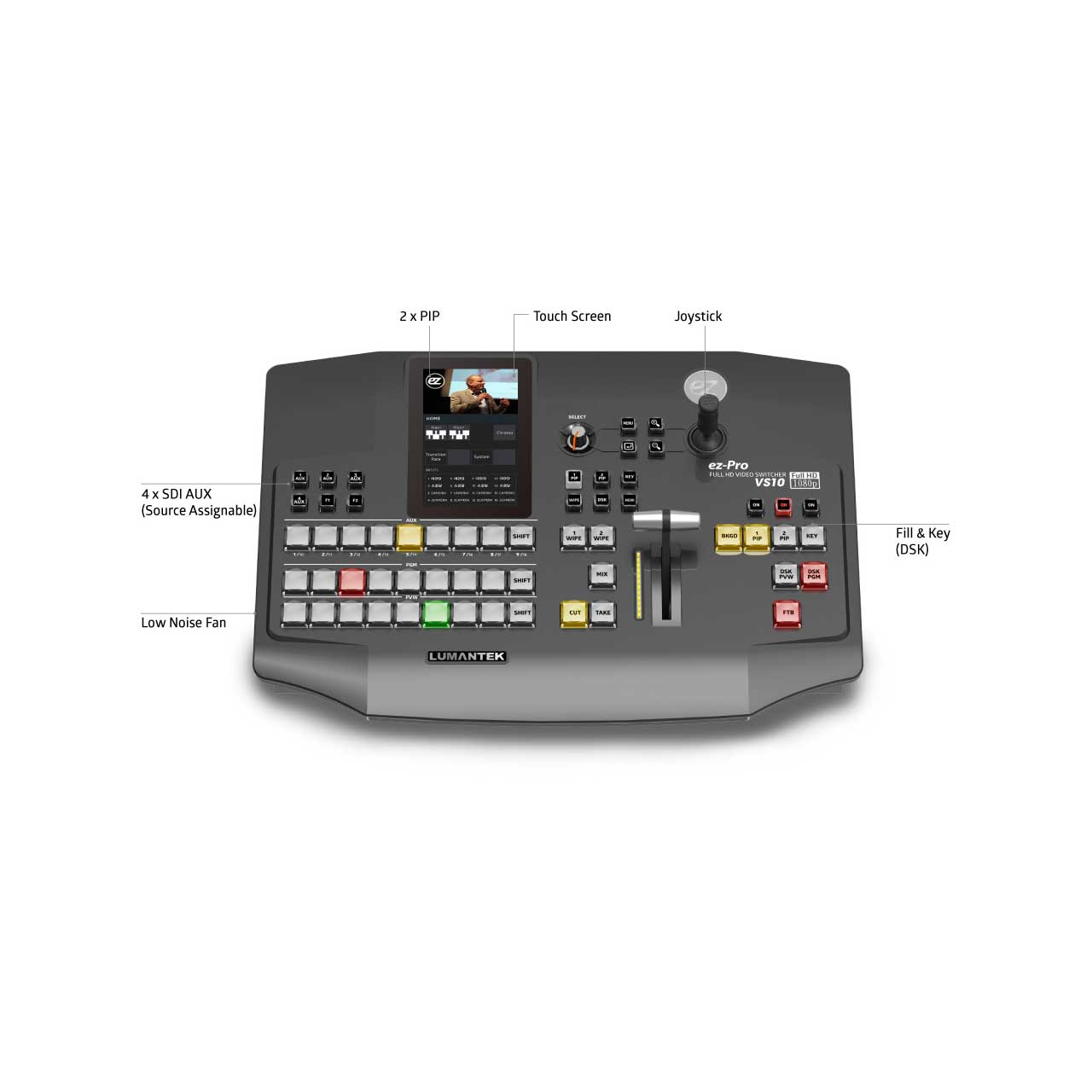

    The VS10's intuitive LCD touchscreen and joy-stick control deliver all key menu or functions. The unit includes internal scalers in all input ports. Adjust freely using our touch screen menu. It also has 2 Picture in Picture (PIP) capabilities, 2 Still Image which covers the whole screen, and Luma and Chroma Keyer. You can mix both features and key out the PIP and assimilate a hand language translator PIP.

    • Features:

      • 10-Input, 3G-SDI & HDMI Video
      • 3G/HD/SD-SDI & HDMI Inputs & Outputs
      • Adjustable PiP, 2 x Logos, Luma Keyer
      • Embedded I/O & External XLR Audio Input
      • Multiview Output through HDMI
      • Supports Level A & Level B 3G-SDI
      • Wipe, Mix, Cut & Additional Transitions
      • Embedded Audio Volume Control
      • Labeling: Label Input Source Names
      • Extended Audio: Choose Different Multiview Layouts & Assign
      • Button Mapping: Assign Video Sources to Console Button of your Preference

    • Specifications:

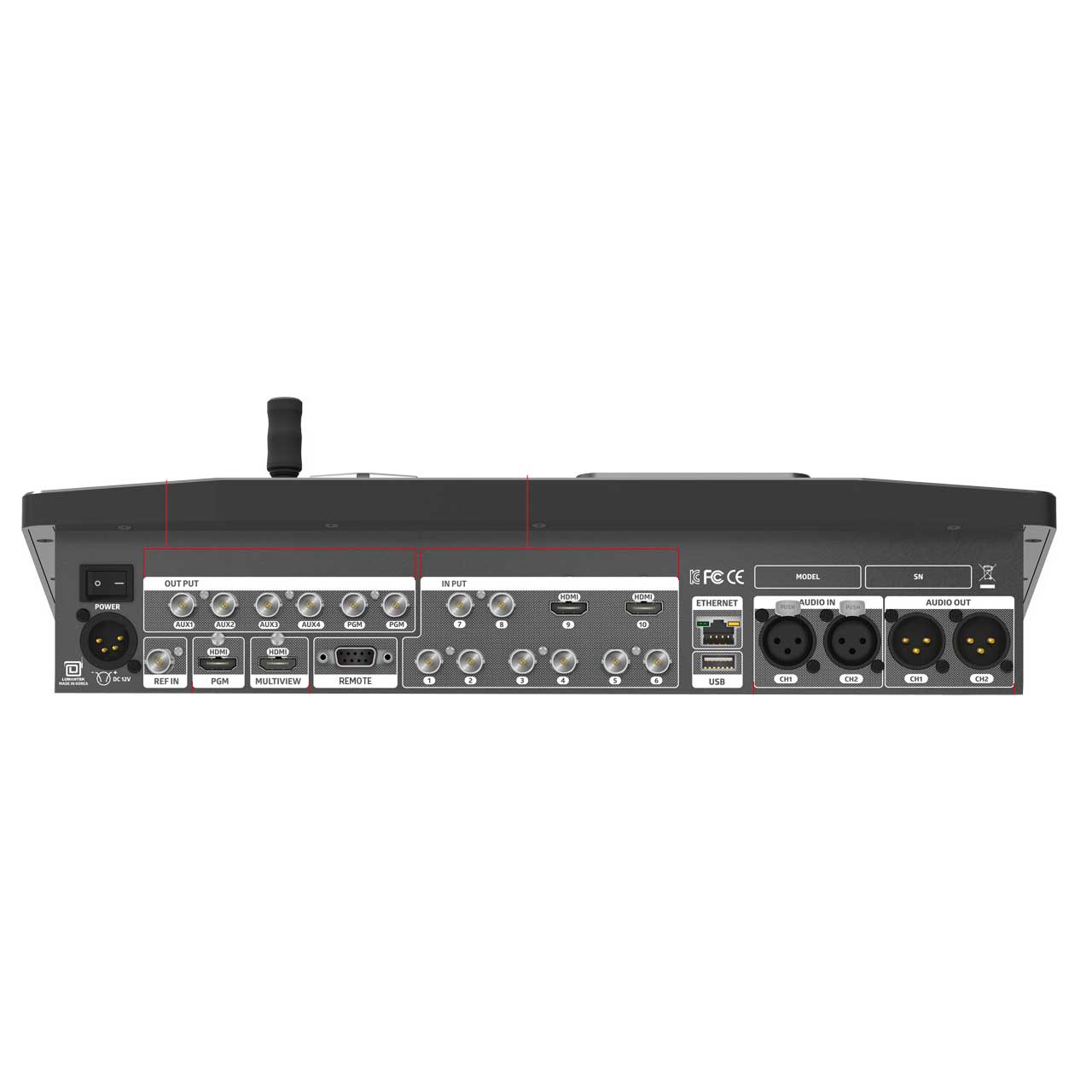

      • Video Inputs: 8 x SDI & 2 x HDMI
      • Audio Input: 1 pair x XLR

        Video Outputs:
      • 2 x SDI (AUX 1 & 2)
      • 1 x SDI (Clean)
      • 1 x SDI (Preview)
      • 2 x SDI (Program)
      • 1 x HDMI (Program)
      • 1 x HDMI (Multiview)

        Audio Output: 1 pair x XLR

        Video Format Support
      • 480i59/576i50
      • 1080p30/1080p29/1080p25/1080p24/1080p23
      • 1080i60/1080i59/1080i50/720p60/720p59/720p50
      • 1080p60/1080p59/1080p50

        Video Switcher
      • Mix & Effect: 1ea
      • PIP: 2ea
      • KEY: 1ea(LUMA/CHROMA)
      • Downstream Keyer: 1ea(FILL/KEY)
      • Pattern Generator: 2ea
      • Still Image: 2ea
      • Multiview: 10view 1ea
      • Audio Mixer: 10 stereo input mixer 1ea

        Physical
      • Dimension: 400(W) x 89(H) x 294(D) (mm, Excluding Connector)
      • Weight: 3.7kg (8.2lbs)

        Environmental
      • Operating Temperature: 0 ~ 45?

        Power Requirement
      • Power Input: DC 12V
      • Power Consumption: 00W(max)

    • GTIN:

      0887367000290
