Lumantek ez-Pro VS4 4 Channel Full HD Video Switcher

ITEM #: LMTK-LUMEZPROVS4 MFG #: EZ-PRO VS4

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:

$949.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    EZ-PRO VS4 - Overview

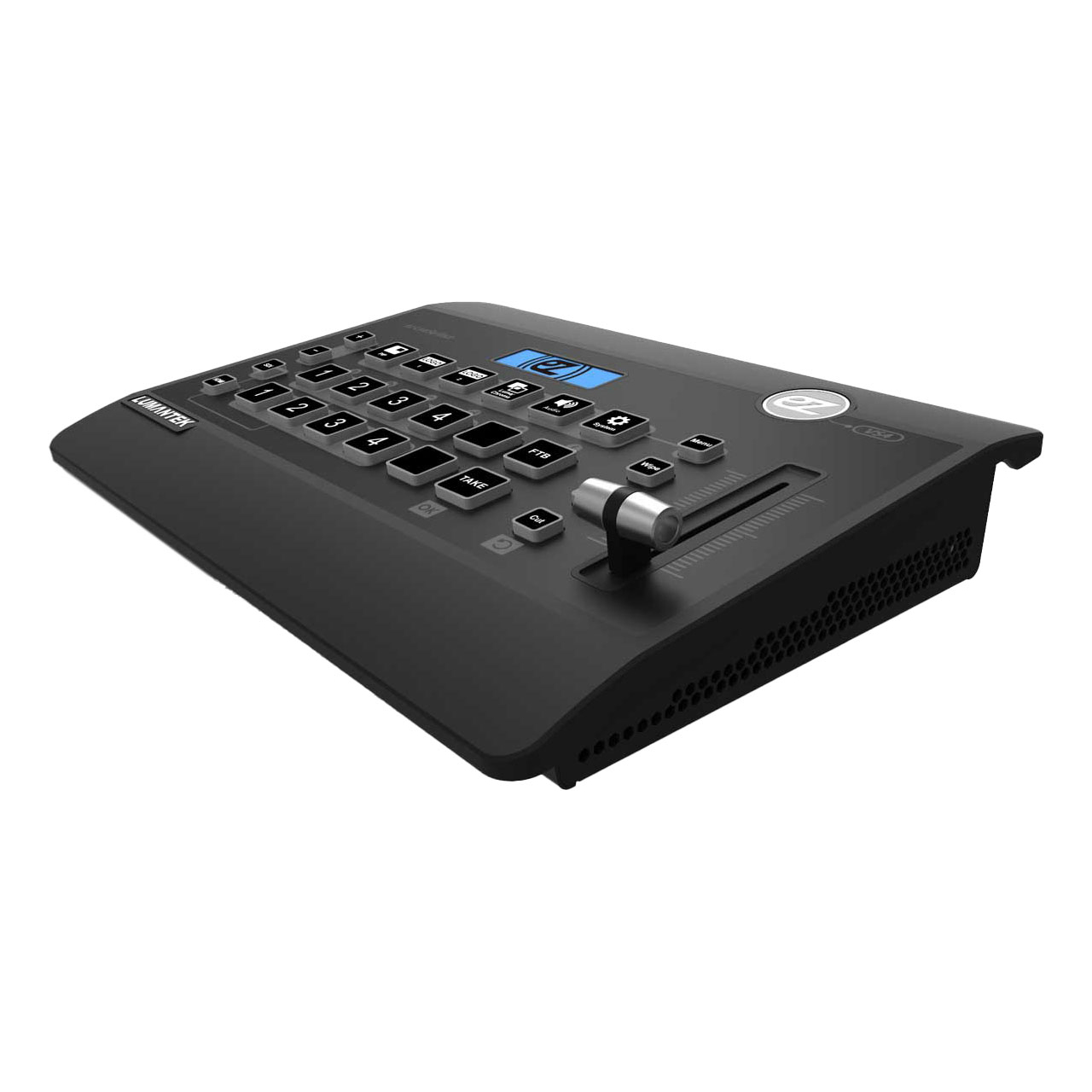

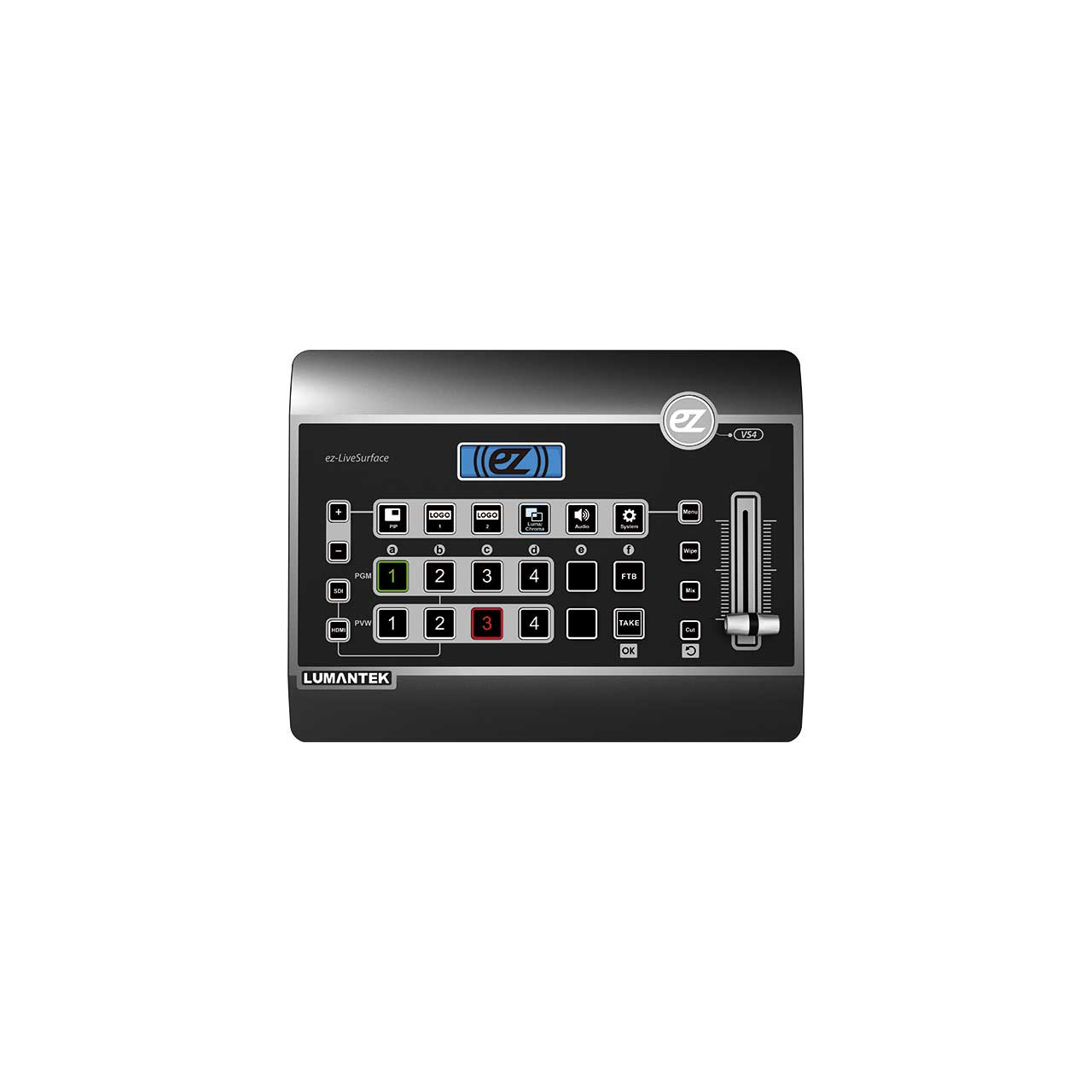

    The Lumantek ez-Pro VS4 4x1 Multiview Switcher from Lumantek is a standalone console switcher designed for corporate, educational, event, and house-of-worship applications. Integrated scaling enables you to mix and match up to four SD, HD, 3G-SDI, and HDMI signals. Program is output via HDMI or SDI, and a multiview display is available via HDMI. Features of the ez-Pro VS4 include an adjustable PiP (picture-in-picture) function, chroma/luma keying, embedded-audio volume control, and dual-logo insertion. Use the console buttons and T-bar to switch, cut, mix, wipe, and otherwise transition between sources.

    The compact ez-Pro VS4 switcher supports video resolutions up to Full HD 1080p60 with 8/10-bit 4:2:2 processing, and both Level A and Level B 3G-SDI transmission. Up to four channels of embedded audio are supported, plus external audio via stereo RCA inputs. An integrated USB 2.0 interface is provided for firmware upgrades, logo input, and a GUI application.

    • Features:

      • 4-Input, 1-Channel HD Video
      • 3G/HD/SD-SDI Inputs & Outputs
      • Adjustable PiP, 2 x Logos, Luma Keyer
      • Embedded I/O & External RCA Audio Input

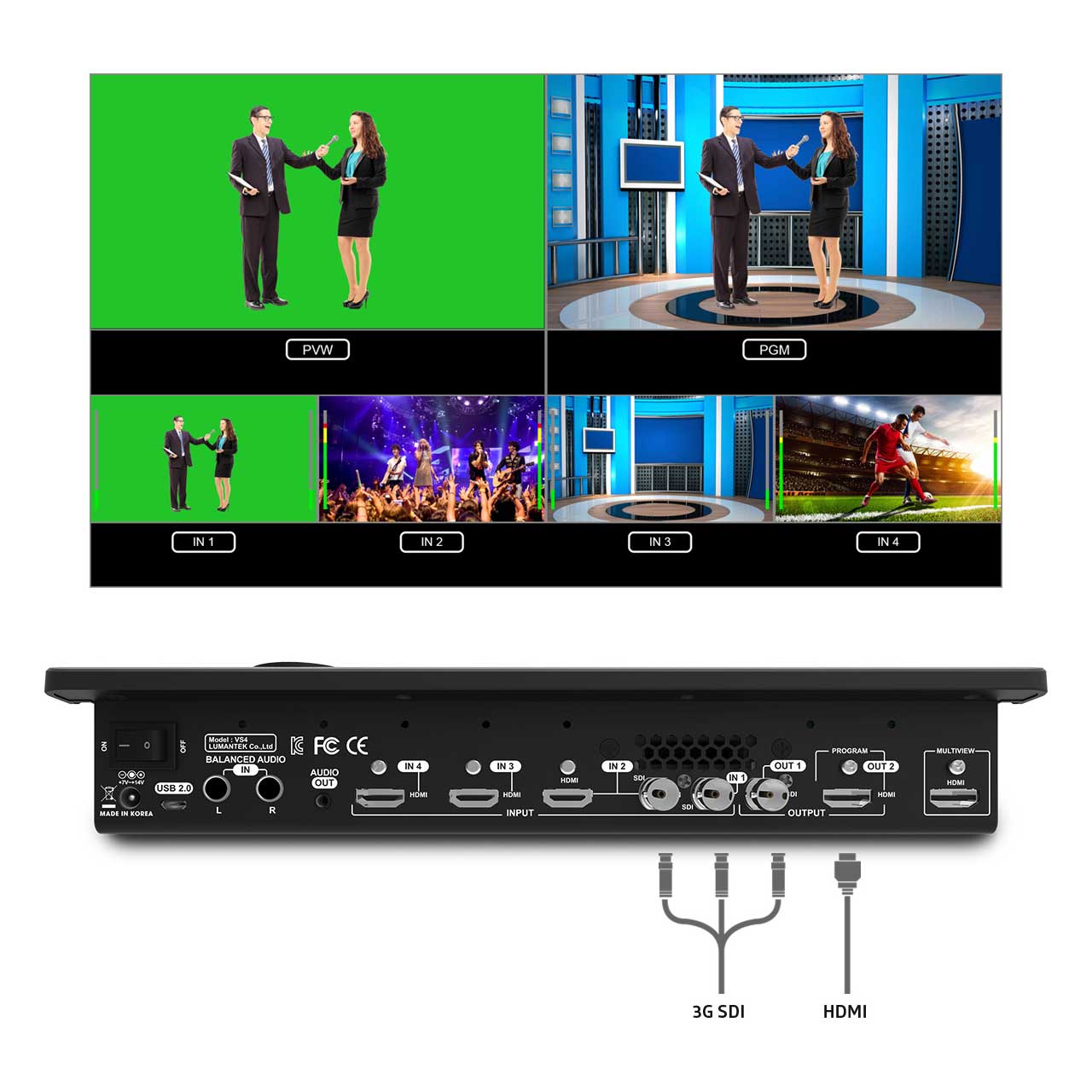

      • Multiview Output through HDMI
      • Supports Level A & Level B 3G-SDI
      • Wipe, Mix, Cut & Additional Transitions
      • Embedded Audio Volume Control

    • Specifications:

      • Video Input: 1 x SDI/HDMI selective 2 x HDMI 1 x SDI (BNC, 75 Ohms)
      • Audio Input: 2 x 1/4" stereo RCA jacks (balanced, ±10 V max at -10 dB)
      • Video Output: Program: 1 x HDMI 1 x SDI (BNC, 75 Ohms) Multiview: 1 x HDMI
      • Audio Output: 1 x 3.5 mm stereo
      • Supported Input Resolutions: SD: 480i: 50/59, HD: 1080p: 30/29.97/25/24/23.98, 1080i: 60/59.94/50, 720p: 60/59.94/50
      • Full HD: 1080p: 60/59.94/50
      • Supported Output Resolutions: HD: 1080p: 30/29.97/25/24/23.98, 1080i: 60/59.94/50, 720p: 60/59.94/50
      • Full HD: 1080p: 60/59.94/50
      • USB Interface: USB 2.0
      • Power Input: 7-14 VDC
      • Power Consumption (Maximum): 20 W
      • Operating Temperature: 32 to 104°F / 0 to 40°C
      • Dimensions: 2.8 x 11.7 x 9.1" / 70 x 297 x 230 mm
      • Weight: 3.7 lb / 1.7 kg

    • GTIN:

      0887367000047
