Luminex LU0100097-1G GigaCore 16t - 1G Ethernet Switch for Professional Tour Applications - No PoE++

ITEM #: LMX-LU0100097-1G MFG #: LU0100097-1G

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$2,340.00

Our Price:

$2,106.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    LU0100097-1G - Overview

    The Luminex LU0100097-1G GigaCore 16t is a 1 Gigabit Ethernet switch for professional touring applications in lighting, audio and video with a frequent tear-down & built-up requirement or for any other application where ruggedized connectivity is necessary.

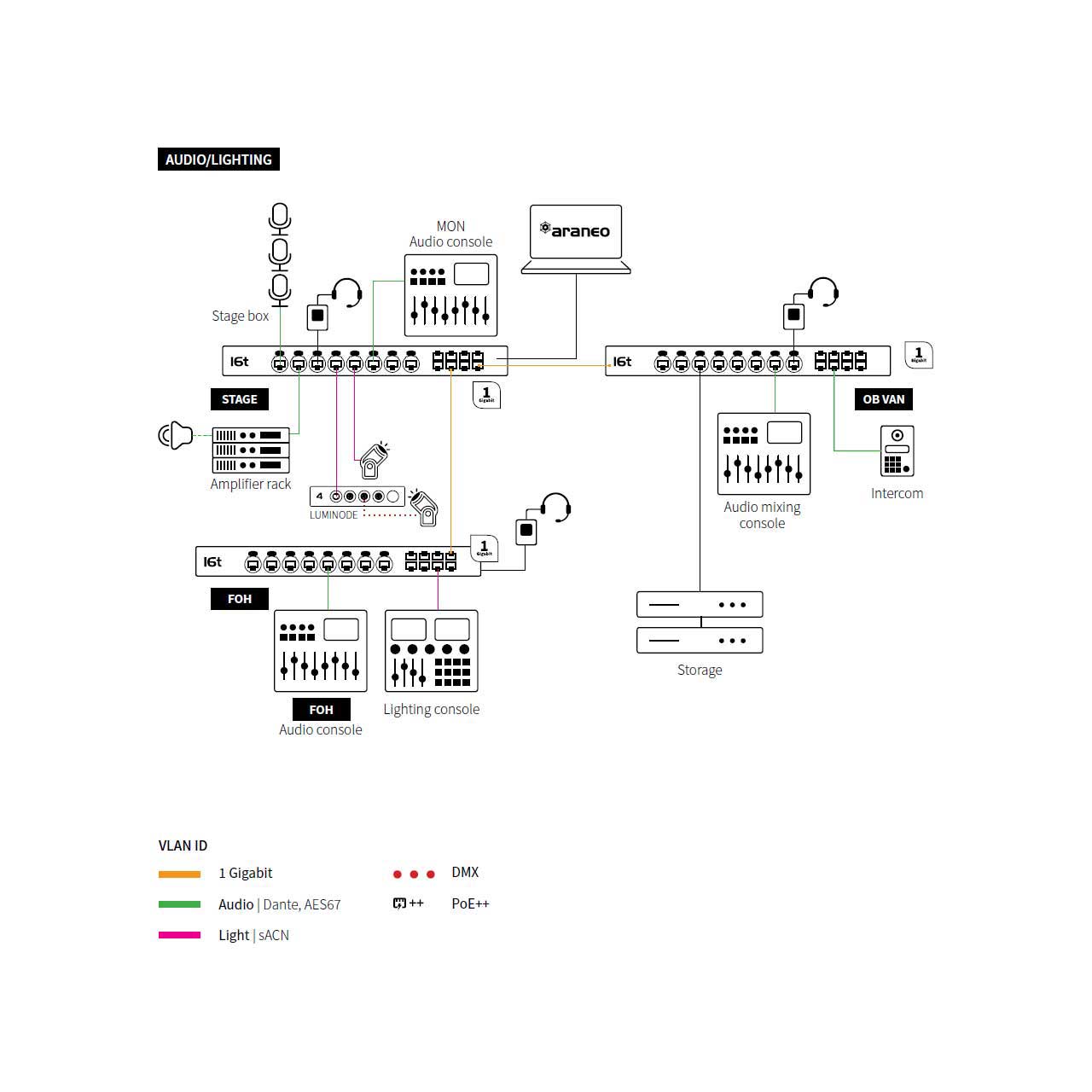

    It is designed to support the most advanced AV protocols out of the box and is the backbone for a converged network, allowing multiple applications to co-exist on the same network.

    GigaCore 16t is an indispensable part of any mobile AV network where reliability and a quick and easy setup are needed.

    • Features:

      • Most suitable applications: Touring applications
      • RLinkX (Link redundancy): Yes
      • Groups (VLAN segmentation): Yes
      • MultiLinkX (Link aggregation): Yes (With future FW upgrade)
      • Profile manager: Yes
      • Memory: Flash 1Gb RAM - 8Mb NOR flash 4Gb EMMC storage
      • MAC address table: 16384 entries
      • Address learning / Aging: Self learning, Auto aging
      • Switching throughput: 32Gbps
      • Jumbo frames: MTU up to 12000
      • IGMP support: Yes (V1/V2/V3)
      • IGMP snooping: Yes, enabled by default
      • Port sensing: Auto negotiation
      • Auto crossover: MDI / MDIX
      • Auto sensing: Full or Half Duplex (Gigabit is Full Duplex)

    • Specifications:

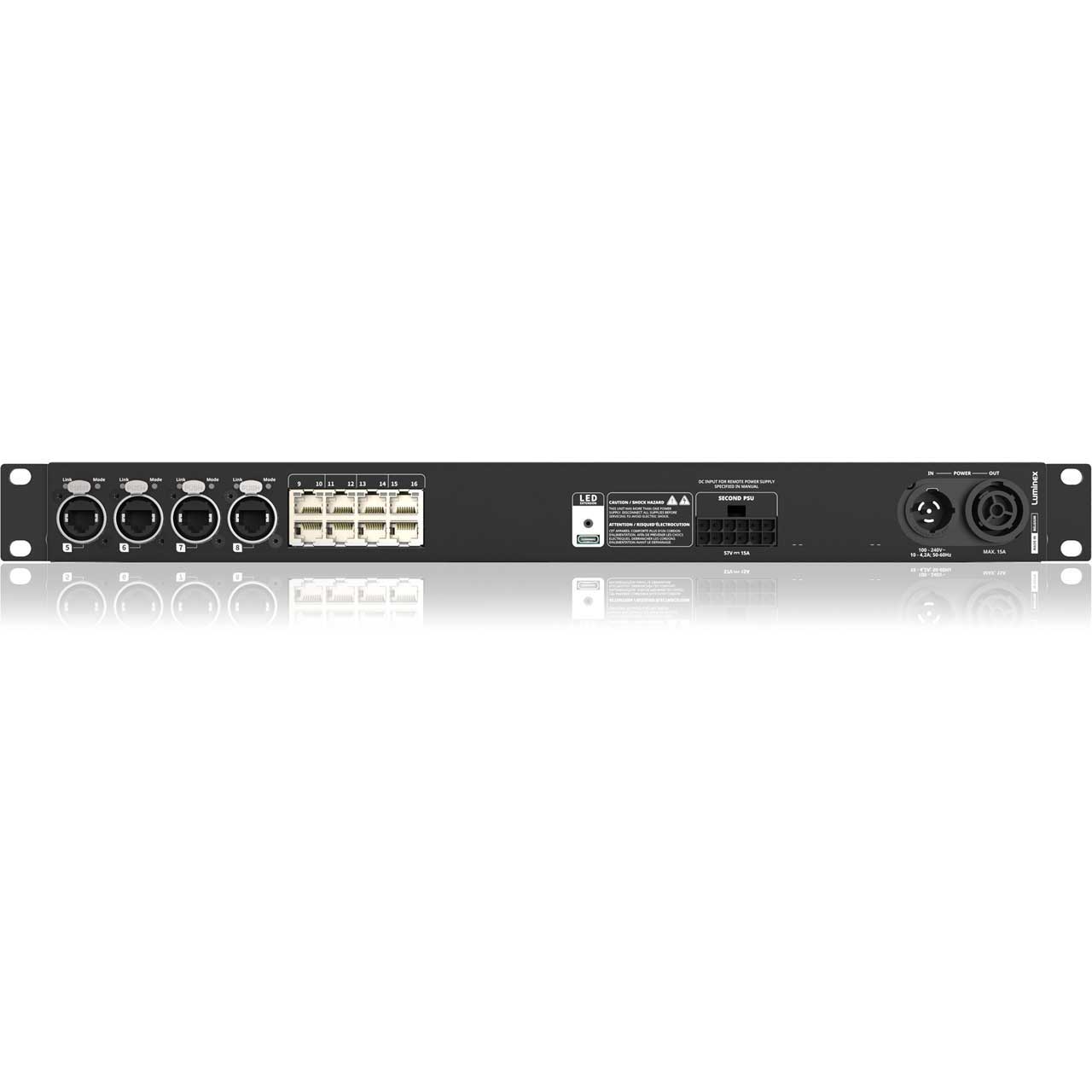

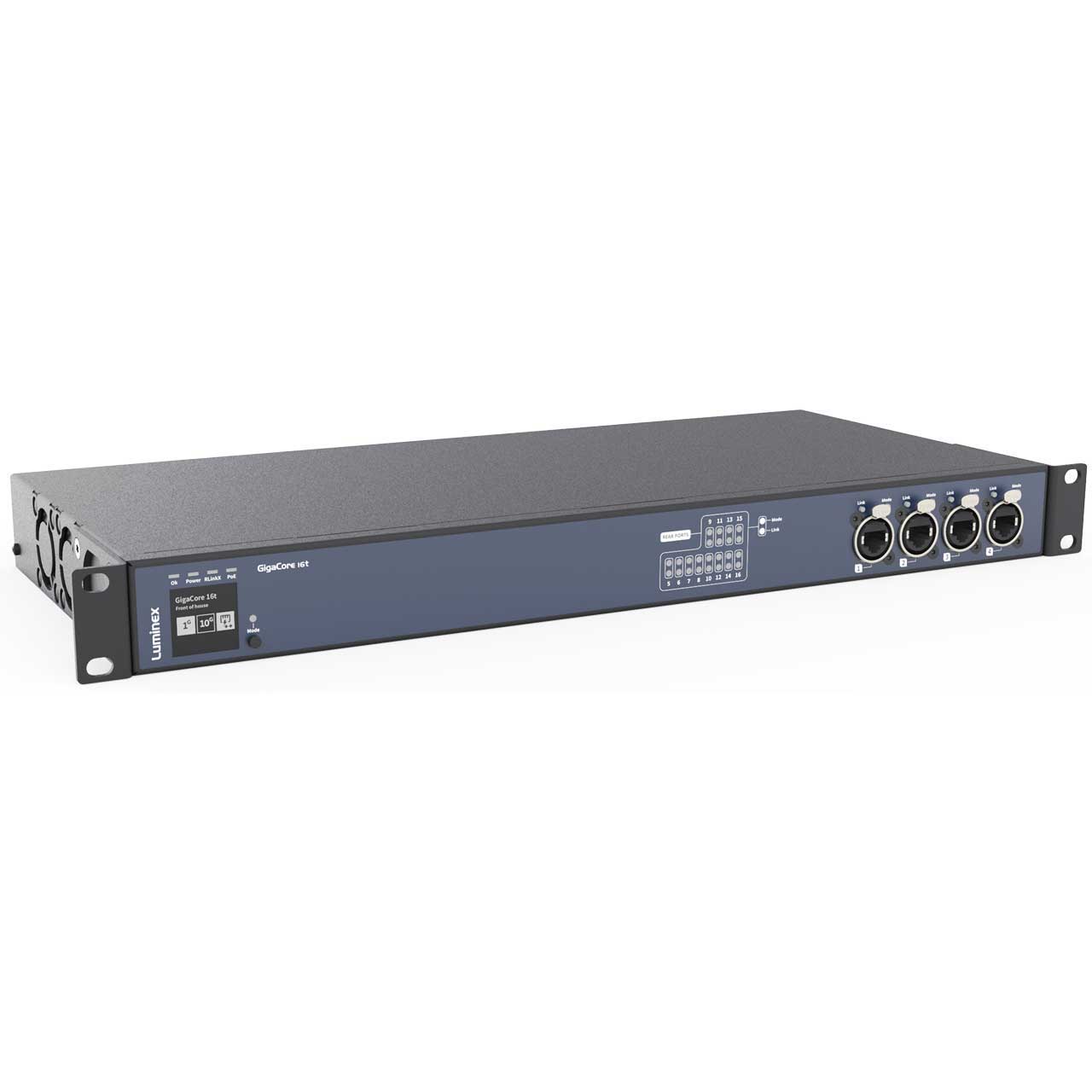

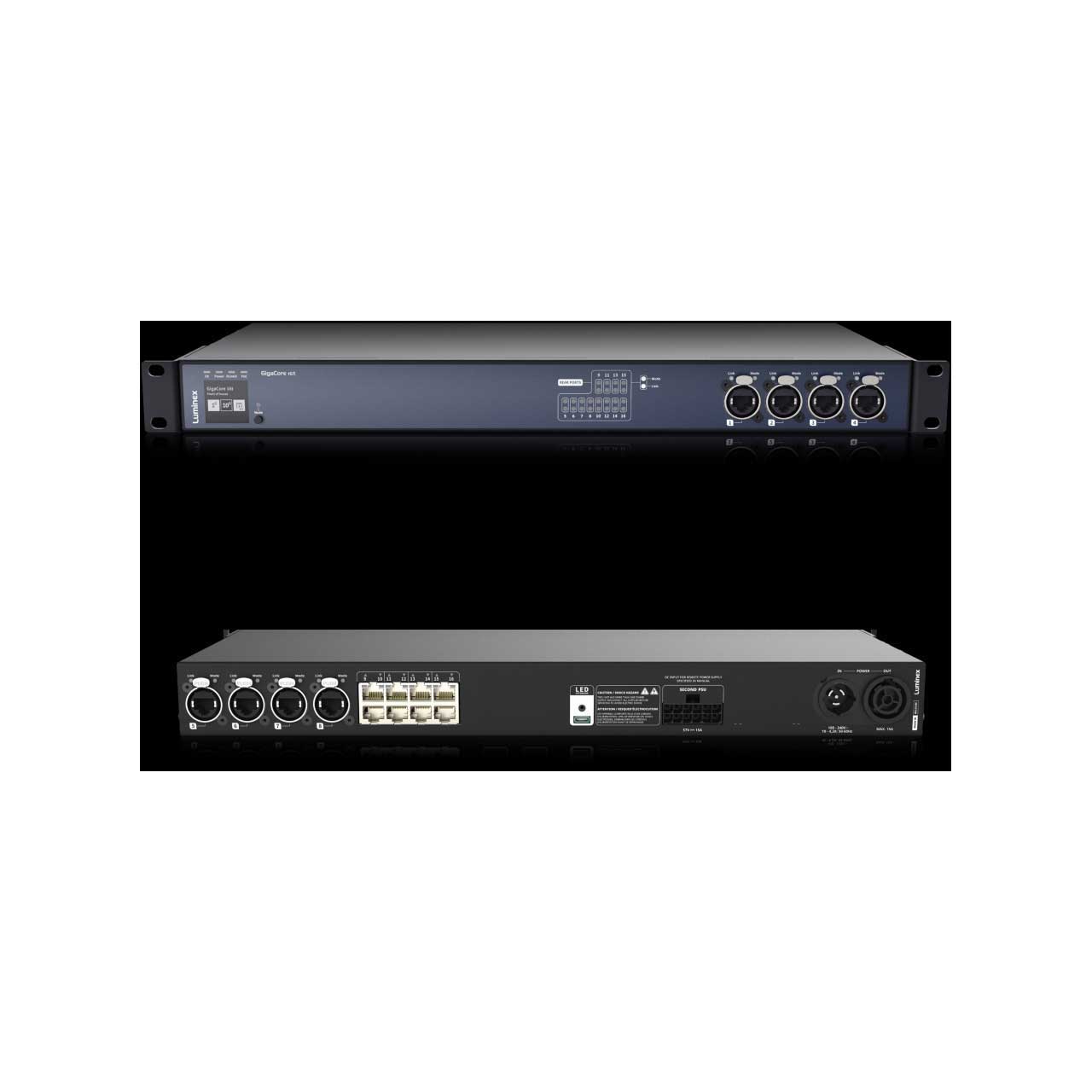

      • Ethernet connectivity: 8 x EtherCon conectors (4x front, 4x rear) (1Gbps) 8 x RJ 45 connectors (rear) (1Gbps)
      • Fiber connectivity: No
      • Ethernet port speed: 1Gbps
      • Power connectivity: 1 x PowerCON True 1 in/out
      • Power input: 100-240VAC, 50-60Hz
      • Power consumption: Minimum 50W - Maximum 1050W
      • Mounting: Rack
      • Enclosure: Robust metal housing
      • Dimensions: 19" x 8.54" x 1.73" (WxHxD)
      • Environment:
        Operating temperature: 32 to 122 °F
        Storage temperature: 14 to 158 °F
        Humidity (non condensing): 5 to 95% RH

    • Applications

      :

      • Live Events
      • Touring
      • Convention Centers
      • Large System Integrations
      • Sports Arenas
      • Broadcast and Recording Studios
      • Theme Parks
