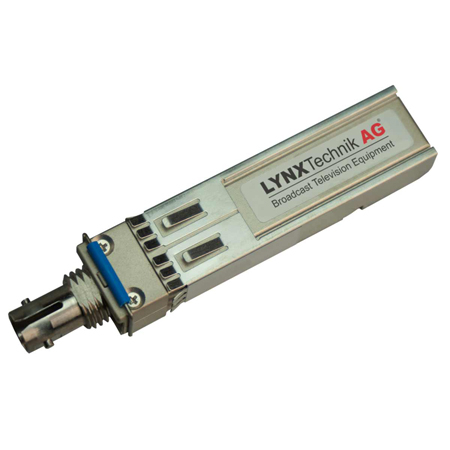

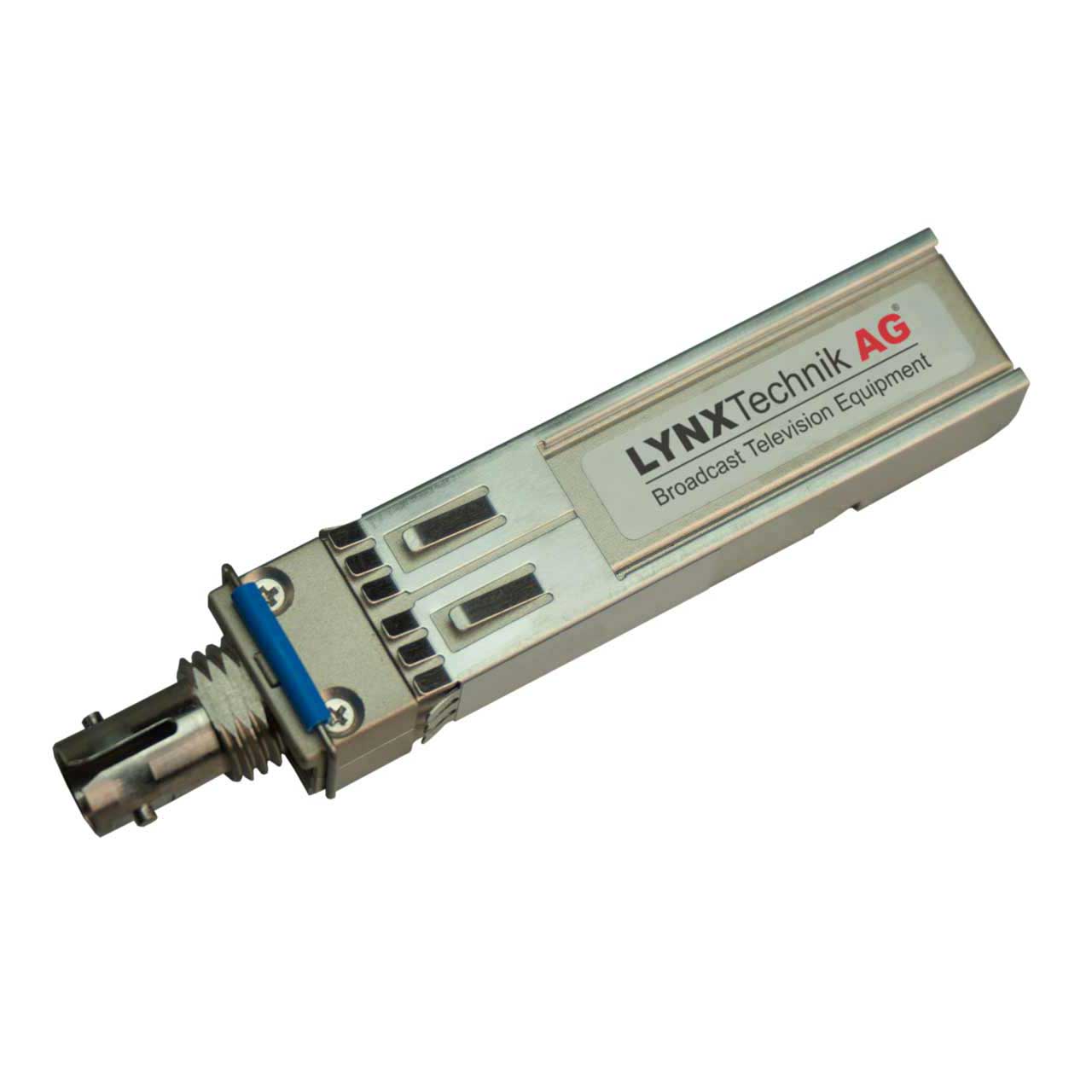

The LYNX OH-TX-12G-ST single channel optical transmitter is an integrated plug in option for selected LYNX Technik products. This SFP module facilitates the conversion of SDI electrical signals at ST-2082-1 (12G), ST-2081-1 (6G), ST-424 (3G) and ST-292 (HD) to optical signal. The OH-TX-12G-ST module is a pluggable SFP with ST connector for use in LYNX products which provide an SFP slot. This module is paired with OH-RX-12G-ST single channel optical receiver module to transmit singnals up to a maximum distance of 10km** over a single mode fiber.
A socket, or a "cage" is provided for the SFP in the supporting LYNX product for easy installation or upgrade. This SFP is hot swappable.
Please Note**: Distance is an approximation. Actual distances achieved can be longer or shorter depending on the type of fiber cable and accumulated optical losses in the fiber link. Determine link losses and perform optical budget calculations to ensure correct operation.
