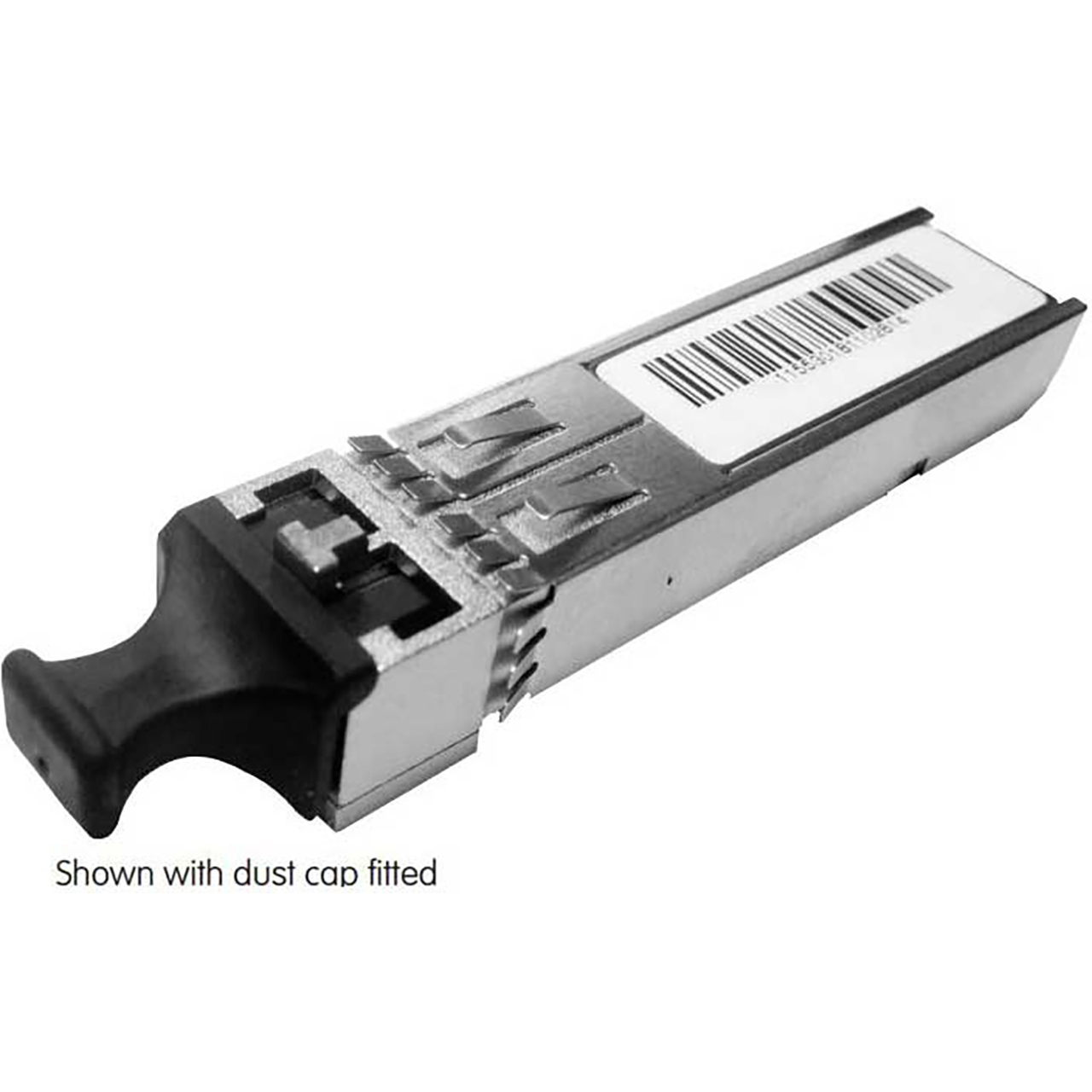

Primary Image
LYNX Technik Inc
Free Shipping with $49 Minimum Order

List Price:

$1,355.00

Our Price:

$1,287.25

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Notify when in stock
Report Lower PriceLarge Quantity Quote

OH-RR-4-12G-LC - Overview

The LYNX OH-RR-4-12G-LC is a dual-channel SDI optical receiver and an integrated part or plug-in option for select LYNX Technik products. This module facilitates the conversion of two independent SDI optical signals into electrical signals for further processing within these products. Support is provided for all wavelengths between 1260 and 1620nm according to ITU-T G694.2 (18 wavelengths). The module accommodates 11.88Gbit, 5.94Gbit, 2.97Gbit, and 1.485Gbit SDI signals conforming to SMPTE 2082, SMPTE 424M, and SMPTE 292M.

A socket, or "cage," is provided for the SFP in the supporting LYNX product for easy installation or upgrade. The SFP is hot swappable.

  • Features:

    • Duplex LC connectors
    • 2-Channel 12G/6G/3G/1.5G/SD-SDI Fiber Receiver
    • Single-mode
    • RX wavelengths 1260-1620nm
    • Up to 25 miles (40km) @ 12Gbit/s
    • Support for SMPTE 2082, SMPTE 424M, and SMPTE 292M
    • Pluggable and hot swappable
    • Lead free and RoHS compliant


  • Specifications:

    • Dimensions: 2.3" x 0.52" x 0.5" (57.4mm x 13.4mm x 12.7mm)
    • Weight: 0.1lb (50g)
    • SFP Connector Pinning: MSA
    • Fiber Connections: LC/Duplex - Singlemode
    • Power Supply Voltage: 3.3V DC
    • Power Consumption: Max. 300mA
    • Humidity (Non Condensing): 90%
    • Wavelength:
      - Min 1260nm
      - Max 1620nm
    • Overload: -3dBm
    • Loss of Signal Asserted: -30dBm
    • Loss of Signal De-Asserted: -18dBm
    • Receiver Sensitivity:
      - 11.88 Gbit/s with Max. -18 dBm
      - 5.94 Gbit/s with Max. -18 dBm
      - 2.97 Gbit/s with Max. -18 dBm
      - 1.485 Gbit/s with Max. -18 dBm


  • Item Includes:

    • 1x OH-RR-4-12G-LC 12G-SDI Duplex High Sense Receiver SFP Module
    • 1x Y-TAP Split Power Cord


  • Warranty:

    • 3-Year Limited Warranty


  • GTIN:

    4250479329591
