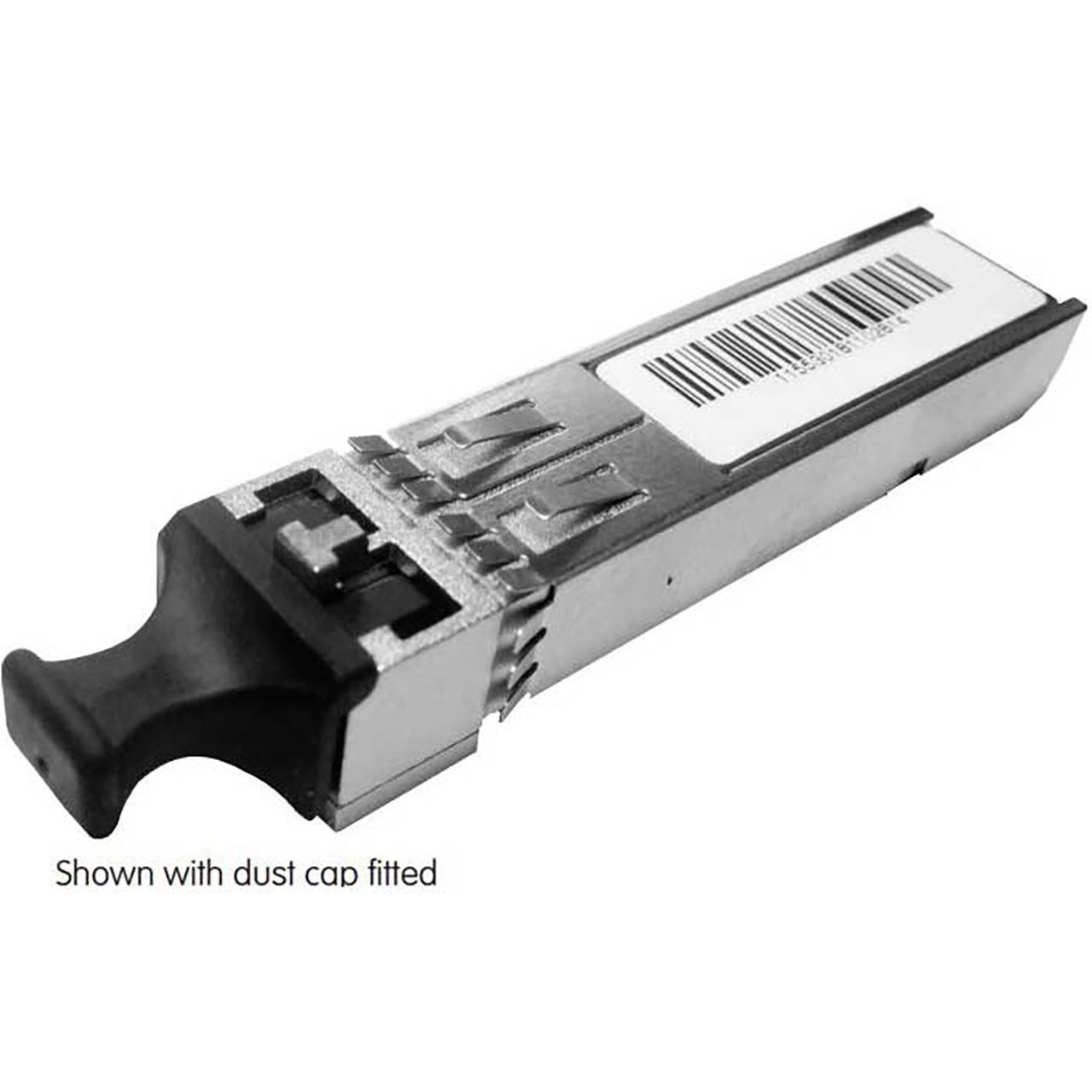

LYNX Technik OH-RX-4-12G-LC 12G-SDI Simplex High Sense Receiver SFP Module - Singlemode 1260nm - 1620nm - LC Connector

OH-RX-4-12G-LC - Overview

• Features:

  • Simplex LC connector
  • 12G/6G/3G/1.5G/SD-SDI fiber Receiver
  • Single-mode
  • RX wavelengths 1260-1620nm
  • Distance up to 25 miles (40km)
  • Support for SMPTE 2082, SMPTE 424M, SMPTE 292M.
  • Pluggable and hot swappable
  • Lead free and RoHS compliant


• Specifications:

  • Dimensions: 2.3" x 0.52" x 0.5" (57.4mm x 13.4mm x 12.7mm)
  • Weight: 0.1lb (50g)
  • SFP Connector Pinning: MSA
  • Fiber Connections: LC/Simplex - Singlemode
  • Power Supply Voltage: 3.3V DC
  • Power Consumption: Max. 300mA
  • Humidity (Non Condensing): 90%
  • Wavelength:
    - Min 1260nm
    - Max 1620nm
  • Overload: -3dBm
  • Loss of Signal Asserted: -30dBm
  • Loss of Signal De-Asserted: -18dBm
  • Receiver Sensitivity:
    - 11.88 Gbit/s with Max. -18dBm
    - 5.94 Gbit/s with Max. -18dBm
    - 2.97 Gbit/s with Max. -18dBm
    - 1.485 Gbit/s with Max. -18dBm


• Item Includes:

  • 1x OH-RX-4-12G-LC 12G-SDI Simplex High Sense Receiver SFP Module


• Warranty:

  • 3-Year Limited Warranty


• GTIN:

  4250479329584
