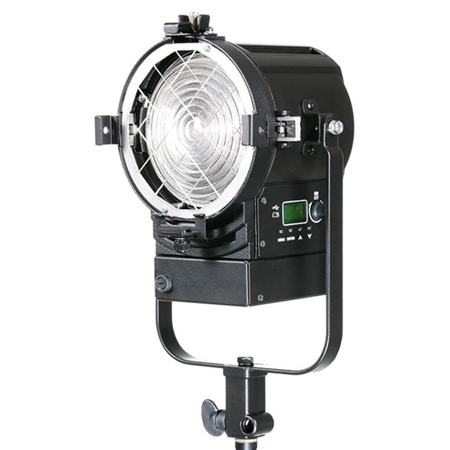

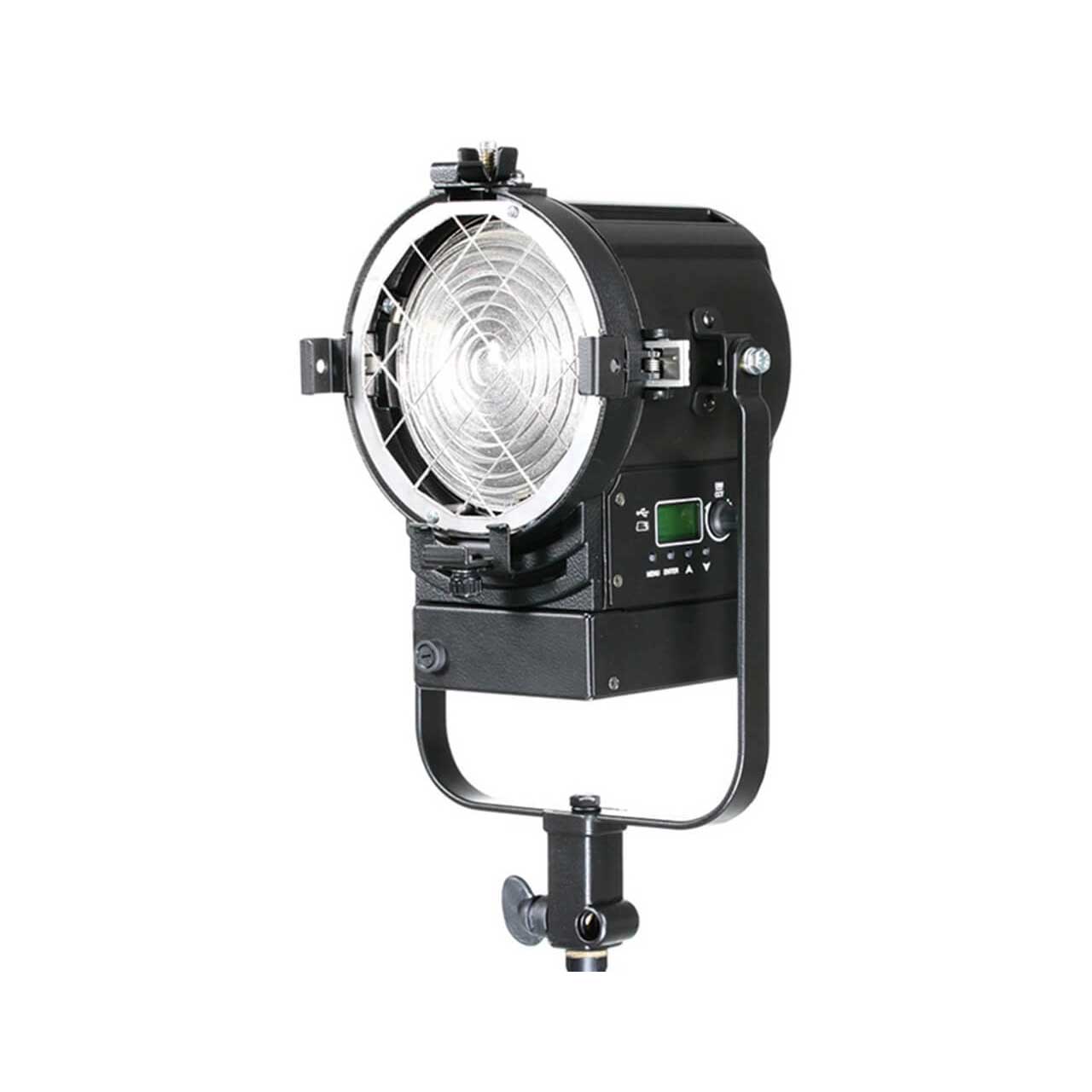

Litepanels 960-2303 Studio X2 Bi-Color 60 Watt LED Fresnel (Standard Yoke / US Power Cable)

ITEM #: LPAN-960-2303 MFG #: 960-2303

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$2,340.00

Our Price:

$2,223.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    960-2303 - Overview

    Litepanels Studio X LED Fresnels, engineered by world renowned broadcast lighting professionals Quartzcolor, deliver high-performance, directional, bright white light with precision spot to flood beam control and consistent quality.

    Natural talent light with perfect skin tone rendering is achieved with high output Bi-Color COB LEDs to produce superior white light. With no variation in quality at any dimming level from 0-100% or across the adjustable CCT range from 2700°K to 6500°K, Studio X Bi-Color Fresnels perfectly match ambient and practical set lighting to show talent in a naturally realistic light.

    The Studio X2 Bi-Color 60W Fresnel has a 5" lens in a practical compact chassis with a spot-to-flood beam angle range of 10° - 49°. With a maximum output of 2,300 lux at 10ft/3m (spot 5,600K), its output at 3,200K is similar to a 300W traditional tungsten Fresnel. Advanced thermal management ensures 50,000+ hours of LED engine life, while individual burn-in and calibration tests ensure quality and consistency.

    With high-quality, single source wrap-around illumination, Studio X is the perfect choice to light your talent - naturally.

    • Features:

      • Perfect talent light
      • Pure, bright, and consistent white light
      • Perfect skin tone rendering
      • Flawless fresnel beam
      • Even field throughout the zoom range
      • Effective light control with barndoors
      • Complete control
      • DMX, RDM, and local control
      • Accurate, fine dimming curve
      • Enduring performance
      • Installed in leading broadcast studios
      • Advanced thermal managment

    • Specifications:

      • Optical Data
      • LED engine: Bi-Color COB
      • Lens: Fresnel 130mm / 5" Ø, low expansion borosilicate
      • Beam angle: 10° - 49°
        Correlated Color Temperature:
      • Variable 2,700K to 6,500K
      • Daylight (5,600K) lux @16ft/5m, Spot 10°: 828
      • Daylight (5,600K) lux @16ft/5m, Flood 49°: 142
      • Tungsten (3,200K) lux @16ft/5m, Spot 10°: 731
      • Tungsten (3,200K) lux @16ft/5m, Flood 49°: 126
      • CRI: 97
      • TLCI: 97

        Operational Data
      • Focus adjustment: wire focus mechanism on teflon bushing
      • Dimming control: PWM with 3 frequency presets, 0-100% continuously adjustable
      • Local control: single dial (dimming and CCT) and keypad controller with backlit LCD display
      • Control connections: 5-Pin XLR in and through, Mini-USB
      • DMX control: dimming and CCT, 8-bit and 16-bit
      • RDM control: DMX setup, hour counter, temperature
      • Fan: high efficiency convection, super silent fan with 3 speed presets
      • Software [Mini-USB]: fixture status, firmware upgrade through PC
      • Ambient operating temperature: 0° - 40°C / 32°-104°F
      • Estimated LED lifetime: 50,000 hrs

        Mechanical Data
      • Mounting: Standard yoke with Baby Pin [16mm / 5/8"]
      • Weight: 3.5kg / 7.72lb
      • Tilt angle: +/- 90°
      • Barndoor diameter: 168mm / 6.6"
      • Safety mesh: Stainless steel 168mm / 6.6"

        Electrical
      • Nominal power draw: 60W maximum
      • Power supply: Integrated, universal
      • Mains input: 80 - 260 Vac, 50 - 60 Hz, autosensing
      • Power connection: powerCON TRUE 1 in
      • IP rating: IP20

    • Item Includes:

      • 1x LCD graphic display and on-board control panel
      • 1x 5-pin RDM-DMX in connector
      • 1x Standard yoke with 5/8" (16mm) Baby Pin
      • 1x PowerCON in connector
      • 1x Built-in universal power supply

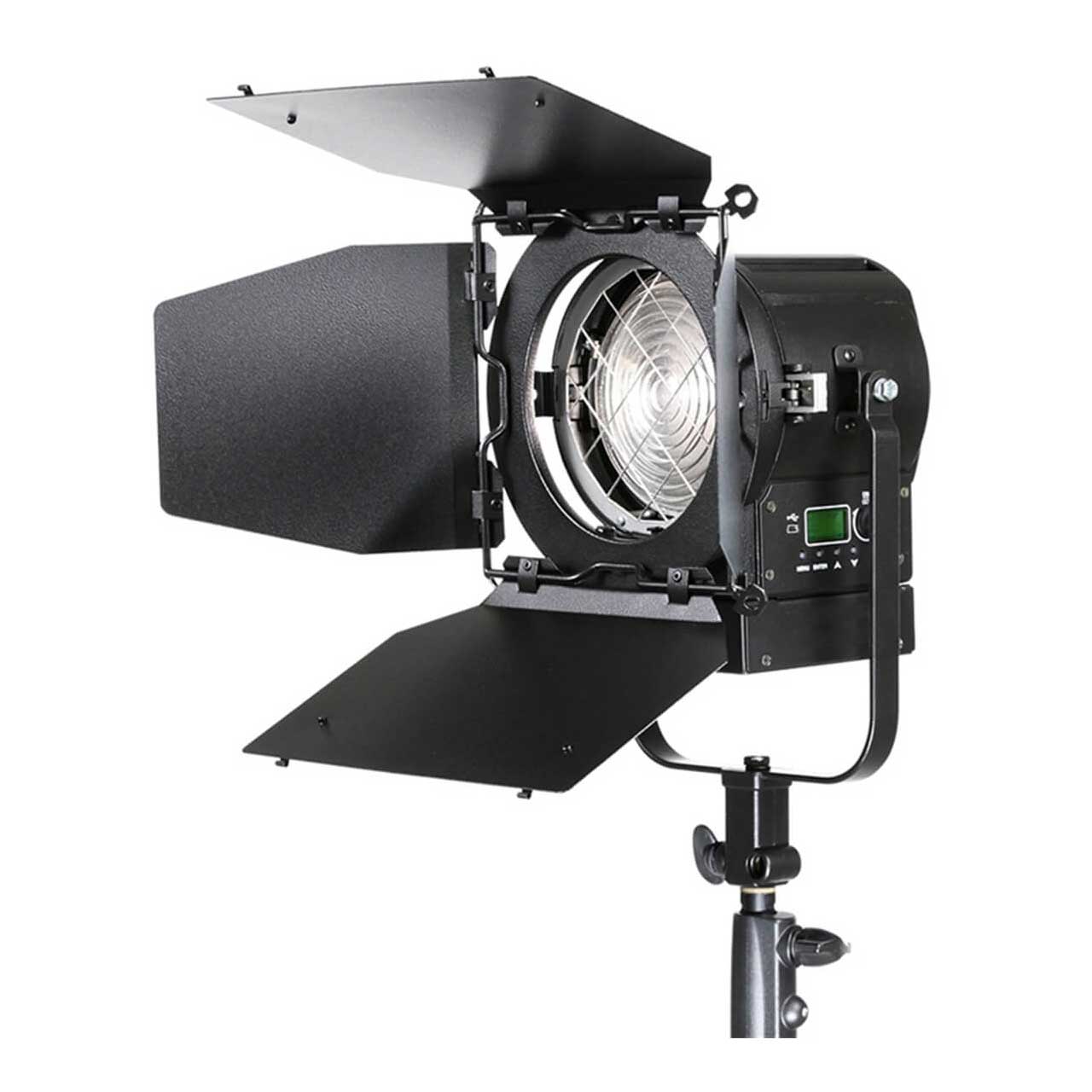

      • 1x 4-leaf rotating barndoor Ø 6.6" (168mm)
      • 1x 10ft (3m) US powerCON True 1 power cable
      • 1x Gel frame Ø 6.6" (168mm)

    • Warranty:

      • 2 Years

    • GTIN:

      5060896401225
