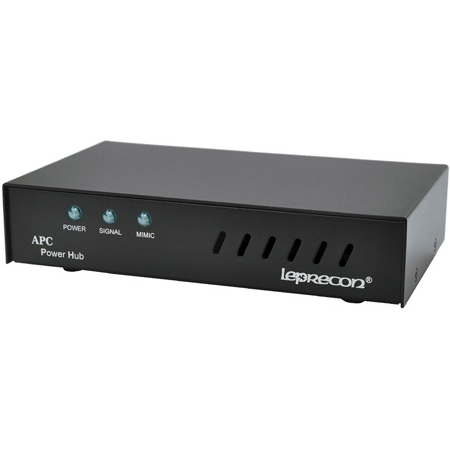

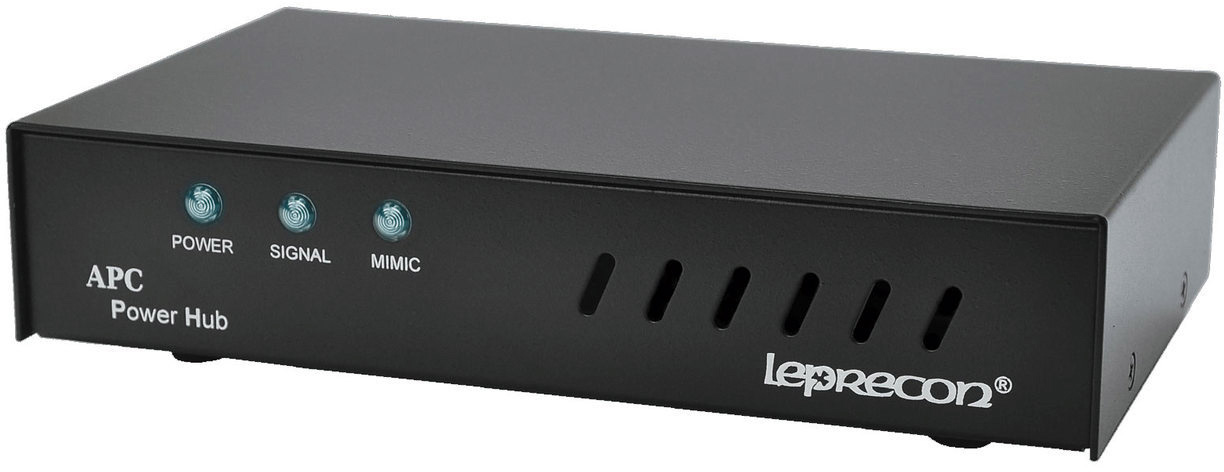

Leprecon 90-03-6150 APC Power Hub - for Leprecon APC Wall Panels

ITEM #: LPRC-90-03-6150 MFG #: 90-03-6150

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the LPRC-90-03-6150

90-03-6150 - Overview

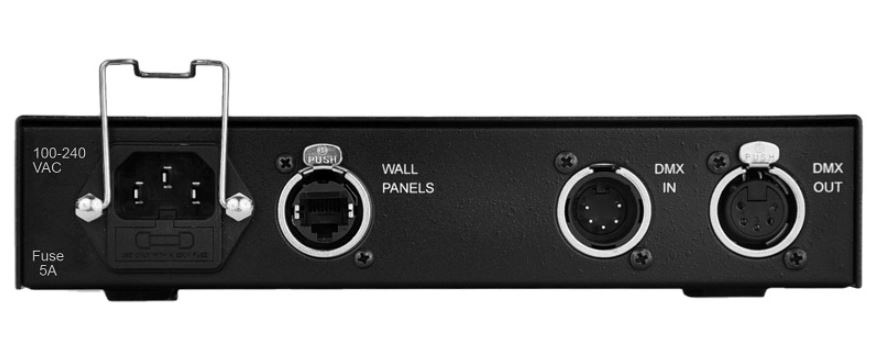

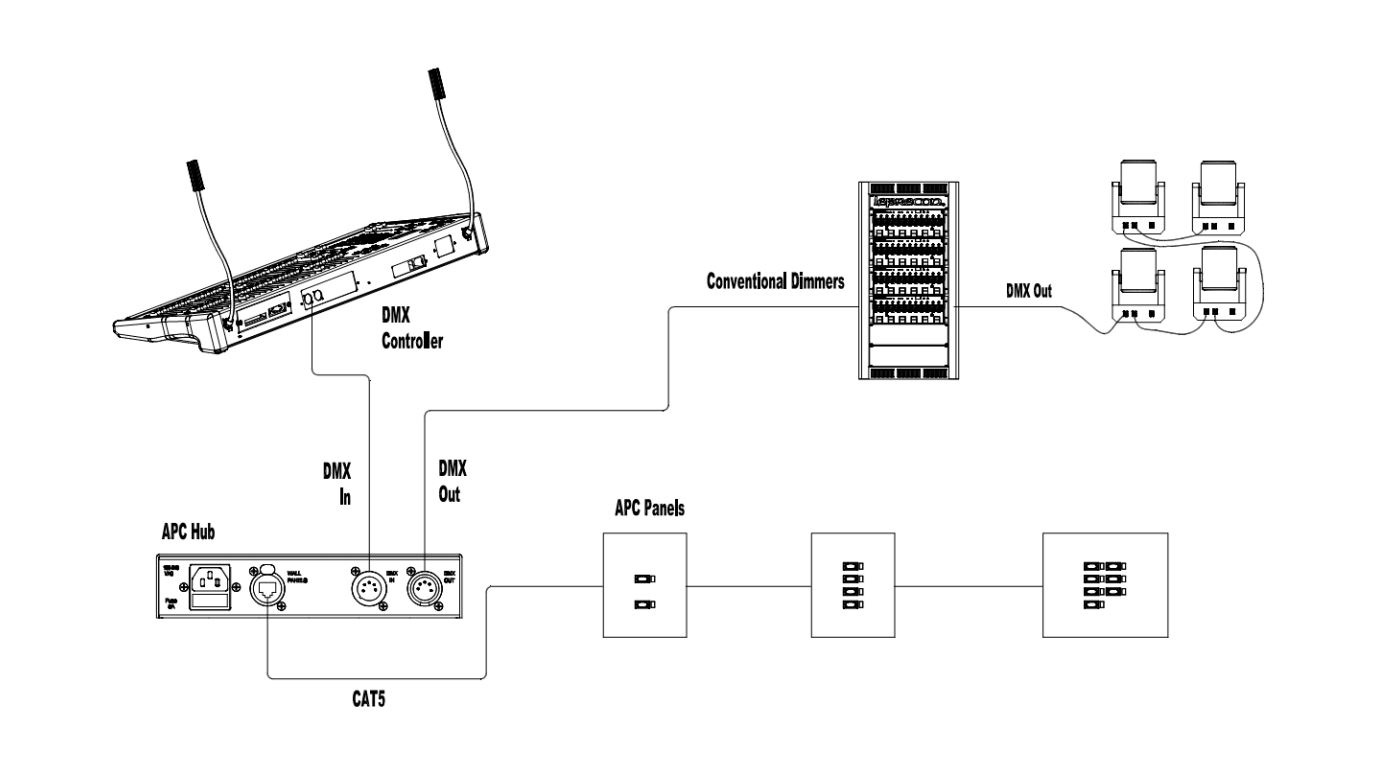

When used with Leprecon APC wall panels, the APC Hub provides a complete solution for integrating panels with a DMX system. The Hub provides DC power, DMX in and out, and connections to the installed APC panels.

  • Features:

    • Provide DC power for up to 10 APC panels
    • Provides isolation and buffering for system fixtures
    • Strips alternate start codes from the data stream before sending it to the system
    • Re-time the DMX signal for best compatibility with non-compliant devices


  • Specifications:

    • Dimensions (W x H x D): 8.125" x 1.90" x 4.875"


  • Warranty:

    • 2 Year
