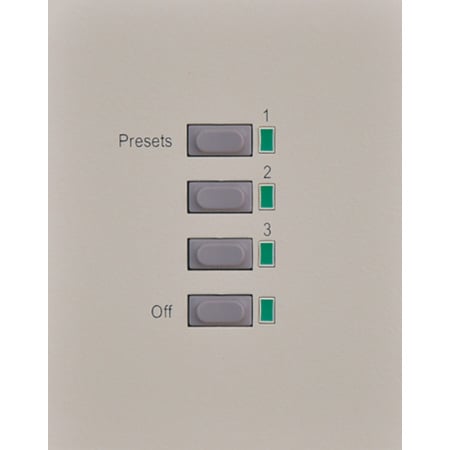

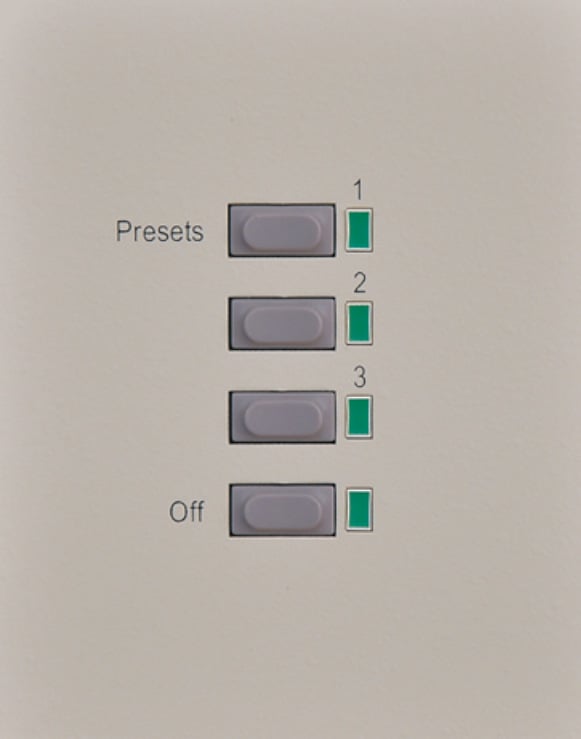

Leprecon 90-03-6152 APC-3P 3 Button Preset with Off DMX In/Out RJ45

Manufacturer: Leprecon Lighting

Item #: LPRC-90-03-6152   •   MFG #: 90-03-6152



List Price:$459.08
Our Price:$390.37

free ship


Availability:
More on the way, usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.



    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    The Leprecon APC-3P ACP Series (Architectural Panel Control) system is designed to provide a solution for integrating architectural and theatrical lighting control into a single DMX-based system. The APC panels incorporate a clean, low profile design that will blend into any environment. APC components are easy to install, wire and configure.

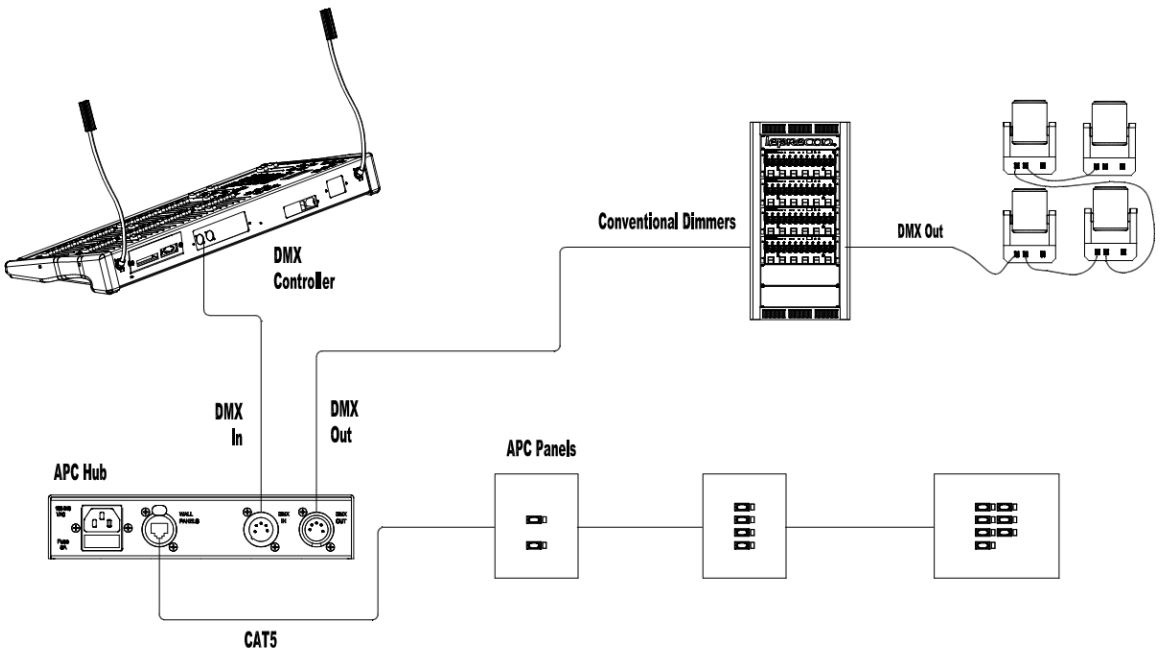

    When used with Leprecon APC wall panels, the APC Hub provides a complete solution for integrating panels with a DMX system. The Hub provides DC power, DMX in and out, and connections to the installed APC panels. APC Hub uses 5 pin XLR connectors as required by the DMX standard for data connections. The output from the Hub to the DMX dimming and fixtures is isolated and buffered.

    Applications include restaurants, houses of worship, schools, theatres and meeting rooms.


    • Features

      • Direct DMX output
      • Up to 12 programmable scenes of 512 channels
      • Panels can be disabled when console is in use
      • Simple interconnect using CAT5 cabling
      • Programmable fade time for each preset
      • Single programmable blackout fade time
      • Provides DC power for up to 10 APC panels
      • Provides isolation and buffering from the console and panel controls
      • Strips alternate start codes from the data stream before sending it to the system
      • Re-time the DMX signal for best compatibility with non-compliant devices

    • Specifications

      • Dimensions(W x H x D): 8.12 inch x 1.90 inch x 4.87 inch
      • 3 Button with Off
      • 3.59" Outside Panel Width
      • 1 Gang
