Leader LV7300-SER25 Multi SDI Zen Rasterizer Option adding Focus Assist - High Sensitivity Focus Detection Display

ITEM #: LR-LV7300-SER25 MFG #: LV7300-SER25

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

This item is custom made. Ordering this product requires written authorization. Please contact a sales engineer at 1-800-522-2025 for details.

Availability: Software Download
iAvailability Description Popup
  • The link of this software download is generated by the brand manufacturer. Please allow processing time usually within 24 hours.
  • This item is not returnable. See Terms & Conditions for details.

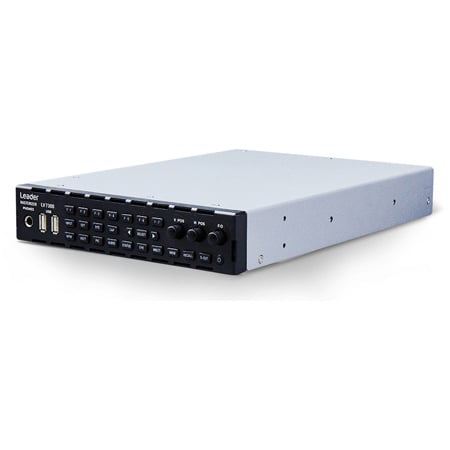

LV7300-SER25 - Overview

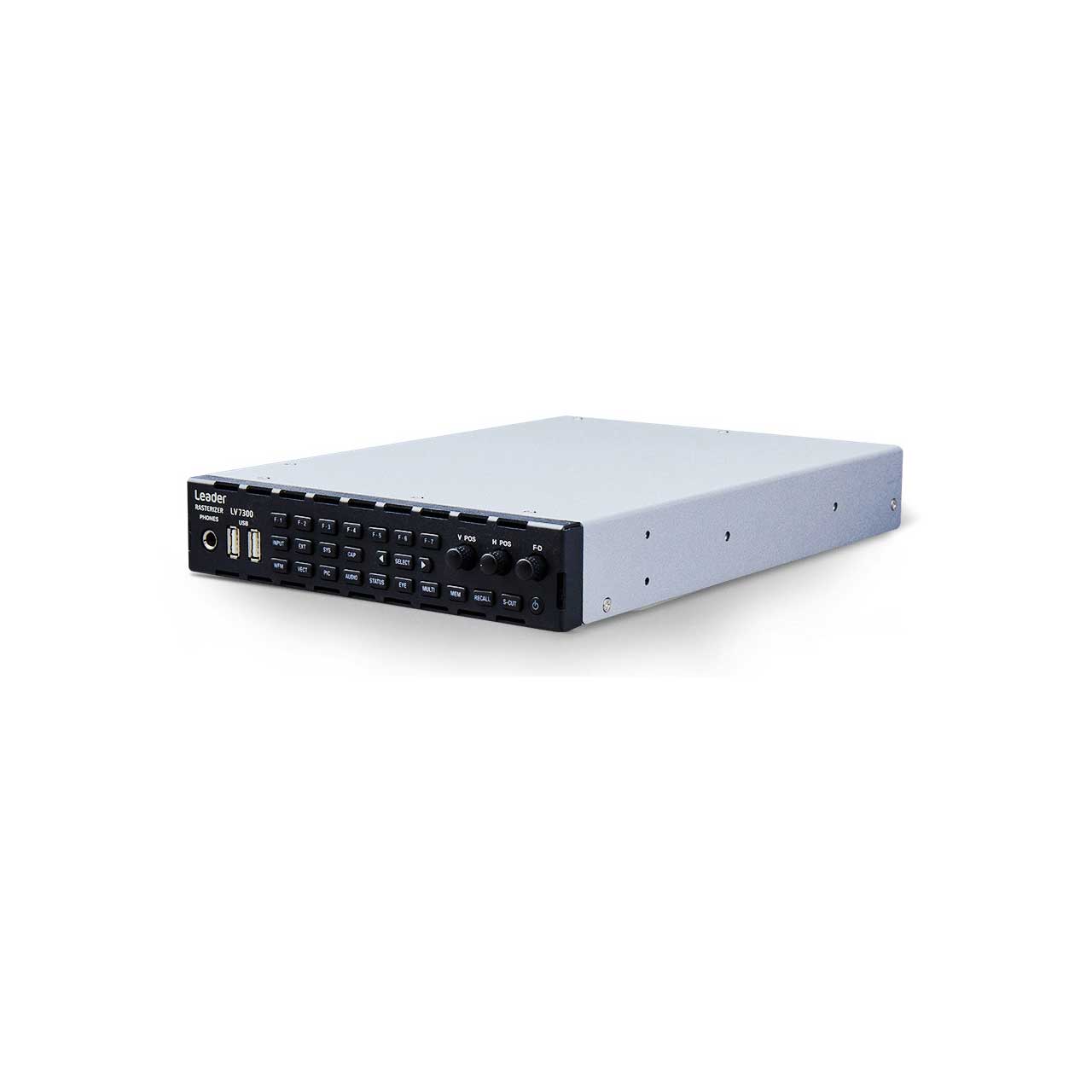

The Leader LV7300 is a space-saving, compact waveform monitor specialized for SD-SDI video signals. The LV7300 is a 1U half rack size rasterizer sold seperately. It is compact but supports eye pattern measurement up to 12 G-SDI.

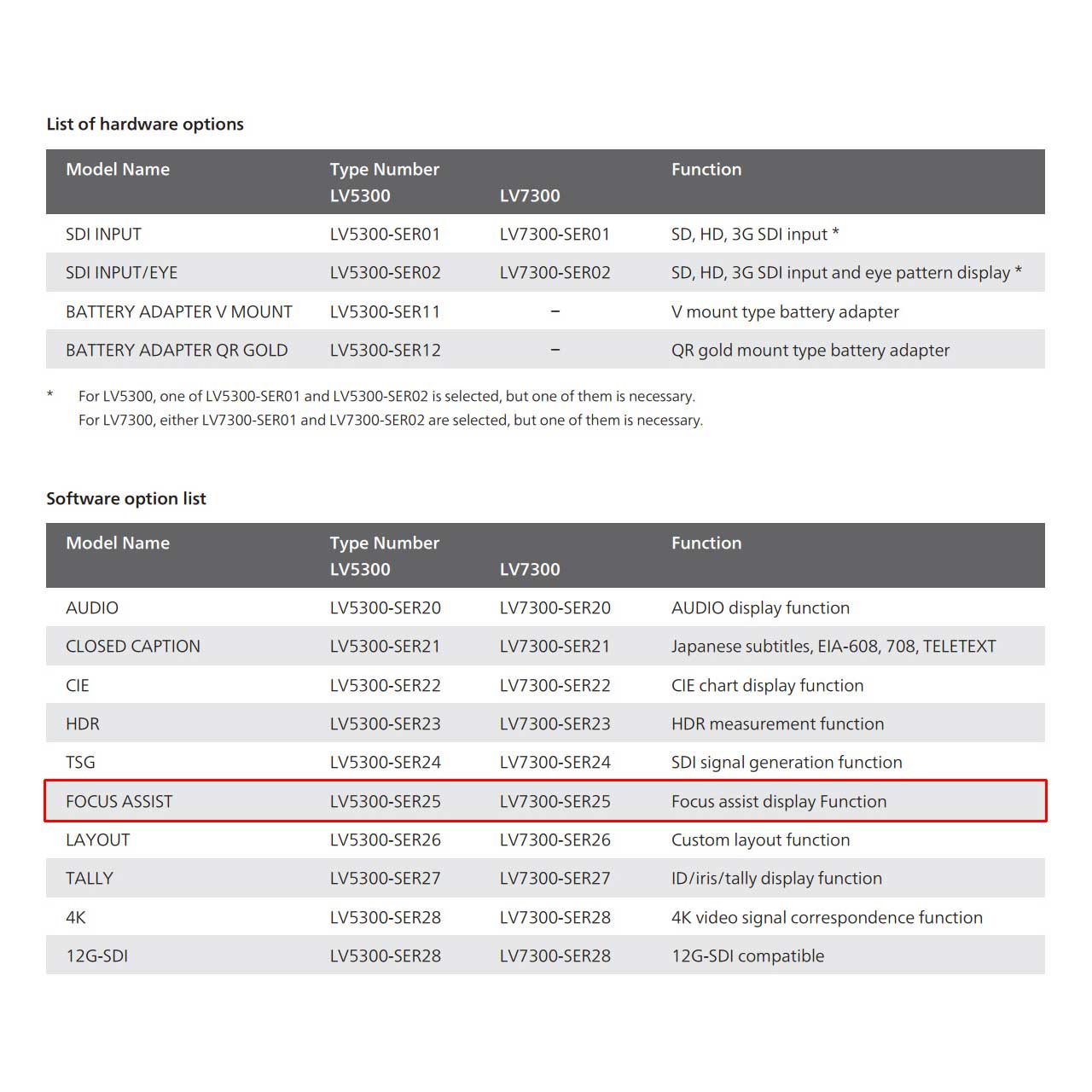

LV7300-SER25 adds Focus assist function for LV7300-SER01 or LV7300-SER02

Leader LV7300-SER25 is a focus detection function realizing a new algorithm based on nonlinear super resolution technology. The focus can be detected with high sensitivity even with low-contrast images, which were conventionally difficult to detect. In addition, sensitivity can be selected from 5 levels according to the video scene.

  • Features:

    • Supports various signal inputs
    • Various SDI signals up to 12 G-SDI can be observed/monitored.
    • Audio signals can correspond to SDI embedded voice.

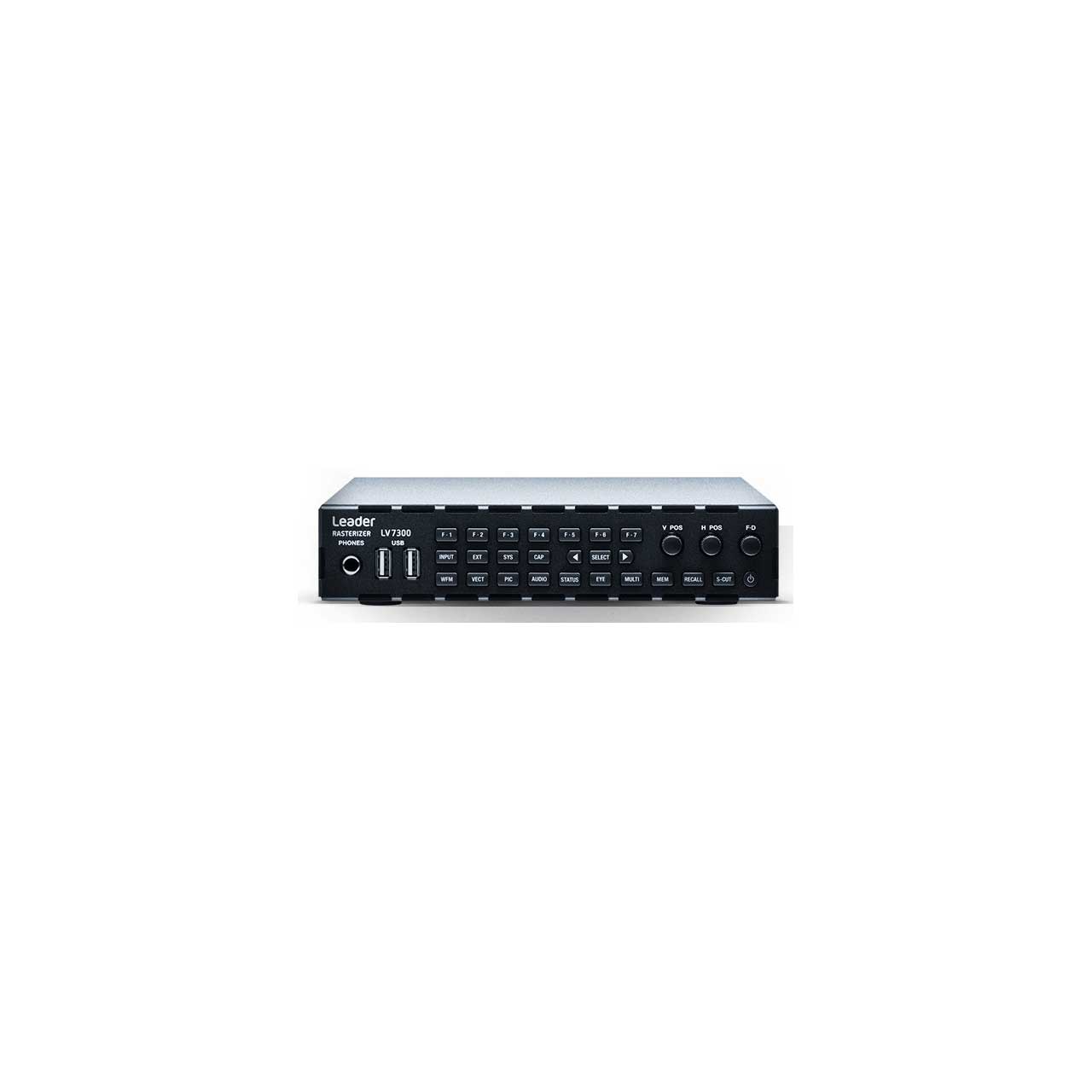

    • Excellent operability
    • With the front panel equipped with key buttons and knobs that follow the operability of conventional models, operation with a
    • USB mouse is also possible. In addition, the LV5300/LV5350 adopt a 7-inch full HD panel with a touch panel function, and the LV7300 can be operated and set intuitively by touch operation by connecting an external LCD adopted touch panel with a USB cable
    • SDI input format
    • SD-SDI, HD-SDI, 3G-SDI, 12G-SDI Single Link is supported

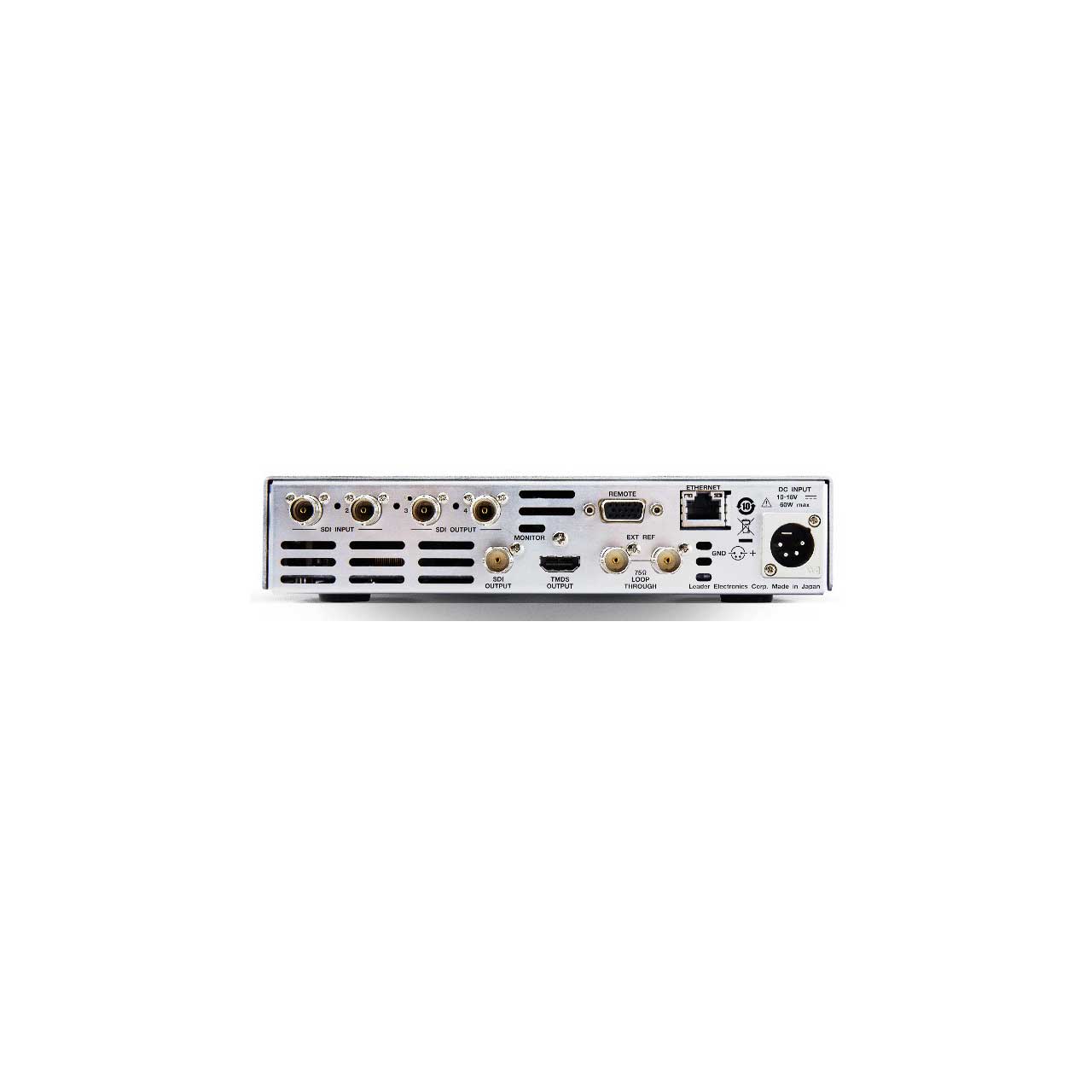

  • Specifications:

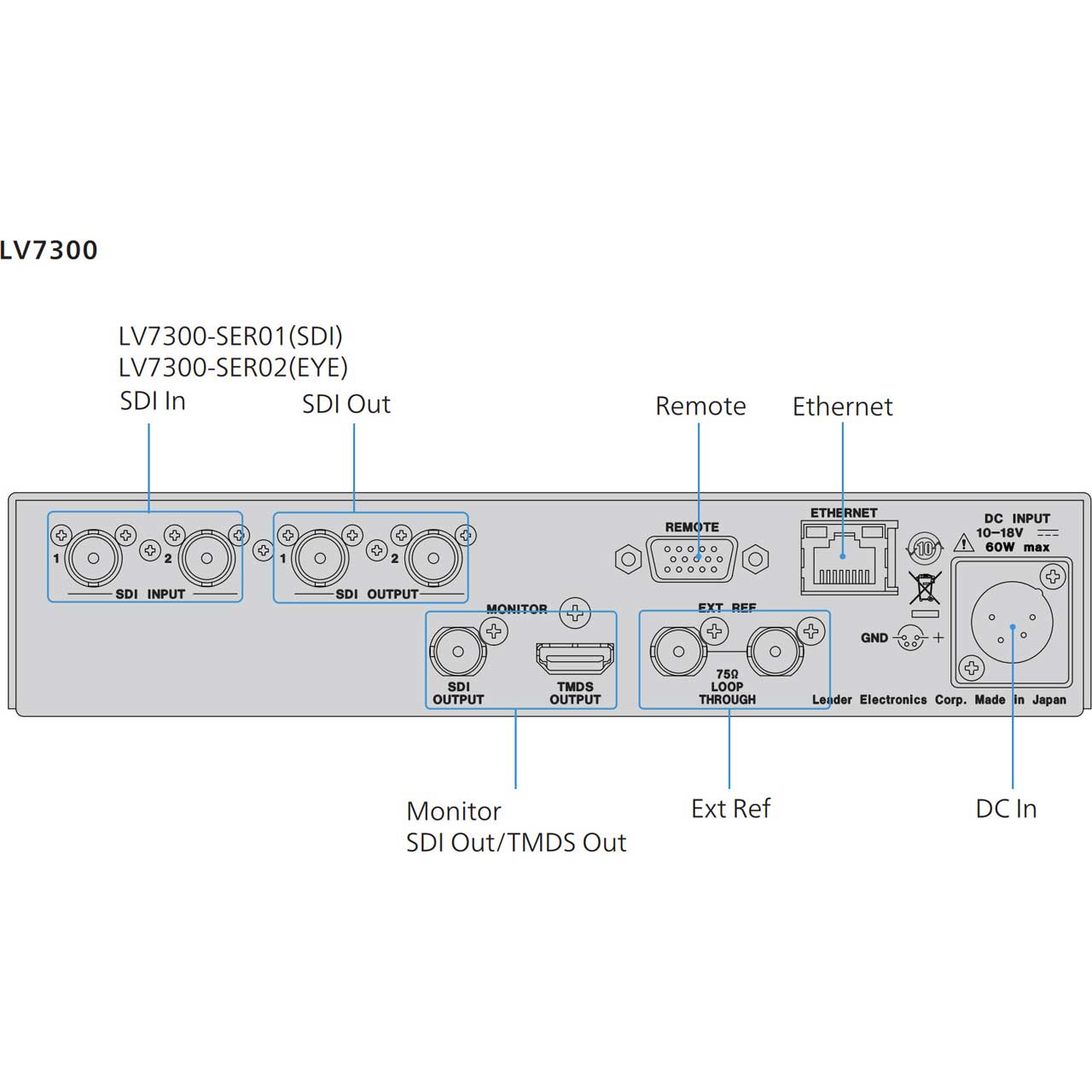

    • External Synchronize Input Terminal
    • Input Terminal: BNC terminal
    • Number of Input Terminals: 1 line, 2 terminals
    • Input Impedance: 15kΩ Passive loop through
    • Input Return Loss: 30dB or more (50kHz - 30MHz, 75Ω termination)
    • Maximum Input Voltage: ±5V (DC + peak AC)
    • Input Signal: Ternary synchronization signal or NTSC/PAL black burst signal; 10 Field ID correspondence
    • Function: SDI reference signal input for video signal waveform display and phase difference display

      Headphone Output Terminal
    • Output Terminal: Standard jack 1 terminal (stereo)
    • Output Signal: On the screen of the displayed audio signal, arbitrary 2 ch (Downmixed Lt, Rt is also acceptable)

      SDI Output Terminal
    • Function: Output screen for SDI monitor
    • Output Terminal: BNC terminal
    • Number of Output Terminals: 1
    • Output Signal: Output liquid crystal display screen is output with HD, 3G-A, 3G-B-DL. 1920x1080 60, 59.94, 50 I/P, YCBCR 4:2:2 (10 bits)

      TMDS Output Terminal
    • Function: The displayed screen is output for HDMI monitor.
    • Output Terminal: HDMI terminal
    • Number of Output Terminals: 1
    • Signal Format: Single Link T.M.D.S
    • DDC Function: Not supported
    • HOT PLUG Detection Function: Not supported
    • Output Signal: Output liquid crystal display screen is output. 1920x1080 60 P, 59.94 P, 50 P

      Control Terminal - USB
    • Terminal Shape: Standard A USB 2.0
    • Number of Terminals: 2
    • Compatible device USB memory, USB mouse, touch panel type monitor

      For Ethernet Terminal Control
    • Approved Standard: IEEE802.3
    • Supported Protocols:TELNET, FTP, SNMP, HTTP, SNTP
    • Input/Output Terminals: RJ-45
    • Function: Remote operation with an external PC or remote controller, File transfer, get status information
    • Types: 10Base-T, 100Base-TX, 1000Base-T

      Remote Terminal
    • Terminal Shape: D Sub 15 pins (female)
    • Number of Terminals: 1
    • Control Signal: LV- TTL level (LOW active)
    • Function Preset: Recall, input signal switching, alarm output, tally
    • Alarm Output: When a format alarm, various errors, fan abnormality, or internal temperature occurs

      General Specifications
    • Operating Temperature Range: 32°F - 104°F (0°C - 40°C)
    • Operating Humidity Range: 85% RH or less (with no condensation)
    • Performance Guarantee Temperature Range: 50°F - 86°F (10°C - 30°C)
    • Usage Environment: Indoors
    • Usable Altitude: up to 2,000m
    • Overvoltage Category: 1
    • Pollution Degree: 2
    • Power Supply: Voltage DC 10V - 18V
    • Dimensions (HxWxD): 1.7" x 8.3" x 11.8" (43mm x 211mm x 300mm)
