Leader LV7300-SER01 Multi SDI Zen Rasterizer option adding SDI Inputs (2)
  • Leader LV7300-SER01 Multi SDI Zen Rasterizer option adding SDI Inputs (2)
  • Leader LV7300-SER01 Multi SDI Zen Rasterizer option adding SDI Inputs (2)
  • Leader LV7300-SER01 Multi SDI Zen Rasterizer option adding SDI Inputs (2)
  • Leader LV7300-SER01 Multi SDI Zen Rasterizer option adding SDI Inputs (2)
  • Leader LV7300-SER01 Multi SDI Zen Rasterizer option adding SDI Inputs (2)

Questions? Ask a Markertek Expert:
800-522-2025 Email

Leader LV7300-SER01 Multi SDI Zen Rasterizer option adding SDI Inputs (2)

Item #: LR-LV7300-SER01   •   MFG #: LV7300-SER01



List Price:$920.00
Our Price:$874.00

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.




    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov

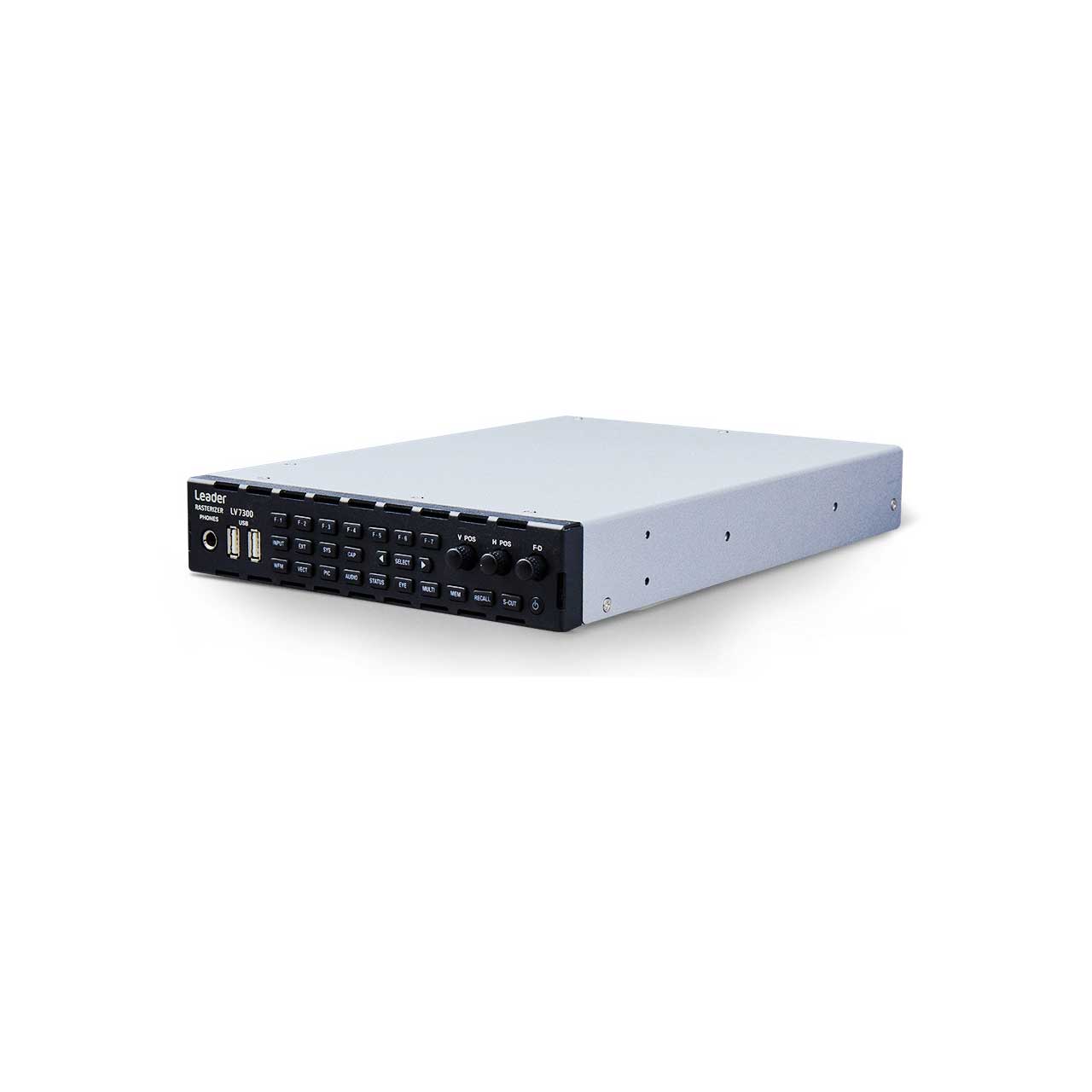

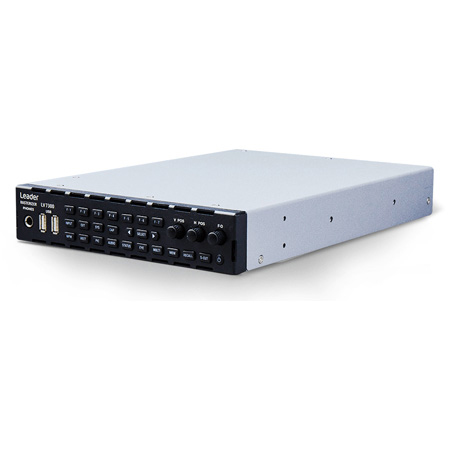

    The Leader LV7300 is a space-saving, compact waveform monitor specialized for SD-SDI video signals. The LV7300 is a 1U half rack size rasterizer sold seperately. It is compact but supports eye pattern measurement up to 12 G-SDI.

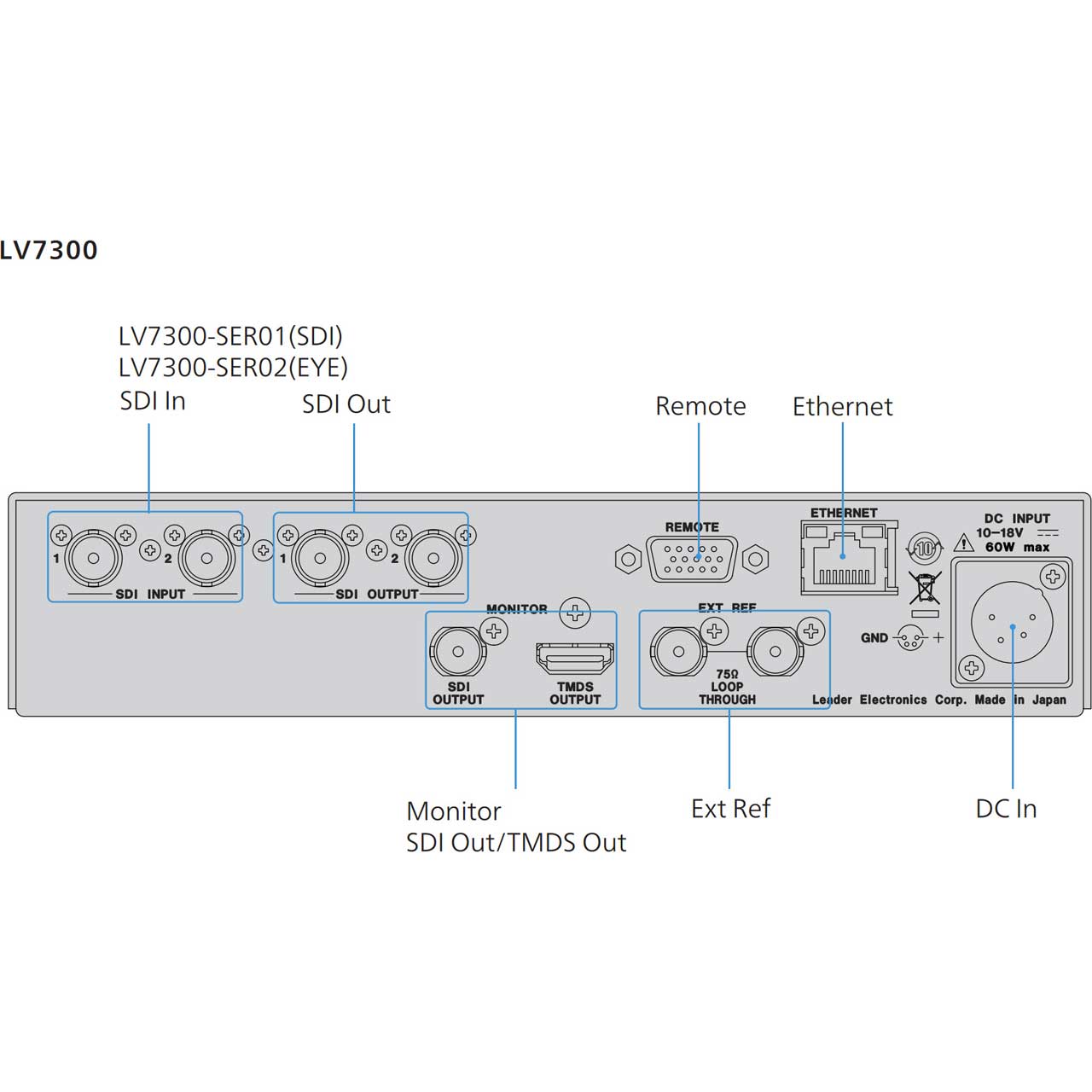

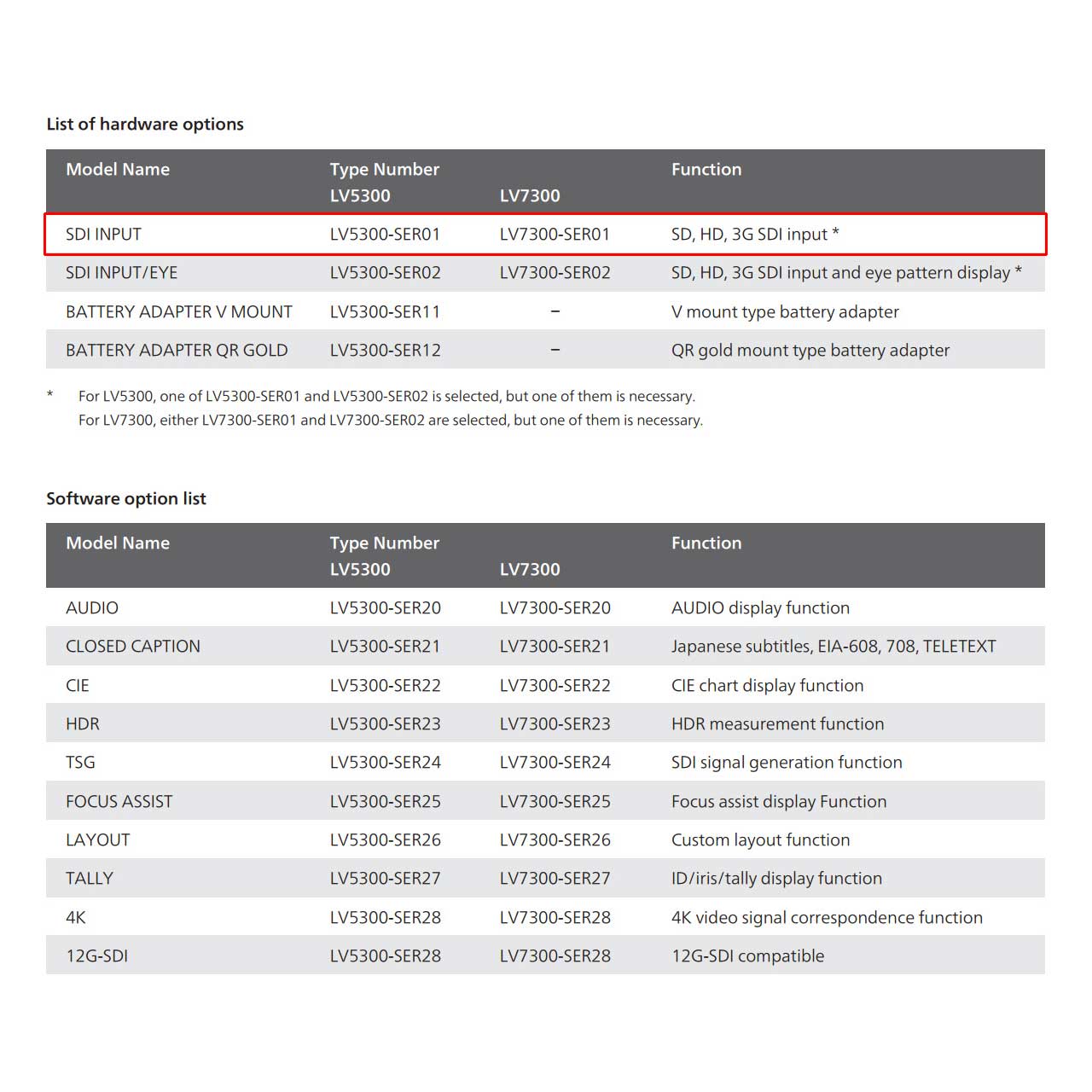

    Leader LV7300-SER01 adds two SDI inputs. The abundant video signal input options enable measurement and monitoring of SDI signals. In terms of audio signals, SDI embedded audio is supported. The supported audio format is L-PCM.

    Excellent operability

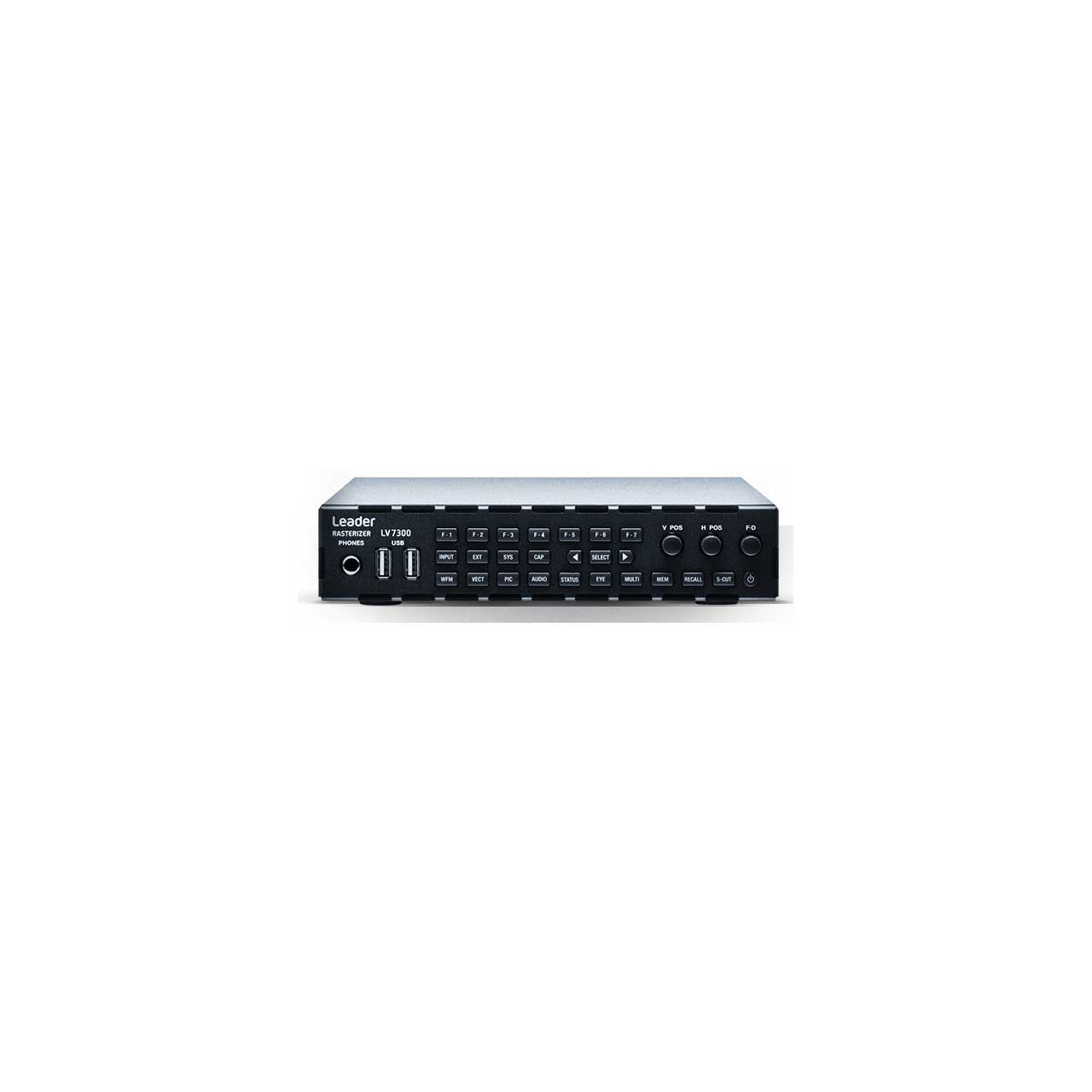

    With the front panel equipped with key buttons and knobs that follow the operability of conventional models, operation with a USB mouse is also possible. In addition, the LV7300 can be operated and set intuitively by touch operation by connecting an external LCD adopted touch panel with a USB cable

    Supports various signal inputs
    It supports SD-SDI, HD-SDI, 3G-SDI, 12G-SDI single link.

    Eye pattern display
    From SD-SDI to 12G-SDI
    In the physical layer measurement of the SDI signal some eye pattern display, jitter display is possible.

    Customizable layout
    Various items such as video signal waveforms, vector waveforms, and pictures of input signals can be laid out in any position with your favorite size.

    SDI signal generation function
    SDI signal generation function can handle from HD-SDI to 12G-SDI.

    HDR
    The HDR signal level monitoring and the level management at the assumed luminance (cd /m2 ) in a display considering OOTF are possible.

    Focus Assist
    Leader developed a new focus detection algorithm based on nonlinear super-resolution technology; accordingly the focus with high sensitivity can be detected even with low-contrast images, which were conventionally difficult to detect.


    • Features

      • Supports various signal inputs
      • Various SDI signals up to 12 G-SDI can be observed/monitored.
      • Audio signals can correspond to SDI embedded voice.
      • Excellent operability
      • With the front panel equipped with key buttons and knobs that follow the operability of conventional models, operation with a
      • USB mouse is also possible. In addition, the LV5300/LV5350 adopt a 7-inch full HD panel with a touch panel function, and the LV7300 can be operated and set intuitively by touch operation by connecting an external LCD adopted touch panel with a USB cable
      • SDI input format
      • SD-SDI, HD-SDI, 3G-SDI, 12G-SDI Single Link is supported

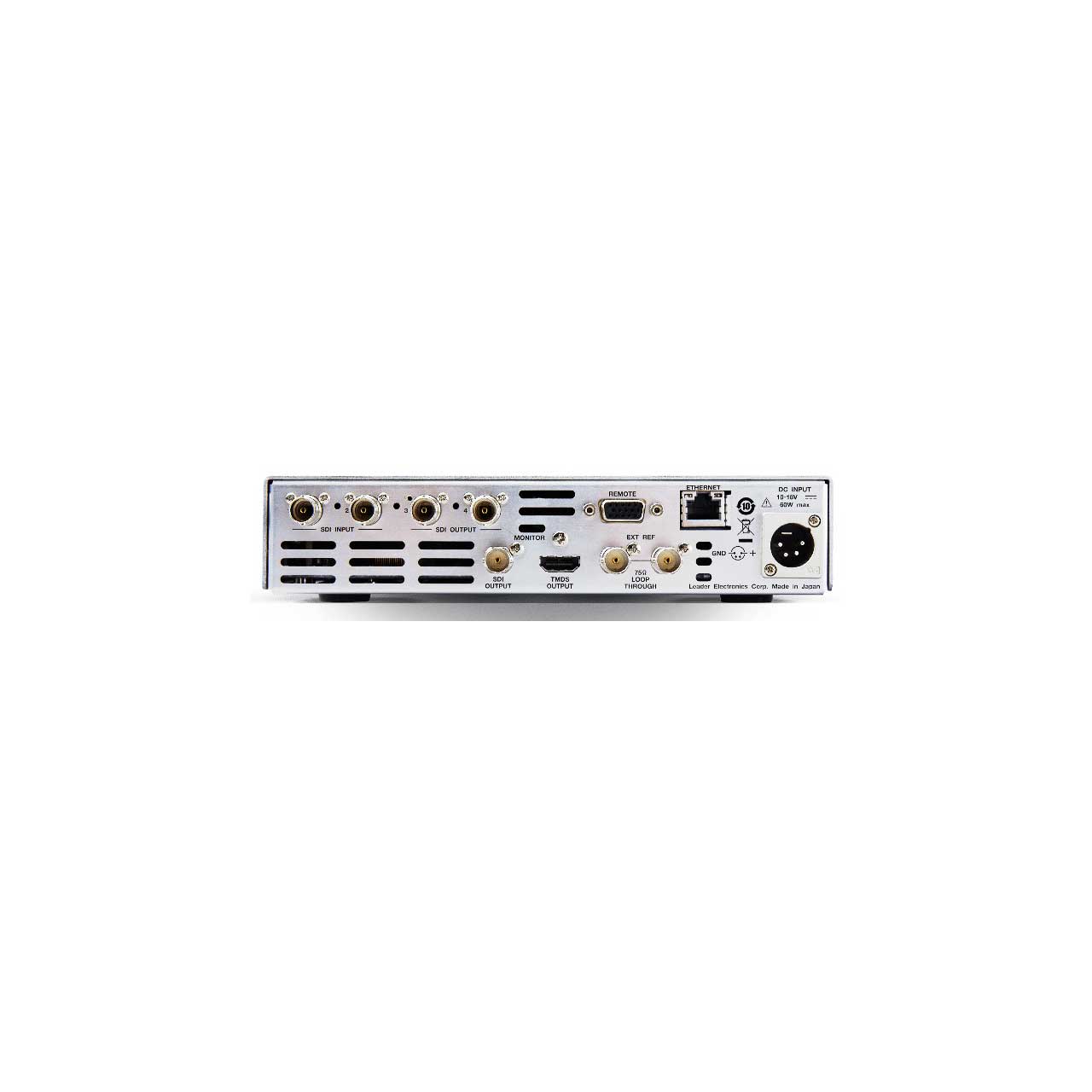

    • Specifications

      • External Synchronize Input Terminal
      • Input Terminal: BNC terminal
      • Number of Input Terminals: 1 line, 2 terminals
      • Input Impedance: 15kΩ Passive loop through
      • Input Return Loss: 30dB or more (50kHz - 30MHz, 75Ω termination)
      • Maximum Input Voltage: ±5V (DC + peak AC)
      • Input Signal: Ternary synchronization signal or NTSC/PAL black burst signal; 10 Field ID correspondence
      • Function: SDI reference signal input for video signal waveform display and phase difference display

        Headphone Output Terminal
      • Output Terminal: Standard jack 1 terminal (stereo)
      • Output Signal: On the screen of the displayed audio signal, arbitrary 2 ch (Downmixed Lt, Rt is also acceptable)

        SDI Output Terminal
      • Function: Output screen for SDI monitor
      • Output Terminal: BNC terminal
      • Number of Output Terminals: 1
      • Output Signal: Output liquid crystal display screen is output with HD, 3G-A, 3G-B-DL. 1920x1080 60, 59.94, 50 I/P, YCBCR 4:2:2 (10 bits)

        TMDS Output Terminal
      • Function: The displayed screen is output for HDMI monitor.
      • Output Terminal: HDMI terminal
      • Number of Output Terminals: 1
      • Signal Format: Single Link T.M.D.S
      • DDC Function: Not supported
      • HOT PLUG Detection Function: Not supported
      • Output Signal: Output liquid crystal display screen is output. 1920x1080 60 P, 59.94 P, 50 P

        Control Terminal - USB
      • Terminal Shape: Standard A USB 2.0
      • Number of Terminals: 2
      • Compatible device USB memory, USB mouse, touch panel type monitor

        For Ethernet Terminal Control
      • Approved Standard: IEEE802.3
      • Supported Protocols:TELNET, FTP, SNMP, HTTP, SNTP
      • Input/Output Terminals: RJ-45
      • Function: Remote operation with an external PC or remote controller, File transfer, get status information
      • Types: 10Base-T, 100Base-TX, 1000Base-T

        Remote Terminal
      • Terminal Shape: D-Sub 15 pins (female)
      • Number of Terminals: 1
      • Control Signal: LV- TTL level (LOW active)
      • Function Preset: Recall, input signal switching, alarm output, tally
      • Alarm Output: When a format alarm, various errors, fan abnormality, or internal temperature occurs

        General Specifications
      • Operating Temperature Range: 32°F - 104°F (0°C - 40°C)
      • Operating Humidity Range: 85% RH or less (with no condensation)
      • Performance Guarantee Temperature Range: 50°F - 86°F (10°C - 30°C)
      • Usage Environment: Indoors
      • Usable Altitude: up to 2,000m
      • Overvoltage Category: 1
      • Pollution Degree: 2
      • Power Supply: Voltage DC 10V - 18V
      • Dimensions (HxWxD): 1.7" x 8.3" x 11.8" (43mm x 211mm x 300mm)
