Luxul AP-3064 Wi-Fi 6 AX3600 4x4 Multi-Gig Dual Band Access Point - PoE Powered

ITEM #: LUXU-AP-3064 MFG #: AP-3064

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$855.75

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


AP-3064 - Overview

The Luxul AP-3064 provides 802.11ax Wi-Fi 6 network capabilities, ideal for networks requiring greater device traffic capacity, higher data transfer speeds, and broader coverage with lower latency. Four dual-band antennas produce a high-powered signal to maximize signal strength across the network and a 2.5 GbE connection ensures greater data transfer capabilities.

This access point is ideal for:

- Higher traffic network environments
- Streaming content and other high data transfer speed applications
- Networks requiring captive portal or walled garden
- Customers with previously installed Luxul Wi-Fi 5 APs - easily swapped out

  • Features:

    • 4x4 concurrent dual-band wireless
    • Concurrent 2.4GHz and 5GHz with beamforming

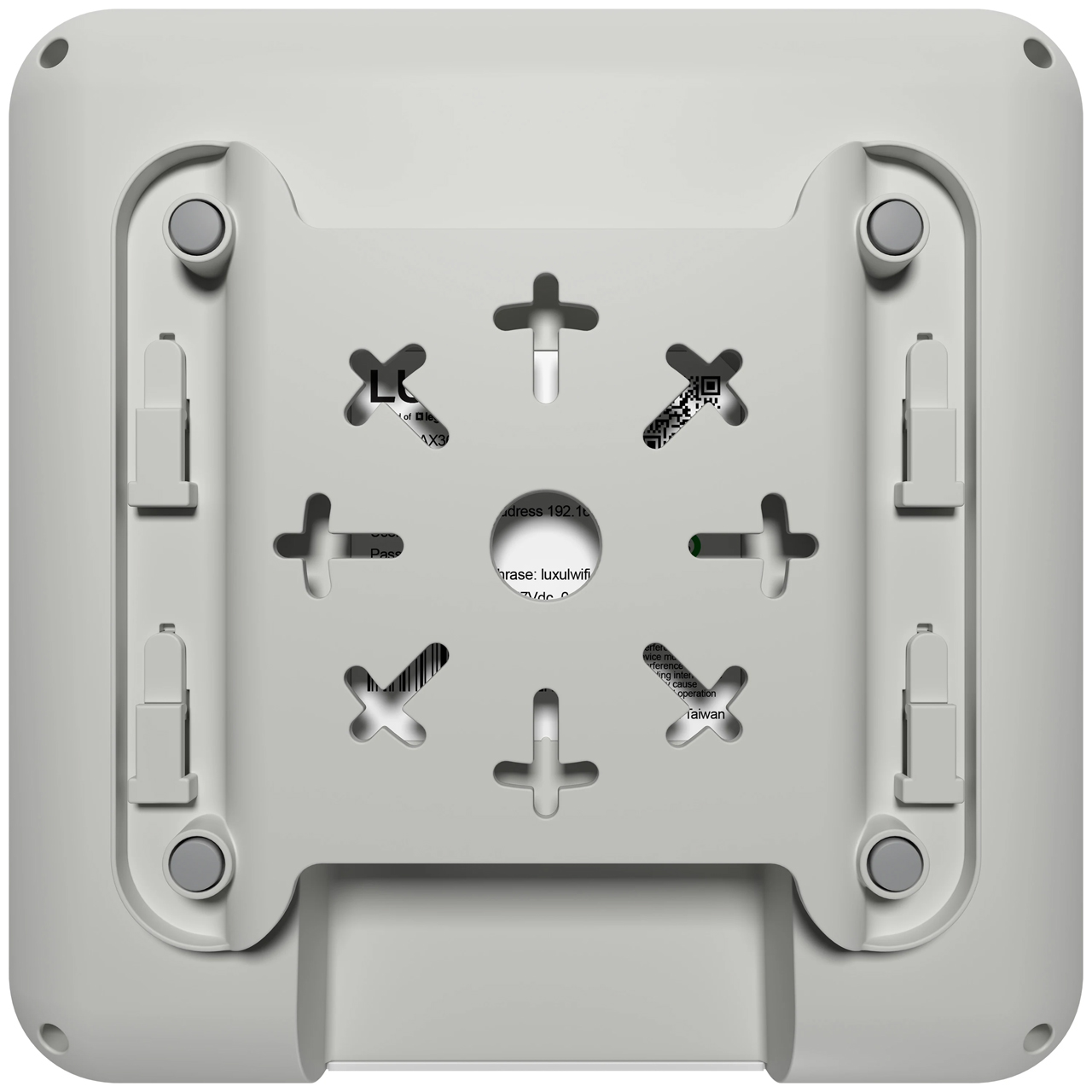

    • Flexible mounting plate design for easy precision install
    • 2.5 Gbps RJ45 PoE+ LAN port (30W)
    • VLAN support for creating a secure guest network
    • Captive Portal / Walled Garden capable
    • Free Network Design Service
    • 4x4 Mu-MIMO Output
    • WPA2, WPA3 Network Security Protocols
    • OFDMA Network Access Control
    • Target Wake Time - More efficient use of device battery
    • Three-year limited warranty
    • Free Lifetime Support including US-based phone support

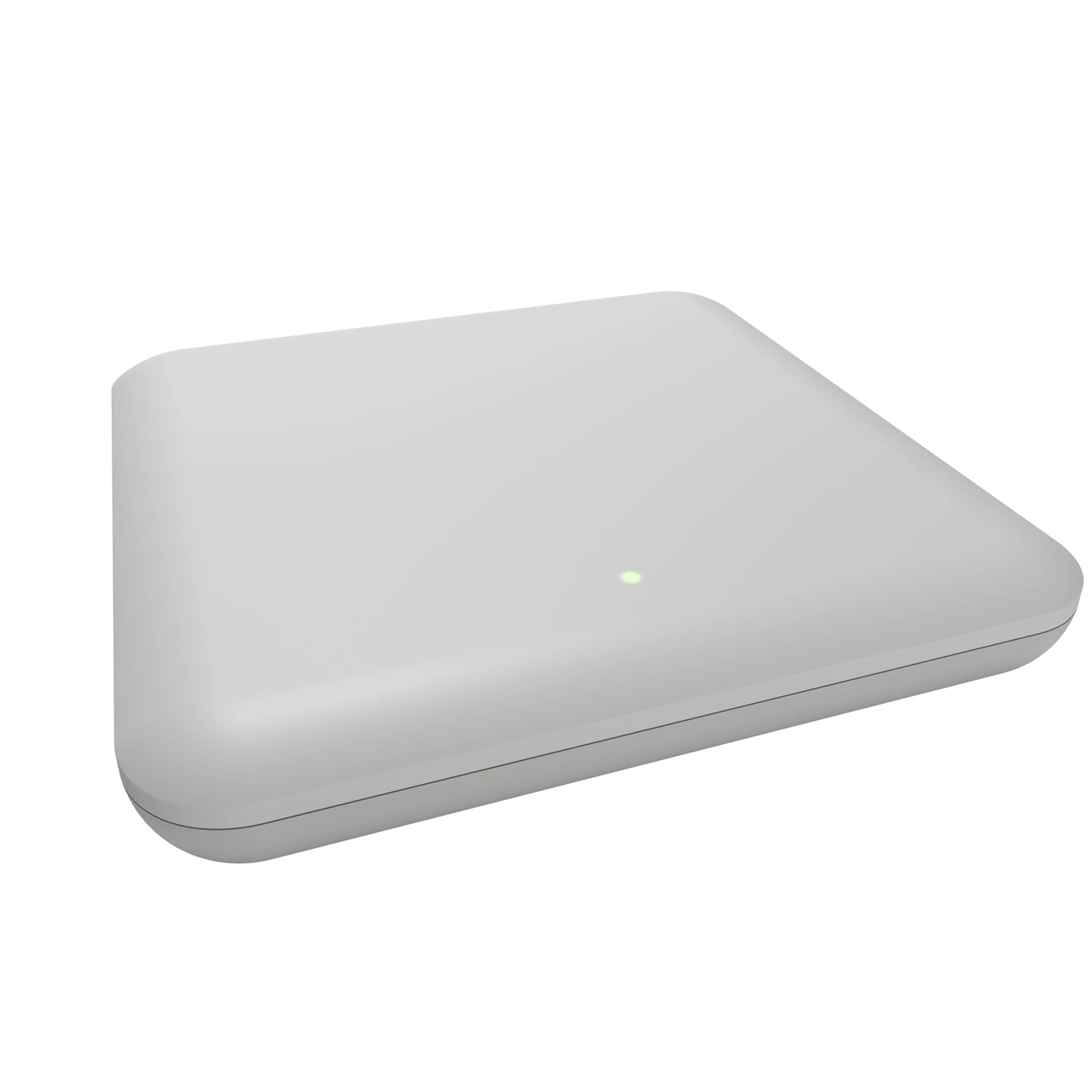

    • LED status light
    • Up to 2 APs can function as repeaters and connect wirelessly to the main network

  • Specifications:

    • Access Point Location: Indoor
    • Connection Type: Wireless
    • Power Cord: US Cord
    • Power Type: PoE
    • Spanning Tree:
      - MSTP
      - RSTP
      - STP
    • VLAN Compliance: 802.1Q
    • Wireless Data Rate:
      - Up to 1200Mbps 24GHz
      - Up to 2400Mbps 5GHz
    • Wireless Frequencies:
      - 2.4 GHz
    • - 5GHz
    • Height: 1.7 in (4.3 cm)
    • Length: 8.86 in (22.5 cm)
    • Operating Temperature: 32° to 104°F (0° to 40°C)
    • Overall Dimensions: 11.4" x 10.9" x 2.9" (289.6 x 276.9 x 73.7 mm)
    • Product Weight: 2.27 lbs (1 kg)
    • Shipping Weight: 3.1 lbs (1.4 kg)
    • Width: 8.86 in (22.5 cm)

      Certifications
    • CB Report
    • FCC
    • IC
    • NDAA 889
    • RoHS
    • TAA

  • Item Includes:

    • 1x AP-3064 4x4 Dual Band Indoor Access Point
    • 1x Mounting Bracket
    • 1x Rubber Adhesive Mounted Feet
    • 1x Drop Ceiling Mounting Clips
    • 1x Quick Install Guide (QIG)
    • 1x Regulatory Documentation

  • Warranty:

    • Three-year limited

  • GTIN:

    0655003923698
